Cylinder Head Assembly
Cylinder Head Bolts

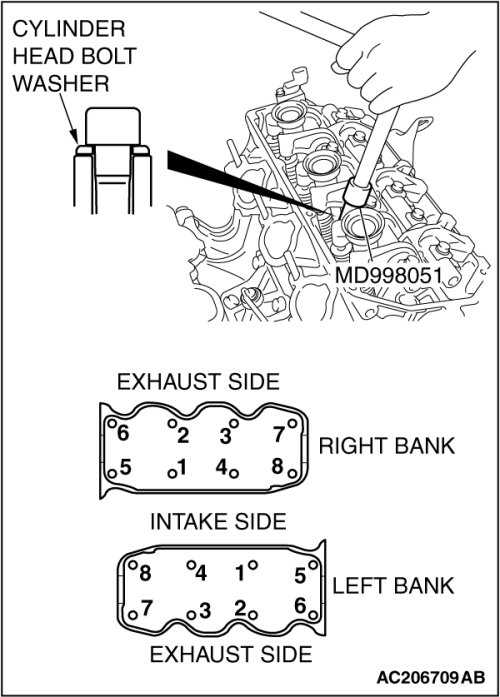

Tighten the bolts to the specified torque in the order shown in the illustration. (in two or three cycles)
Step 1 108 ± 5 Nm (80 ± 3 ft-lb)
Step 2 0 Nm (0 in-lb)
Step 3 108 ± 5 Nm (80 ± 3 ft-lb)
Cylinder Head Gasket Surface Flatness
Standard value 0.03 mm (0.0012 inch)
Limit 0.2 mm (0.007 inch)
Intake Manifold Specifications
Exhaust Manifold Tightening Specifications
Camshaft Gear/Sprocket Specifications
