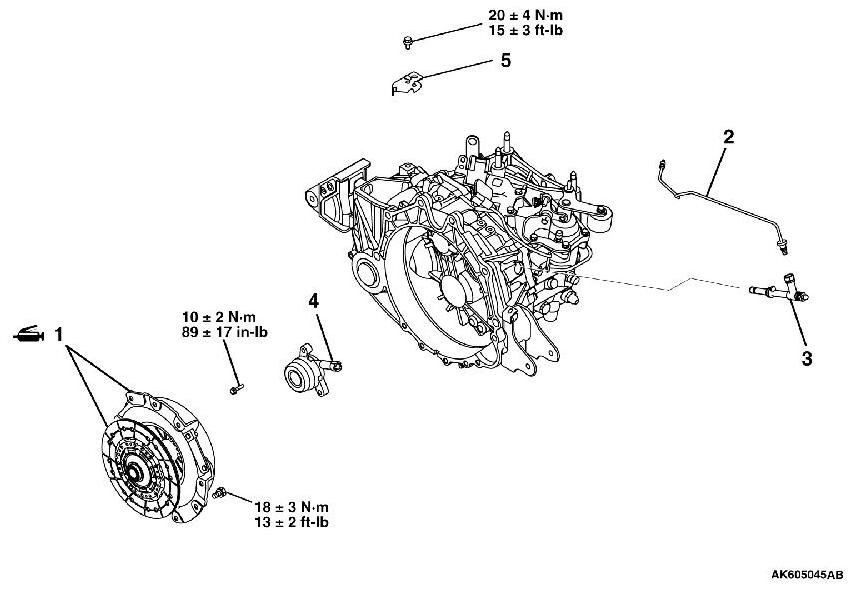

Clutch: Service and Repair

REMOVAL AND INSTALLATION









- MB992059: Clutch disc center guide

INSTALLATION SERVICE POINTS

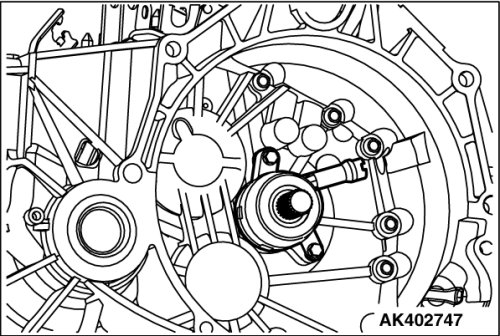

]]A[[ CONCENTRIC SLAVE CYLINDER/CONCENTRIC SLAVE CYLINDER ADAPTER INSTALLATION





1. After setting the concentric slave cylinder to the transaxle case, tighten the flange bolt temporally.





2. Combine the concentric slave cylinder adapter with the concentric slave cylinder.
NOTE:

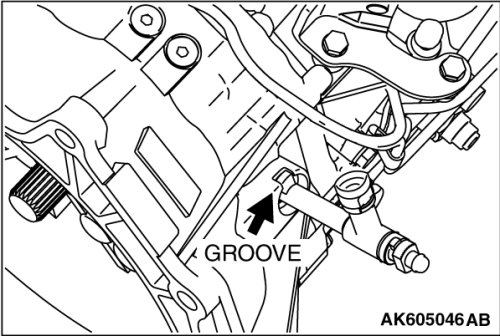

Fix to the groove of the transaxle case certainly.

3. Tighten the flange bolt to the specified torque.
Tightening torque: 10± 2Nm (89± 17 in-lb)


]]B[[ CLUTCH SET INSTALLATION





1. Apply Mitsubishi grease to the clutch disc splines and rub it in the splines with a brush.
Specified grease:

Mitsubishi Part No. 0101011 or equivalent

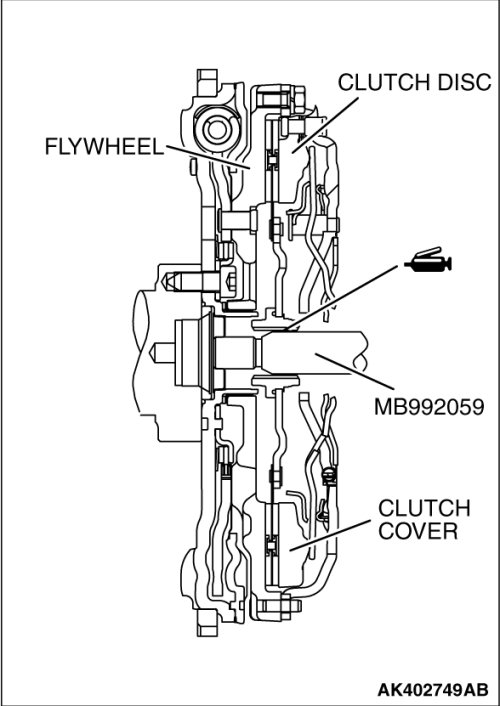

2. Using special tool MB992059 to position the clutch disc on the flywheel.
3. Install the clutch cover onto the flywheel.
