Removal and Replacement

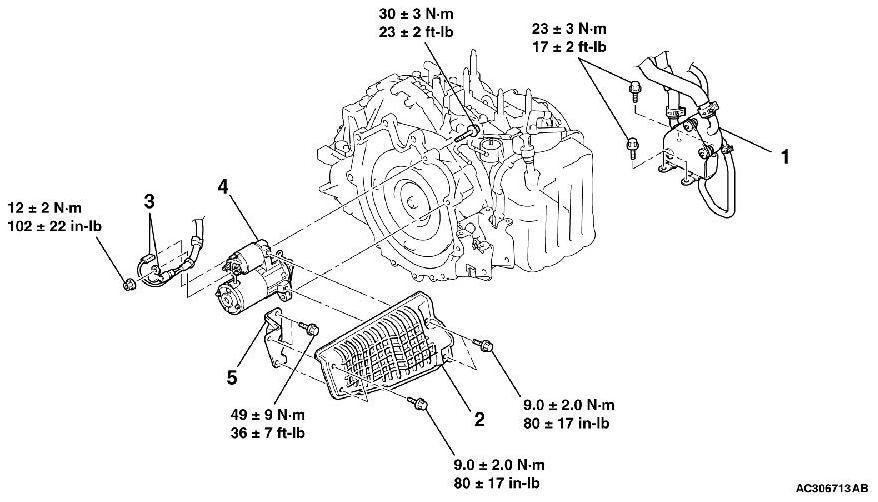

REMOVAL AND INSTALLATION [2.4L ENGINE]REMOVAL SERVICE POINTS[[A]] ATF WARMER (TRANSMISSION FLUID COOLER) AND BRACKET ASSEMBLY REMOVALWith the hose installed, remove the ATF warmer (transmission fluid cooler) and bracket assembly from the transmission case front roll stopper bracket.

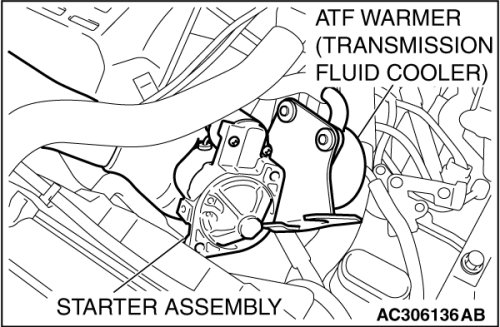

[[B]] STARTER ASSEMBLY REMOVALRemove the starter assembly from the side of ATF warmer (transmission fluid cooler).
