Main Relay (Computer/Fuel System): Service and Repair

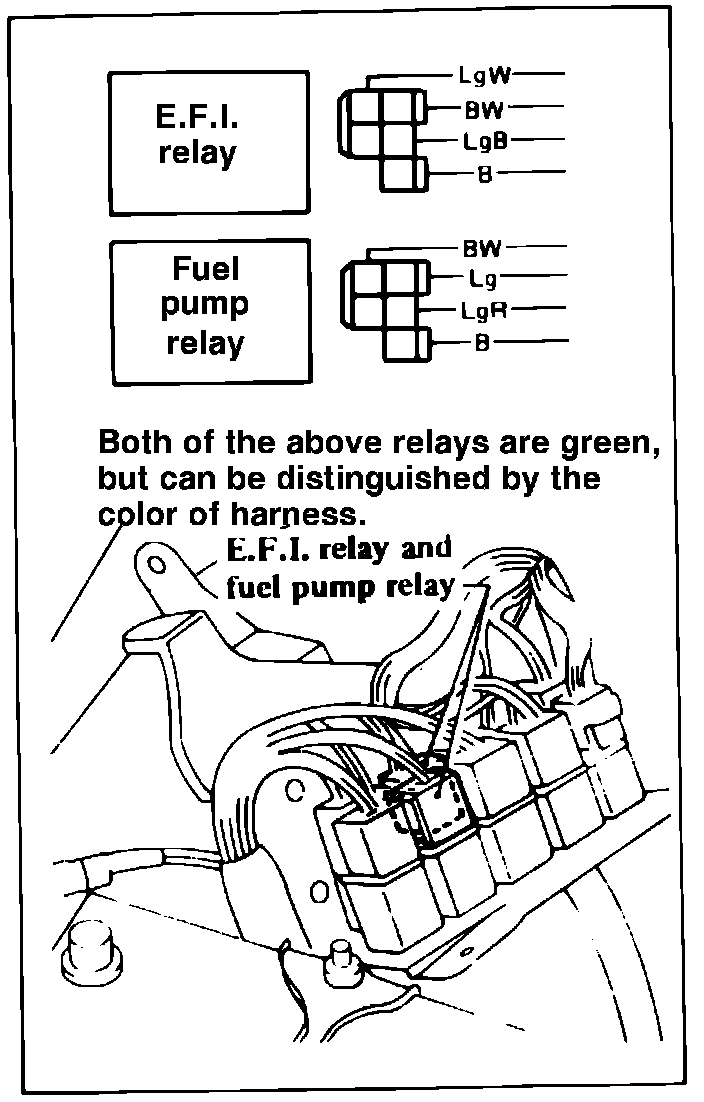

Fig. 84 EFI & fuel pump relay locations.:
Fig. 85 EFI & fuel pump relay locations.:
1.
Disconnect battery cables and remove battery.
2.
Remove relay cover and relay attaching screws,
Figs. 84 and 85. 3.
Disconnect wiring harness connector from relay and remove relay.
4.
To install, reverse procedure.
