System Testing

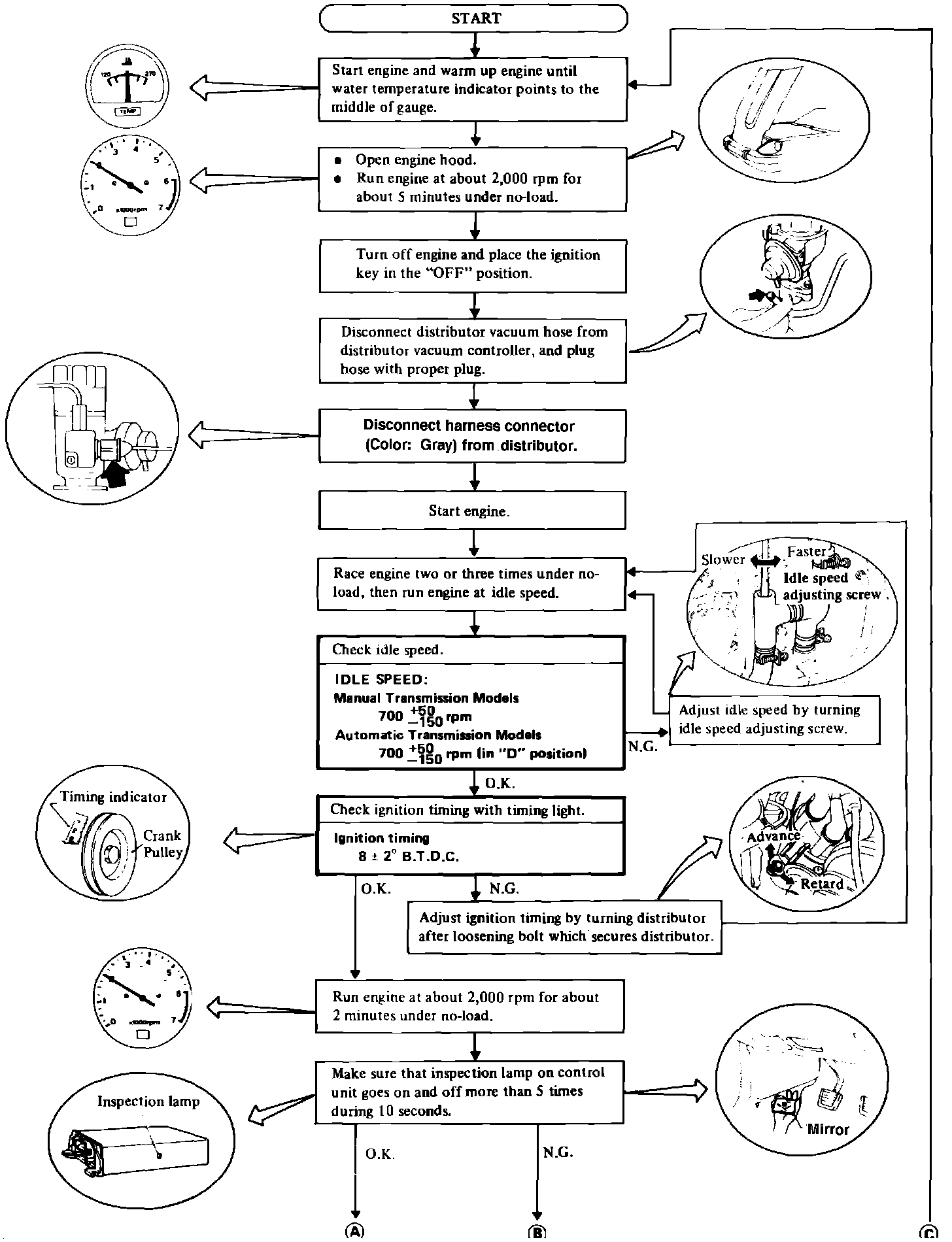

Fig. 3A Testing mixture ratio feedback system:

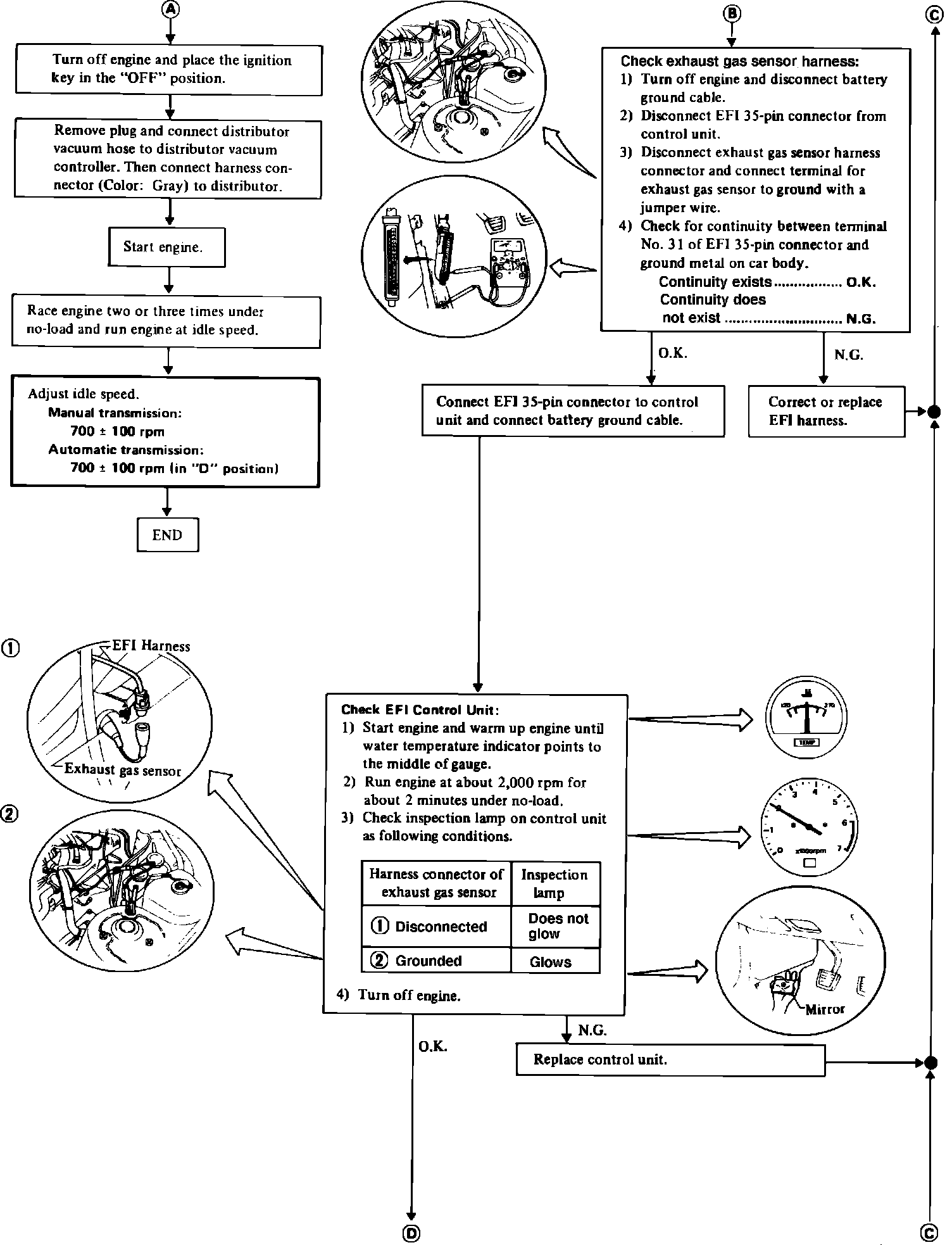

Fig. 3B Testing mixture ratio feedback system:

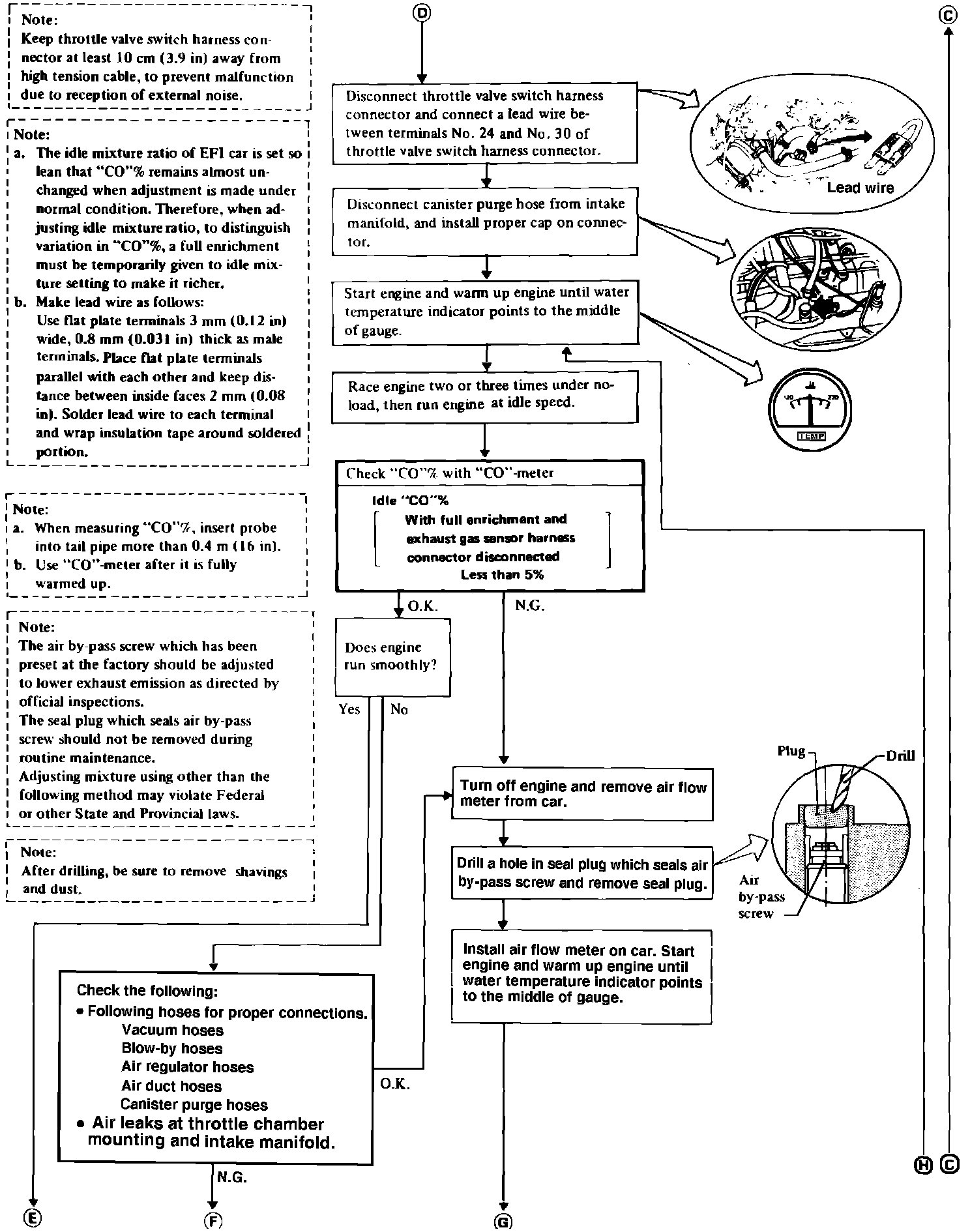

Fig. 3C Testing mixture ratio feedback system:

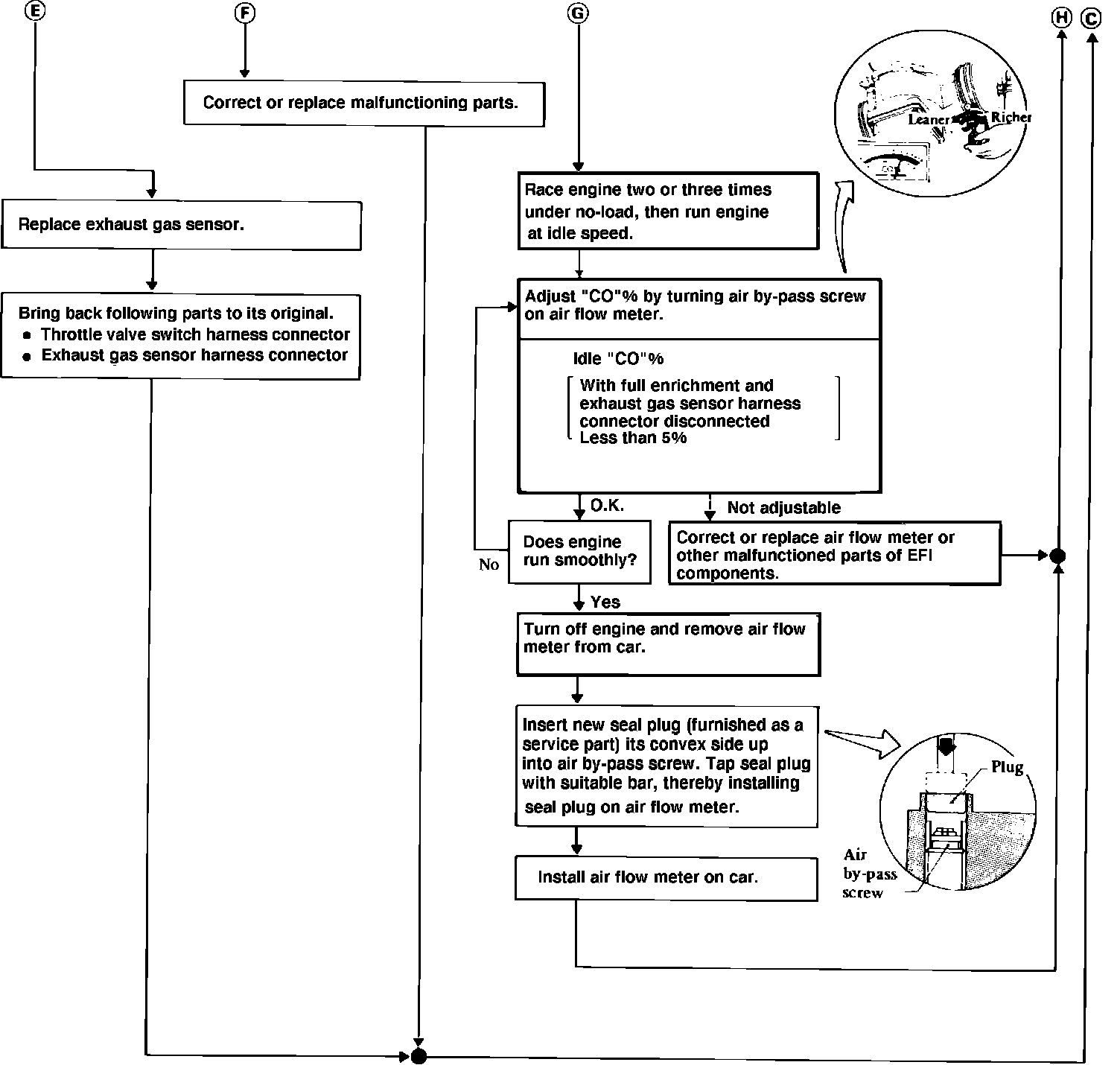

Fig. 3D Testing mixture ratio feedback system:
