Multi-Function Thermal Sensor / Switch: Service and Repair

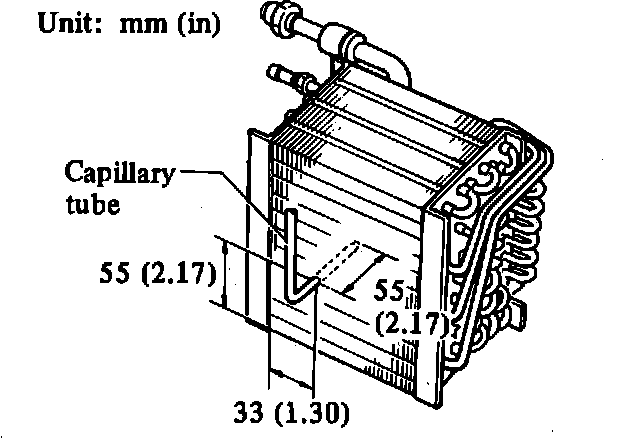

Fig. 28 Thermostatic switch sensor installation.:

1. Remove and separate evaporator case as outlined in ``Evaporator and Expansion Valve, Replace.''
2. Remove screws securing thermo control switch to upper case and remove switch.
3. Install switch and insert switch sensor tube into evaporator core as specified, Fig. 28.
4. Reverse procedure to install evaporator assembly.
