Ignition Lock: Service and Repair

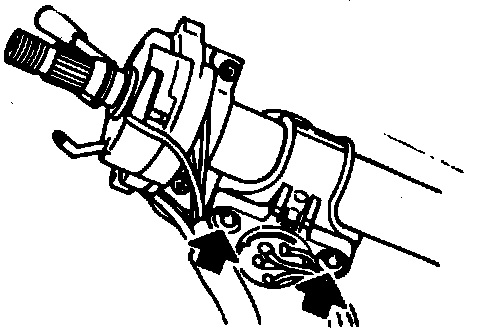

Fig. 3 Ignition lock replacement:
The
ignition lock is retained by two shear type screws,
Fig. 3. It is necessary to drill out these screws to remove ignition lock from steering tube. When installing, ensure that the shear type screws are used.
