Fuse Block: Locations

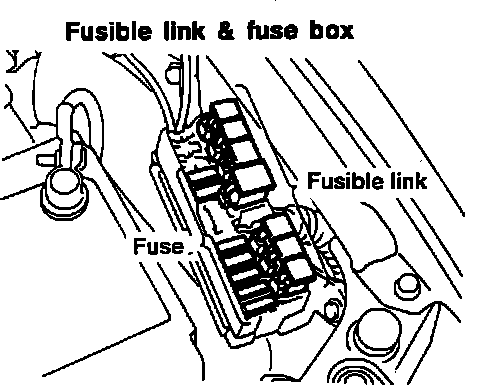

Fuse And Fuse Link Box Layout:

UNDERHOOD
Located in the Fuse/Fuse Link Box next to the battery.

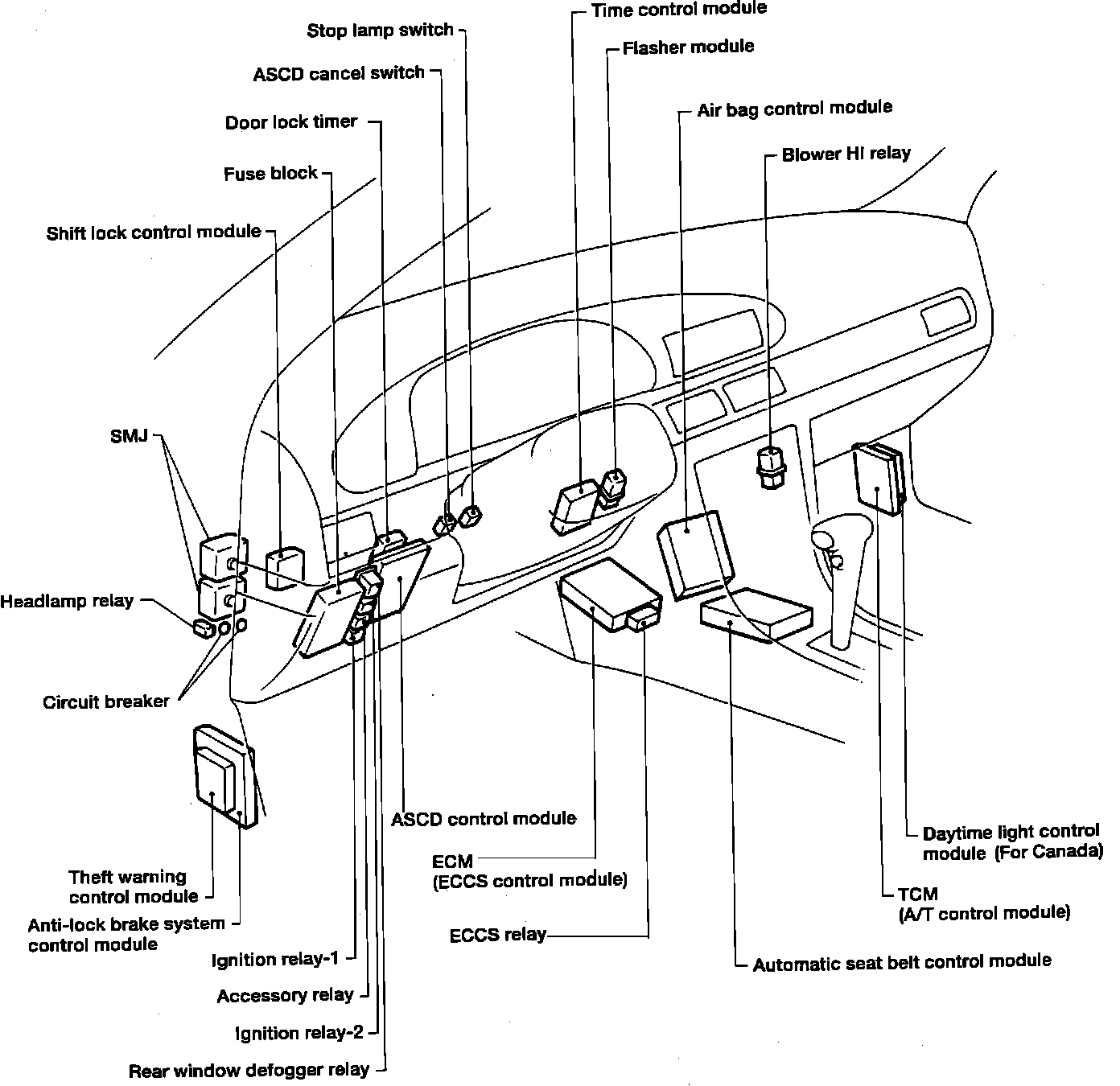

Passenger Compartment Module, Fuse Box And Relay Locations:

PASSENGER COMPARTMENT
Located in the dash, driver's side.
