Condenser Fan Control Circuit

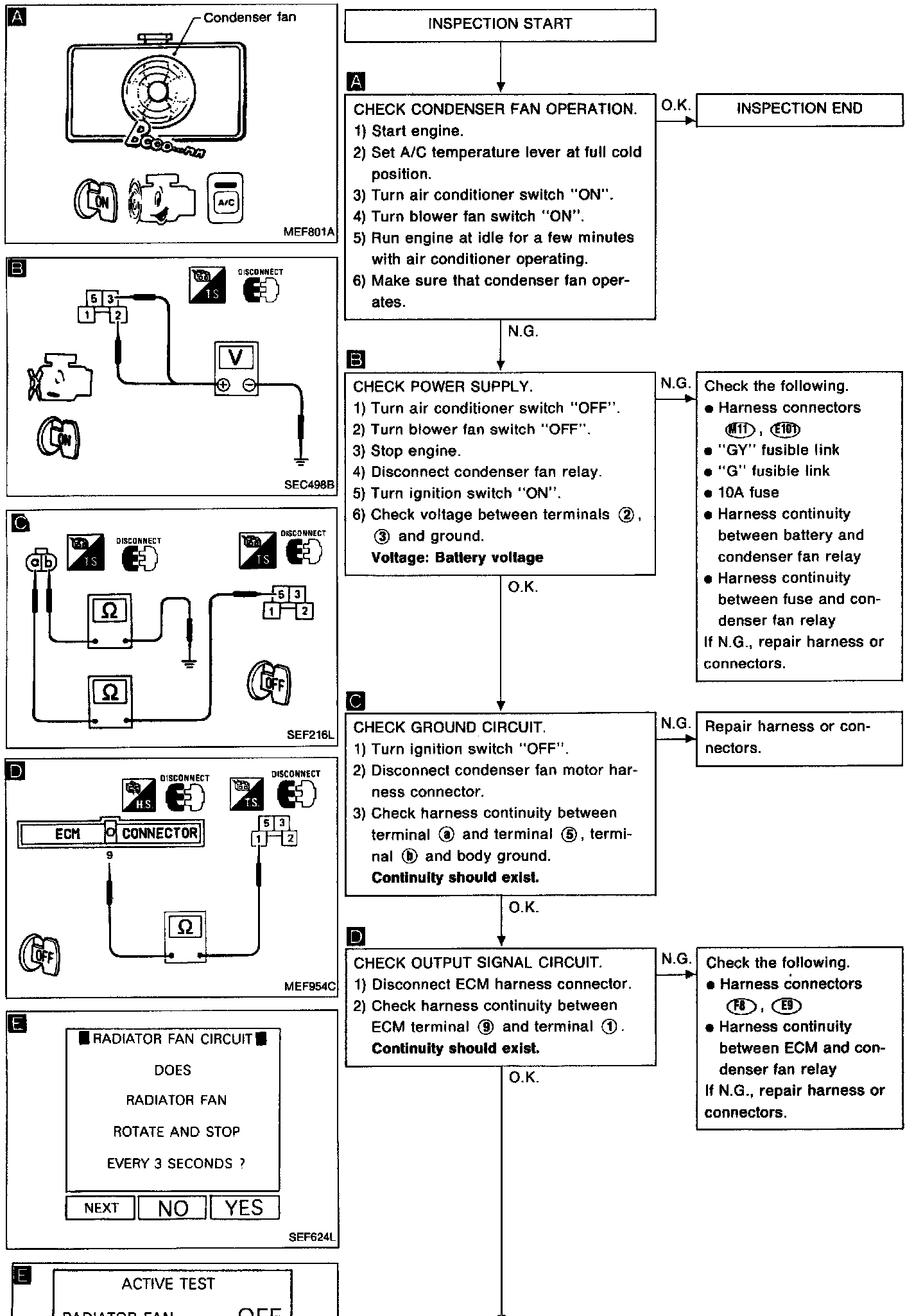

Go2Condenser Fan Control Circuit Diagnostic Chart:





DIAGNOSTIC CHART IMAGE

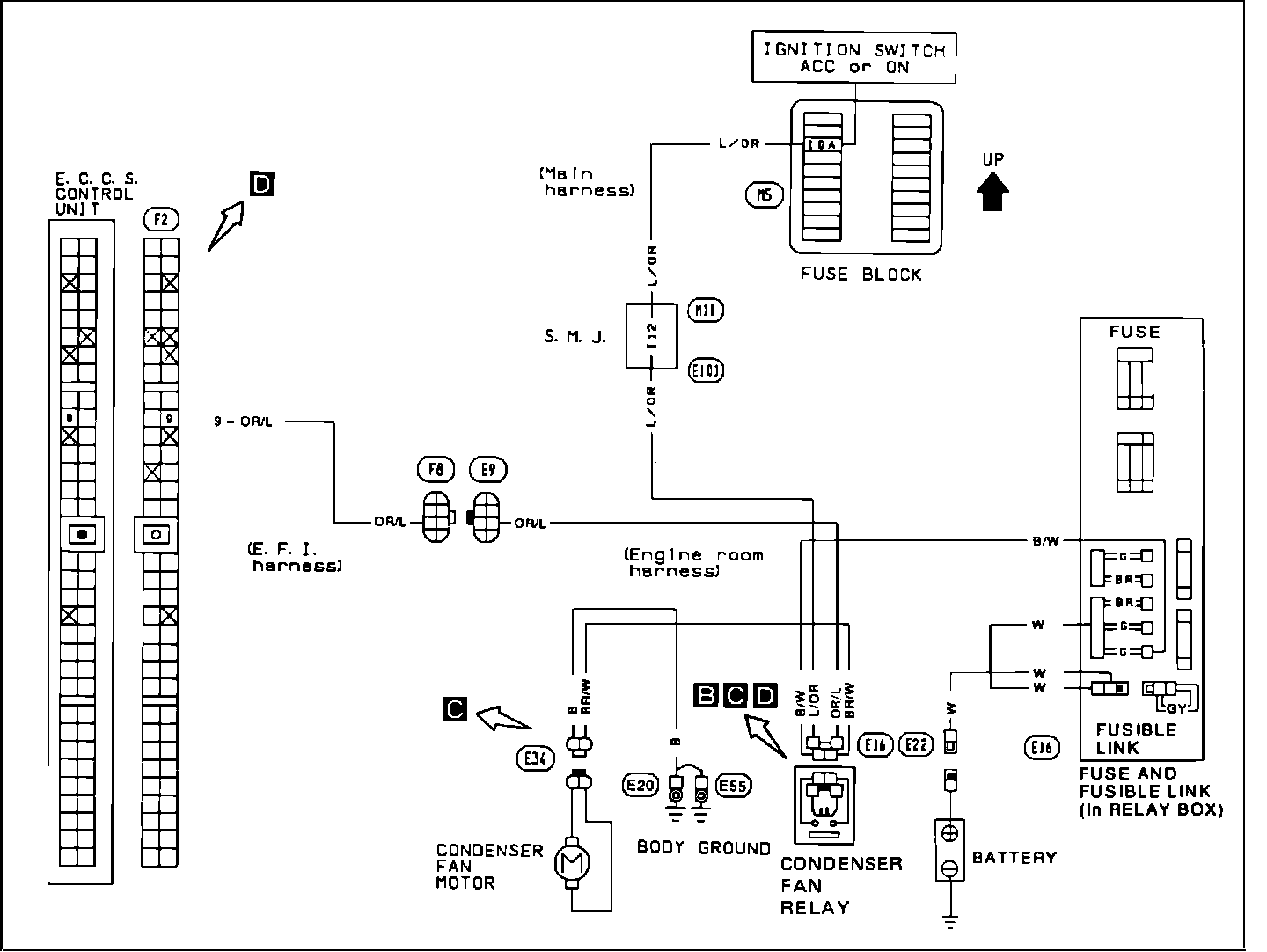

Circuit Diagram:





CIRCUIT DIAGRAM IMAGE

Connector Location:





CONNECTOR LOCATION IMAGE

Component Location:





RELAY LOCATION IMAGE
