M1T3881ZC

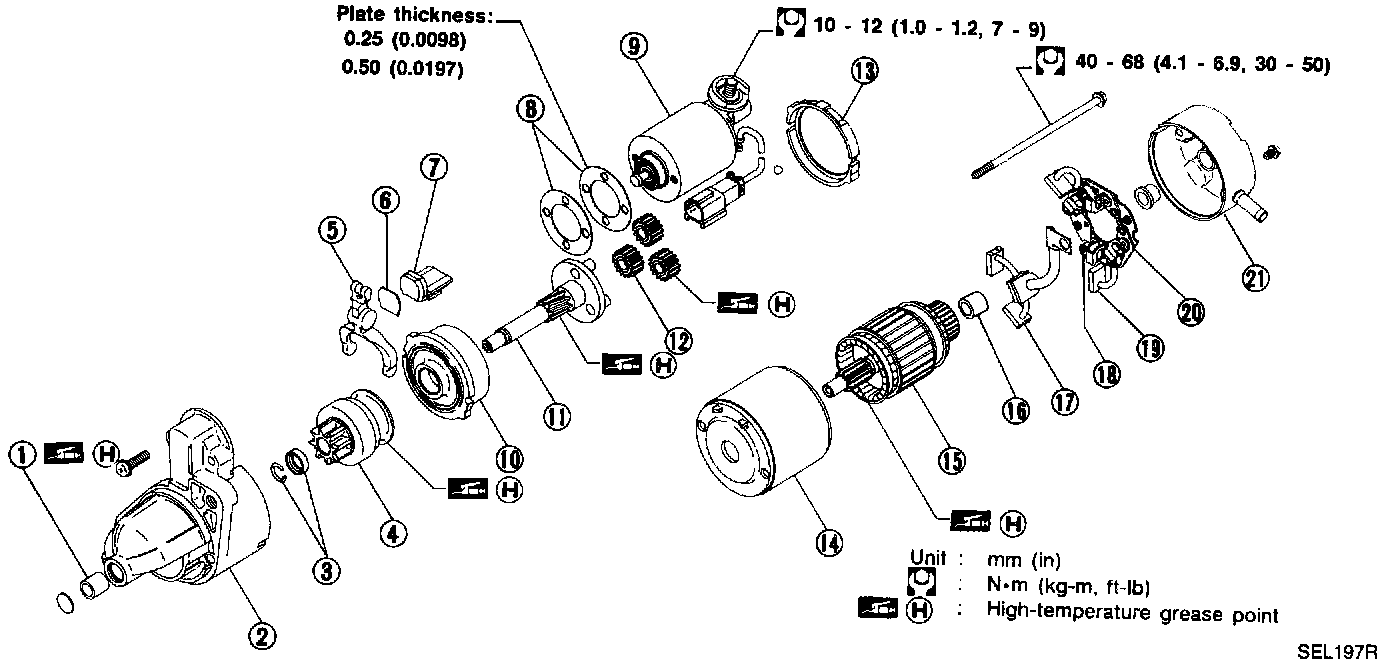

Starting System: Starter:

1. Sleeve bearing
2. Gear case
3. Pinion stopper
4. Pinion assembly
5. Shift lever
6. Plate
7. Packing
8. Adjusting plate
9. Magnetic switch assembly
10. Internal Gear
11. Shaft
12. Planetary Gear
13. Packing
14. Yoke
15. Armature
16. Sleeve Bearing
17. Brush (+)
18. Brush Spring
19. Brush (-)
20. Brush Holder
21. Rear Cover
