Throttle Position Sensor: Testing and Inspection
Throttle Position Sensor Inspection:

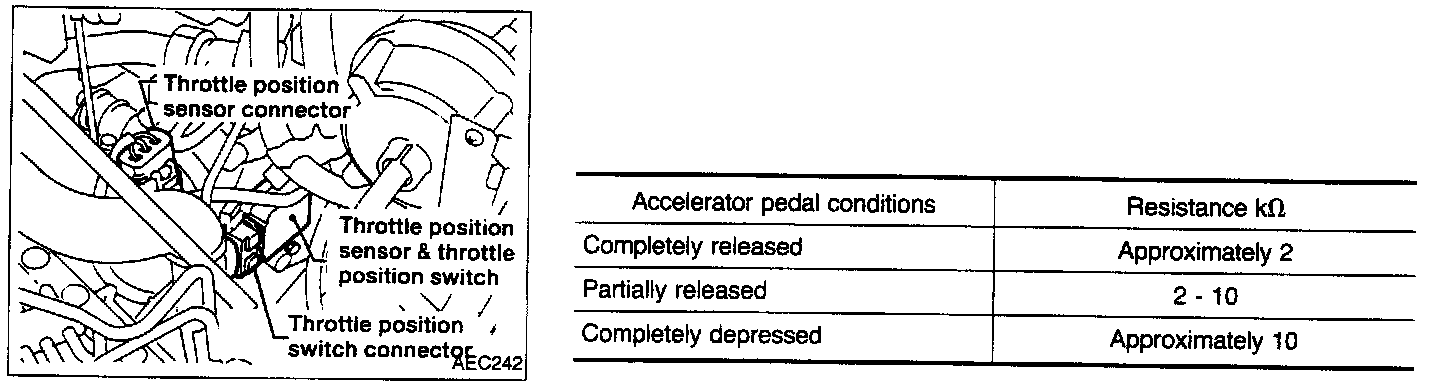

Throttle Position Sensor Resistance Check:
1.
Disconnect throttle sensor connector.
2.

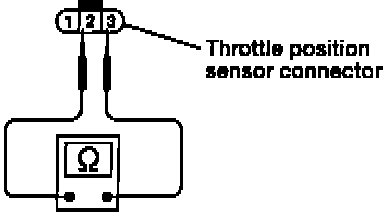

Using an ohm meter, check resistance across sensor terminals 2 and 3 changes while opening throttle valve manually.
3.
Resistance value should change smoothly, without any glitches.
4.
Replace sensor if it fails the above test.
