Manual Transmission

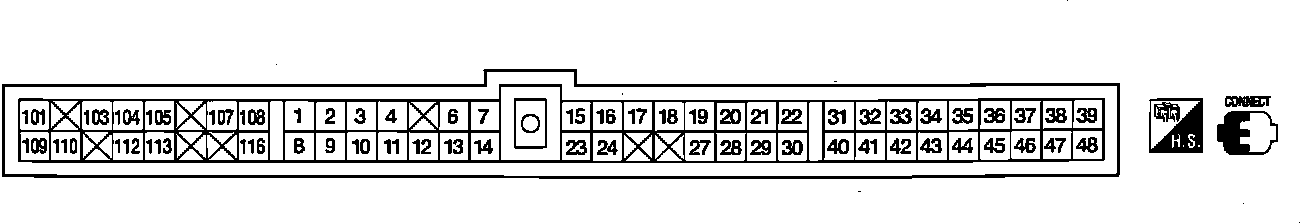

ECM Terminal Identification:
Neutral Position Switch Test
1.
Set shift lever to the neutral position.
2.
Disconnect Engine Control Module
(ECM) harness connector.
3.
Check harness continuity between ECM terminal 35 and body ground.
4.
Continuity should exist.
