Spark Plug: Service and Repair

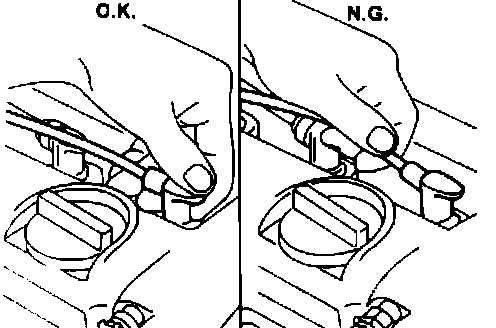

Removing Spark Plug Boot:

REMOVAL
1. Remove the ignition wire from the spark plug with a twisting and pulling motion. Pull on the boot only, not on the wire.
2. Using compressed air, blow out the area at the base of the spark plug to remove any debris USE SAFETY GLASSES.
3. Using a 16mm (5/8)" flex socket and extension, remove the spark plugs (counterclockwise rotation).


INSTALLATION
1. Using a suitable tool, check and adjust the spark plug gap.
Spark Plug Electrode Gap:
0.8 - 0.9 mm (0.031 0.035 in.)
2. Using a suitable rubber hose or designated tool, start the spark plugs by hand (clockwise rotation).
3. Tighten and torque the spark plugs.

Spark Plug Torque:
20 - 29 N-m (14 - 22 ft. lbs.)

4. Apply a small amount of di-electric compound to the inside of the spark plug boots.
5. Reinstall the spark plug boots.
