Control System

CONTROL SYSTEM





Outline
The RE4FO4A and RE4FO4V automatic transaxies sense vehicle operating conditions through various sensors. They always control the optimum shaft position and reduce shifting and lock-up shocks.

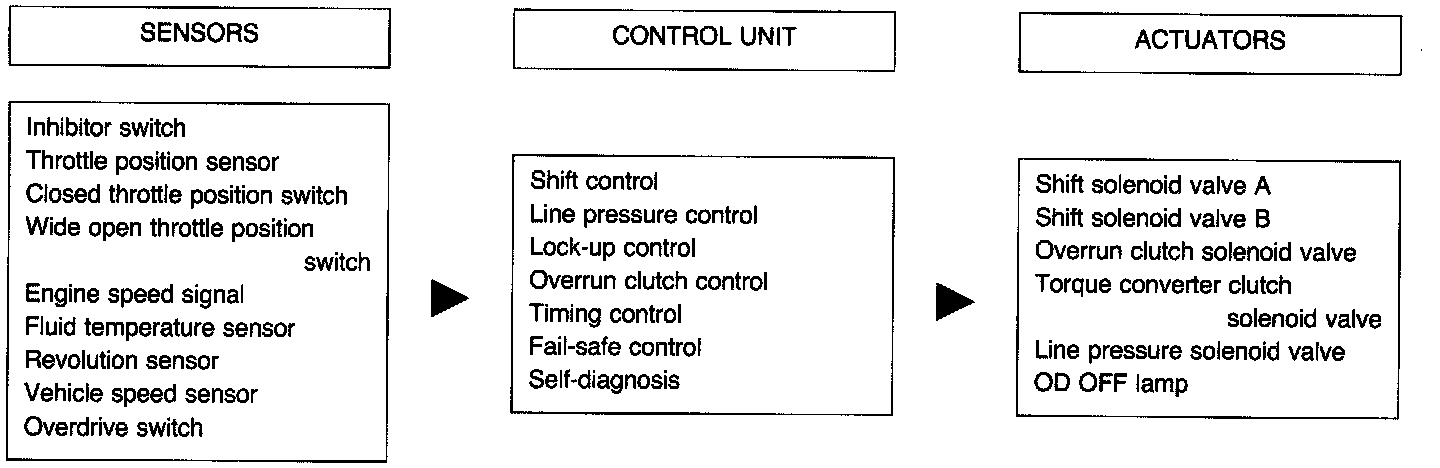

Control System

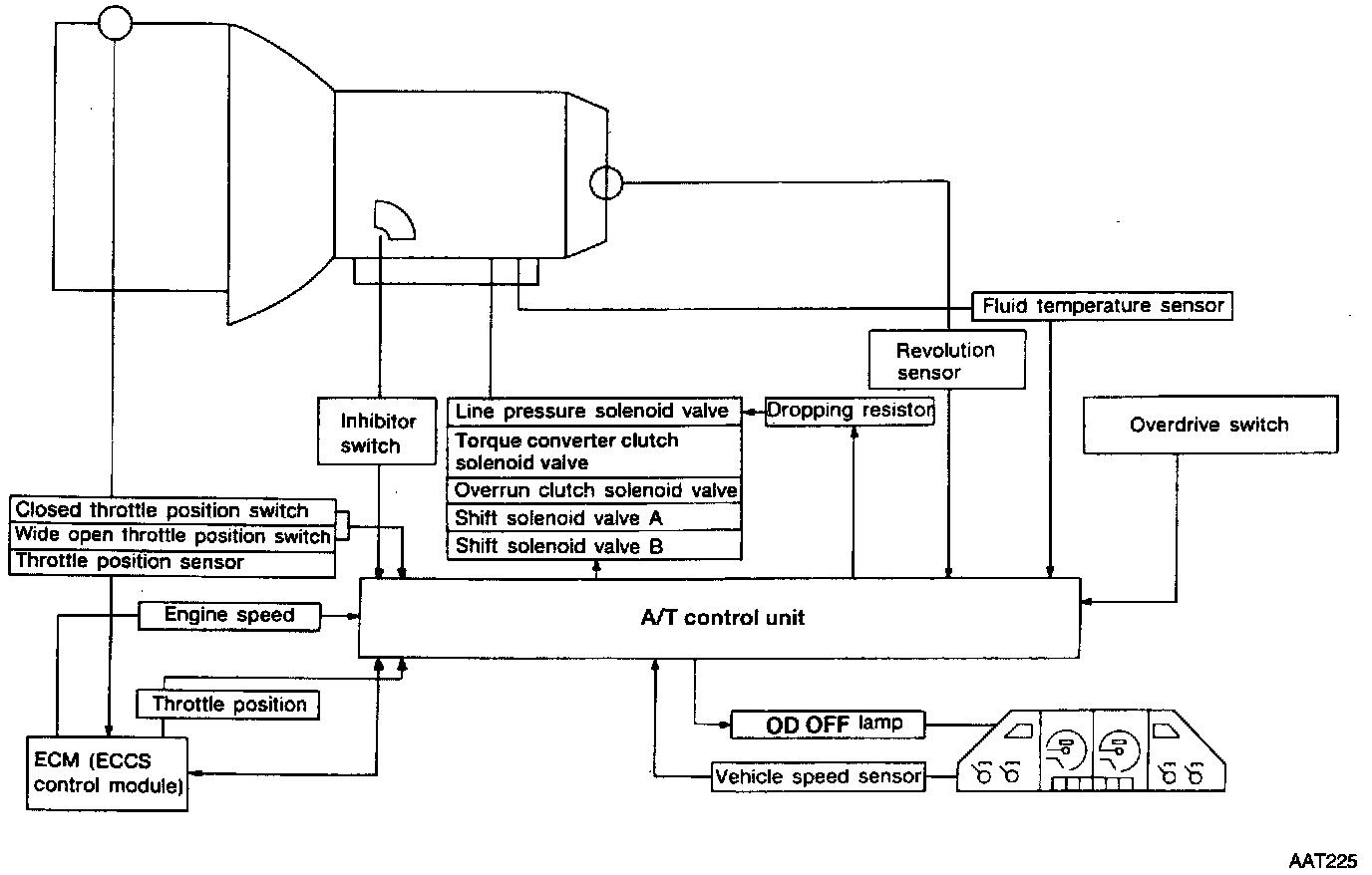

A/T Control Unit Function
The a/T control unit receives signals sent from various switches and sensors, determines required line pressure, shifting point, lock-up operation, engine brake operation, and sends required signals to the respective solenoids.

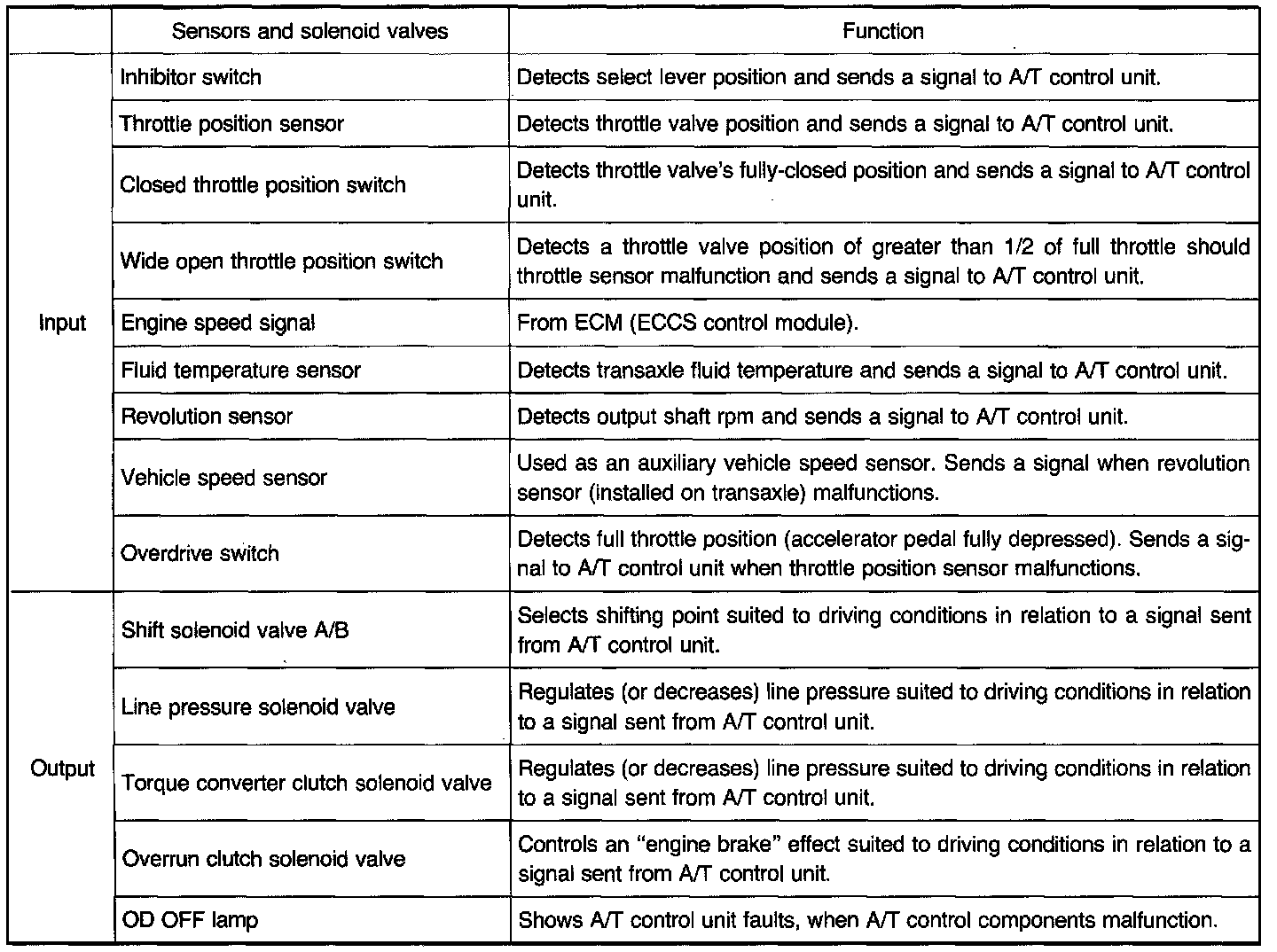

Input/Output Signal Of A/T Control Unit
