Ignition Lock: Service and Repair

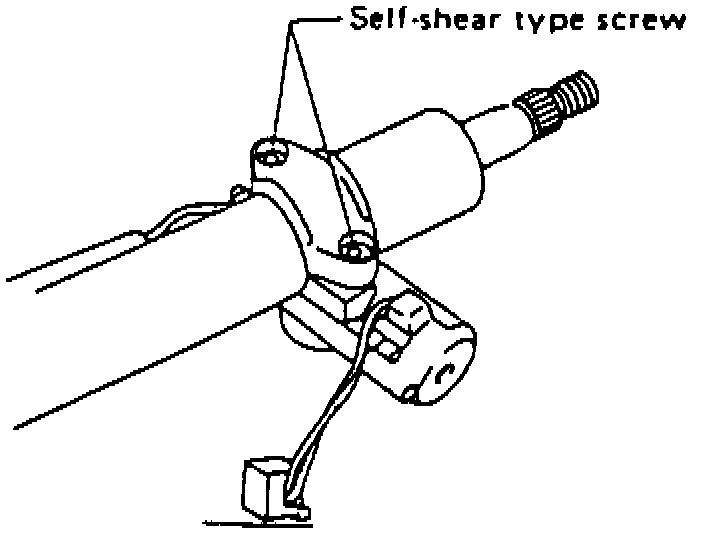

Fig. 1 Ignition Lock Replacement:
1.
Remove steering wheel as outlined under
Steering Wheel.
2.
Drill out two shear type
ignition lock retaining screws,
Fig. 1.
3.
Remove
ignition lock from steering column.
4.
Reverse procedure to install, using shear type screws.
