With Consult
OVERALL FUNCTION CHECK This procedure can be used for checking the overall function of the park/neutral position switch circuit. During this check, a DTC might not be confirmed.
1.
Turn
ignition switch "ON".
2.
Perform "PARK/NEUT POSI SW CKT" in "FUNCTION TEST" mode with CONSULT.
OR 2.

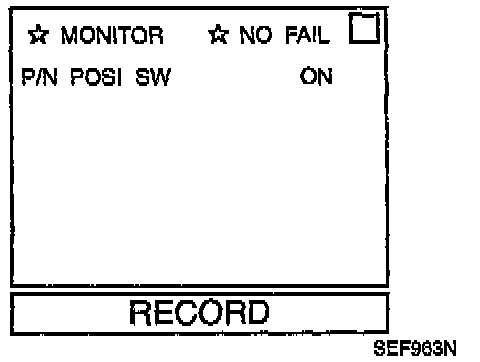

Select "P/N POSI SW" in "DATA MONITOR" mode with CONSULT.
3.
Check the "P/N POSI SW" signal in the following conditions.
