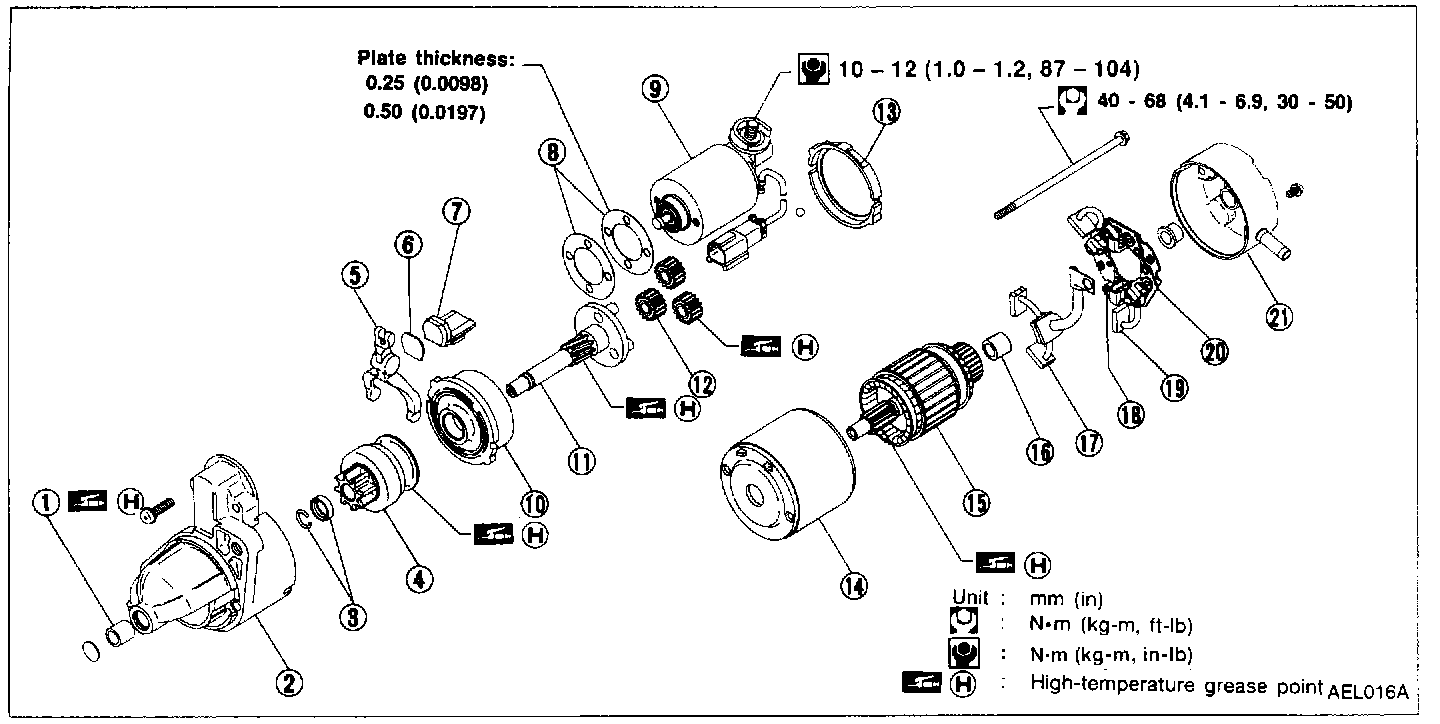

M1T73881ZC

Starter:

1 Sleeve bearing
2 Gear Case
3 Pinion Stopper
4 Pinion Assembly
5 Shift Lever
6 Plate
7 Packing
8 Adjusting Plate
9 Magnetic Switch Assembly
10 Internal Gear
11 Shaft
12 Planetary Gear
13 Packing
14 Yoke
15 Armature
16 Sleeve Bearing
17 Brush (+)
18 Brush Spring
19 Brush (-)
20 Brush Holder
21 Rear Cover
