System Introduction

INTRODUCTION
The engine has an ECM to control major systems such as fuel control, ignition control, idle air control system, etc. The ECM accepts input signals from sensors and instantly drives actuators. It is essential that both input and output signals are proper and stable.

SYSTEM DIAGRAM

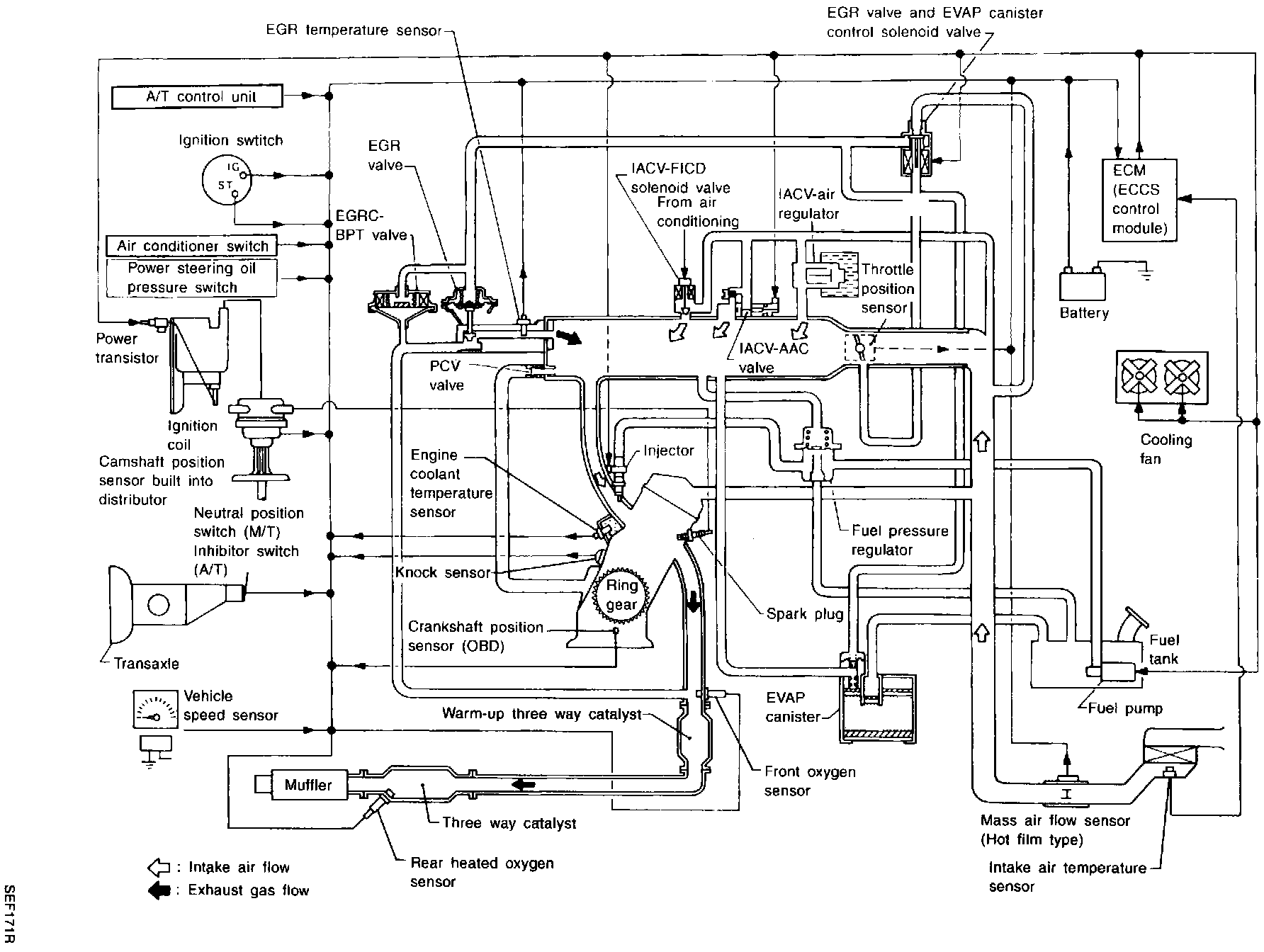

System Diagram: California Models:

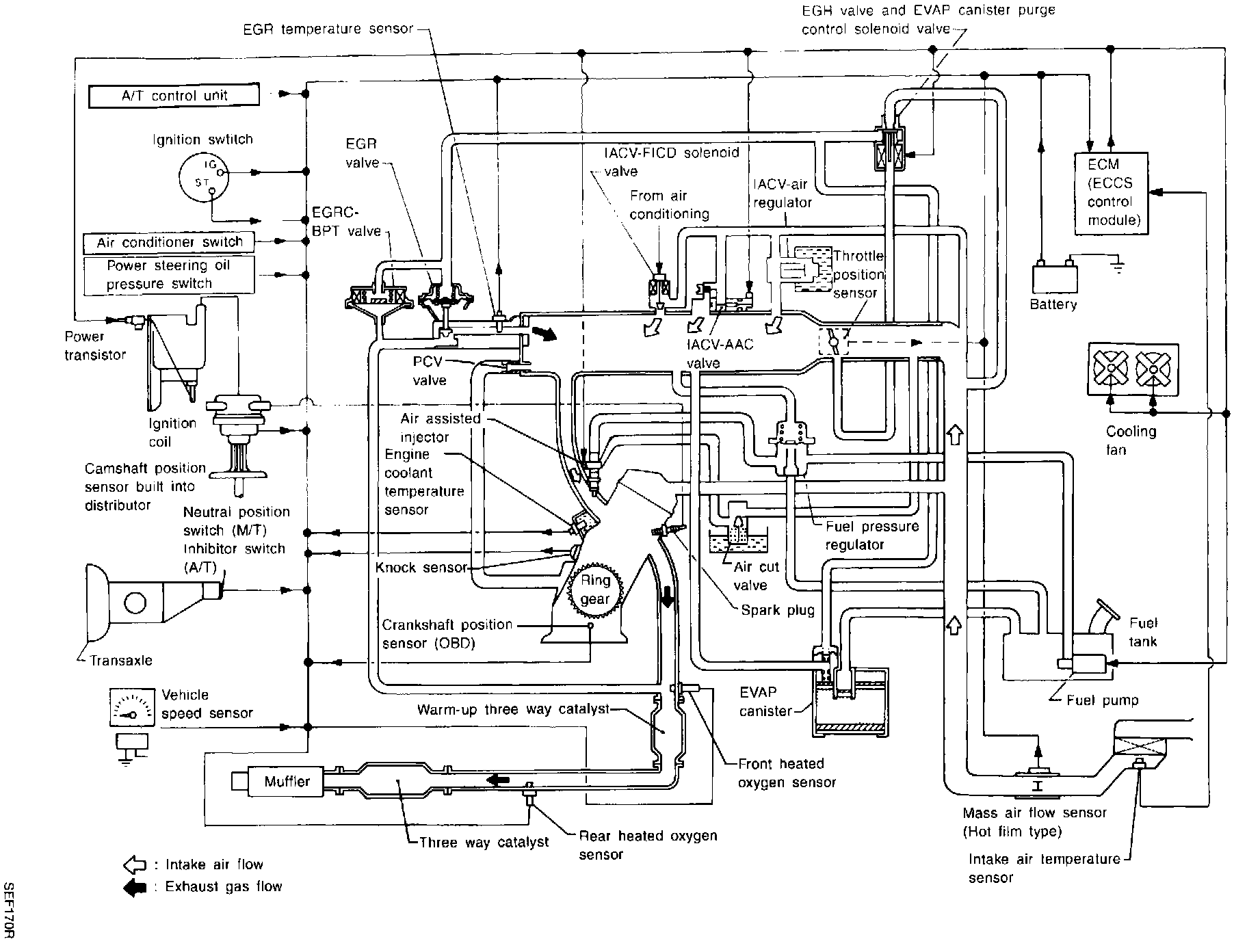

System Diagram: Non-California Models:

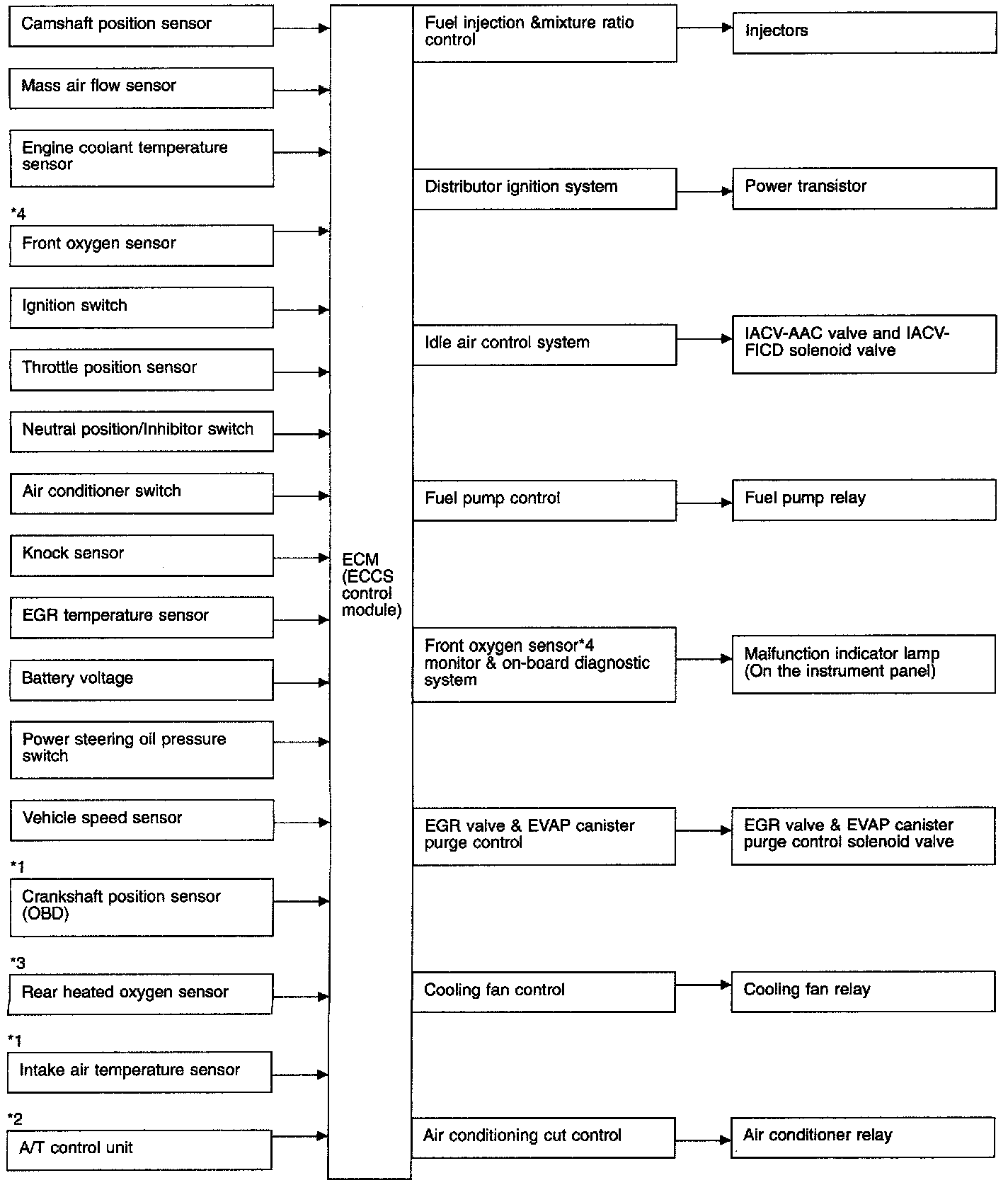

SYSTEM CHART

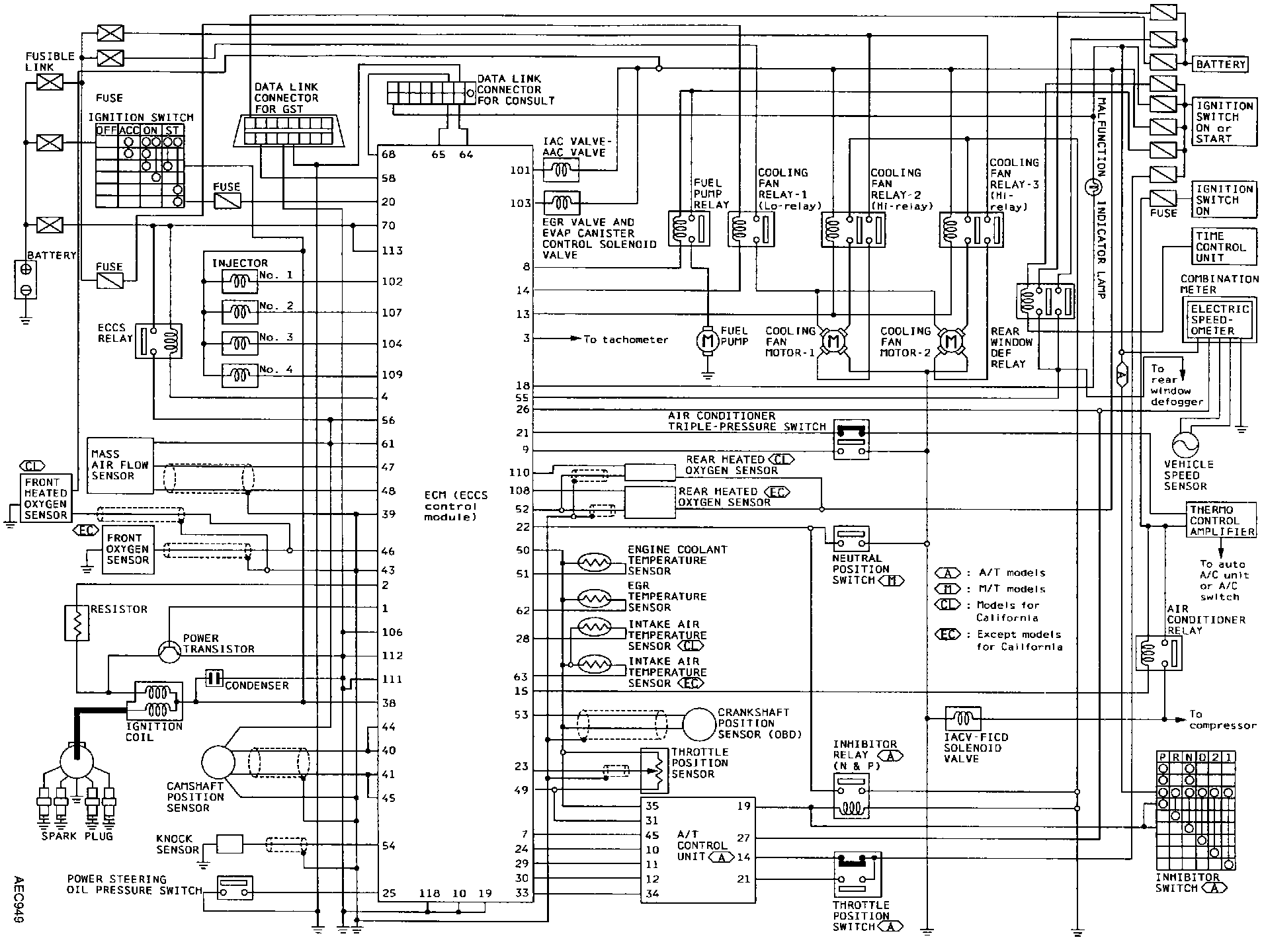

CIRCUIT DIAGRAM

System Introduction

System Diagram: California Models:

System Diagram: Non-California Models:

Circuit Diagram:
