Idle Up Control Valve: Testing and Inspection

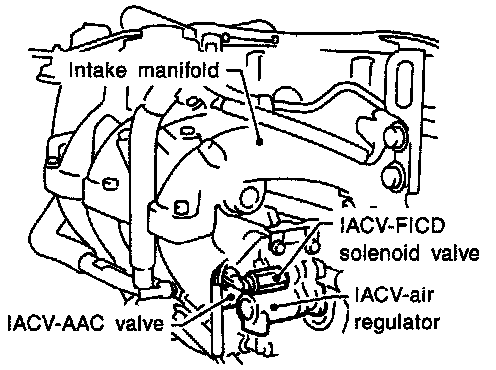

COMPONENT DESCRIPTION
When the air conditioner is on, the IACV-FICD solenoid valve supplies additional air to adjust to the increased load.

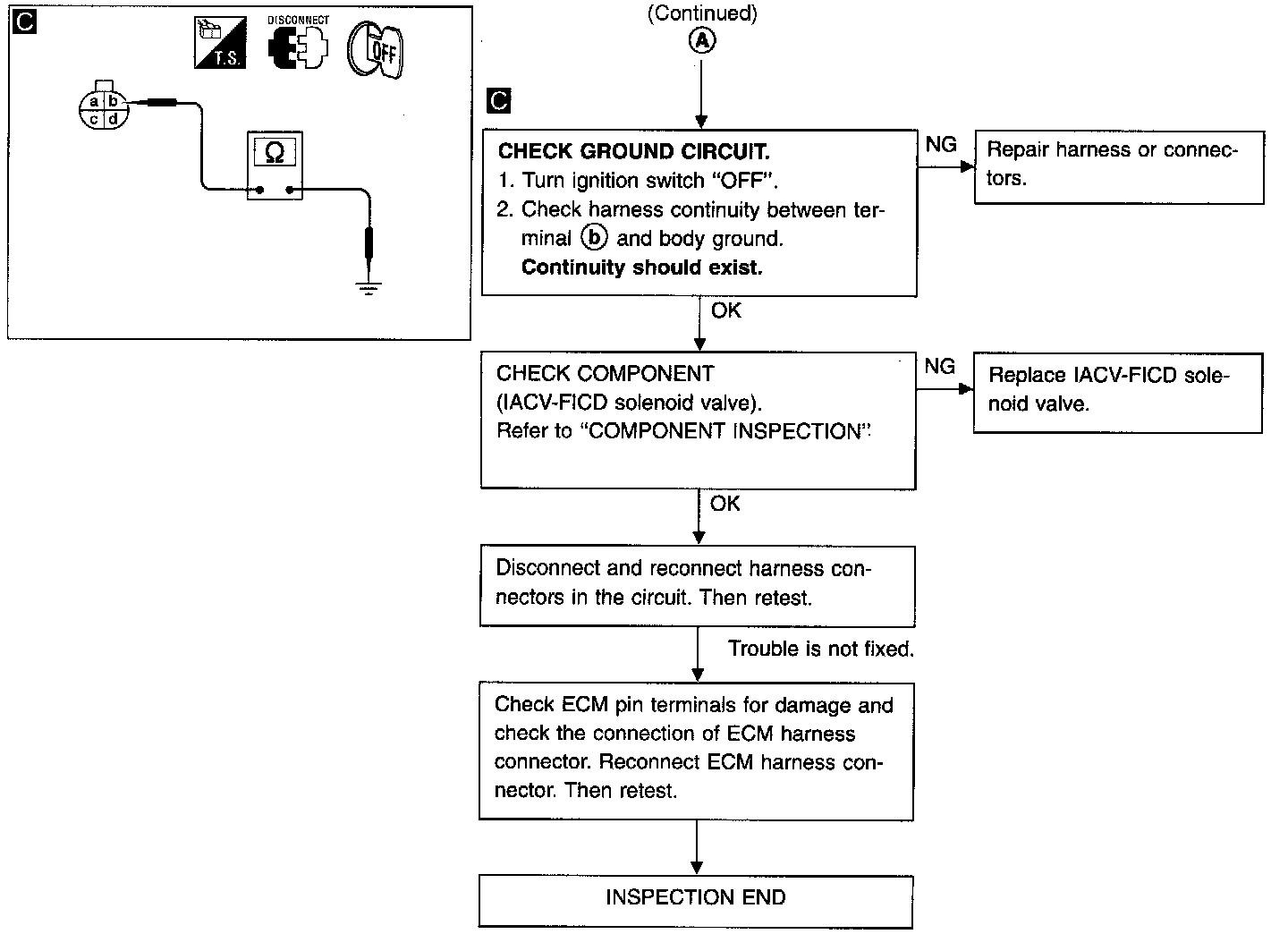

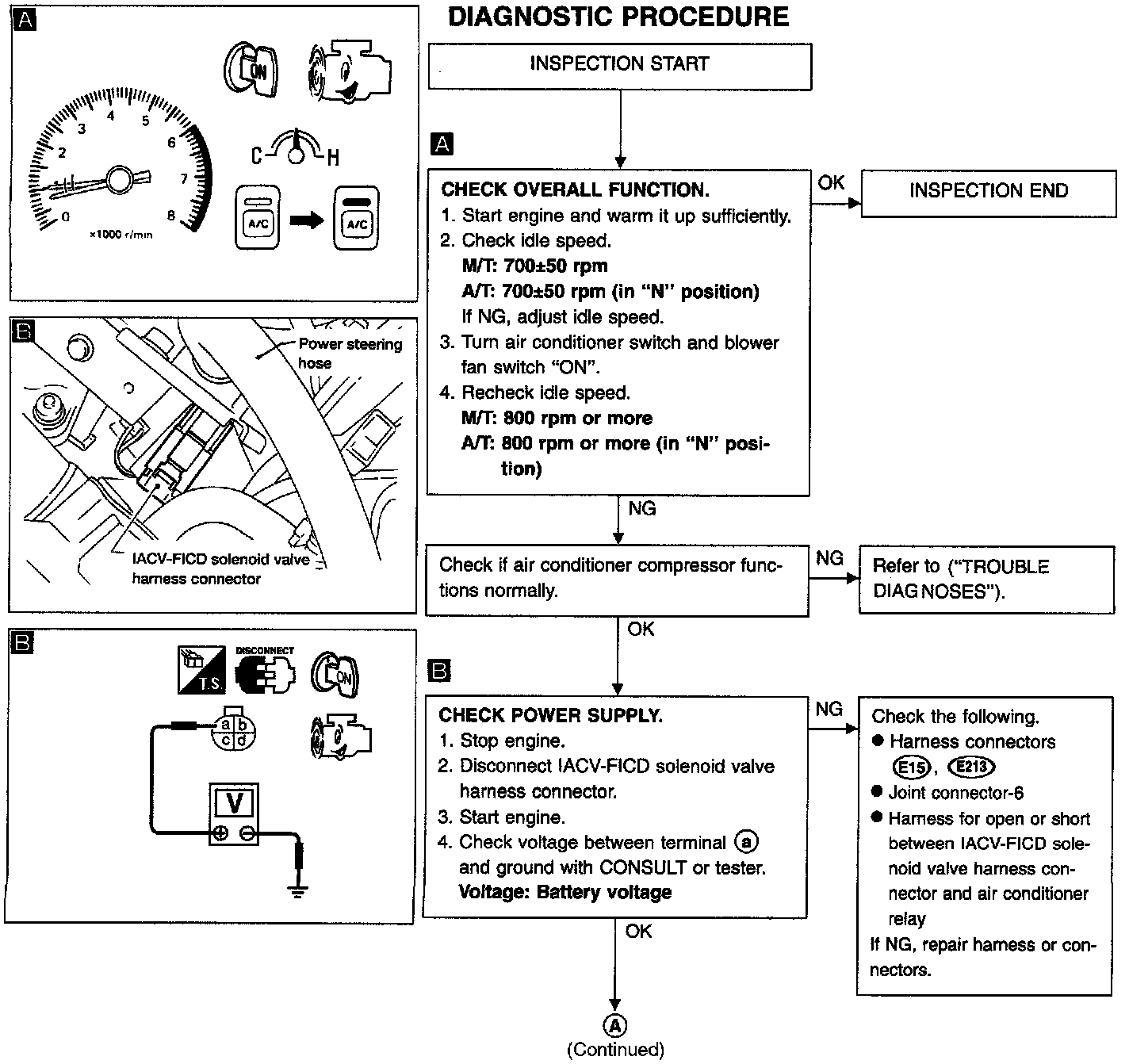

DIAGNOSTIC PROCEDURE

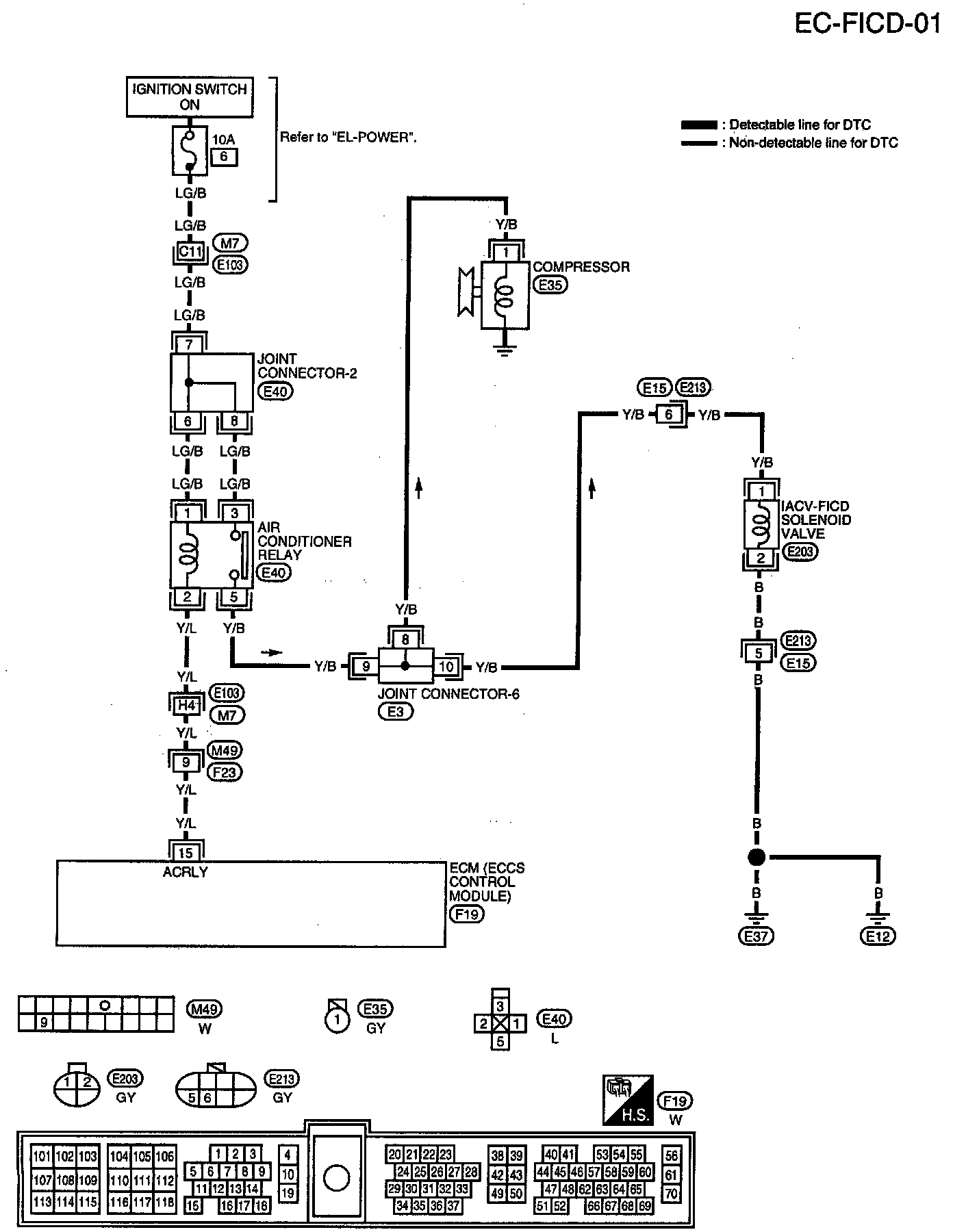

WIRING DIAGRAM

COMPONENT INSPECTION
IACV-FICD solenoid valve
Disconnect IACV-FICD solenoid valve harness connector.

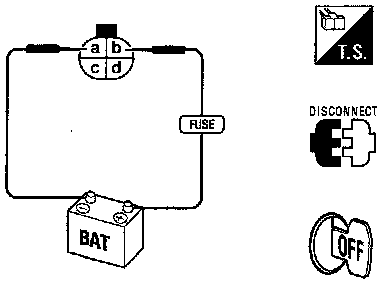

- Check for clicking sound when applying 12 Volt direct current to terminals.

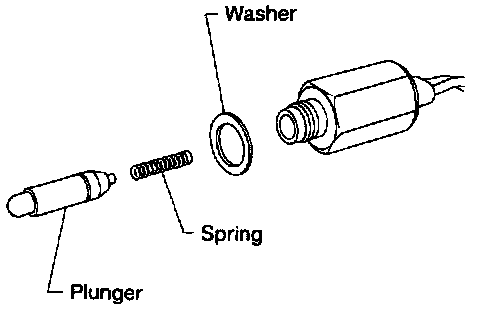

- Check plunger for seizing or sticking.
- Check for broken spring.
