CONSULT Setting Procedure

CONSULT setting procedure




1. Turn off ignition switch.

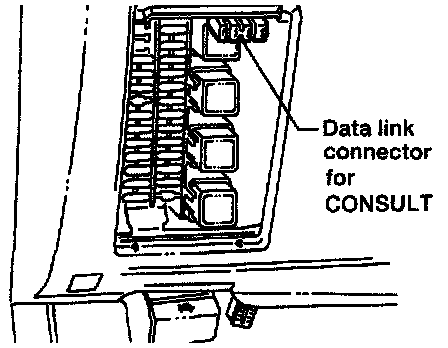

2. Connect "CONSULT" to Data link connector for CONSULT. Data link connector for CONSULT is located in left side dash panel.




3. Turn on ignition switch.

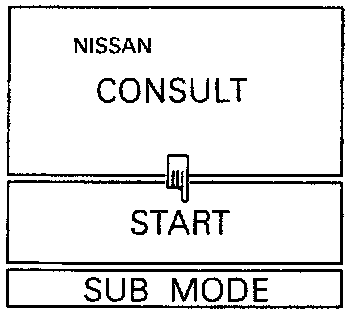

4. Touch "START".

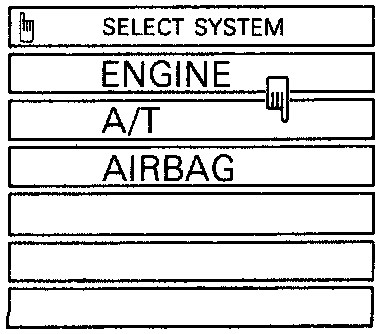

5. Touch "A/T".

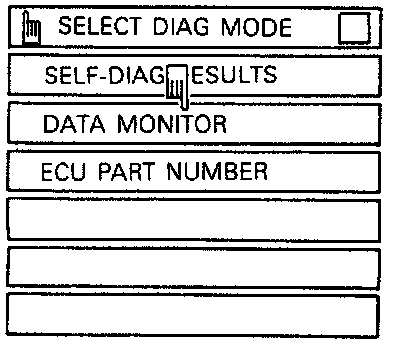

6. Touch "DATA MONITOR".




7. Touch "SETTING" to set recording condition.

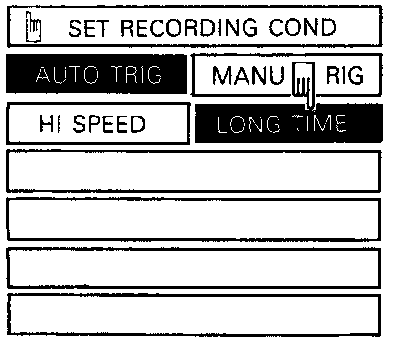

8. Touch "LONG TIME" and "ENTER" key.

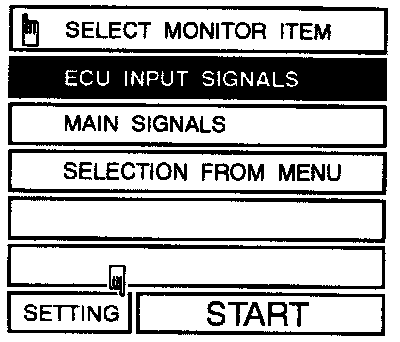

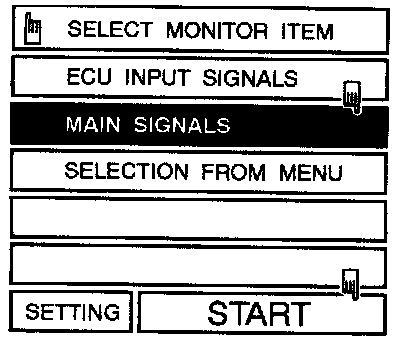

9. Go back to SELECT MONITOR ITEM and touch "MAIN SIGNALS".
10. Touch "START".

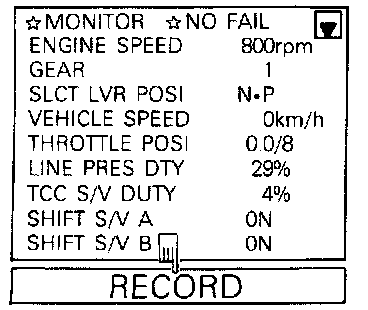

11. When performing cruise test, touch "RECORD"

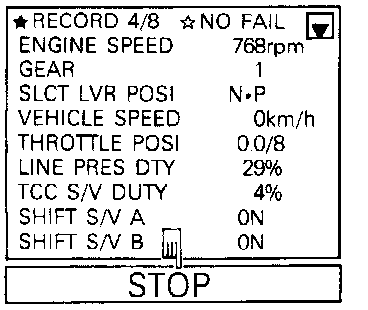

12. After finishing cruise test part 1, touch "STOP".

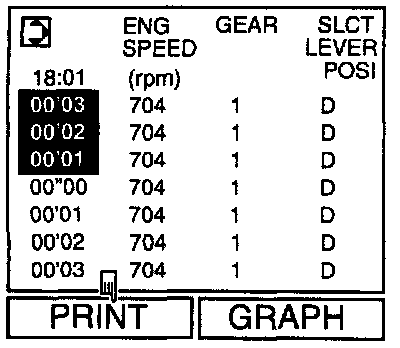

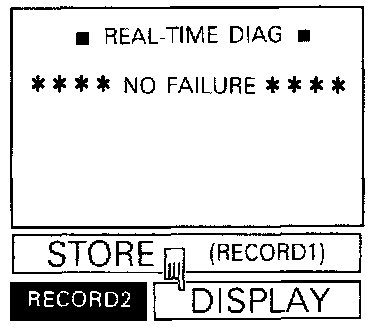

13. Touch "DISPLAY".

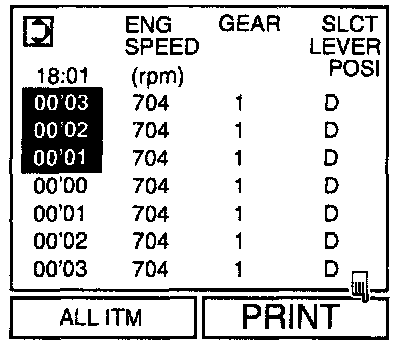

14. Touch "PRINT".




15. Touch "PRINT".

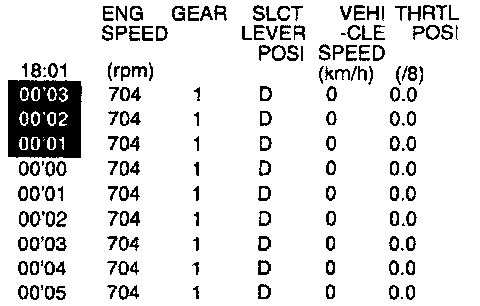

16. Check the monitor data printed out.
17. Continue cruise test part 2 and 3.
