Keyless Entry: Service and Repair

Replacing Remote Controller Or Control Unit:

Enter the identity (ID) code manually when:
^ remote controller or control unit is replaced.
^ an additional remote controller is activated.

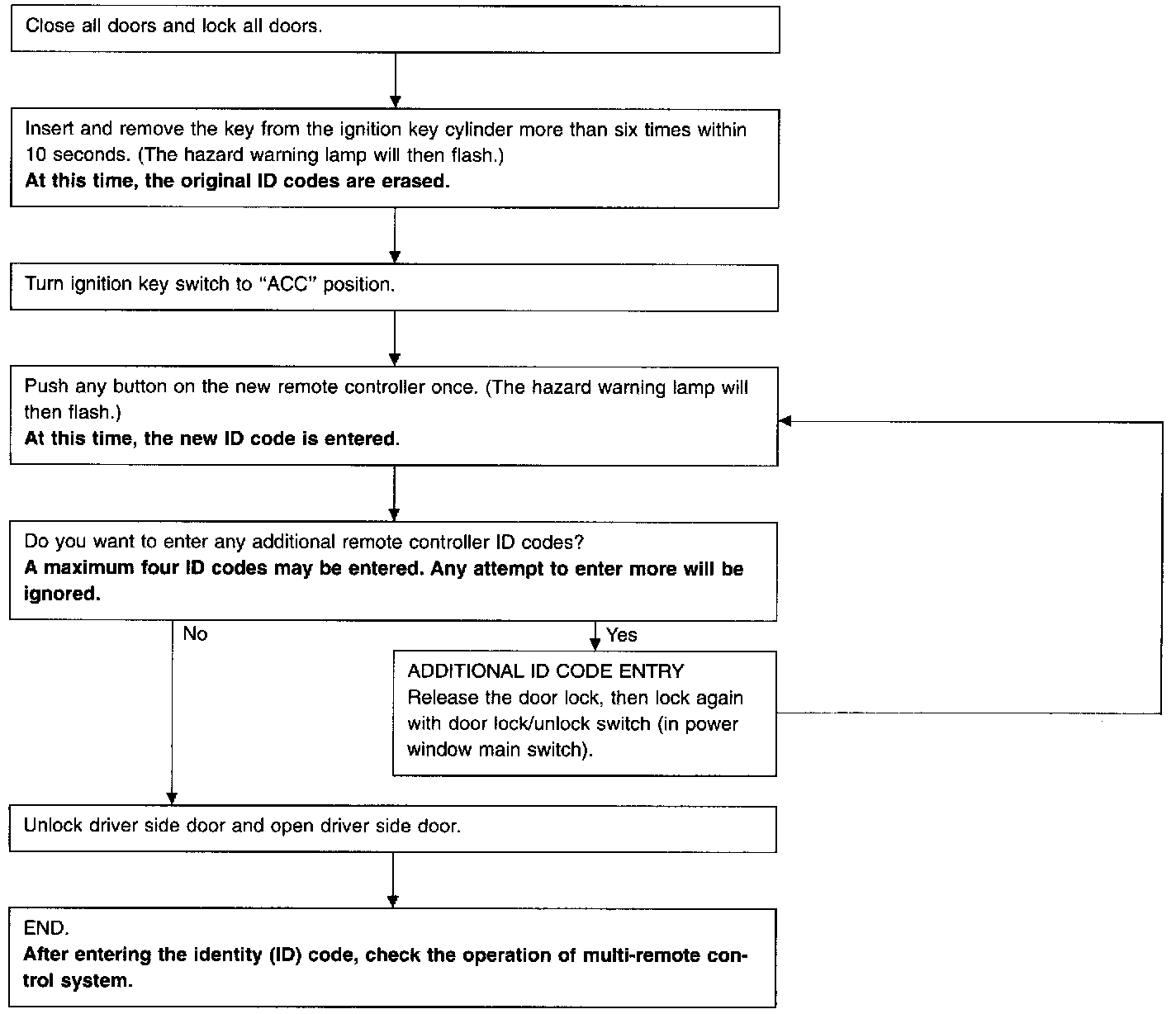

ID code entry procedure
To enter the ID code, follow the image.

NOTE
^ If you need to activate more than two additional new remote controllers, repeat the procedure "Additional ID code entry" for each new remote controller.
^ If the same ID code that exists in memory is input, the entry will be ignored.
^ Entry of maximum four ID codes is allowed and any attempt to enter more will be ignored.
^ Any ID codes entered after termination of the "setting" mode will not be accepted. Additionally, remote control signals will be inhibited when an ID code has not been entered during "setting" mode.
