Standardized Relays

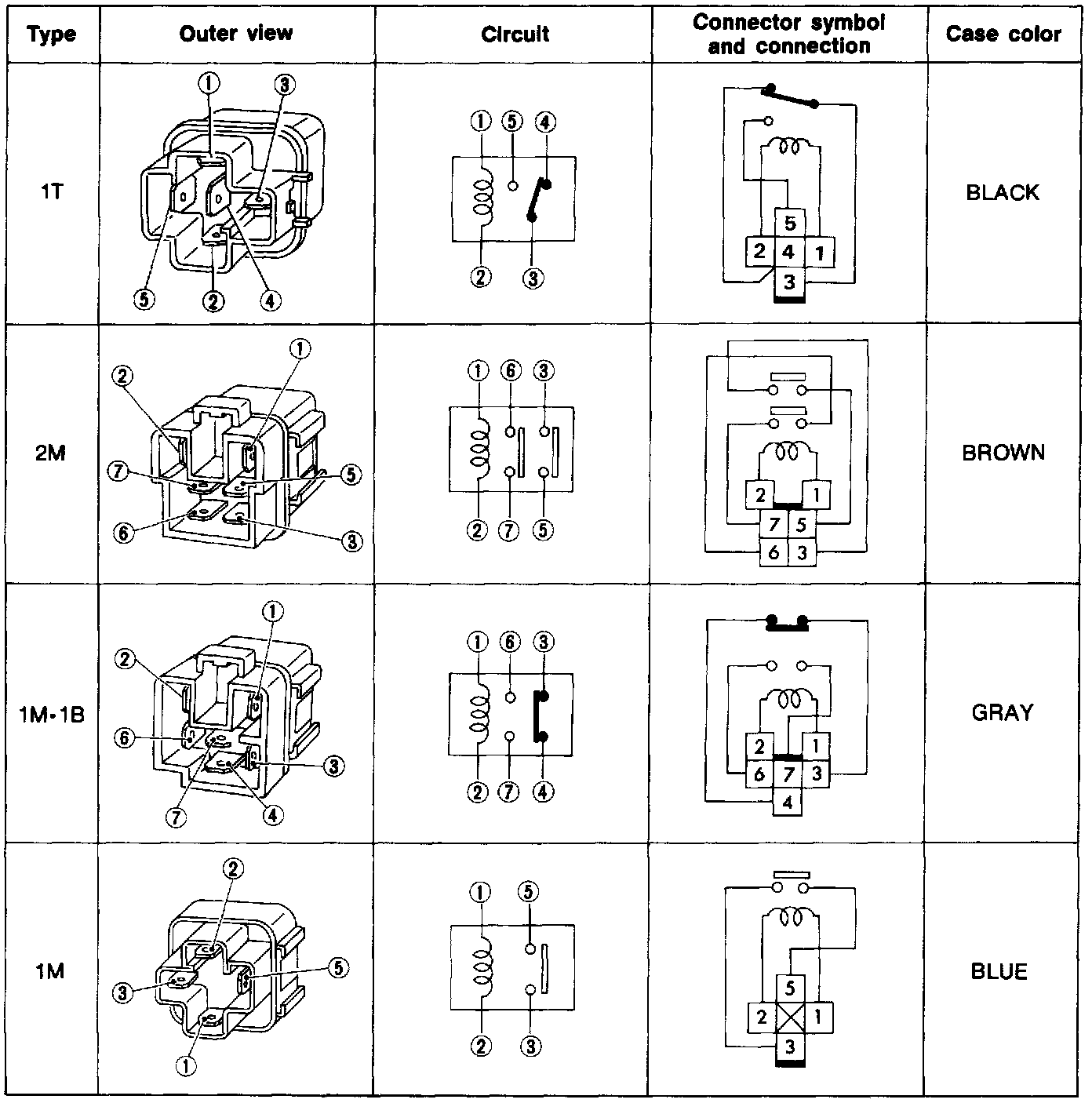

Type Of Standardized Relays part 1:
Type Of Standard Relays:
The arrangement of terminal numbers on the actual relays may differ from those shown in the image.
