Control Valve Assembly and Accumulators

Control Valve Assembly and Accumulators Inspection
1. Remove exhaust front tube.




2. Remove oil pan and gasket and drain ATF.




3. Remove fluid temperature sensor-1 if necessary.
4. Remove oil strainer.

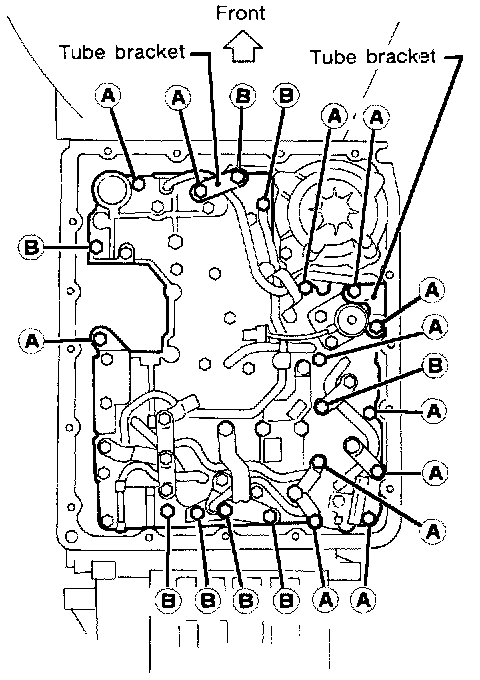

5. Remove control valve assembly by removing fixing bolts and disconnecting harness connector.
6. Remove solenoids and valves from valve body if necessary.
7. Remove terminal cord assembly if necessary.




8. Remove accumulator (A), (B), (C) and (D) by applying compressed air if necessary.

NOTE: Hold each piston with rag.

9. Reinstall any part removed.

NOTE: Always use new sealing parts.
