Throttle Full Close Switch: Testing and Inspection
COMPONENT INSPECTION Closed Throttle Position Switch 1.
tart engine and warm it up to normal operating temperature.
2.
Turn
ignition switch "OFF".
3.

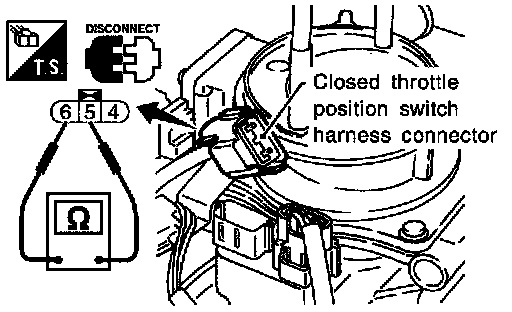

Disconnect
throttle position switch harness connector.
4.

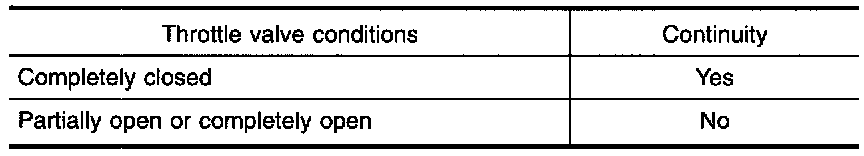

Check continuity between terminals (5) and (6) while opening throttle valve manually.
If NG, replace
throttle position switch.
