Thermal Control Amp. Inspection
1.
Run engine, and operate A/C system.
2.

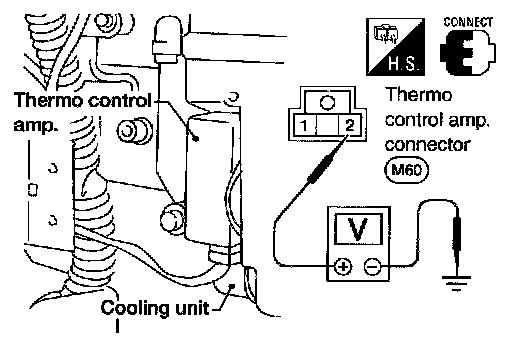

Connect the voltmeter from harness side.
3.

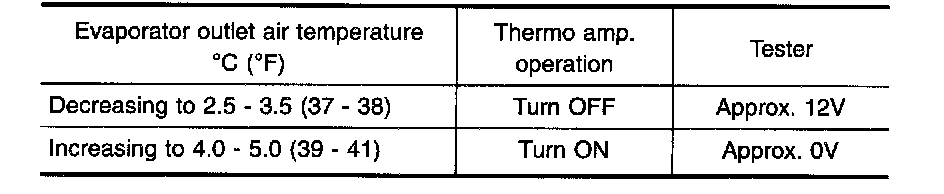

Check thermo control amp. operation shown in the table.
