Water Pump Torque Values

CAUTION:
- When removing water pump assembly, be careful not to get coolant on drive belts.
- Water pump cannot be disassembled and should be replaced as a unit.
- After installing water pump, connect hose and clamp securely, then check for leaks using radiator cap tester.

REMOVAL






1. Drain coolant from engine.
2. Remove fan coupling with fan.
3. Remove power steering pump drive belt, generator drive belt and A/C compressor drive belt.
4. Remove water pump.

INSPECTION





- Check body assembly for rust or corrosion.
- Check for rough operation due to excessive end play.

INSTALLATION

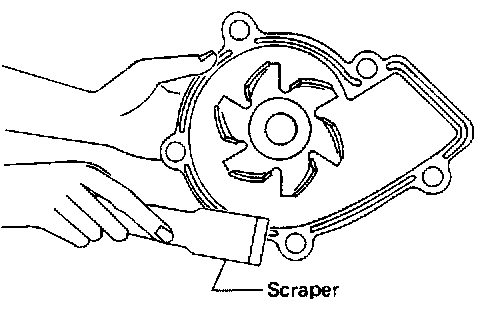

1. Use a scraper to remove liquid gasket from water pump.
- Also remove traces of liquid gasket from mating surface of cylinder block.

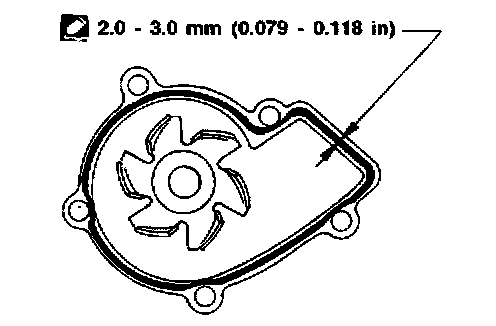

2. Apply a continuous bead of liquid gasket to mating surface of water pump.
- Use Genuine RTV Silicone Sealant Part No. 999 MP-A7007, Three Bond TB1207D or equivalent.
