Power Seat Control Module





Circuit Schematic

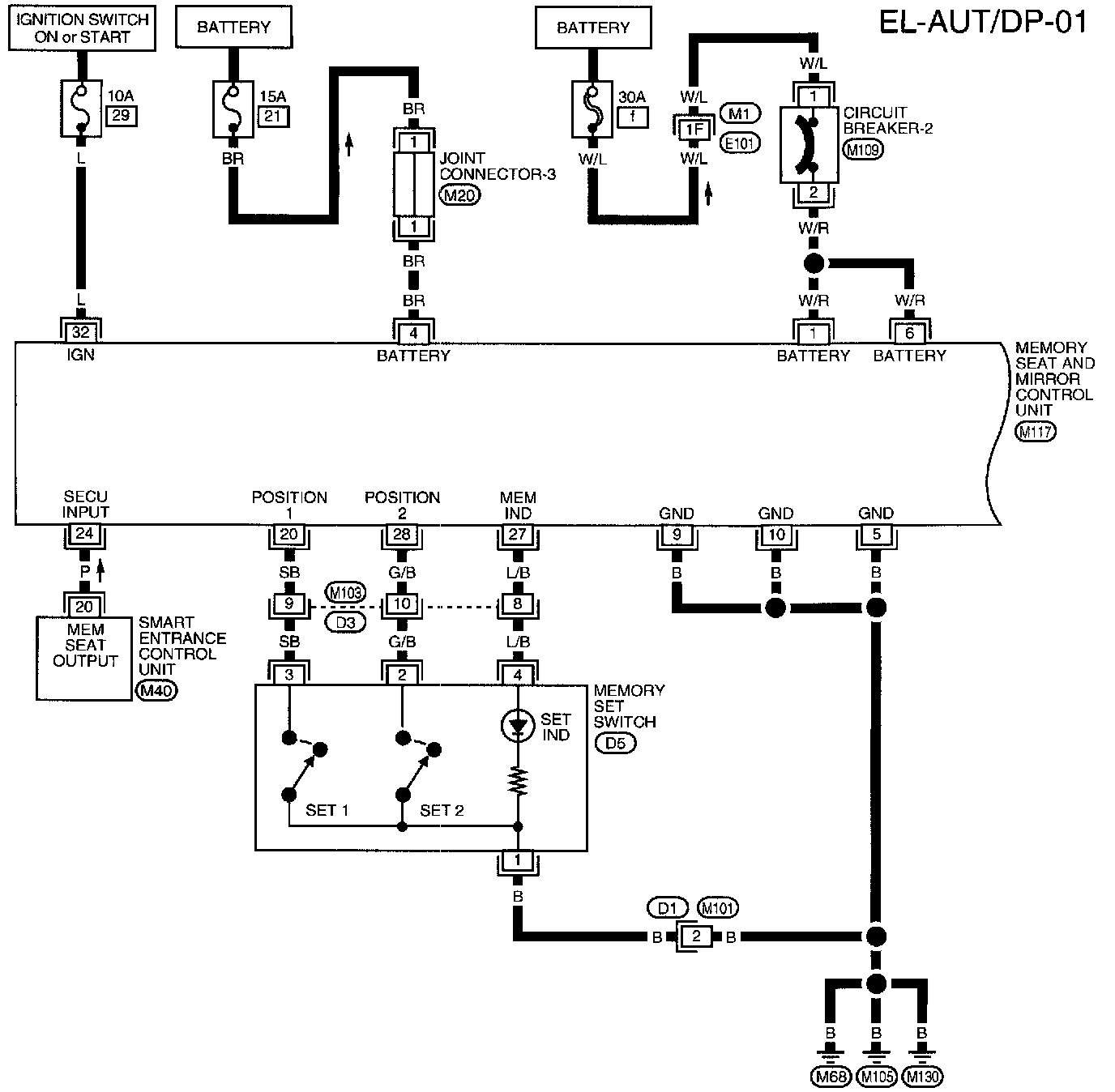

(Part 1 of 5)
Circuit Breaker-2
Joint Connector-3
Memory Set Switch
Memory Seat And Mirror Control Unit
Smart Entrance Control Unit

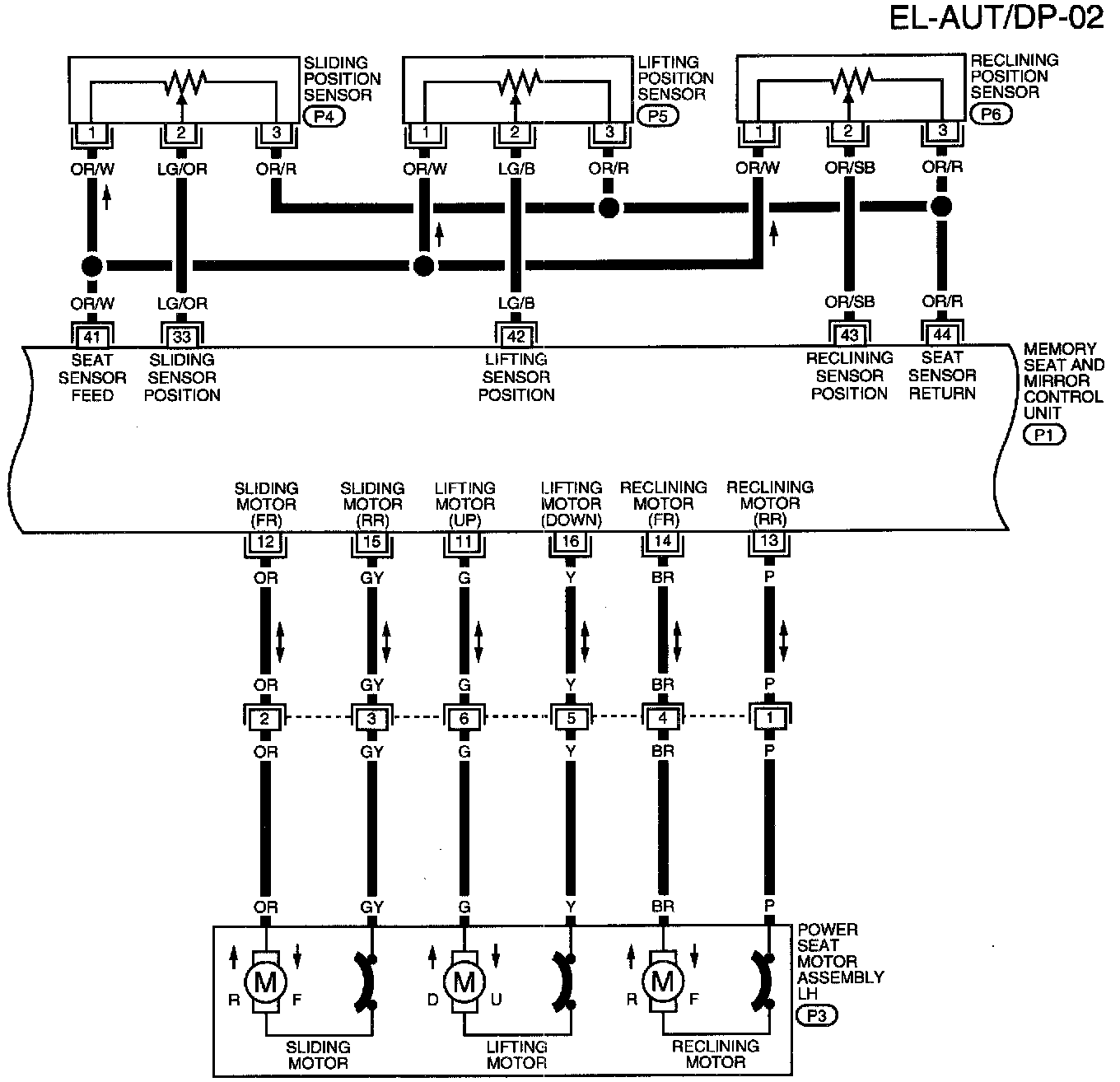

(Part 2 of 5)
Lifting Position Sensor
Memory Seat And Mirror Control Unit
- Lifting Motor
- Reclining Motor
- Sliding Motor
Reclining Position Sensor
Power Seat Motor Assembly LH
- Lifting Motor
- Reclining Motor
- Sliding Motor
Sliding Position Sensor

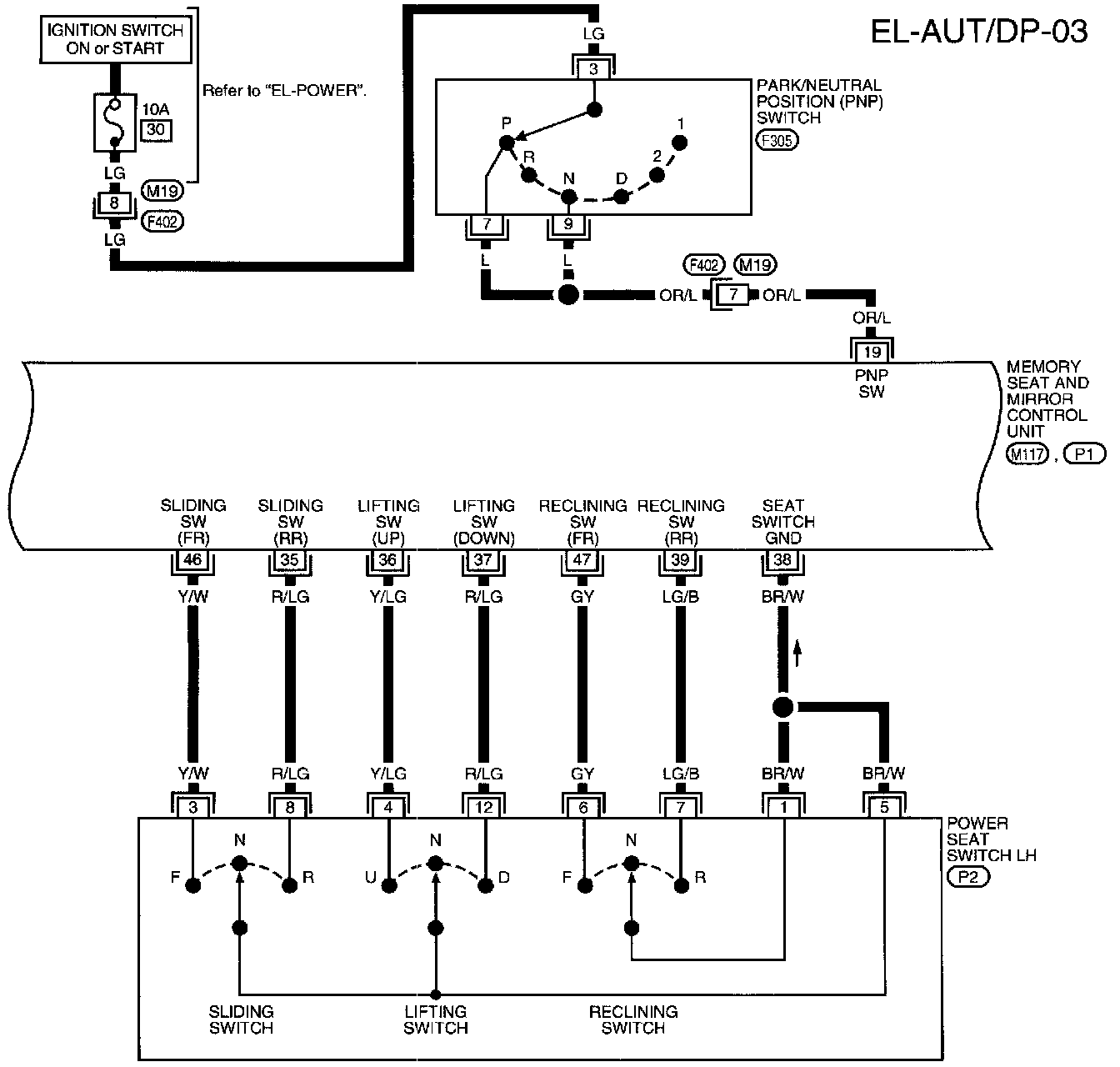

(Part 3 of 5)
Memory Seat And Mirror Control Unit
- Lifting Switch
- Reclining Switch
- Sliding Switch
Park/Neutral Position (PNP) Switch
Power Seat Switch LH
- Lifting Switch
- Reclining Switch
- Sliding Switch

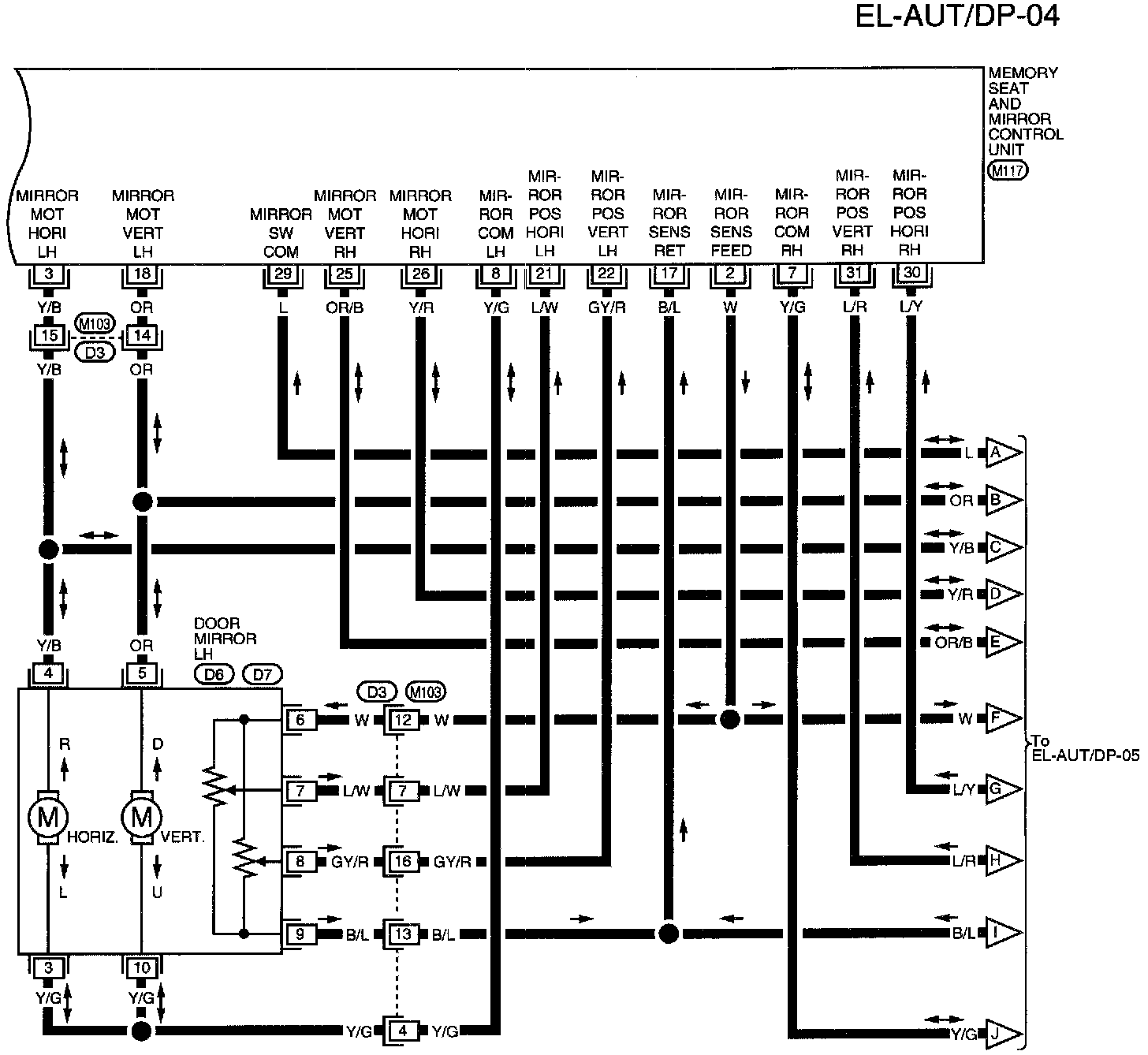

(Part 4 of 5)
Door Mirror LH
Memory Seat And Mirror Control Unit

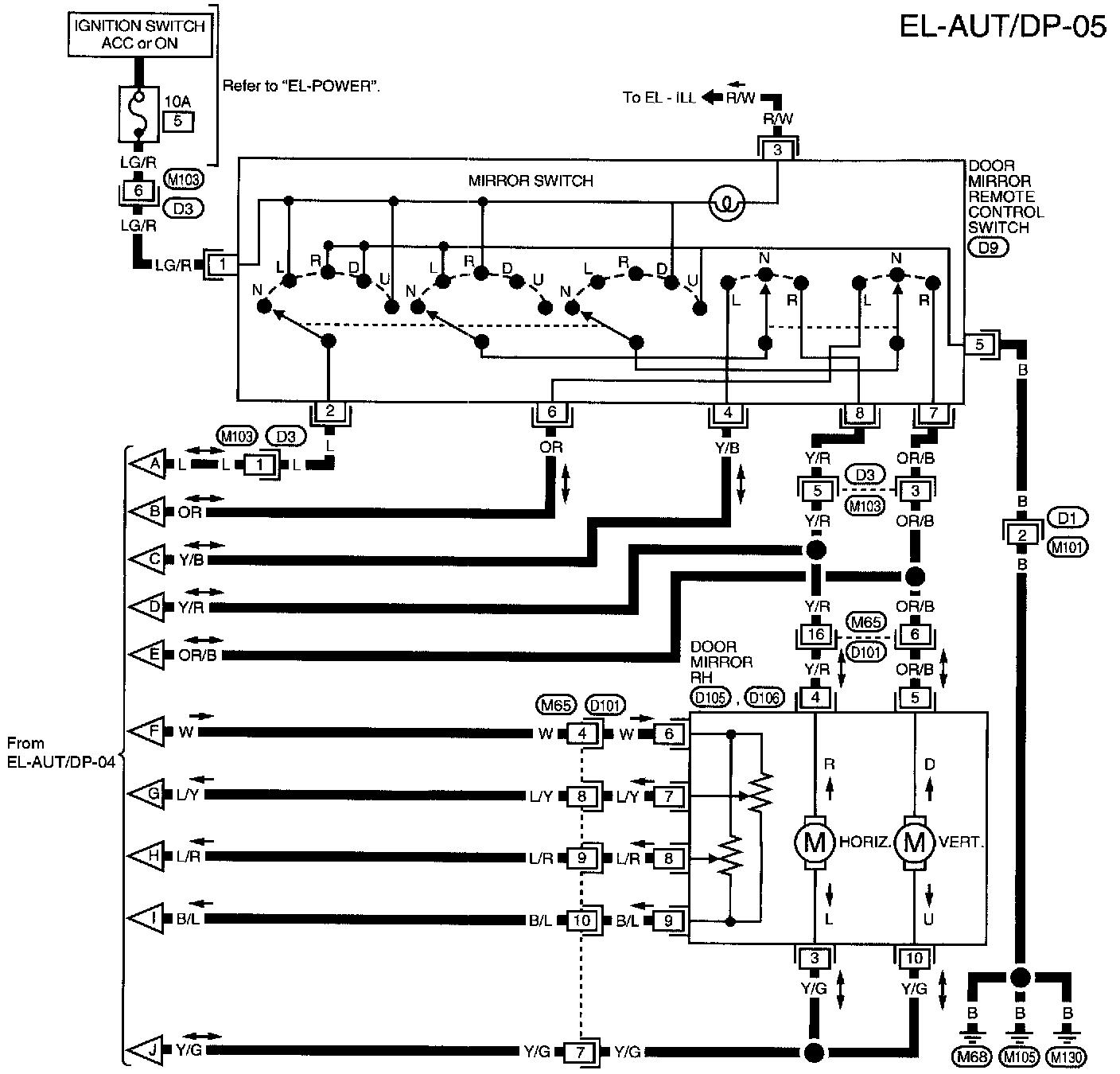

(Part 5 of 5)
Door Mirror Remote Control Switch
Door Mirror RH

















Automatic Drive Positioner Circuit Connectors





M1, E101 Super Multiple Junction Terminal Arrangement





M20 Joint Connector Terminal Arrangement
