Start Signal
EC-S/SIG/-01:
EC-S/SIG/-01 - Connector View:
WIRING DIAGRAMCONSULT-II REFERENCE VALUE IN DATA MONITOR MODESpecification data are reference values
ECM TERMINALS AND REFERENCE VALUESpecification data are reference values and are measured between each terminal and (43) (ECM ground).

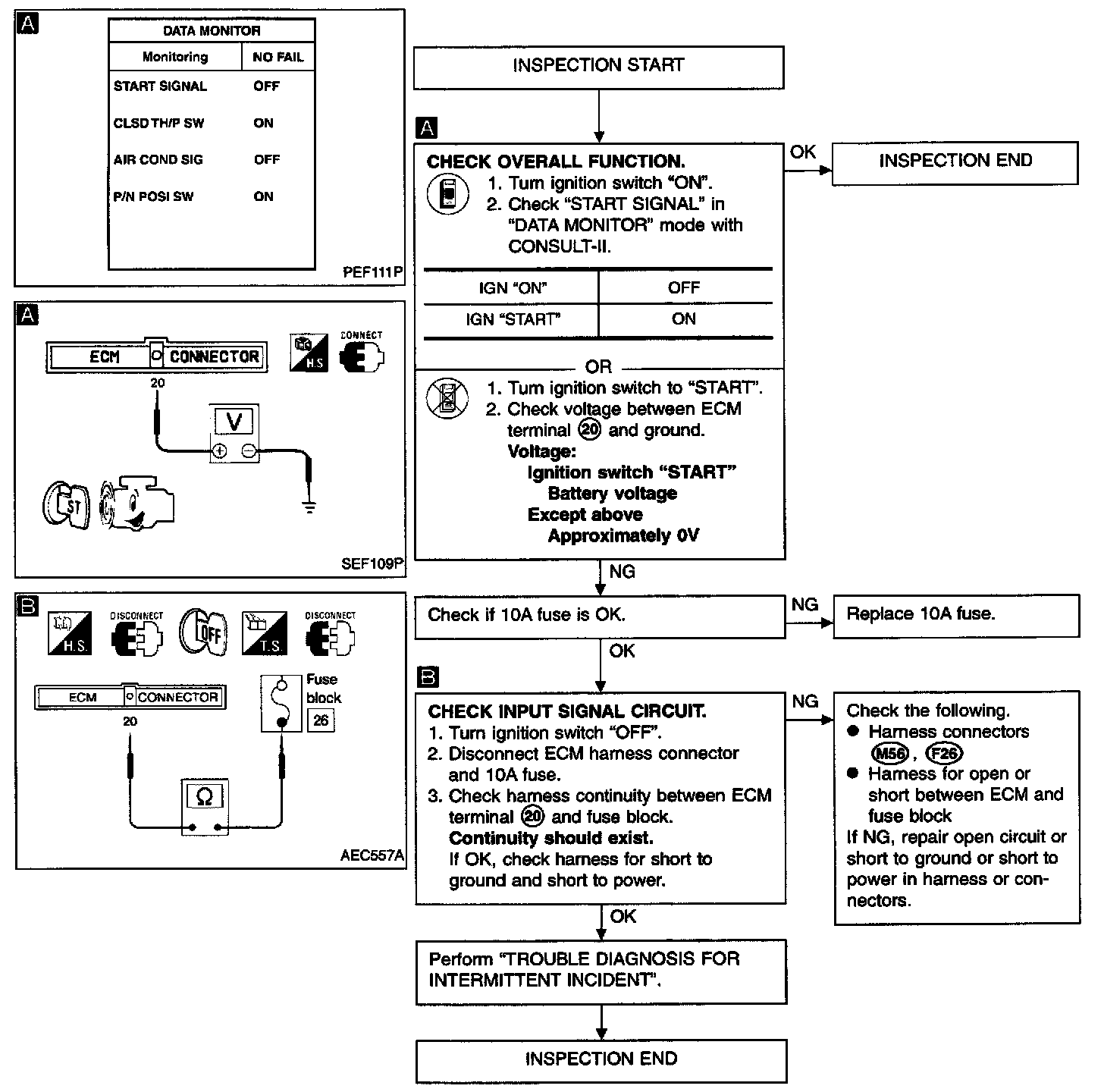

Diagnostic Procedure:
DIAGNOSTIC PROCEDURE
