Power Supply Testing
EC-MAIN-01:
EC-MAIN-01 - Connector View:

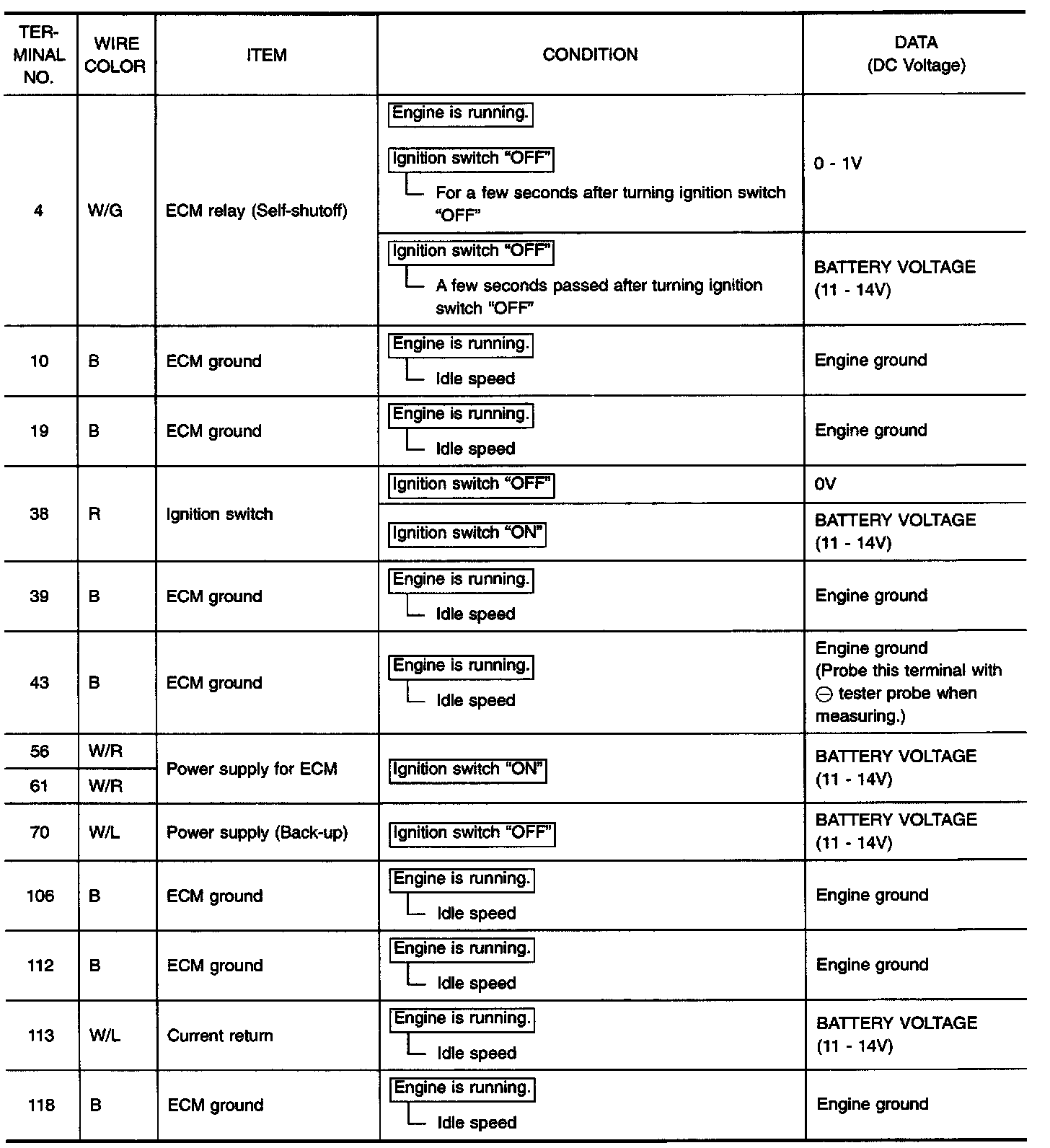

WIRING DIAGRAMECM TERMINALS AND REFERENCE VALUESpecification data are reference values and are measured between each terminal and (43) (ECM ground).

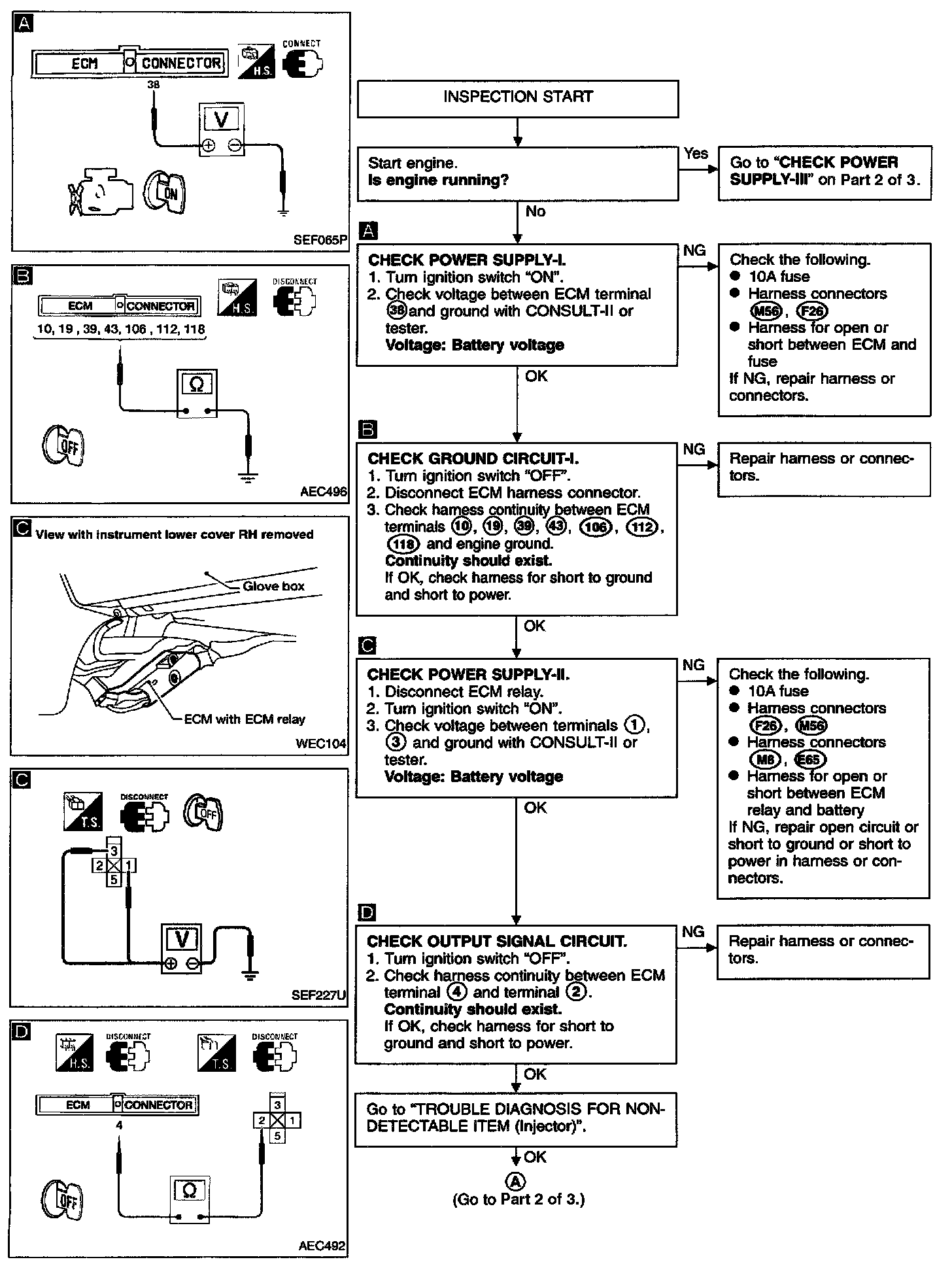

Diagnostic Procedure (Part 1 Of 3):

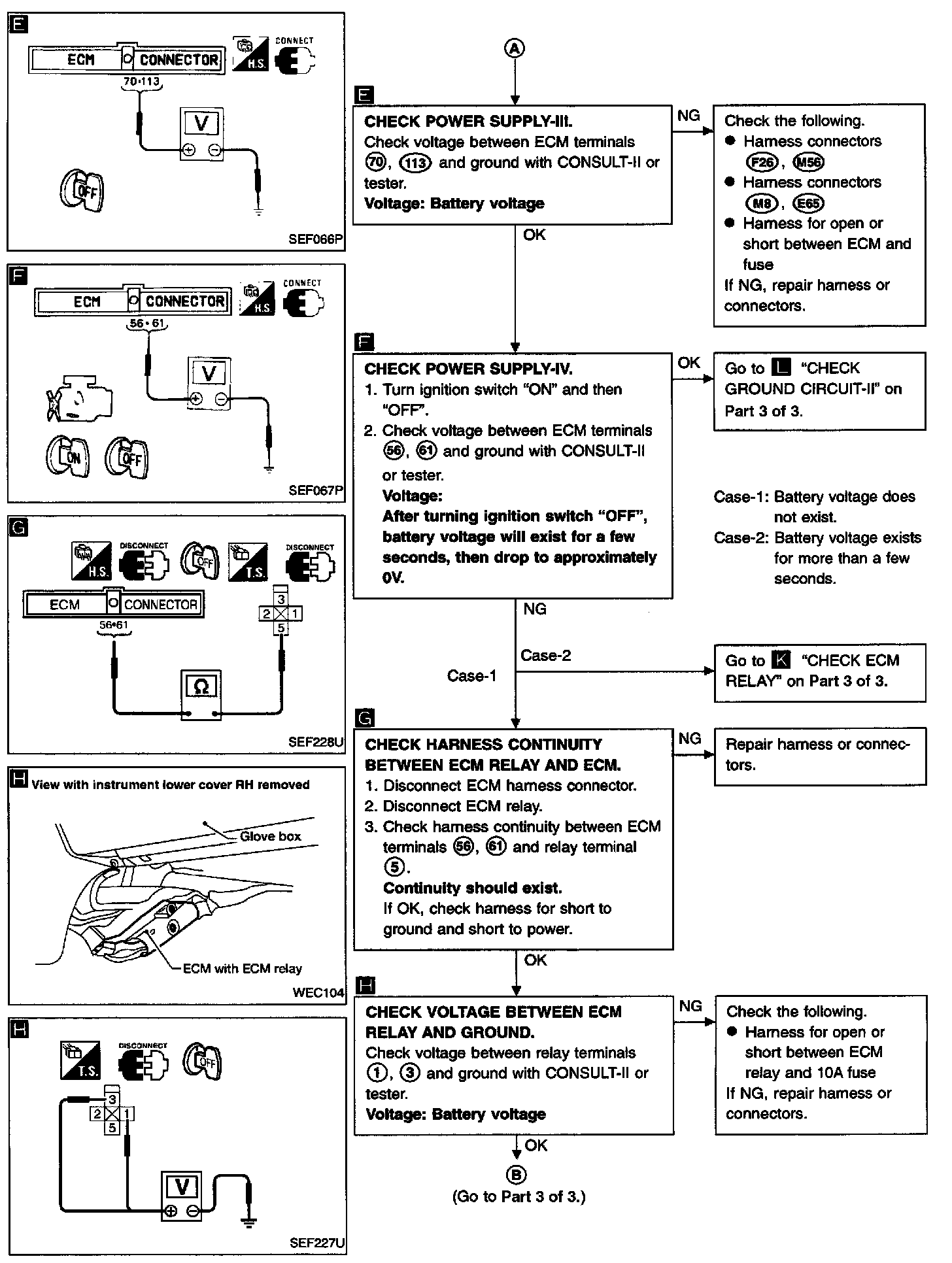

Diagnostic Procedure (Part 2 Of 3):

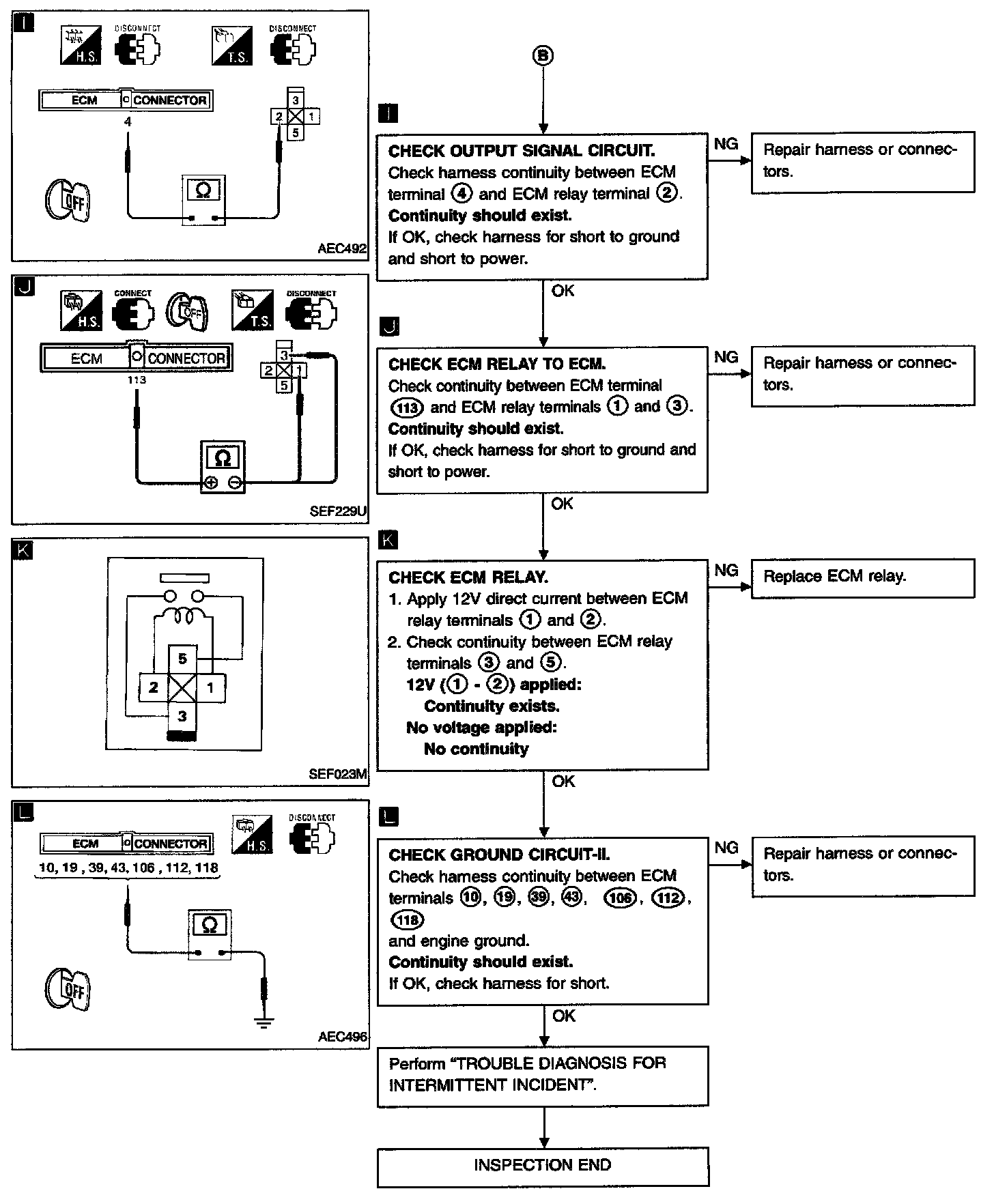

Diagnostic Procedure (Part 3 Of 3):
DIAGNOSTIC PROCEDURE
