Transmission Position Sensor/Switch: Description and Operation

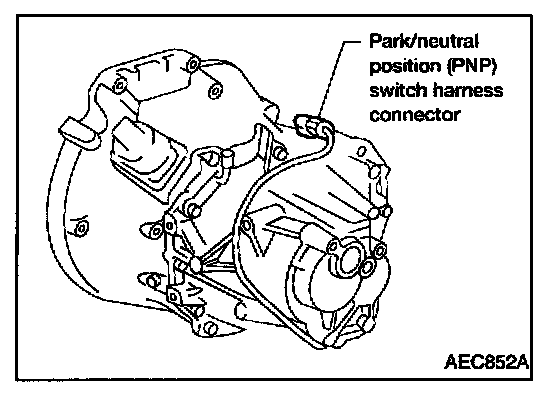

When the gear position is "P" (A/T models only) or "N", Park/neutral position (PNP) switch is "
ON".
ECM detects the park/neutral position when continuity with ground exists.
For A/T models, the PNP switch assembly also includes a transmission range switch to detect selector lever position.
