Cylinder Block

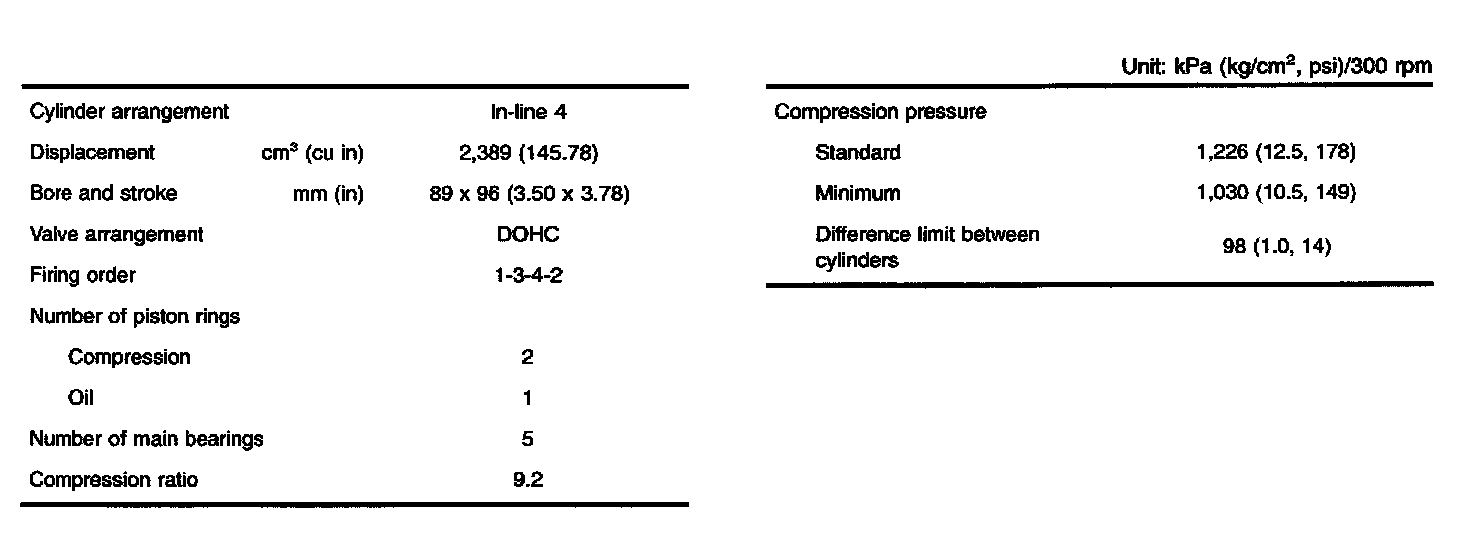

[ENGINE MECHANICAL]GENERAL SPECIFICATIONS
INSPECTION AND ADJUSTMENT

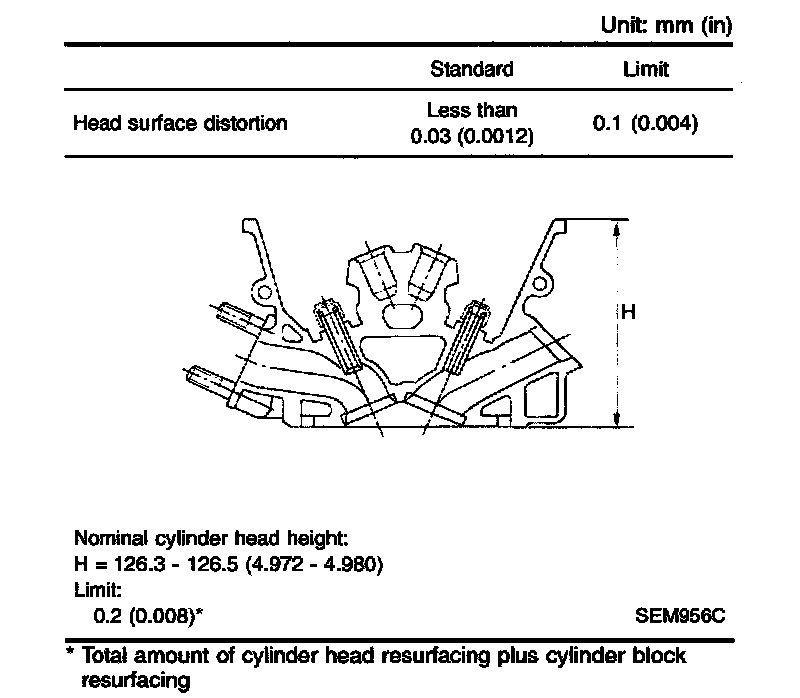

Cylinder Head:

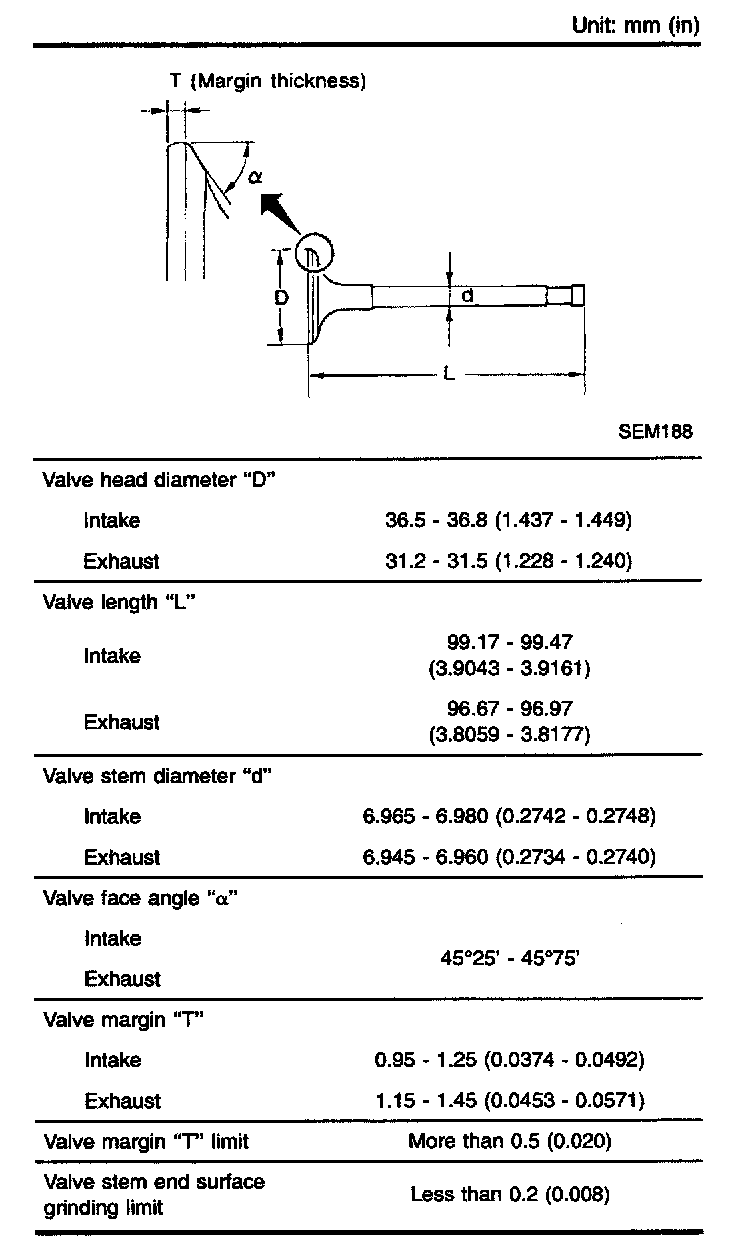

Valve:

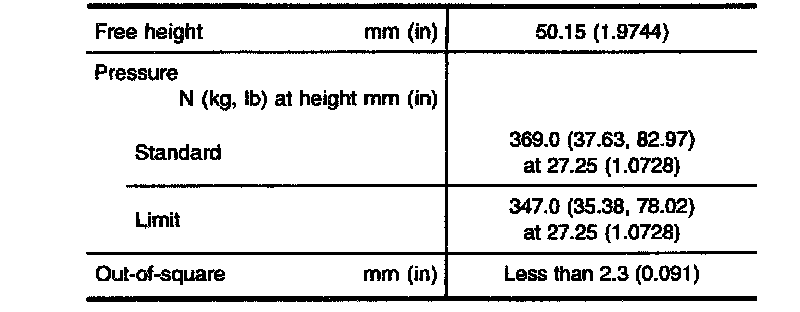

Valve Spring:

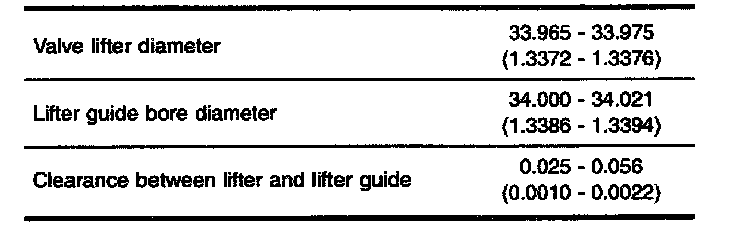

Valve Lifter:

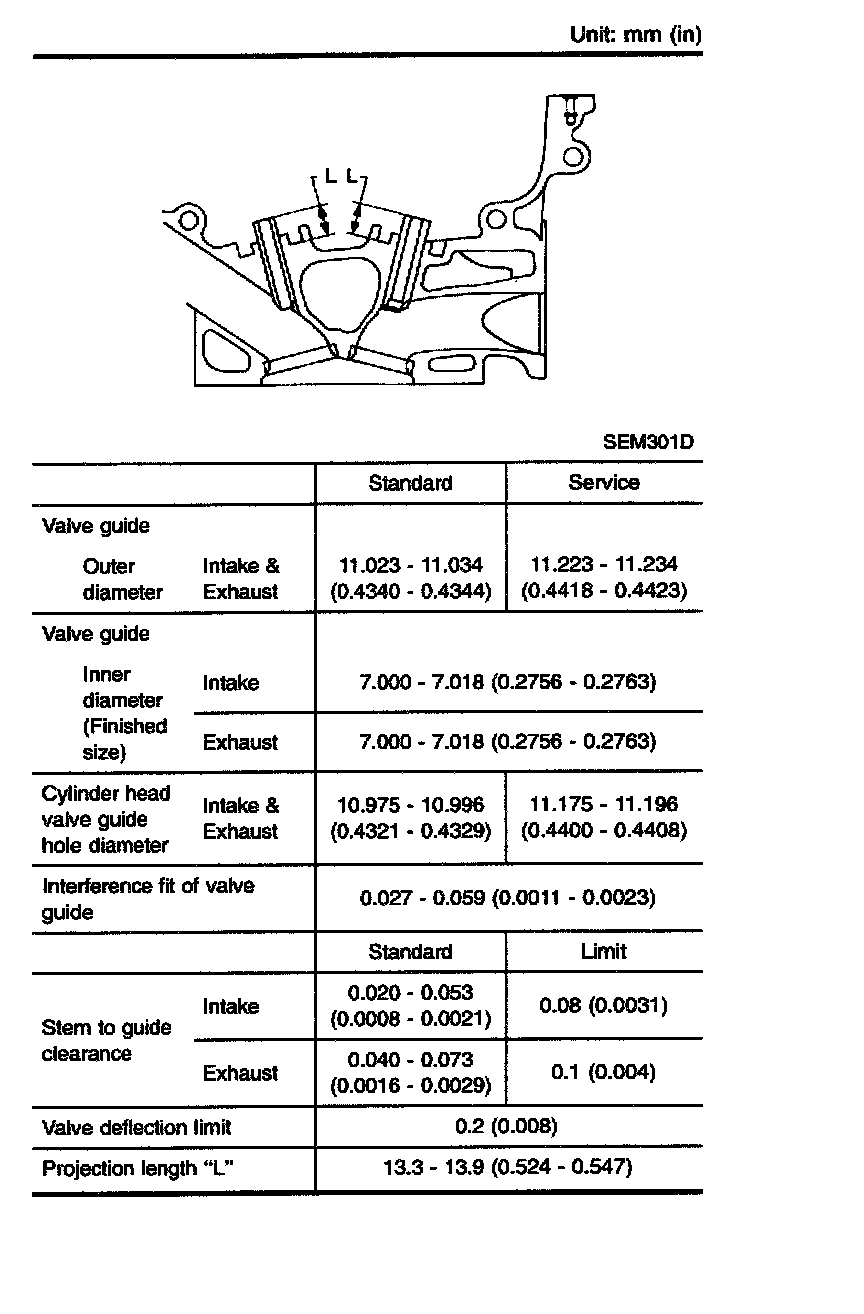

Valve Guide:

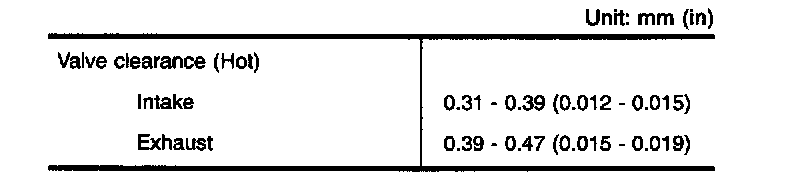

Valve Clearance Adjustment:

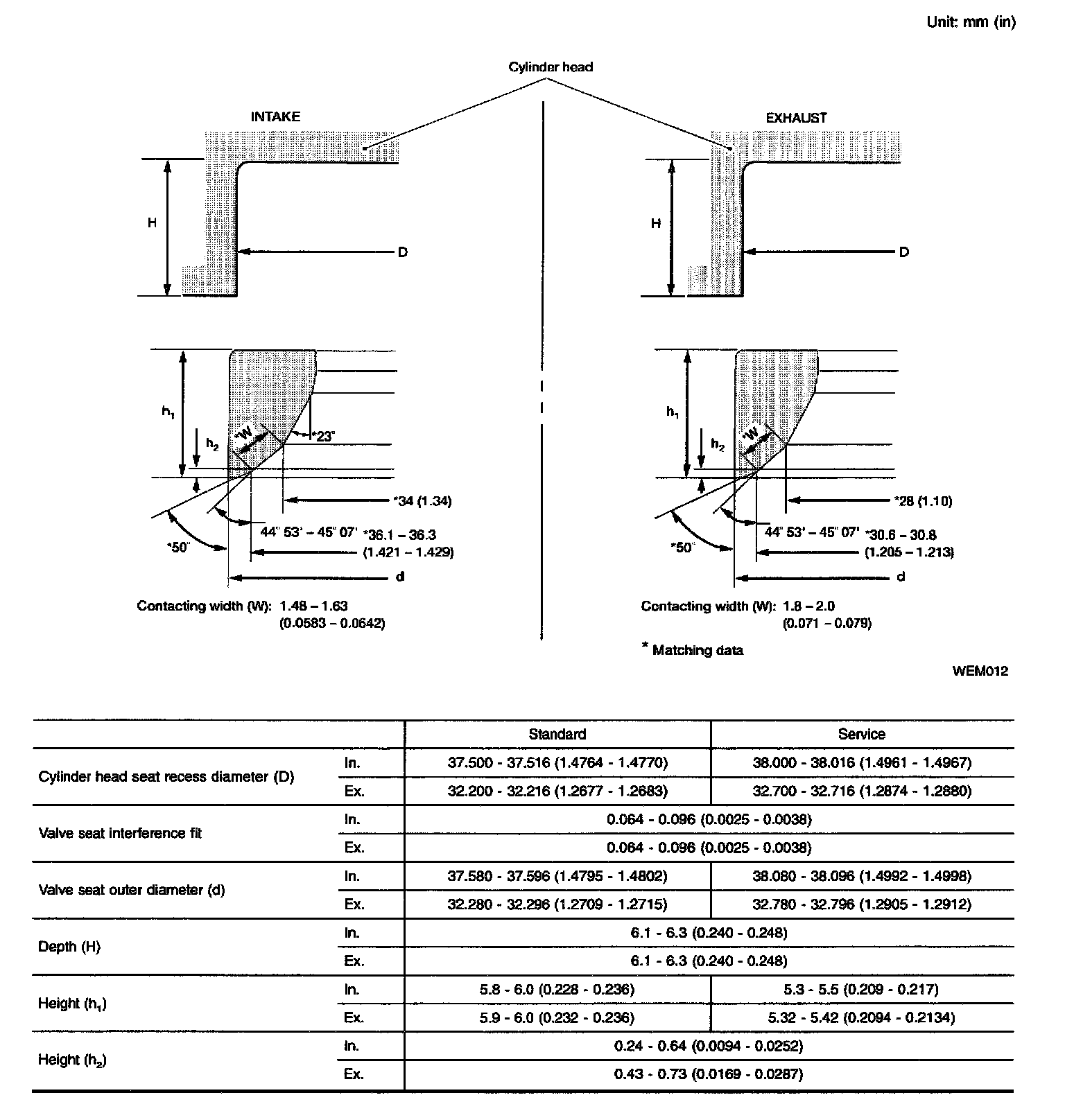

Valve Seat:

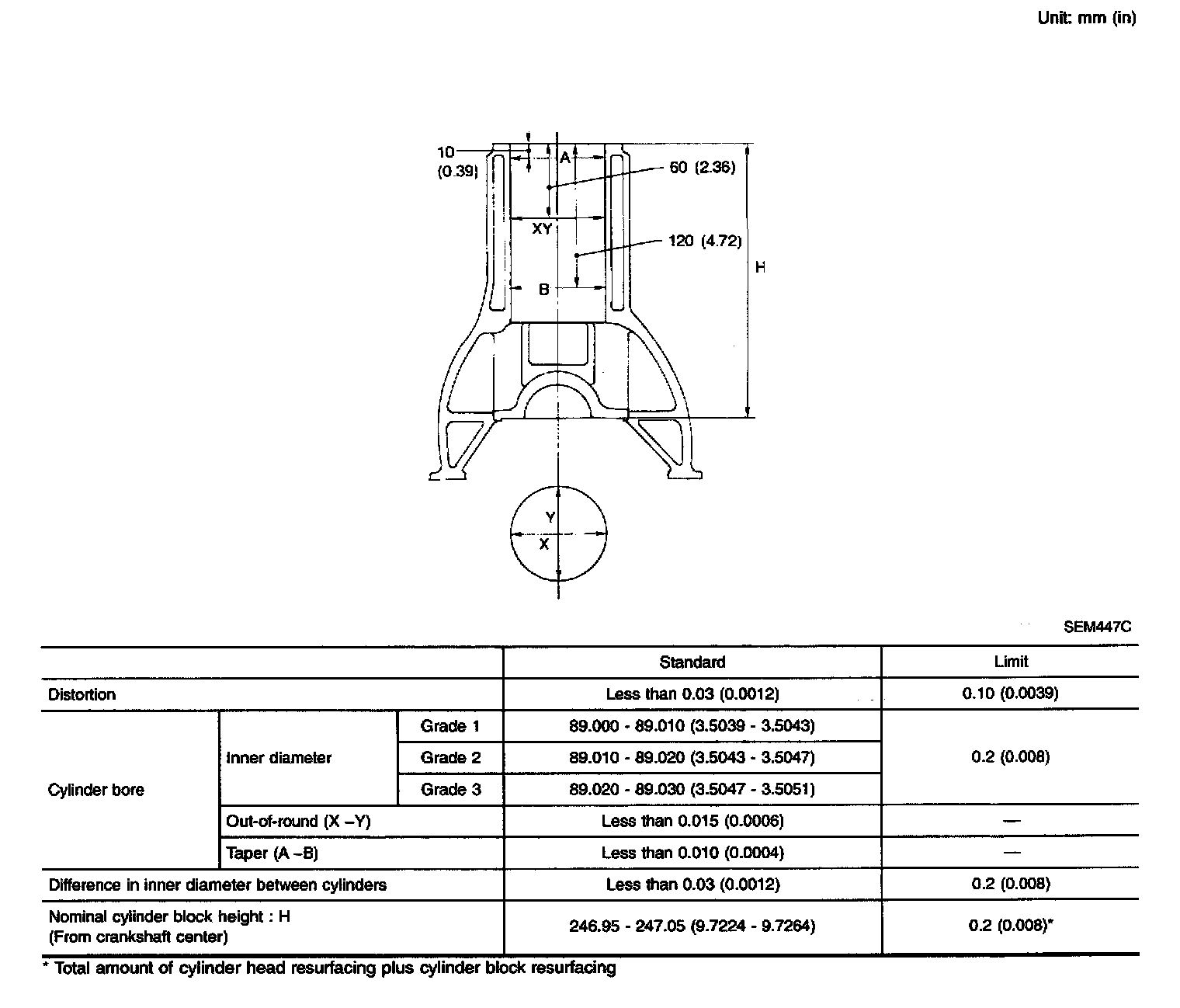

Cylinder Block:

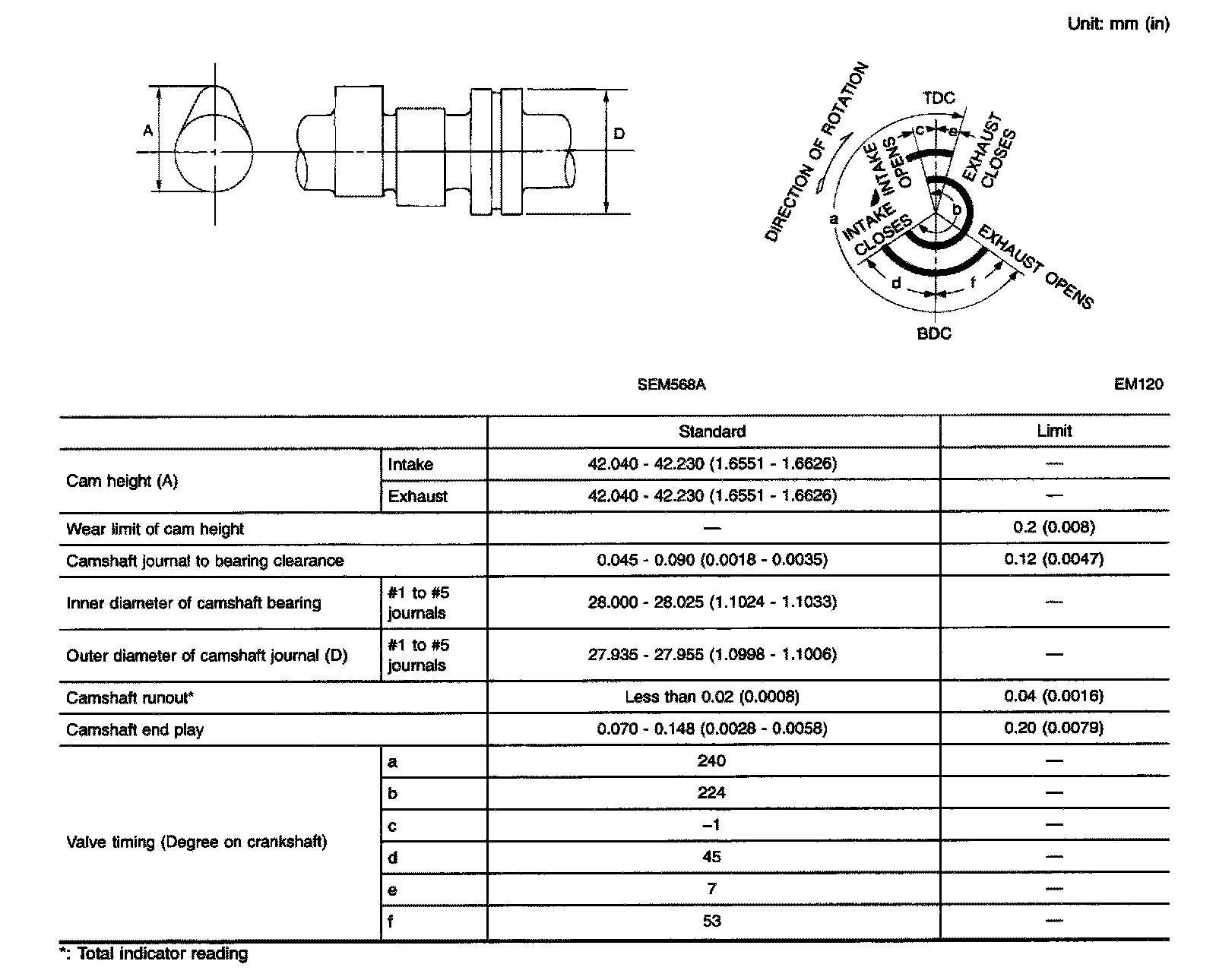

Camshaft And Camshaft Bearing:
PISTON, PISTON RING AND PISTON PIN

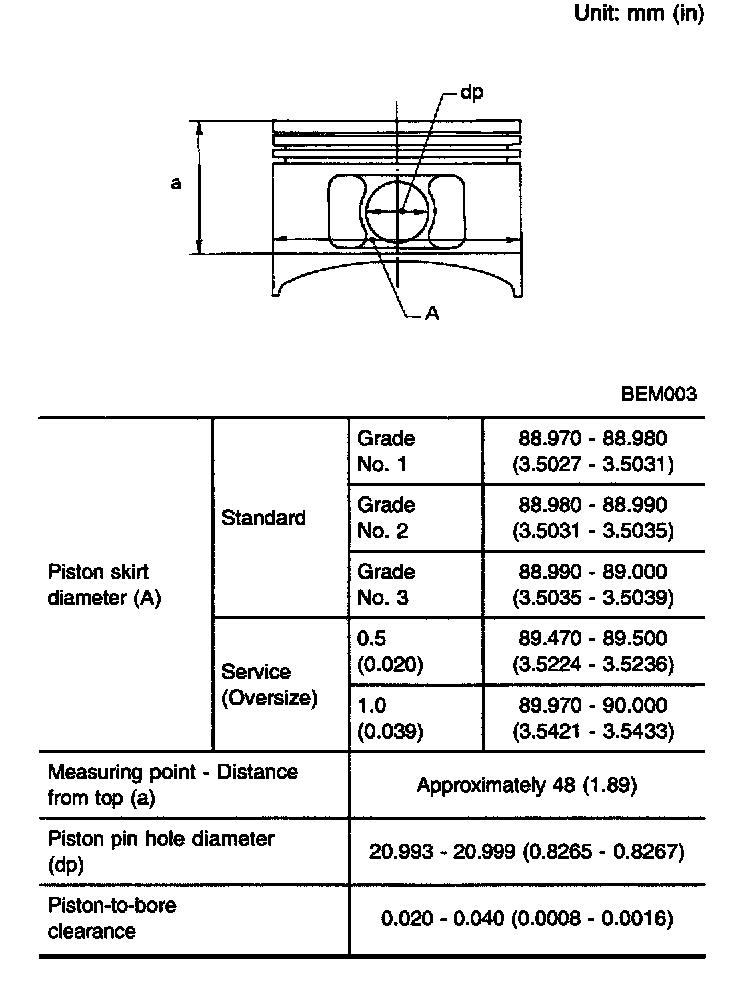

Piston:

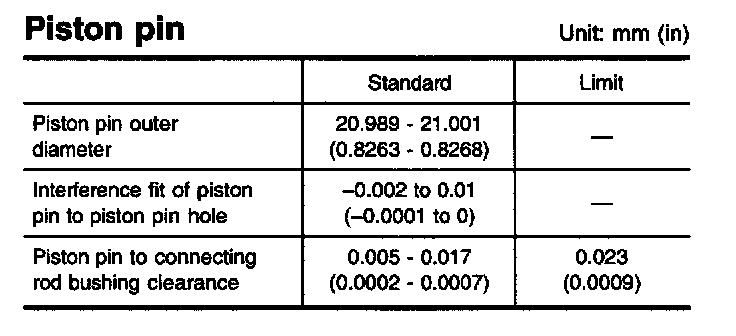

Piston Pin:

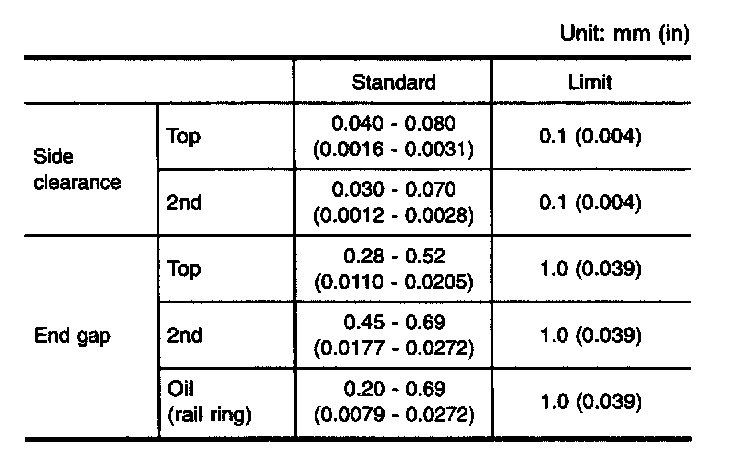

Piston Ring:

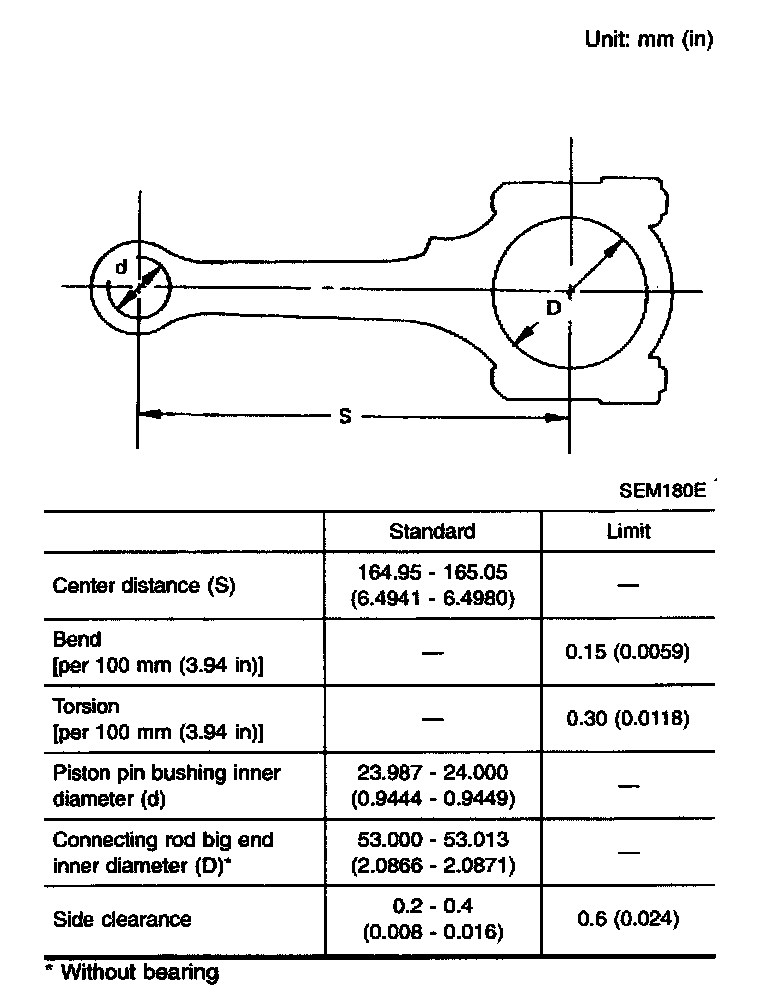

Connecting Rod:

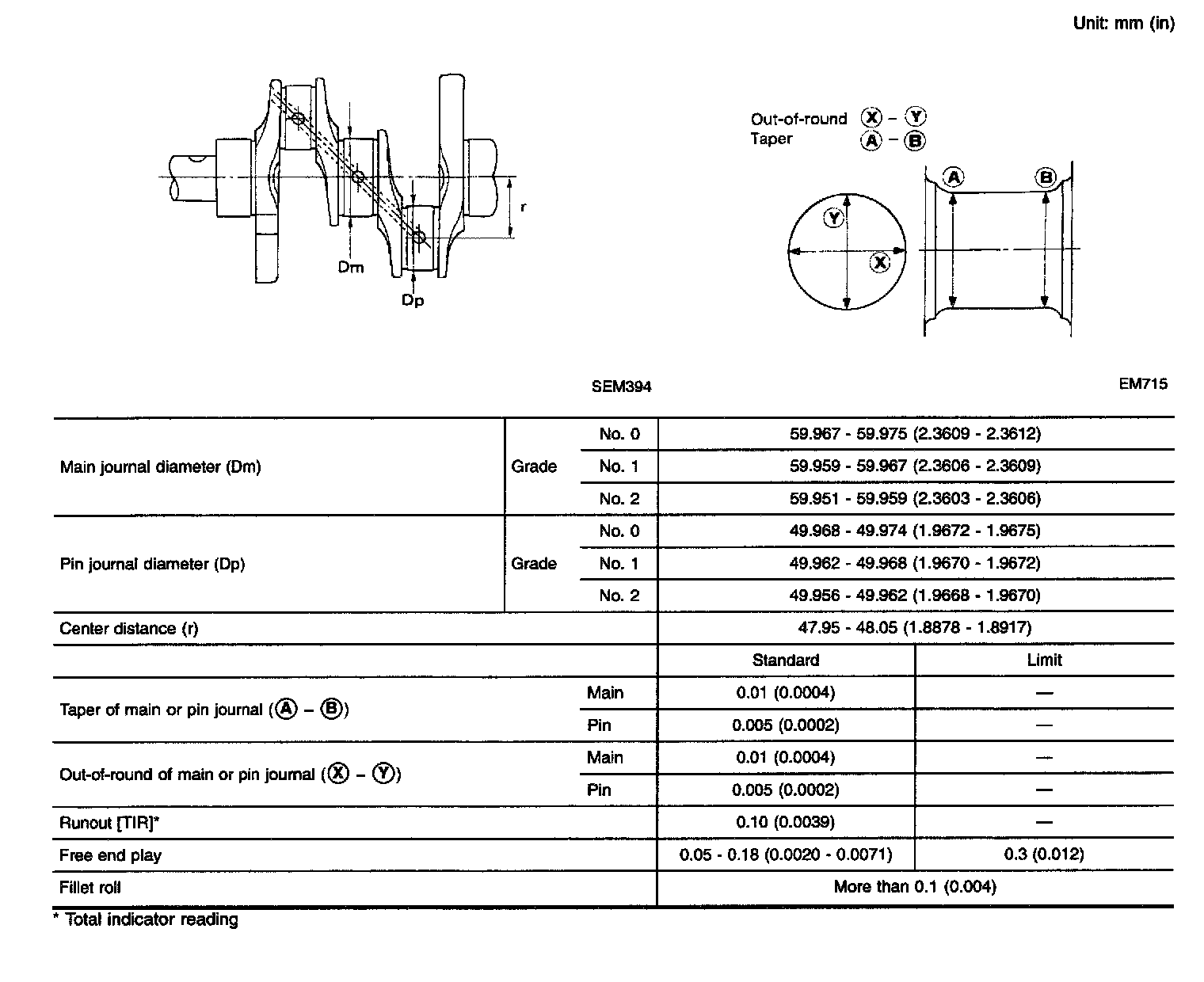

Crankshaft:

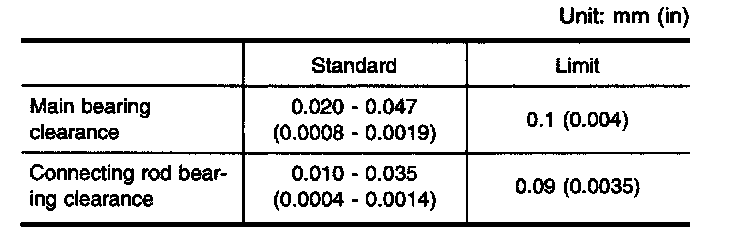

Bearing Clearance:
AVAILABLE MAIN BEARING
Standard:

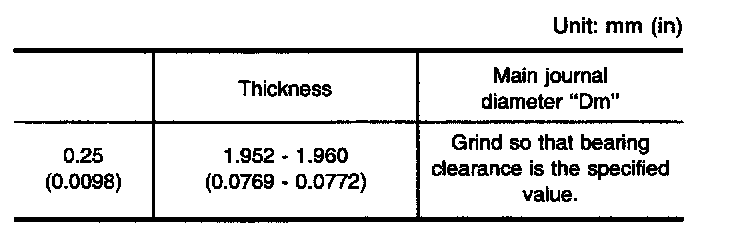

Undersize (Service):
AVAILABLE CONNECTING ROD BEARING
Standard:

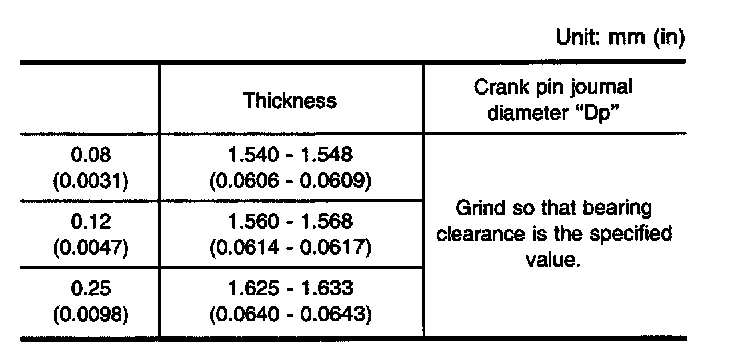

Undersize (Service):
MISCELLANEOUS COMPONENTS
ENGINE LUBRICATION SYSTEM

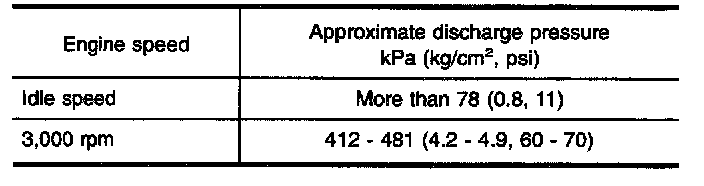

Oil Pressure Check:

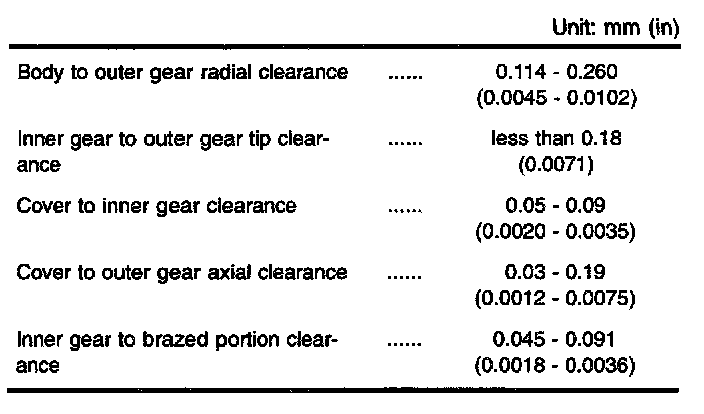

Oil Pump:
