Intake Manifold Torque & Sequence

NOTE: Nissan manuals for this model do not provide a separate service procedure for the Intake Manifold. The service manual does refer to the following images and the steps below are taken from Upper Timing Chain Service - where removing the intake manifold is addressed. However, it may be possible to service the Intake Manifold without removing some of the following components.





REMOVAL
1. Drain coolant from drain plug on water pipe and radiator drain cock.
2. Remove vacuum hoses, fuel hoses, wires, harness and connectors and so on.
3. Remove the following parts.
- Generator and bracket.
- Upper radiator hose.
- Air duct.
- Front exhaust tube.
- Cooling fan assembly.

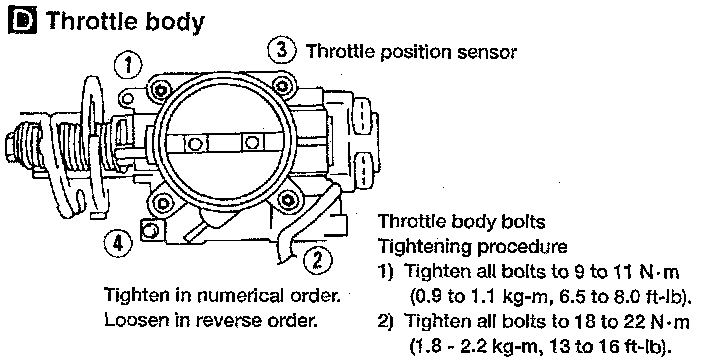

Part 1 Of 2:

Part 2 Of 2:

4. Remove intake manifold collector supports, intake manifold and exhaust manifold.
- Installation is reverse of removal, noting the above torque procedures. For further service information, refer to Cylinder Head Assembly/Service and Repair/Procedures. Service and Repair
