Main Bearing Cap Torque
Crankshaft main bearing cap torque specification
34 - 41 ft. lbs. (46 - 56 Nm)

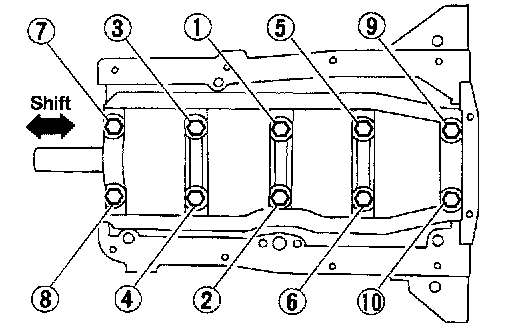

Tighten bearing cap bolts gradually in two or three stages. Start with center bearing and move outward as shown in figure.
