Charging System: Testing and Inspection

With IC Regulator

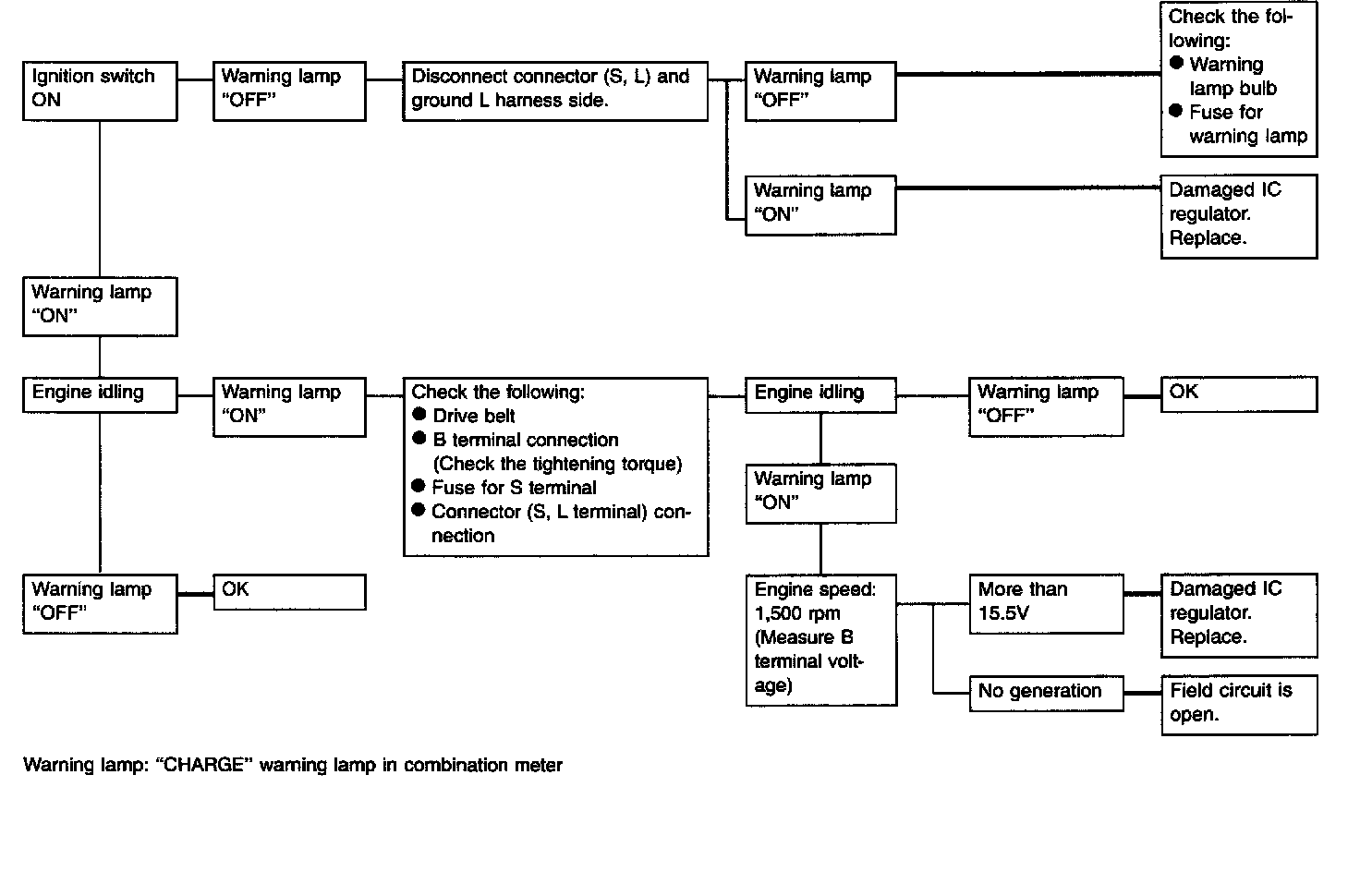

Before conducting a generator test, make sure that the battery is fully charged. A 30 volt voltmeter and suitable test probes are necessary for the test. The generator can be checked easily by referring to the Inspection Table.
- Before starting, inspect the fusible link.
- Use fully charged battery.
Warning lamp: "CHARGE" warning lamp in combination meter

NOTE:
* When field circuit is open, check condition of rotor coil, rotor slip ring and brush. If necessary, replace faulty parts with new ones.
