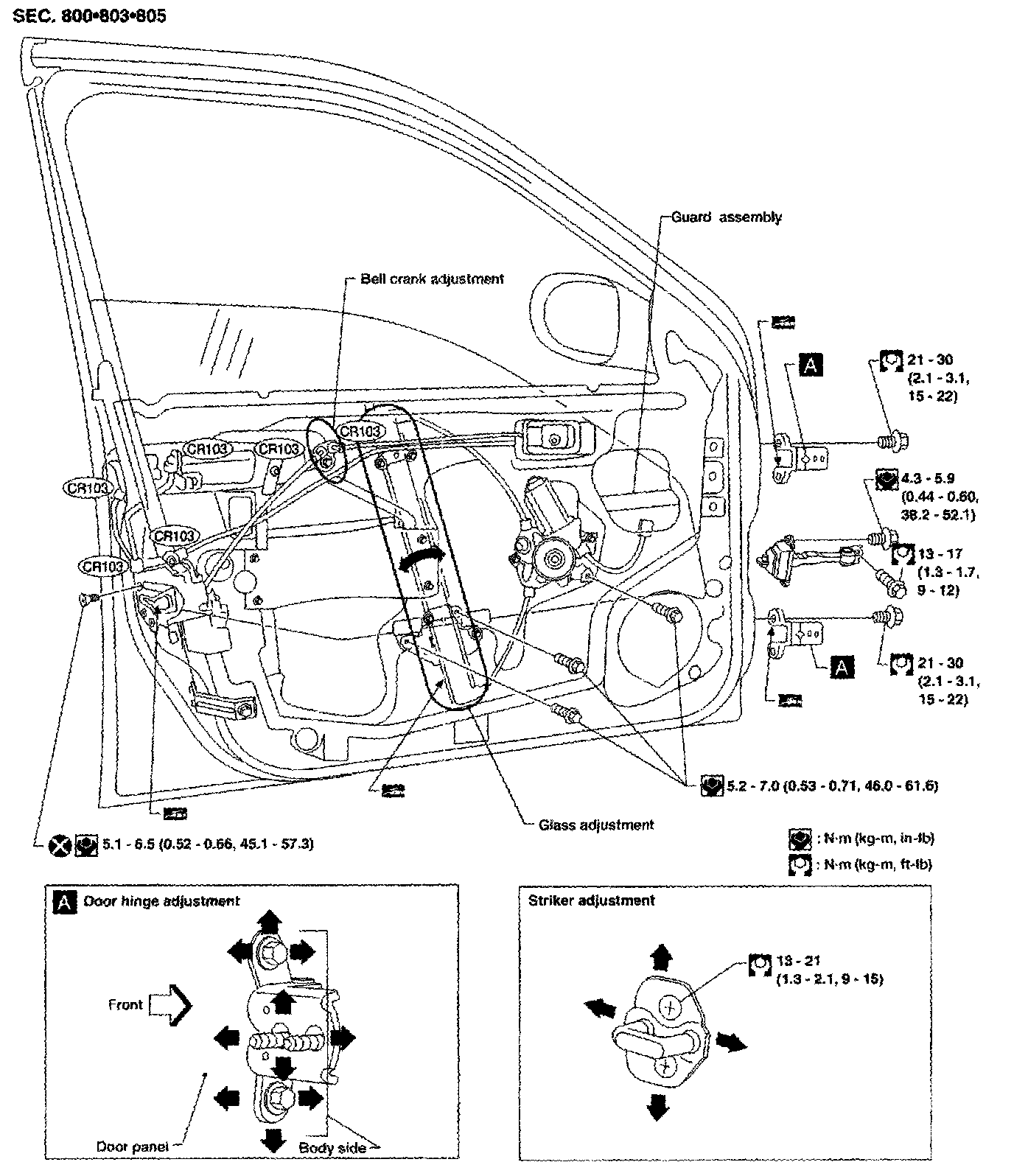

Front Door Window Regulator: Service and Repair

- For removal of door panel Front Door Panel
- When removing door, be sure not to scratch vehicle body.
- After adjusting door or door lock, check door lock operation.
- When disassembling rear door window, it is better to remove upper and waist roller mounting first.







- Remove the inside door trim. Refer to "Door Trim".
- Remove the inside door plastic vapor barrier.
- Remove the window glass.

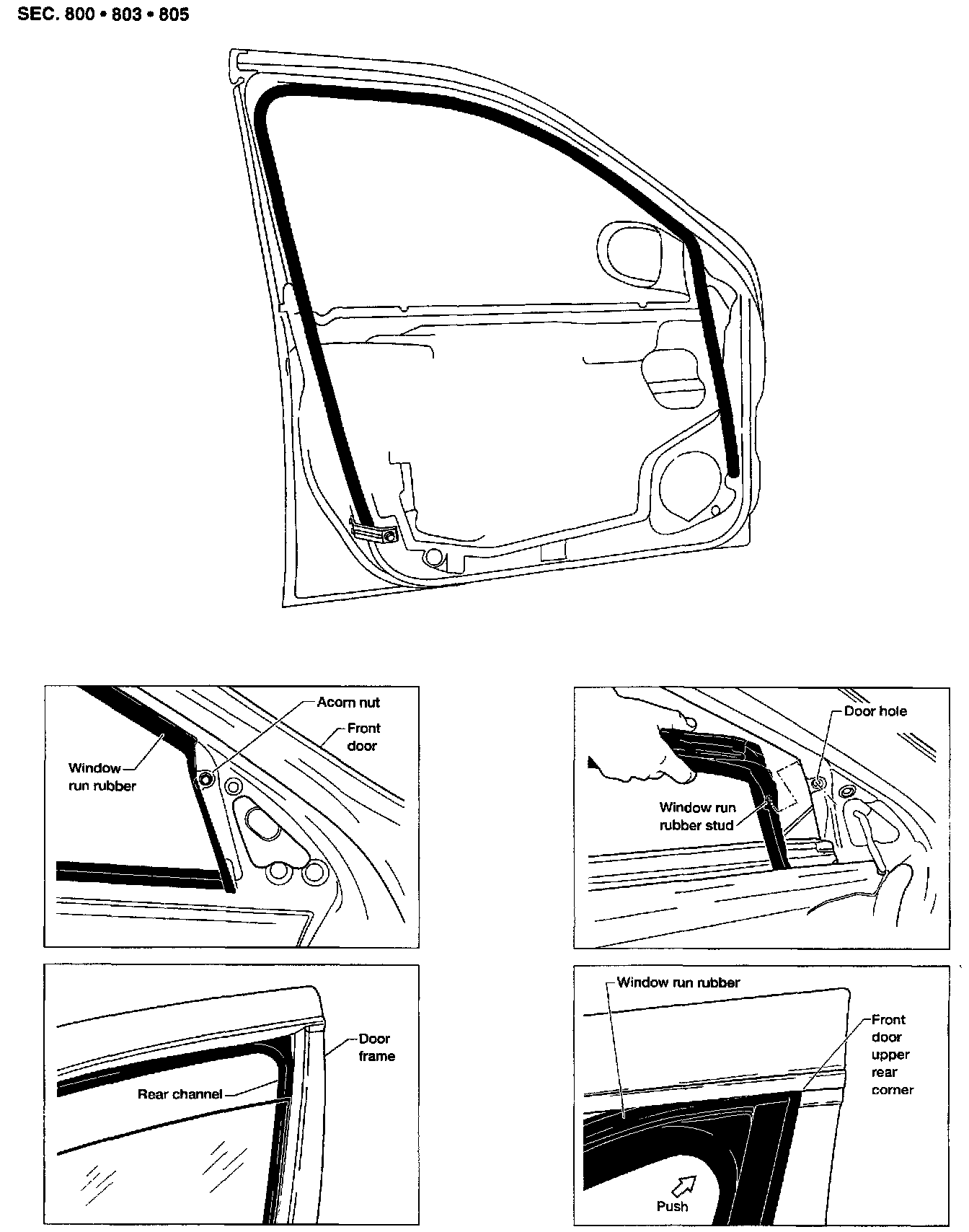

- Remove the acorn nut and bolts that attach the window run rubber assembly.
- Remove the window run rubber assembly.
