ID Code Entry Procedure

Enter the identity (ID) code manually when:
- remote controller or control unit is replaced.
- an additional remote controller is activated.

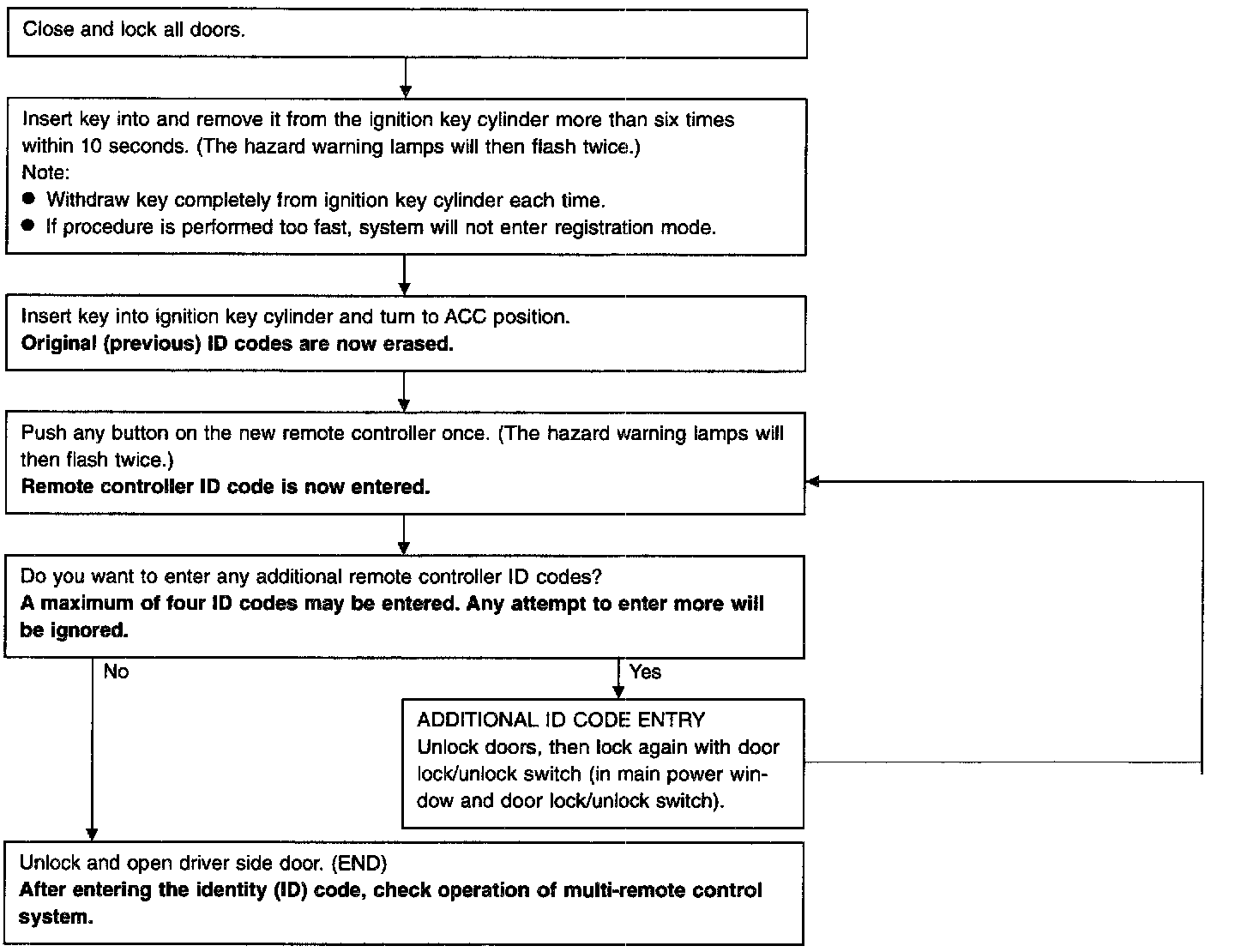

To enter the ID code, follow the procedure below.

NOTE:
- If you need to activate more than two additional new remote controllers, repeat the procedure "Additional ID code entry" for each new remote controller.
- If the same ID code that exists in the memory is input, the entry will be ignored.
- Entry of four ID codes maximum is allowed and any attempt to enter more will be ignored.
- Any ID codes entered after termination of the "setting mode" will not be accepted. Additional remote control signals will be inhibited if not entered during the "setting" mode.
