Smart Entrance Control Unit
CONSULT-II INSPECTION PROCEDURE 1.
Turn the ignition switch
"OFF". 2.
Connect "CONSULT-II" to the data link connector.
3.
Turn ignition switch
"ON". 4.
Touch "START".
5.
Touch "SMART ENTRANCE".
6.
Perform each diagnostic item according to "DIAGNOSTIC ITEMS APPLICATION".

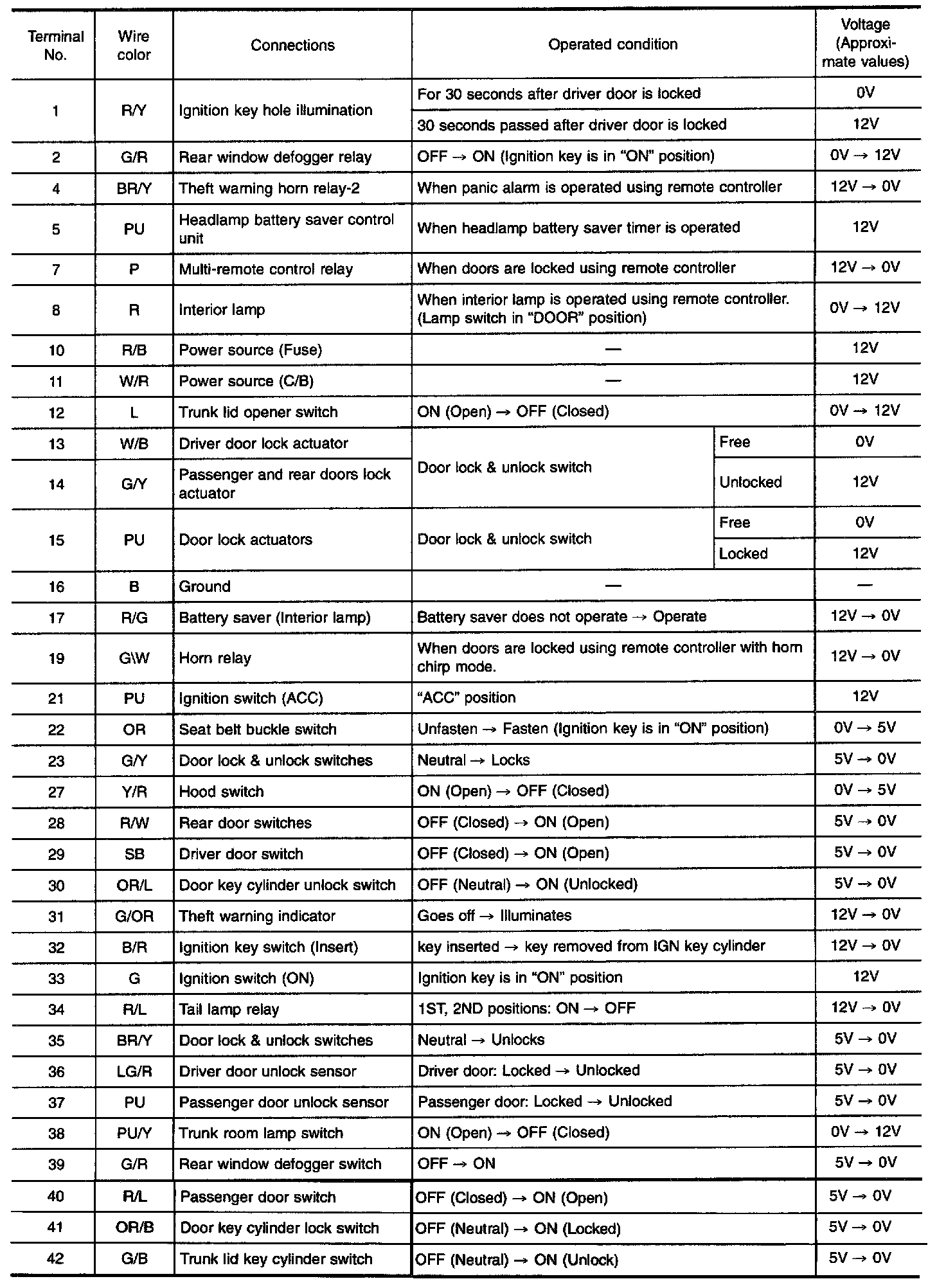

Smart Entrance Control Unit Inspection Table
