Multi-Remote Control System

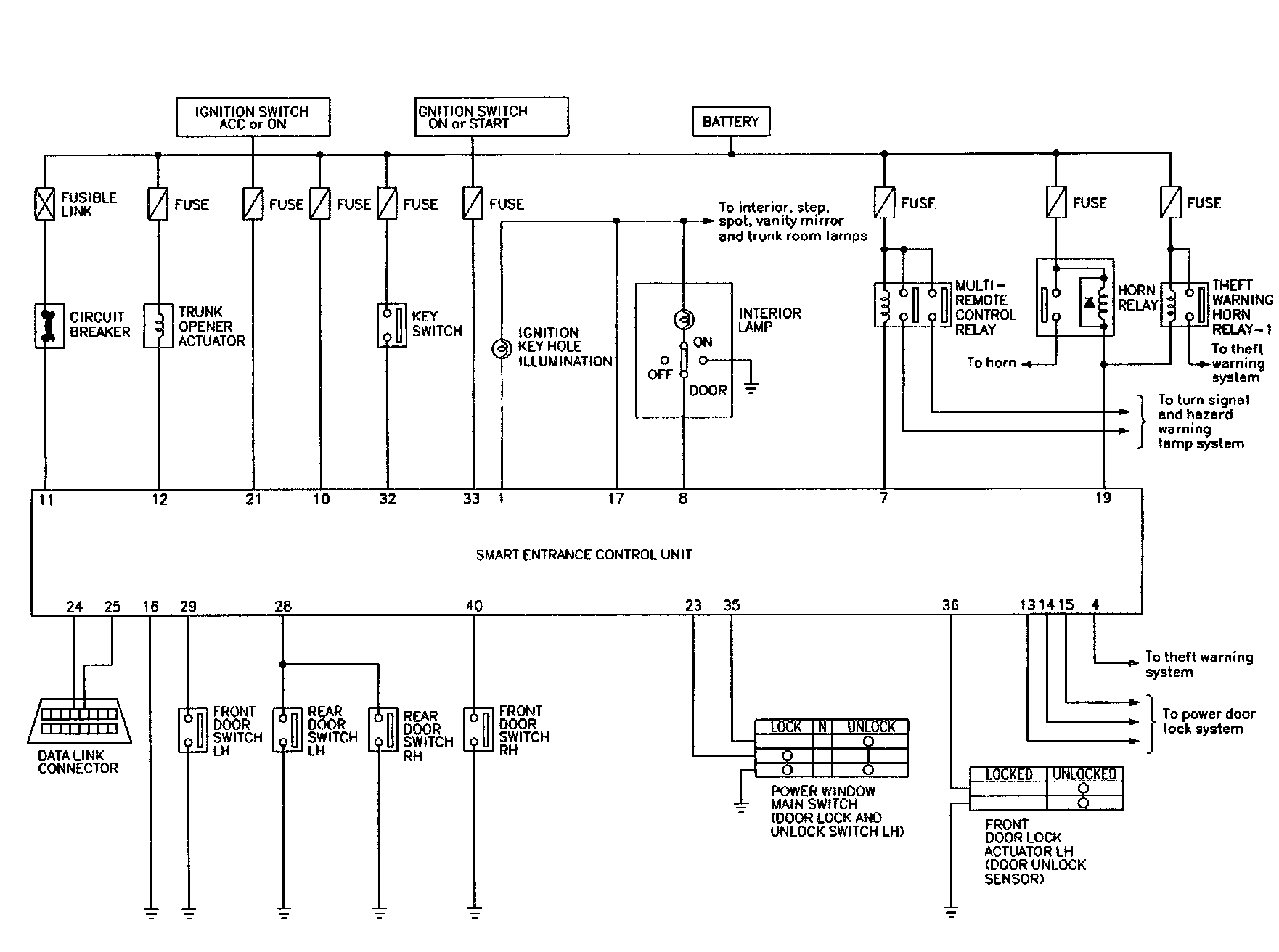

Schematic

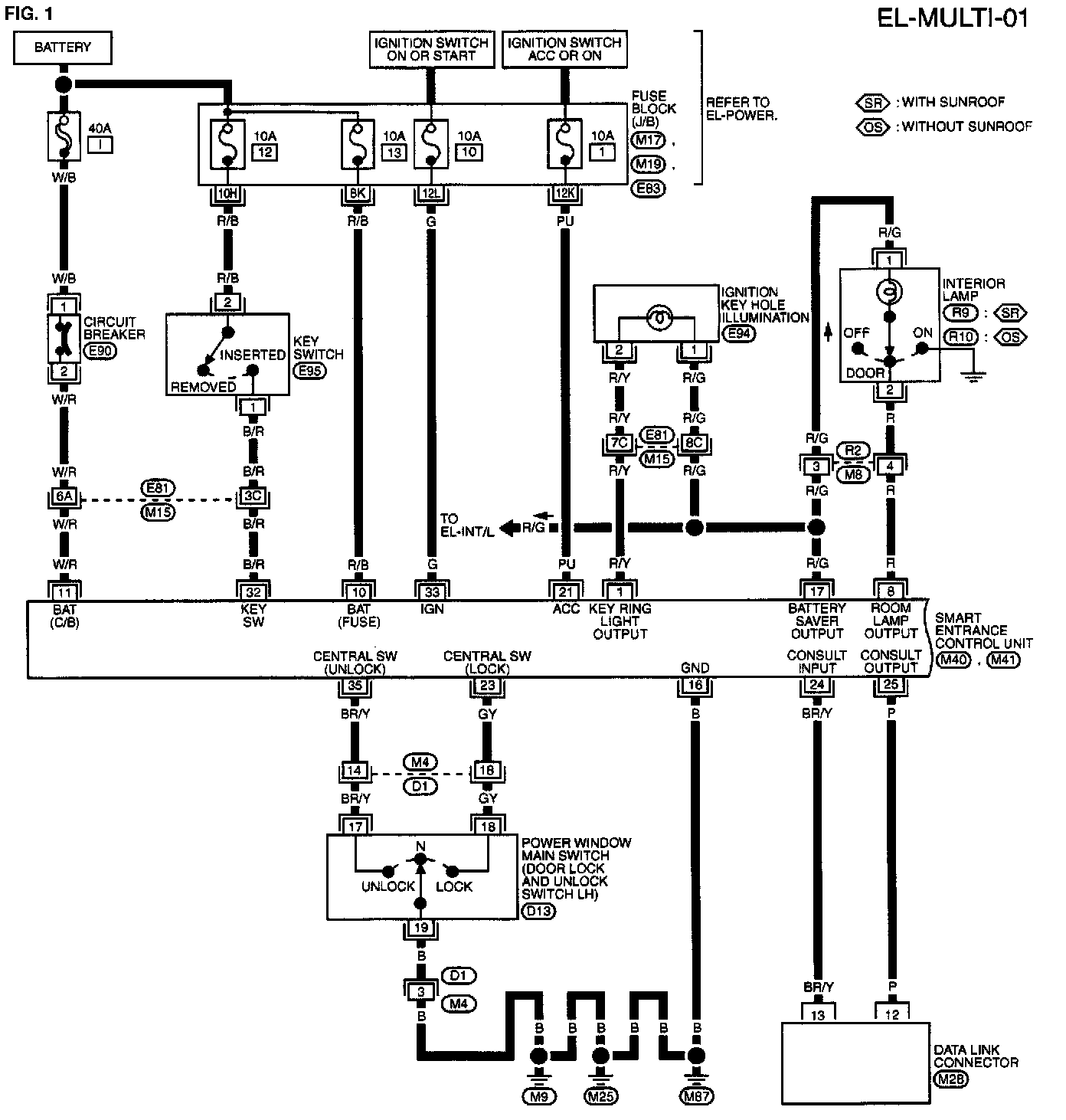

EL-MULTI-01:




Part 1 of 3
Battery
Fuse Block (J/B)
Circuit Breaker
Key Switch
Ignition Key hole Illumination
Interior Lamp
Smart Entrance Control Unit
Power Window Main Switch (Door Lock and Unlock Switch LH)
Data Link Connector

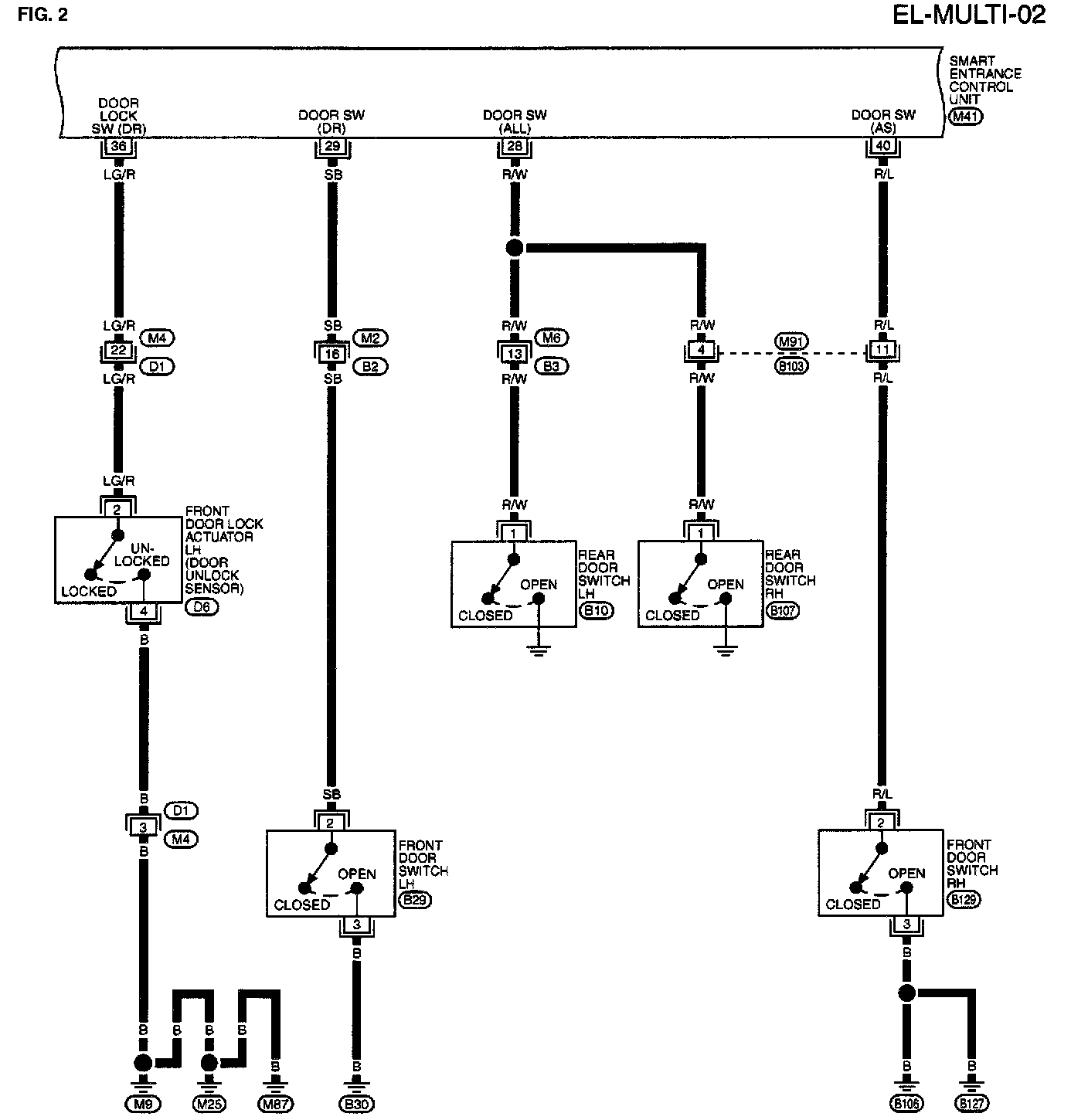

EL-MULTI-02:




Part 2 of 3
Smart Entrance Control Unit
Front door Lock Actuator LH (Door Unlock Sensor)
Rear Door Switch LH
Rear Door Switch RH
Front Door Switch LH
Front Door Switch RH

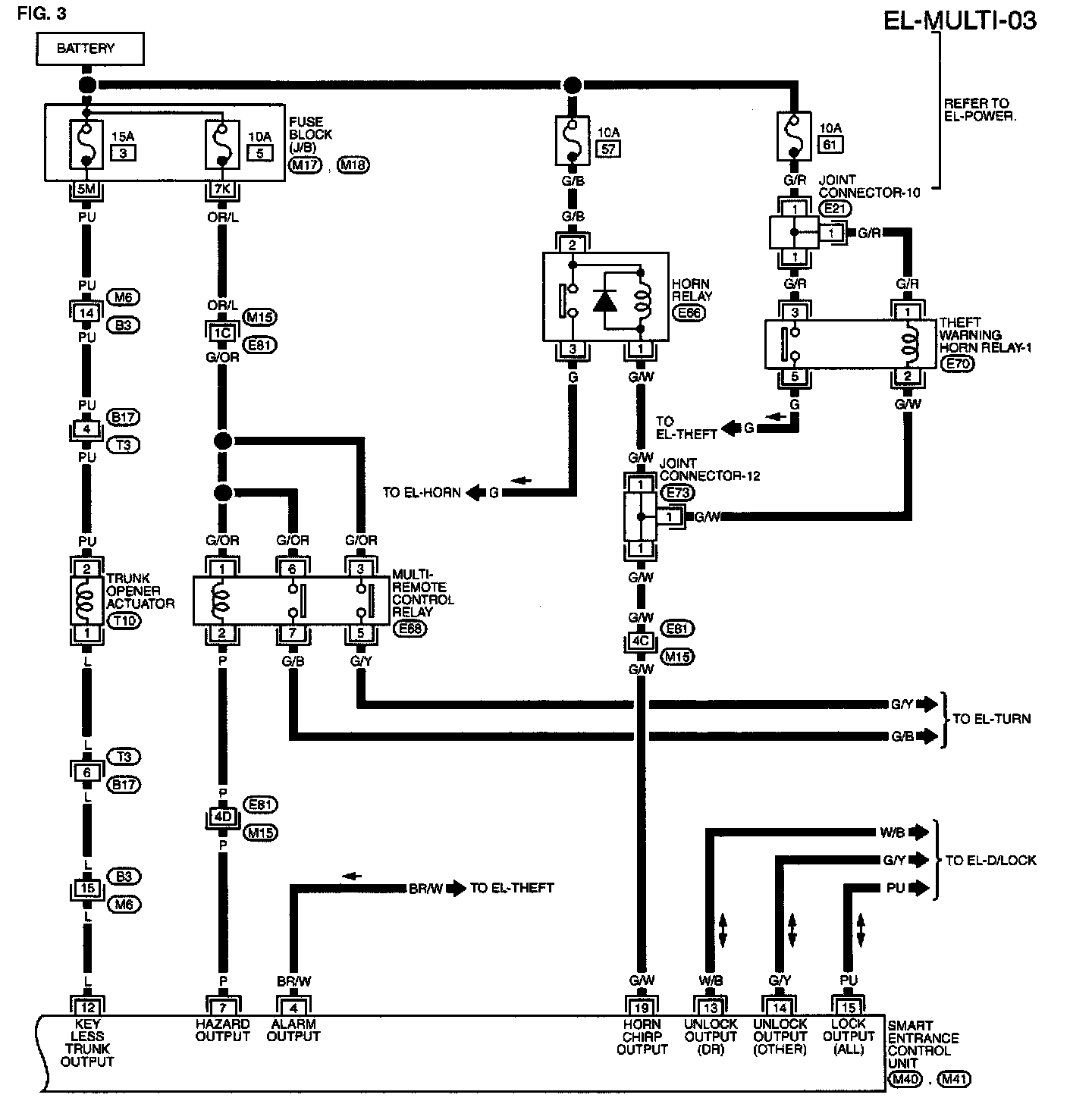

EL-MULTI-03:




Part 3 of 3
Battery
Fuse Block (J/B)
Joint Connector - 10
Horn Relay
Theft Warning Horn Relay - 1
Joint Connector - 12
Trunk Opener Actuator
Multi Remote Control Relay
Smart Entrance Control Unit
Circuit Diagrams










Circuit Connector

M15, E81, D1, M4, D31, D61 Connector Views:




E87, E89, E83, B5, M17, M18, M19 Connector Views:




M4, M15, E81, D1, M17, M18, M19, E83 Super Multiple Junction and Fuse Block Junction Box (J/B)Terminal Arrangement

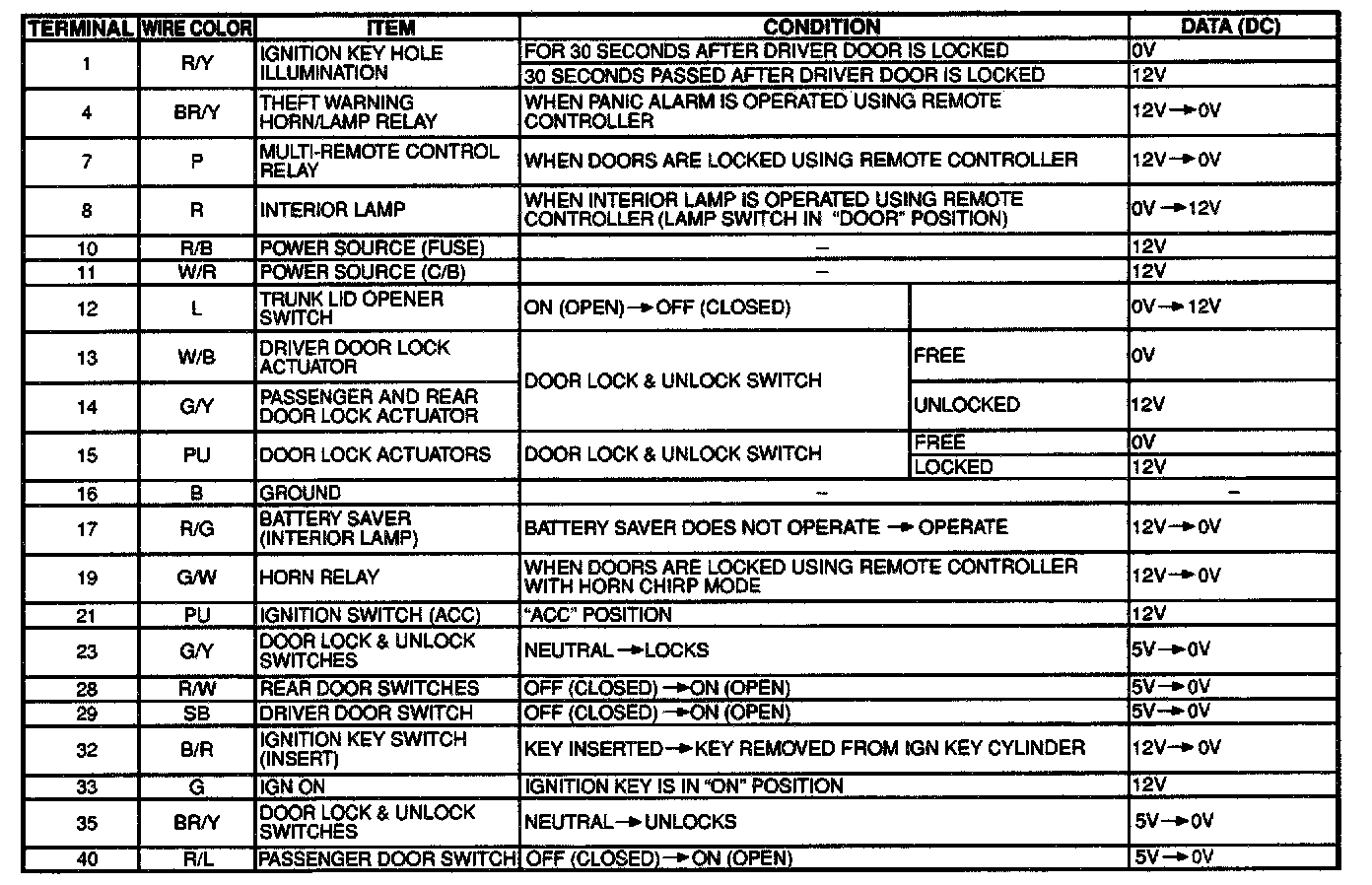

SMART ENTRANCE CONTROL UNIT TERMINALS AND REFERENCE VALUE BETWEEN EACH TERMINAL AND GROUND TERMINAL 18
