With Manual Climate Control

TROUBLE DIAGNOSES PROCEDURE FOR MAGNET CLUTCH

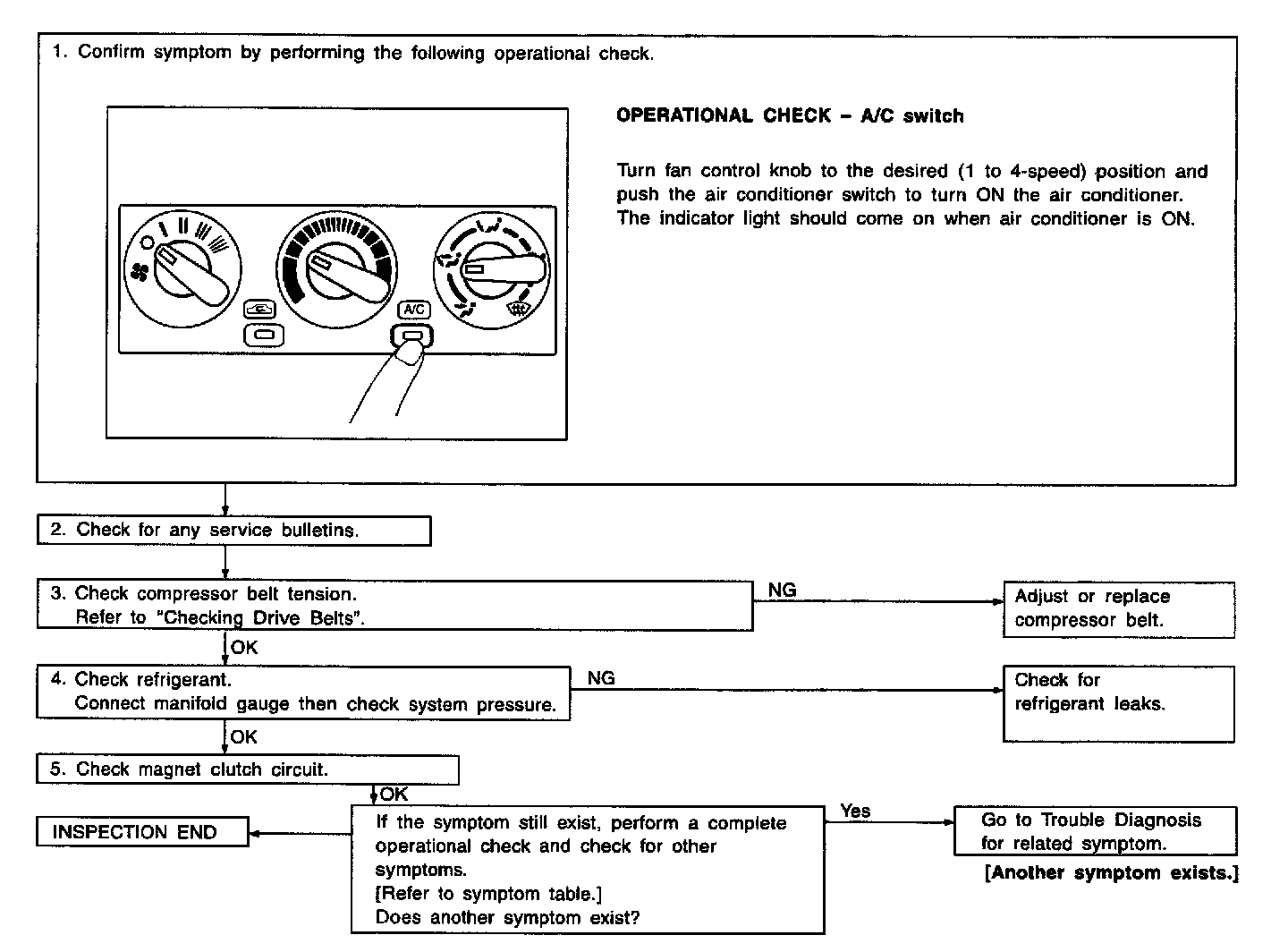

Inspection Flow:

Symptom:
- Magnet clutch does not operate when A/C switch and fan switch are ON.

MAGNET CLUTCH CIRCUIT

Step 1:

Step 2:

Step 3:

Step 4:

Step 5:

Step 6:

Step 7:

Step 8:

Step 9:

Step 10:

Step 11:

Step 12:

Step 13:

Step 14:

Step 15:

SYMPTOM:
- Magnet clutch does not engage when A/C switch and fan switch are ON.

ELECTRICAL COMPONENTS INSPECTION

A/C Switch
Check continuity between terminals at each switch position.

A/C Relay
Check continuity between terminal Nos. 3 and 5.
If NG, replace relay.

Dual-pressure Switch
