Symptom Chart

Symptom Chart

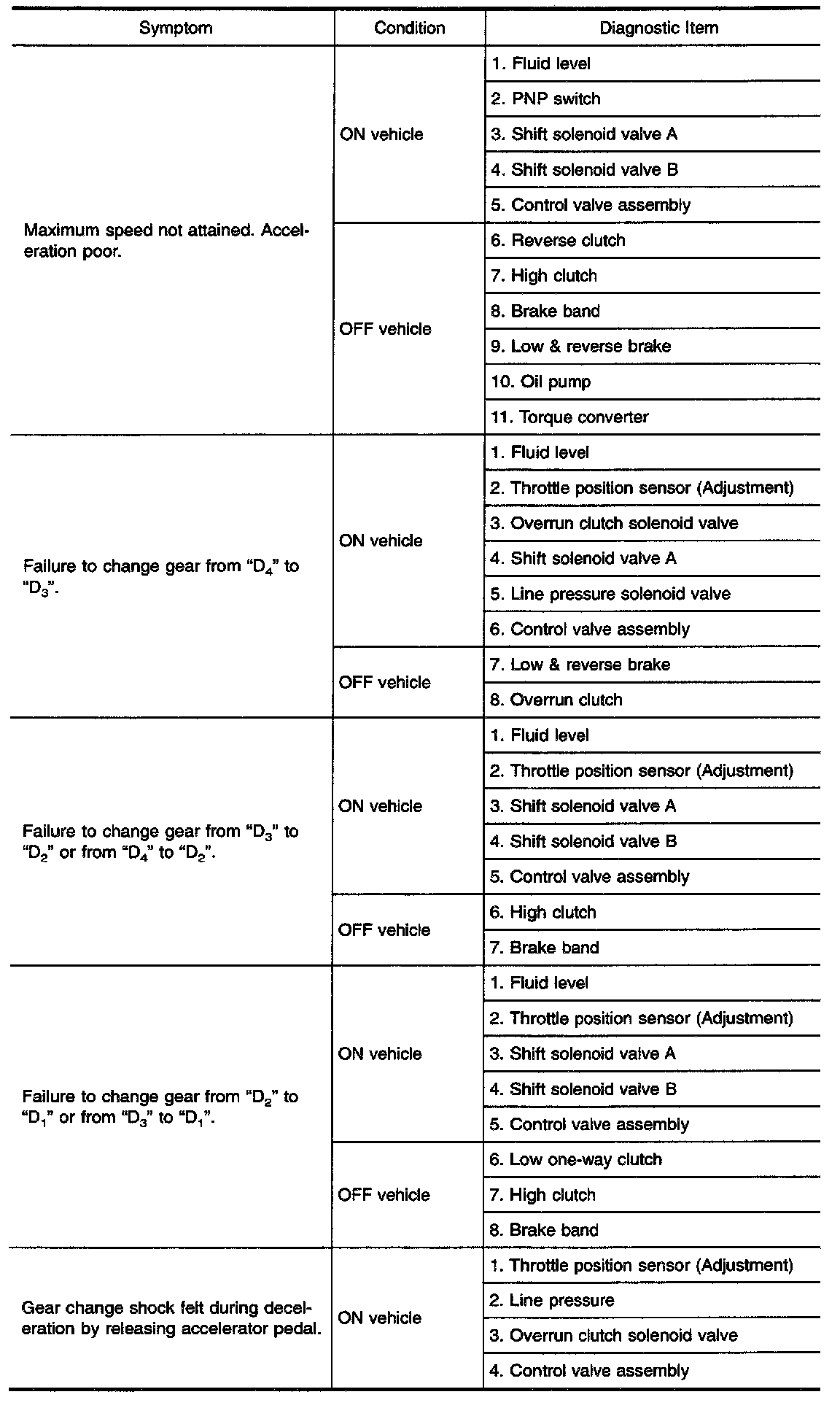

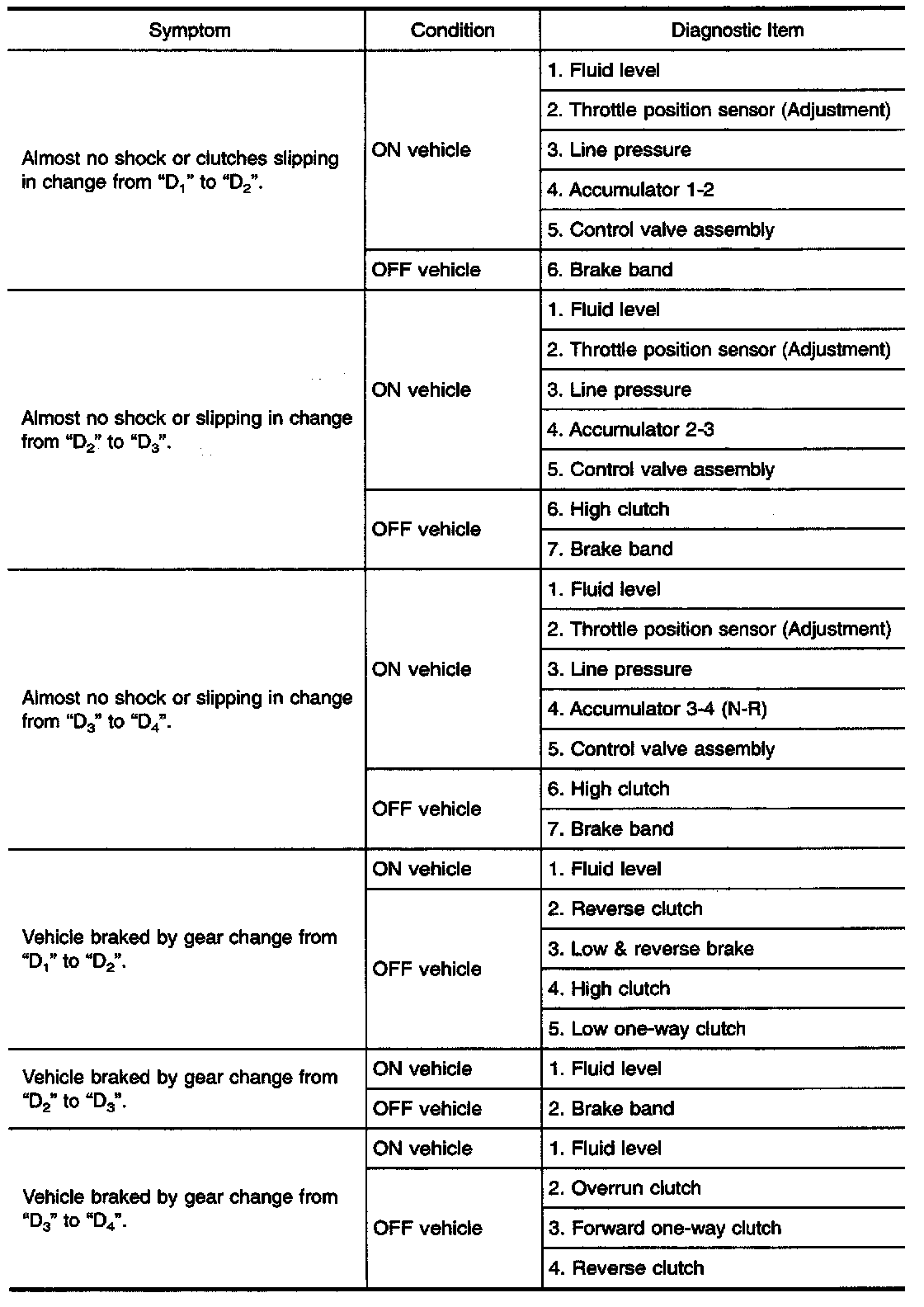

Part 1 of 11

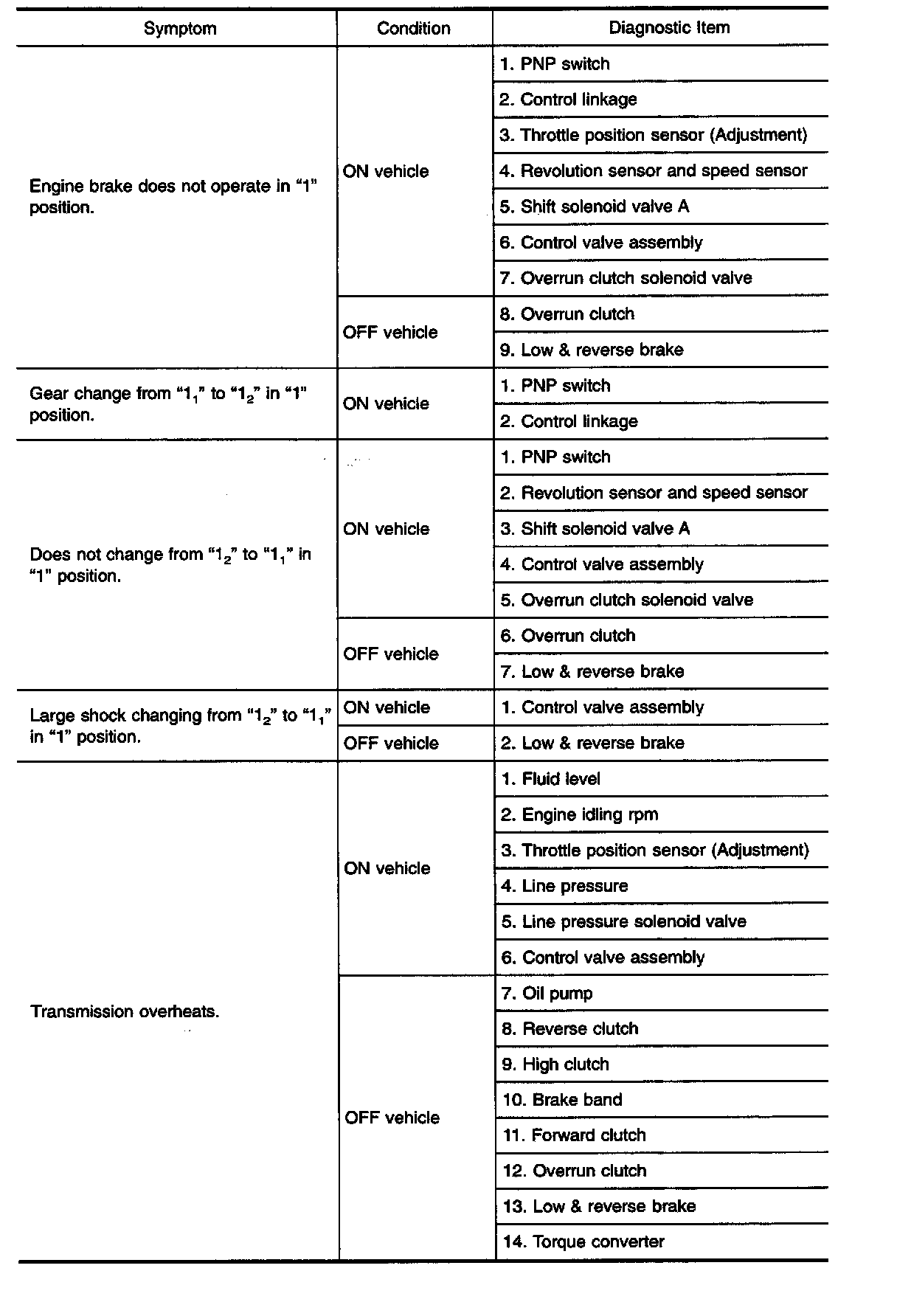

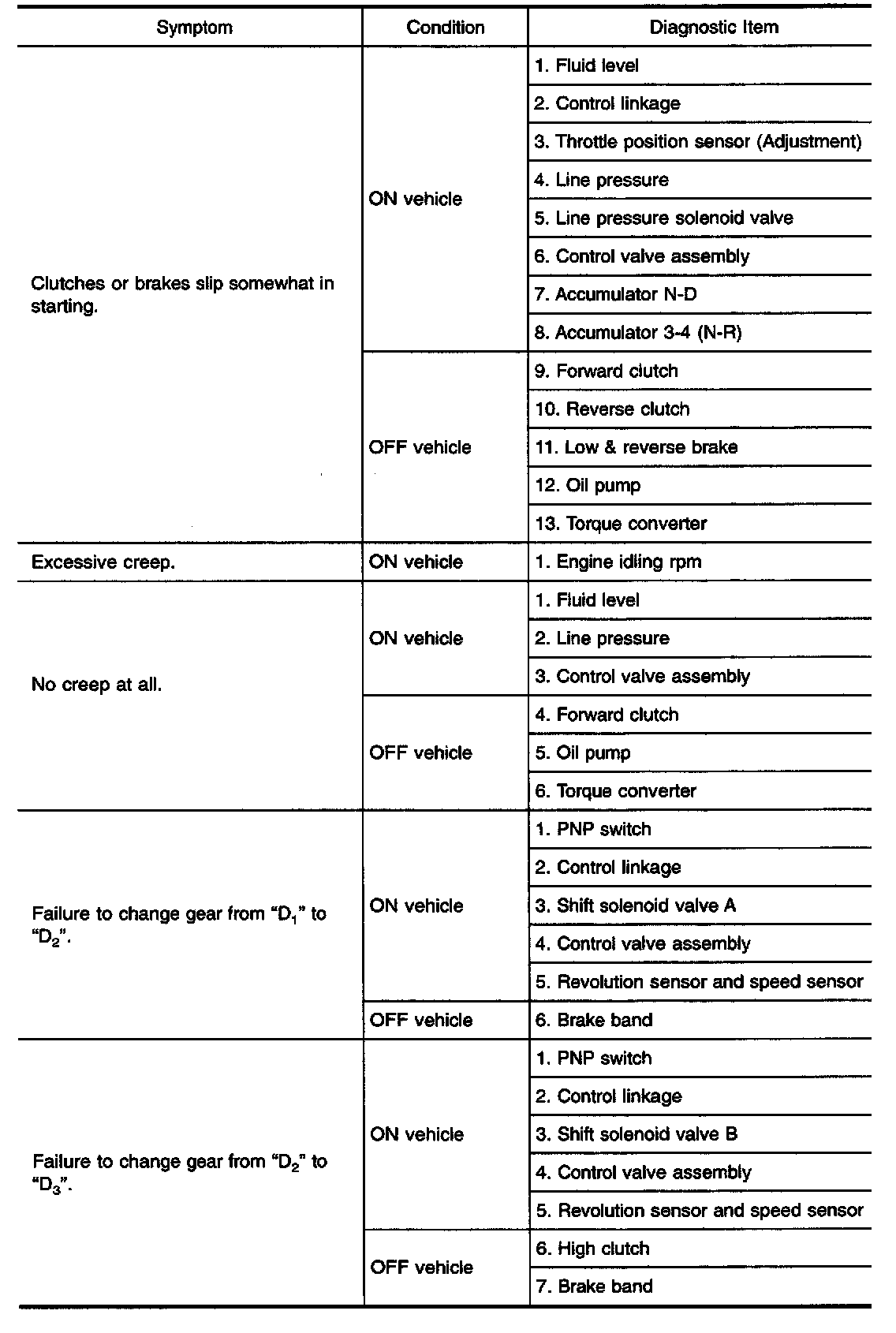

Part 2 of 11

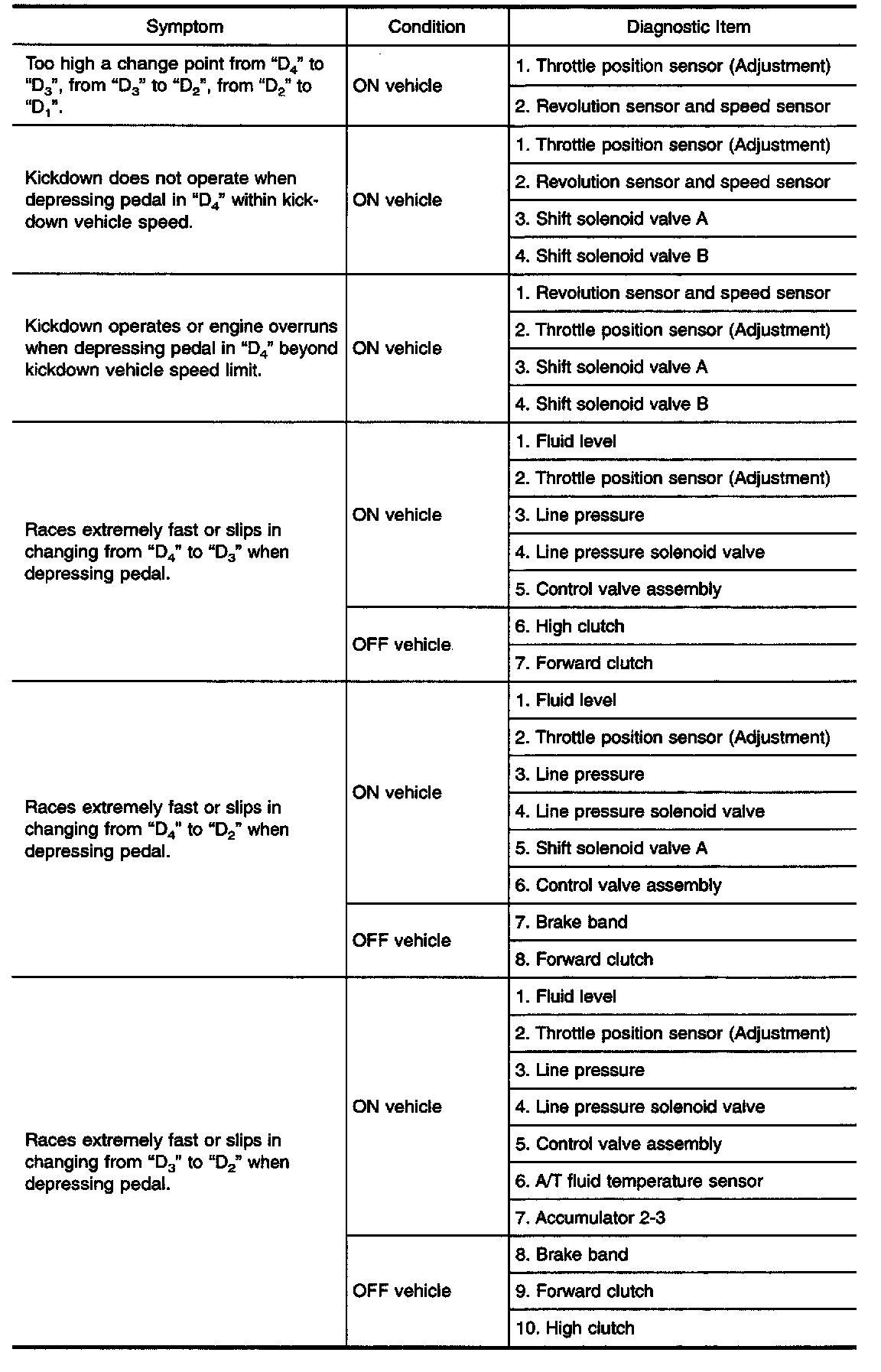

Part 3 of 11

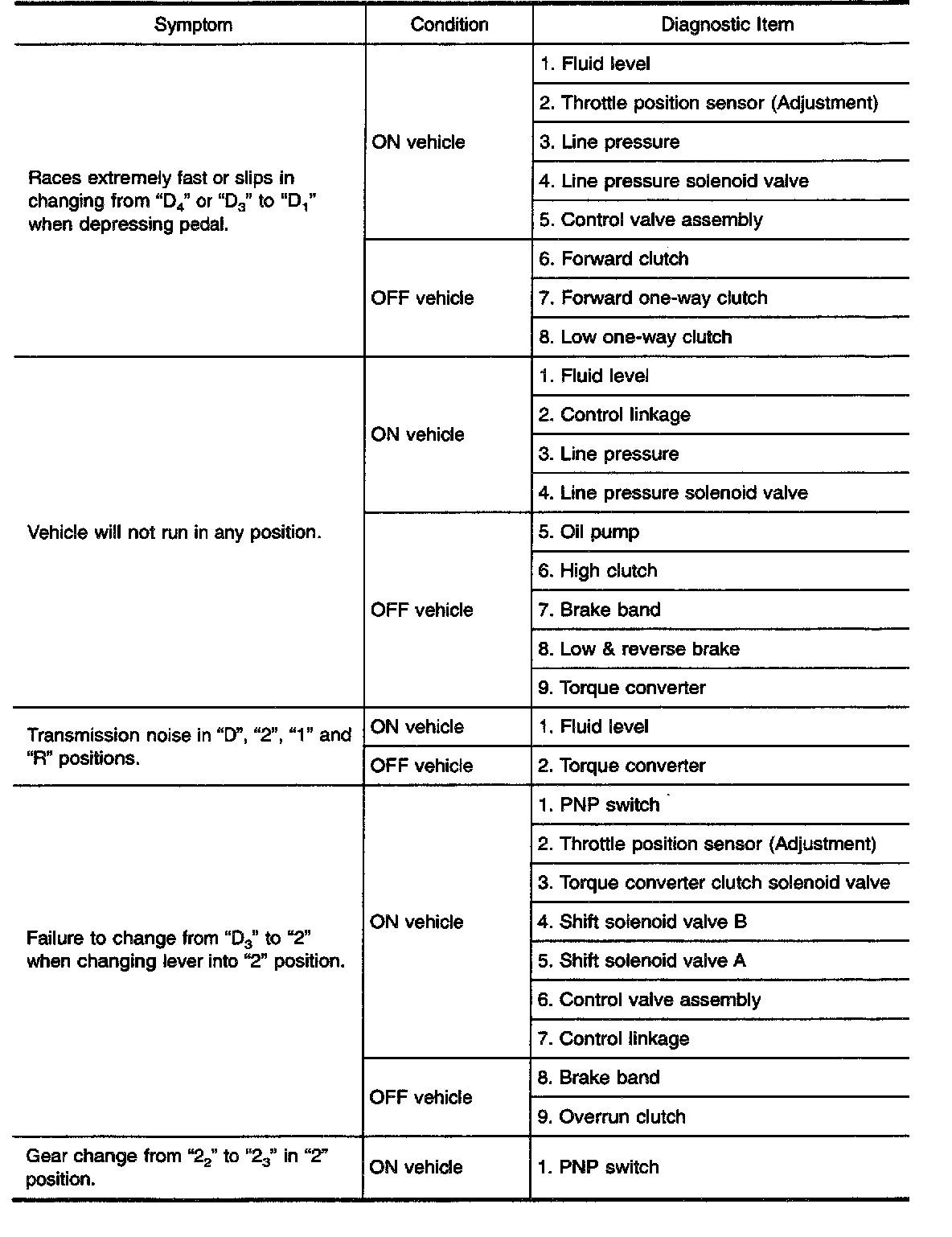

Part 4 of 11

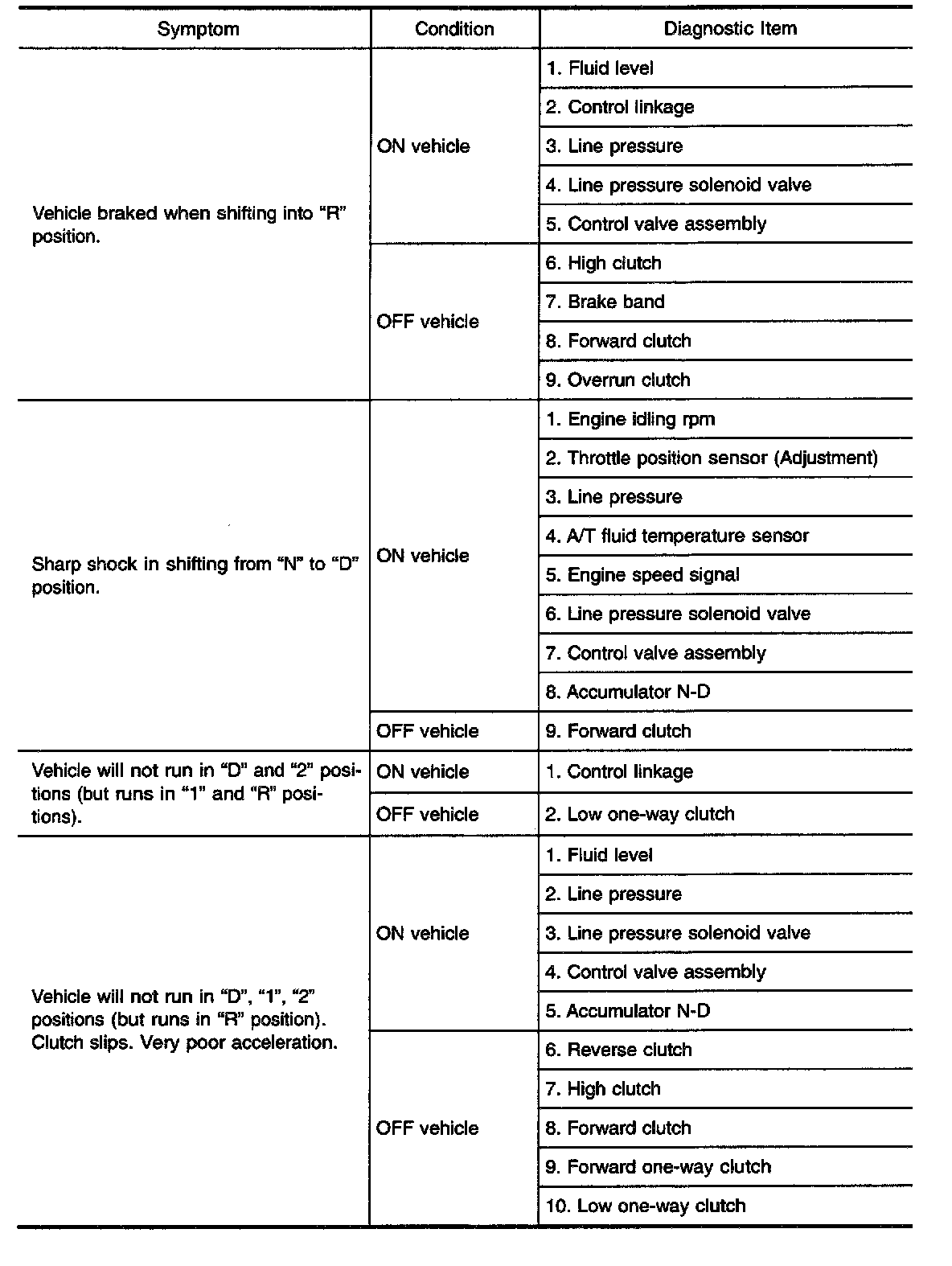

Part 5 of 11

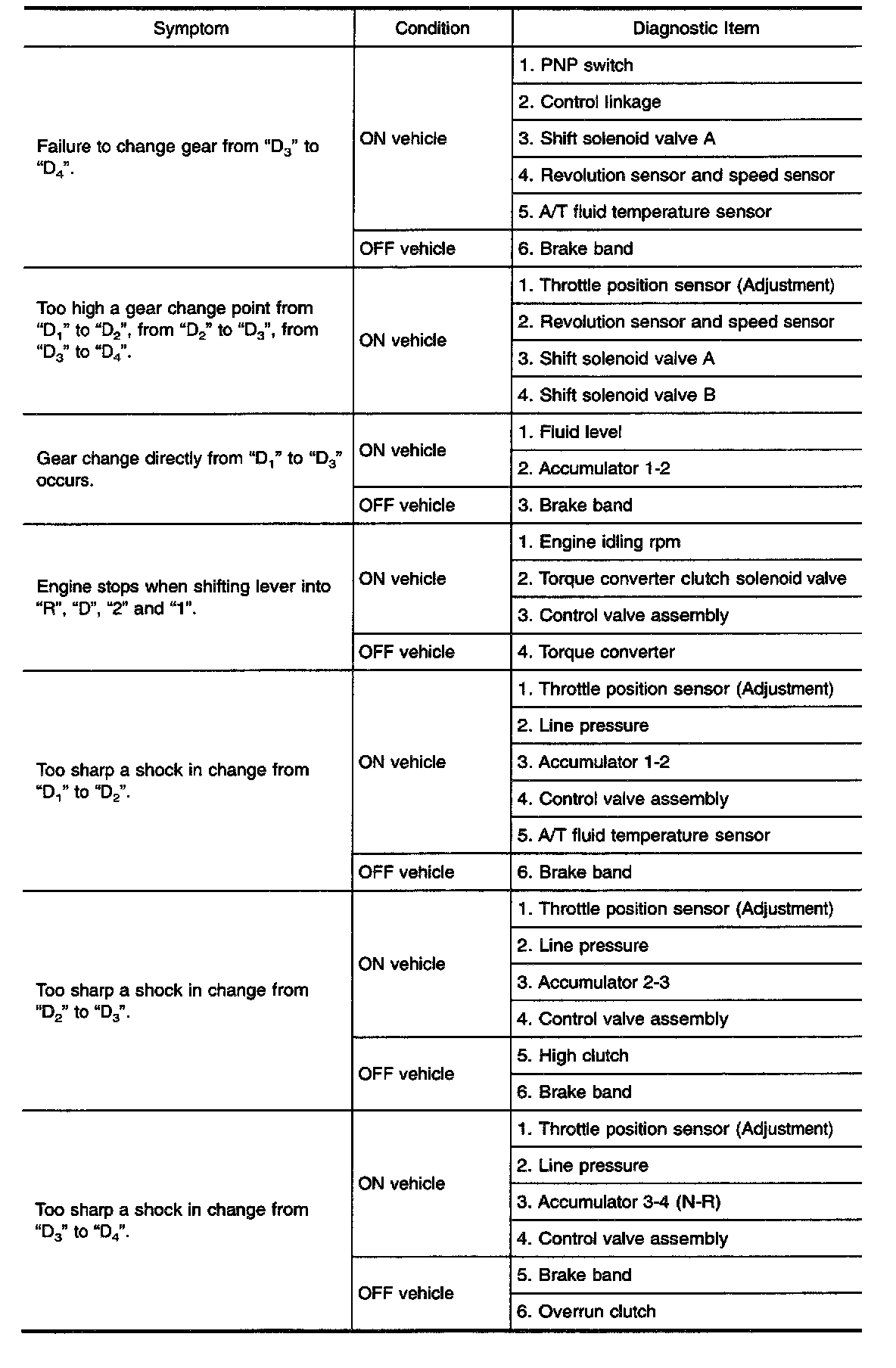

Part 6 of 11

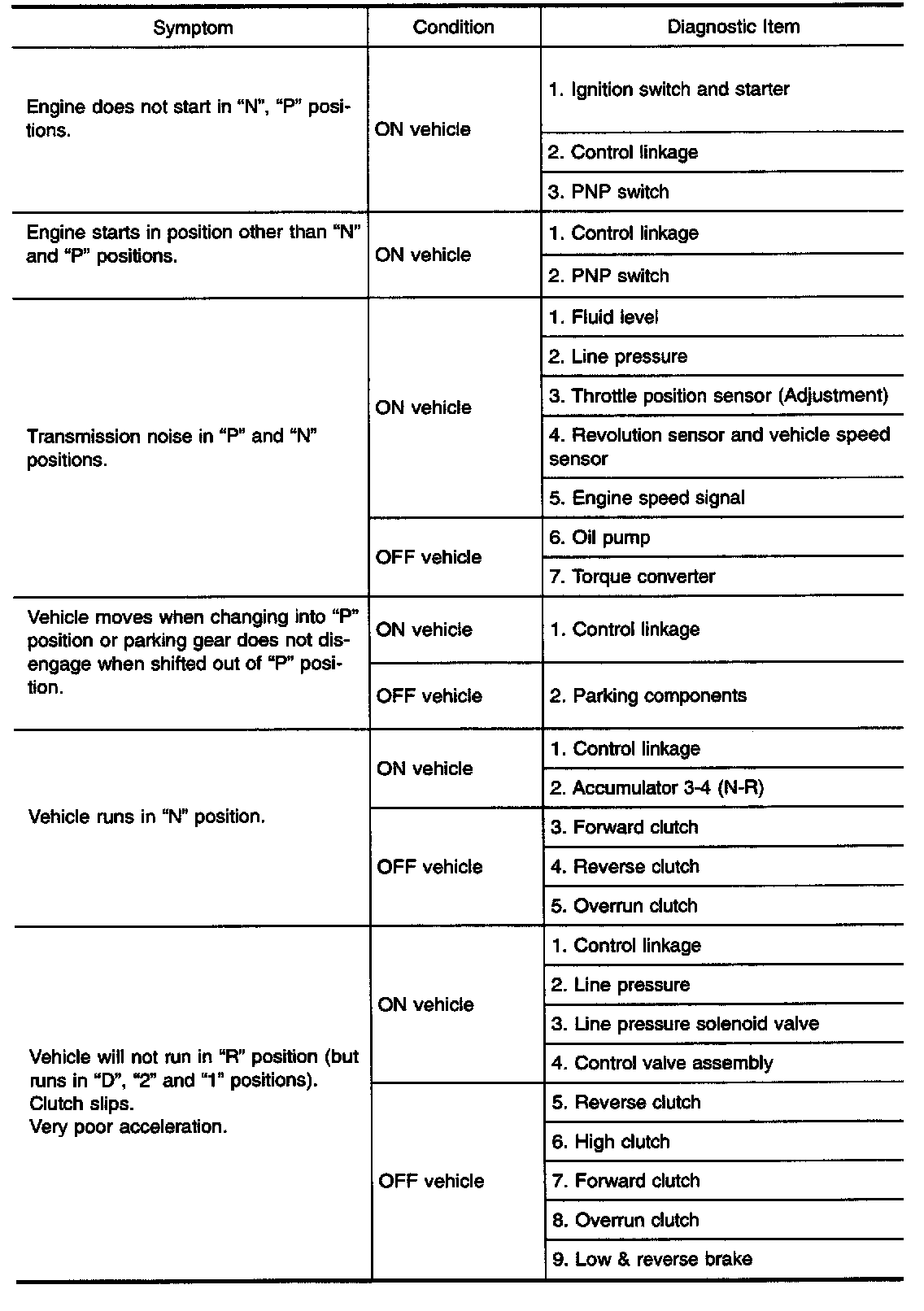

Part 7 of 11

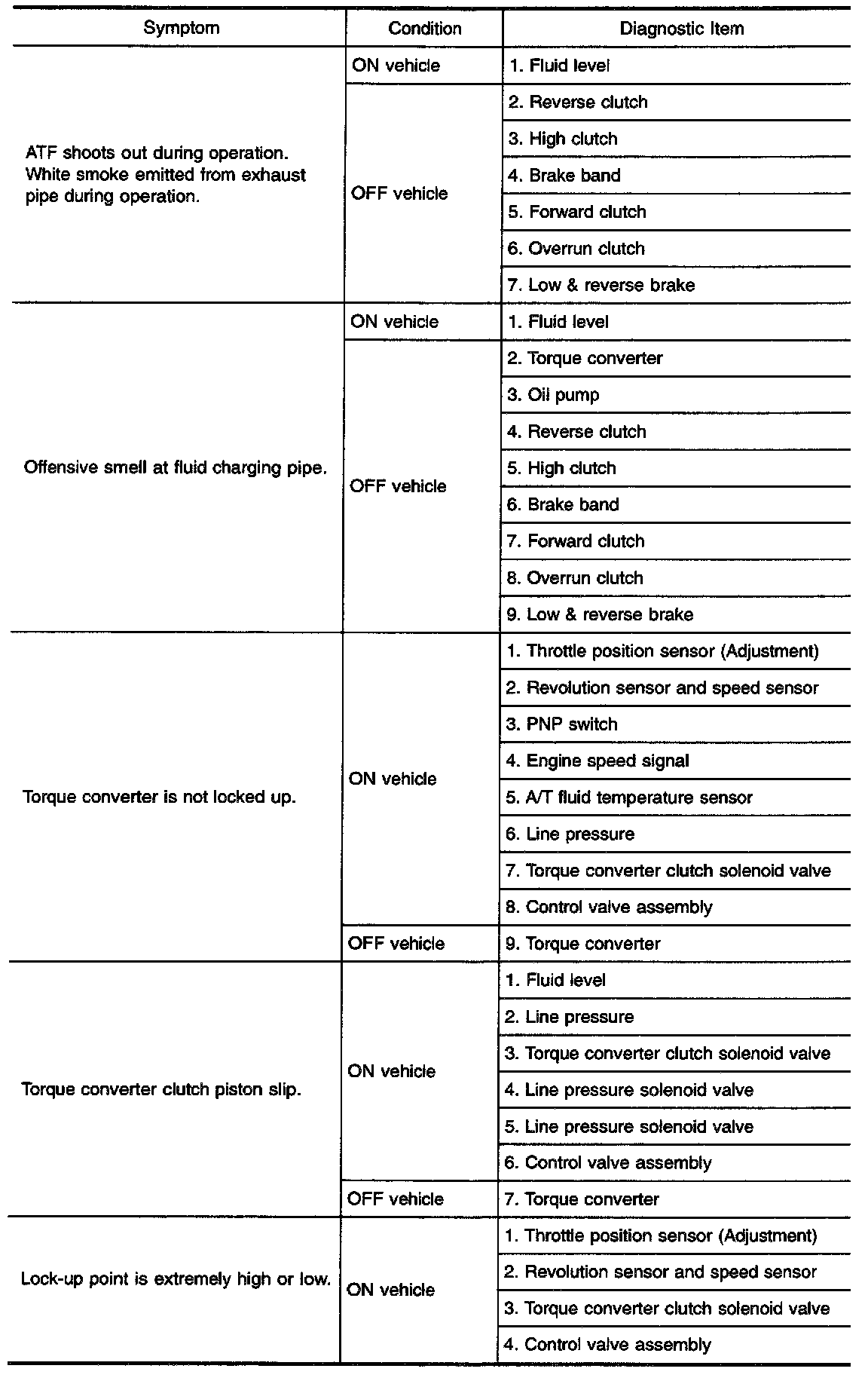

Part 8 of 11





Part 9 of 11





Part 10 of 11





Part 11 of 11

Numbers are arranged in the order of inspection.
Perform inspections starting with number one and work up.
Diagnostic item Nos. in OFF vehicle indicate that the transmission must be removed for the inspection.
