System Specifications





General Specifications

Inspection and Adjustment

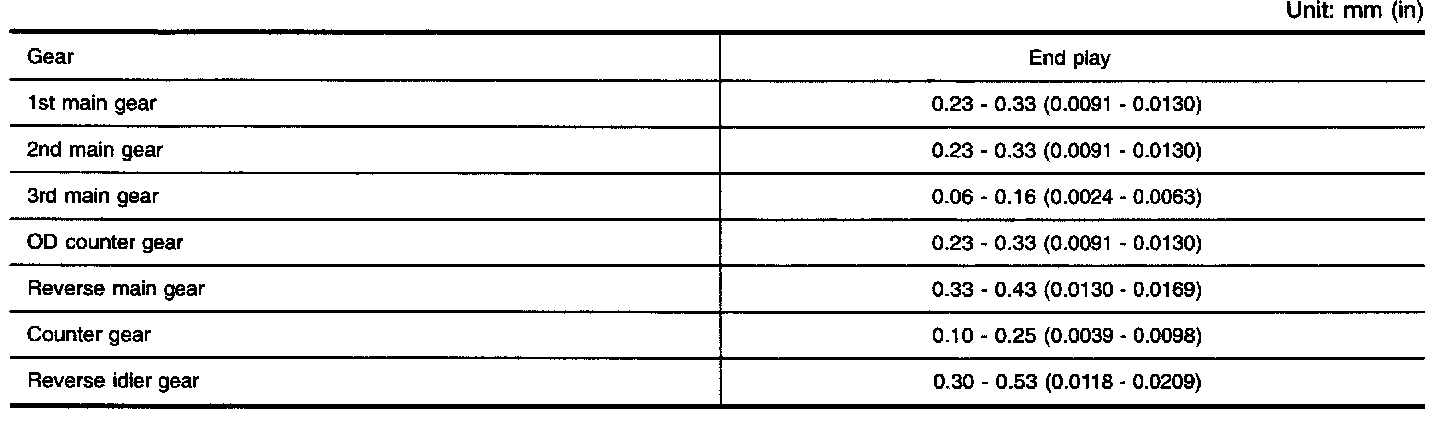

GEAR END PLAY

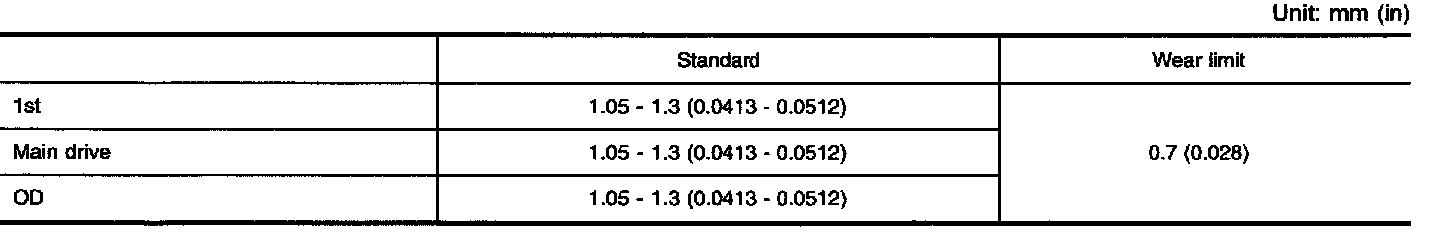

CLEARANCE BETWEEN BAULK RING AND GEAR

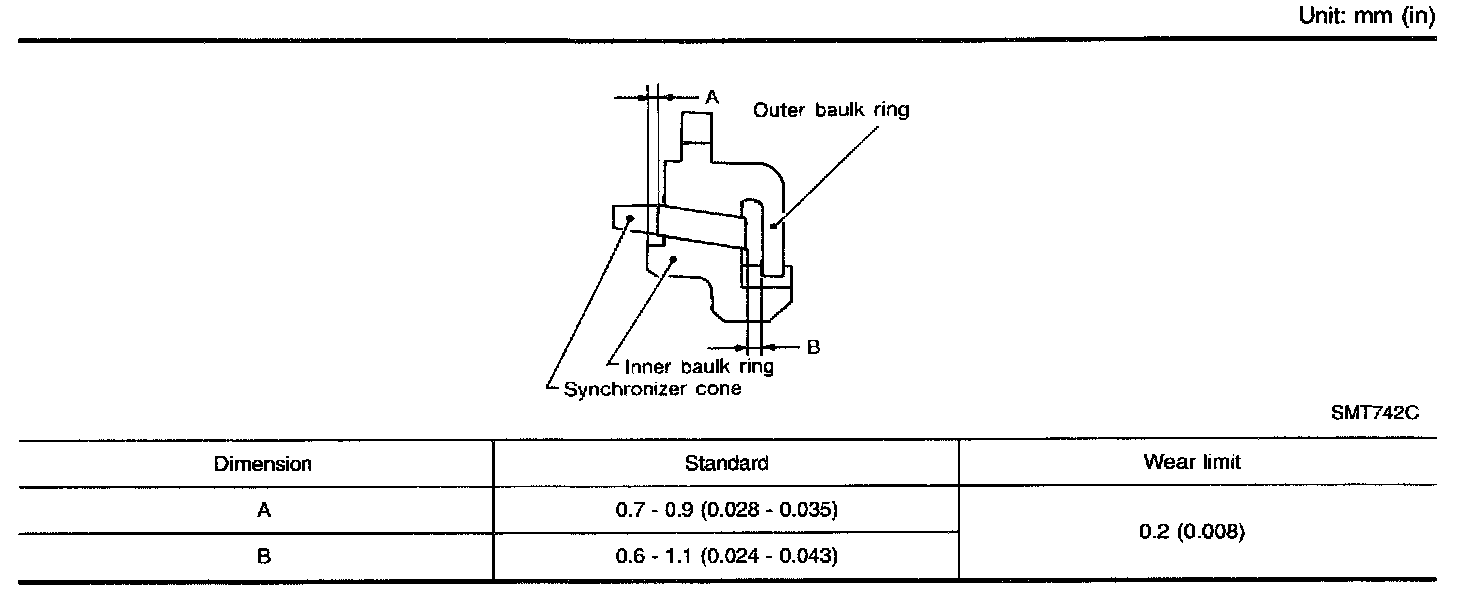

2nd and 3rd Baulk Ring

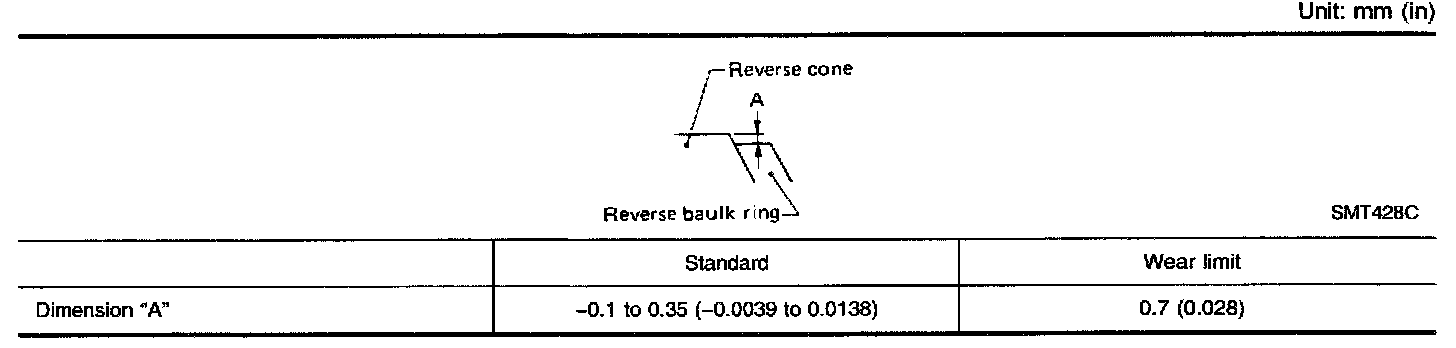

DISTANCE BETWEEN REAR SURFACE OF REVERSE CONE AND REVERSE BAULK RING

AVAILABLE SNAP RING

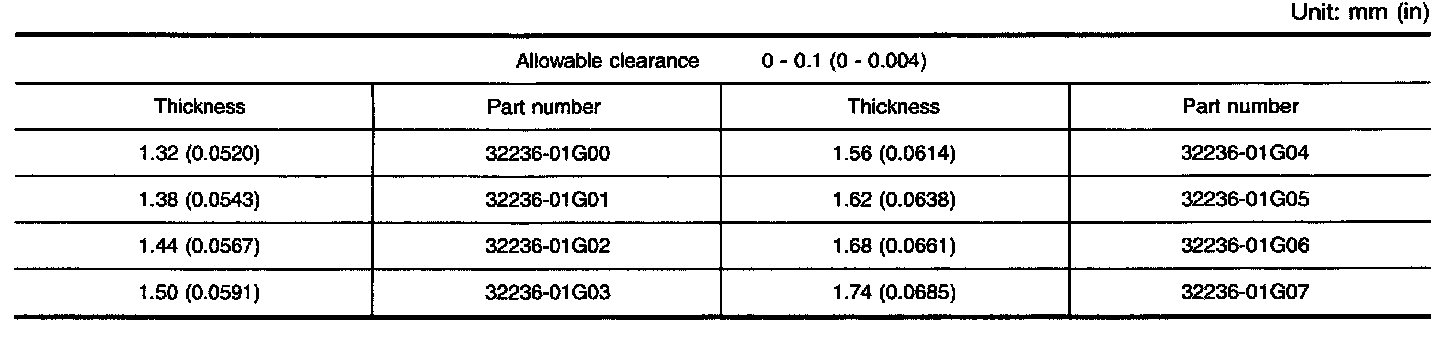

Main Drive Gear Snap Ring

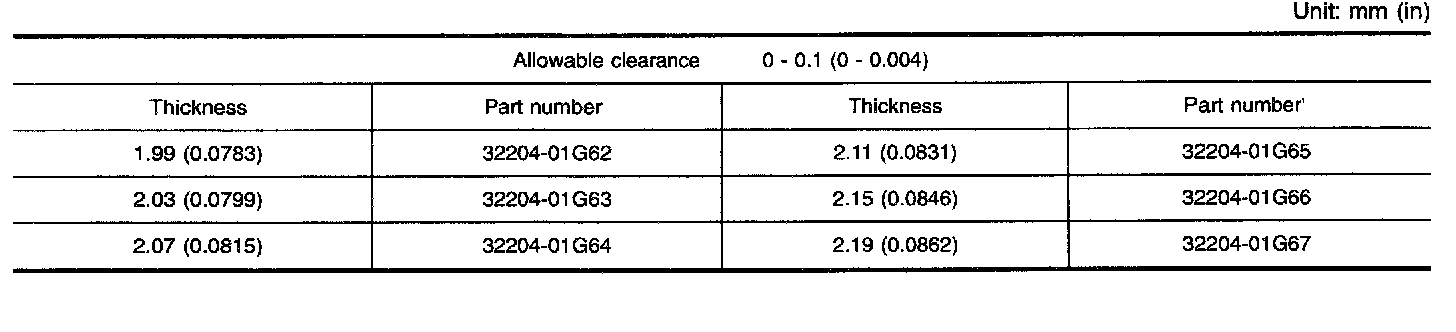

Mainshaft Front Snap Ring





Counter Gear Rear Snap Ring

AVAILABLE C-RING





Mainshaft C-Ring

AVAILABLE SHIM AND WASHER

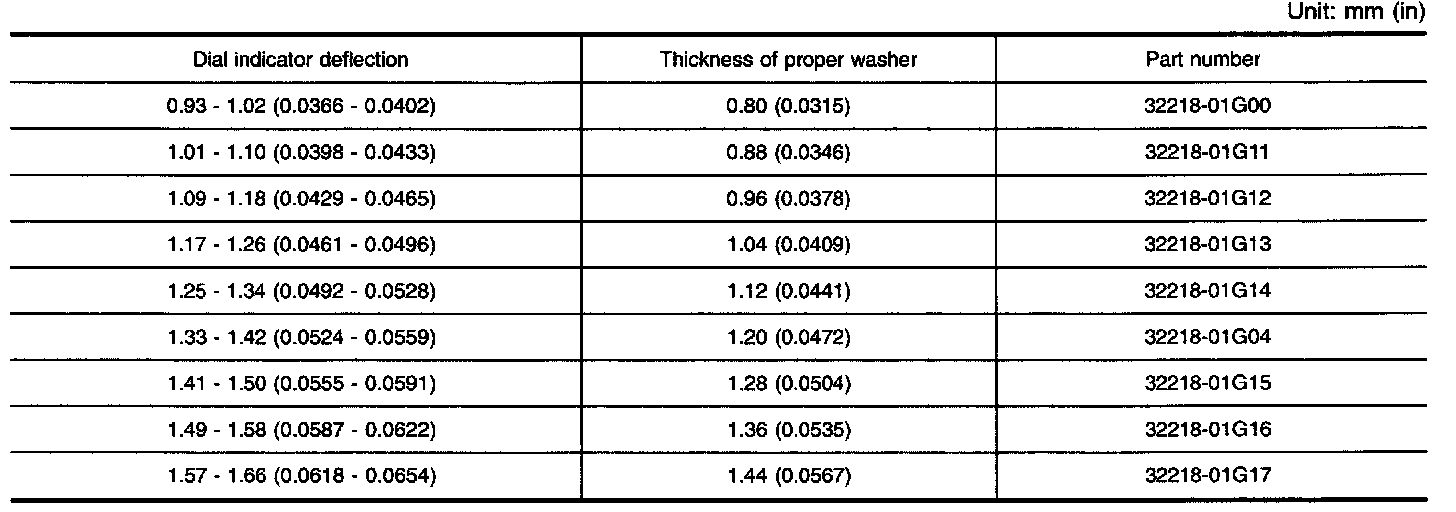

Table For Selecting Proper Counter Gear Front Bearing Thrust Washer

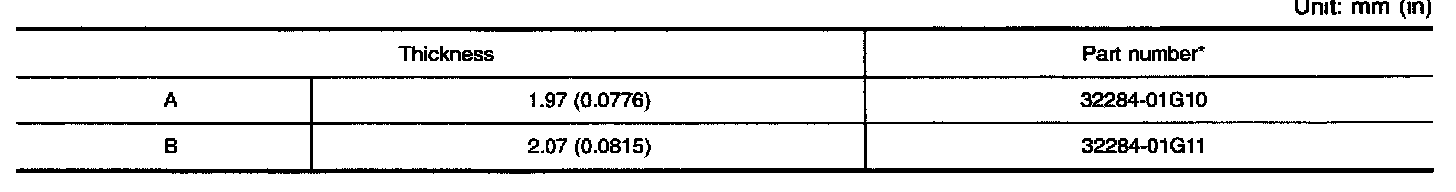

Reverse Idler Rear Thrust Washer
