Cruise Control: Testing and Inspection

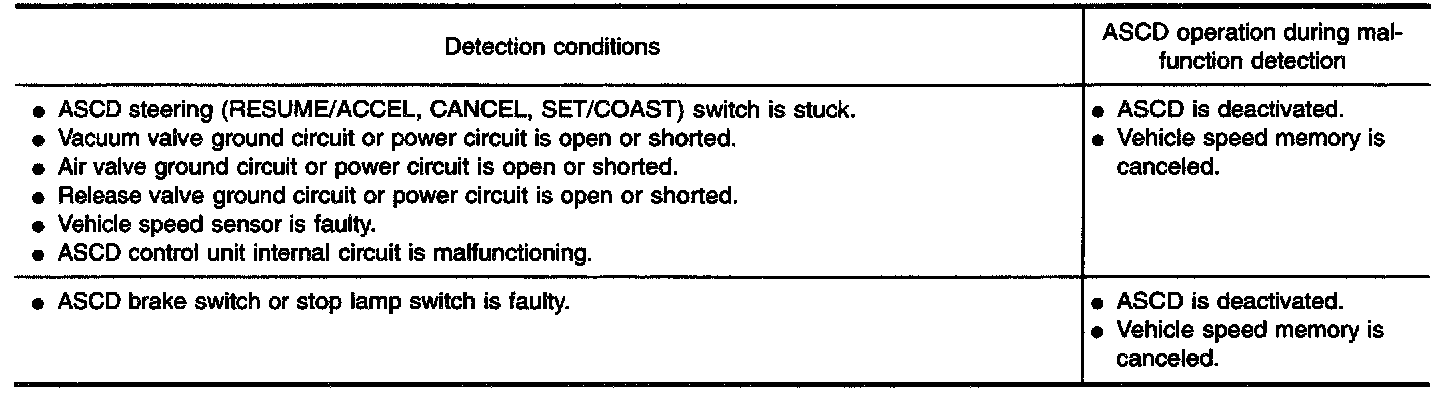

Malfunction Detection Conditions

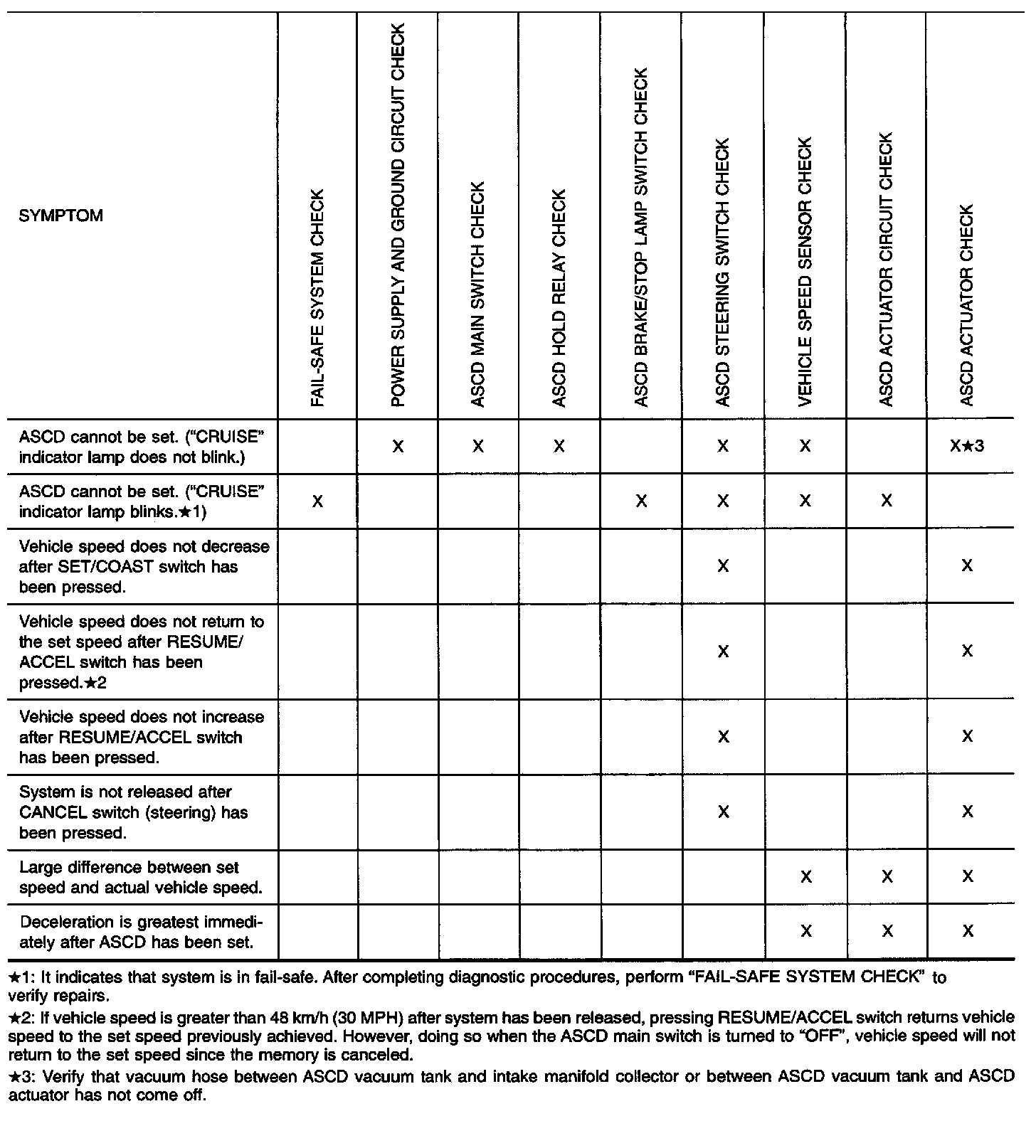

SYMPTOM CHART




FAIL-SAFE SYSTEM CHECK
1. Turn ignition switch to ON position.
2. Turn ASCD main switch to ON and check if the "cruise indicator" blinks.
If the indicator lamp blinks, refer to the following
- ASCD Steering Switch Check.




3. Drive the vehicle at more than 48 kph (30 MPH) and push SET/COAST switch.
If the indicator lamp blinks, refer to the following
- Vehicle Speed Sensor Check.
- ASCD Actuator Circuit Check.
- Replace control unit.




4. Depress brake pedal slowly (brake pedal should be depressed more than 5 seconds).
If the indicator lamp blinks, refer to the following
- ASCD Brake/Stop Lamp Switch Check.
5. END. (System is OK.)

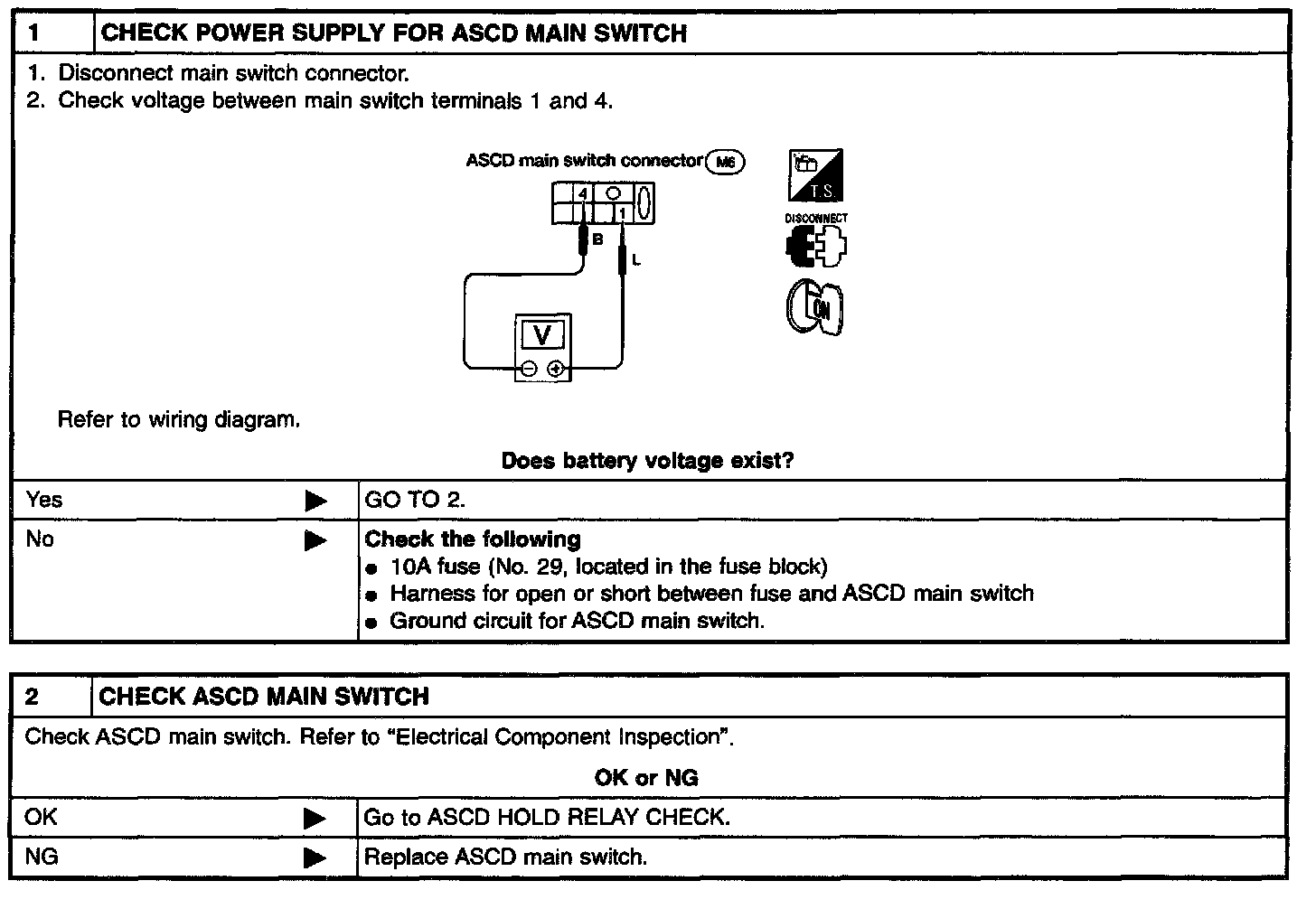

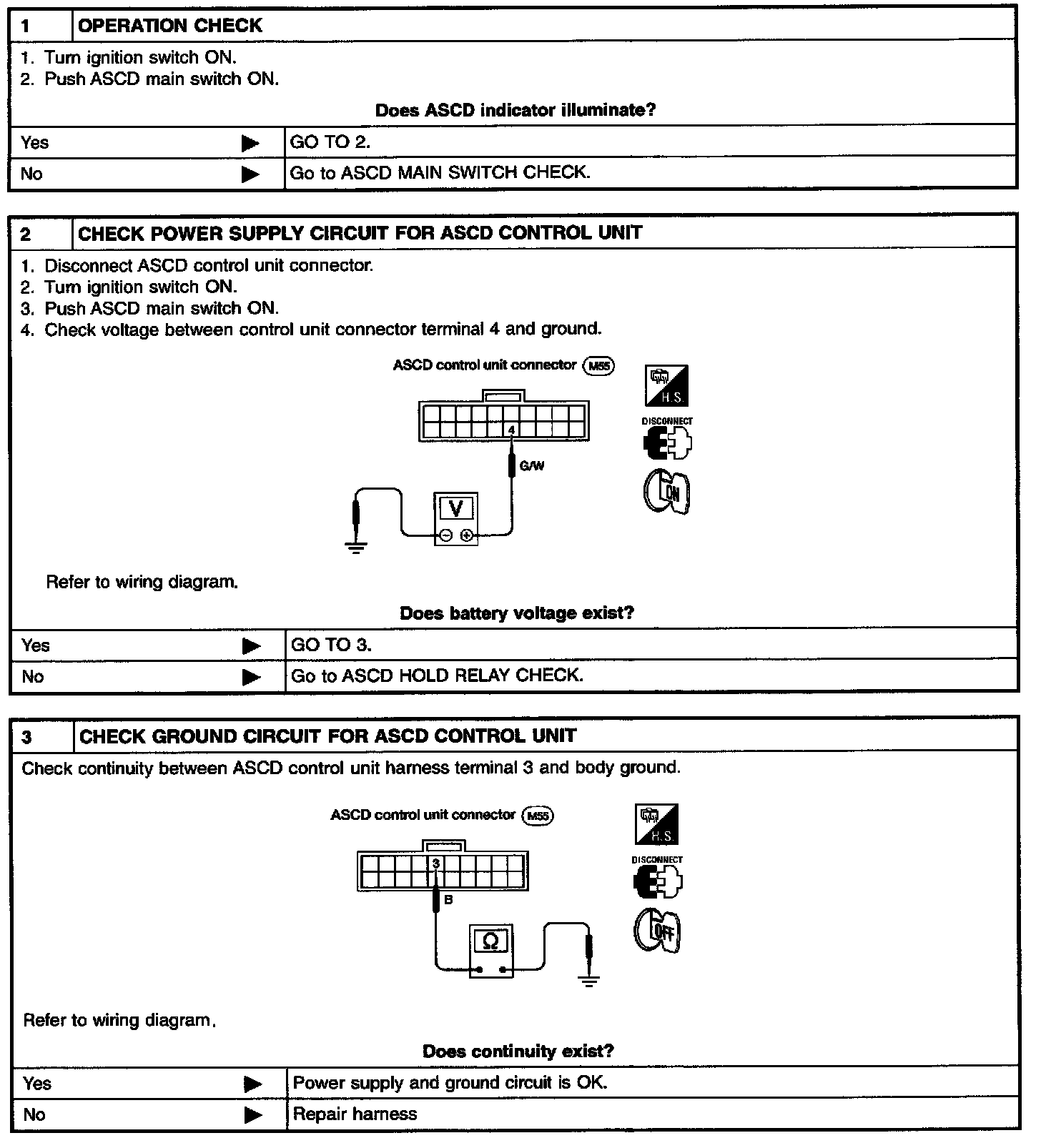

POWER SUPPLY AND GROUND CIRCUIT CHECK





ASCD MAIN SWITCH CHECK

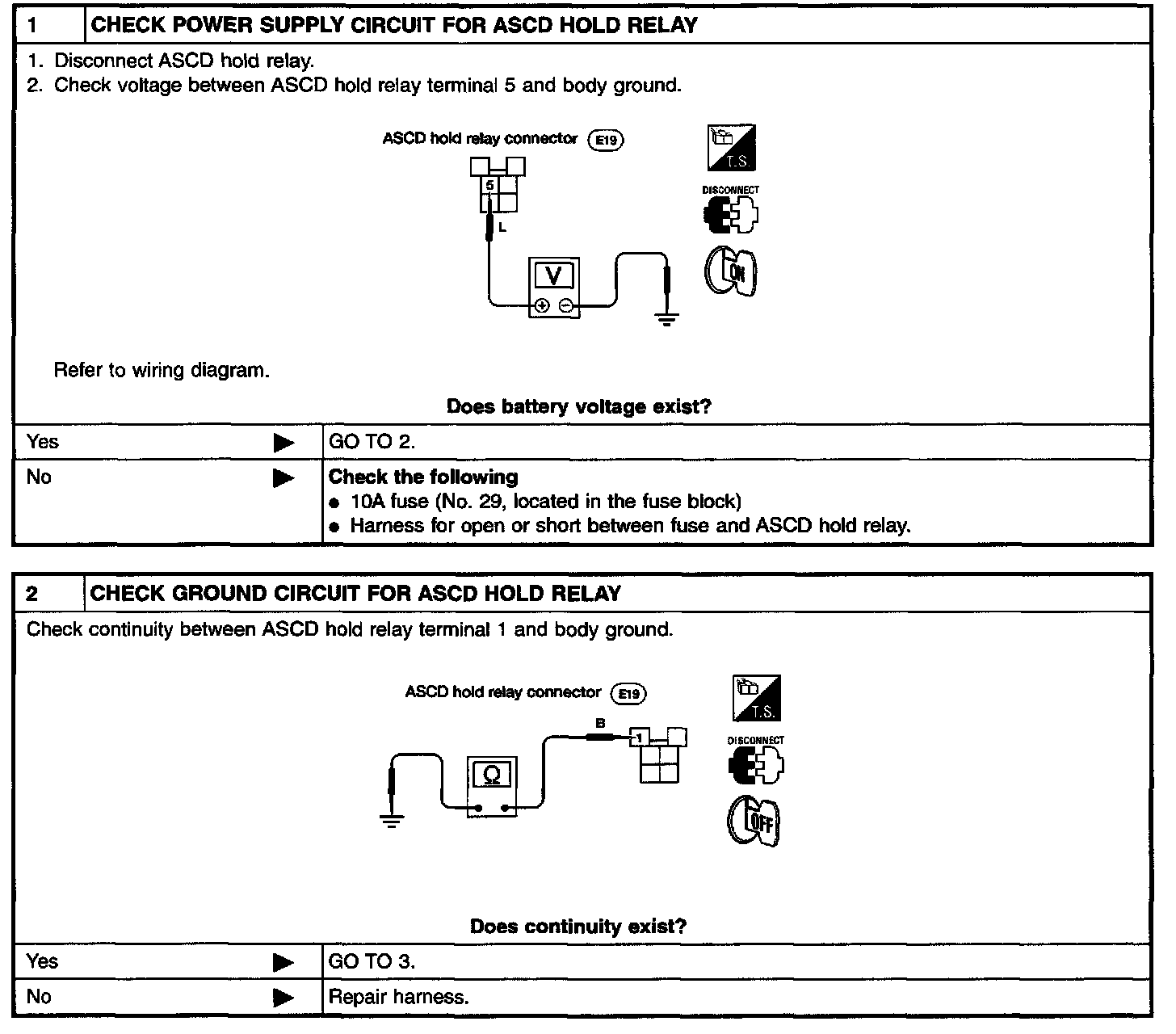

ASCD HOLD RELAY CHECK

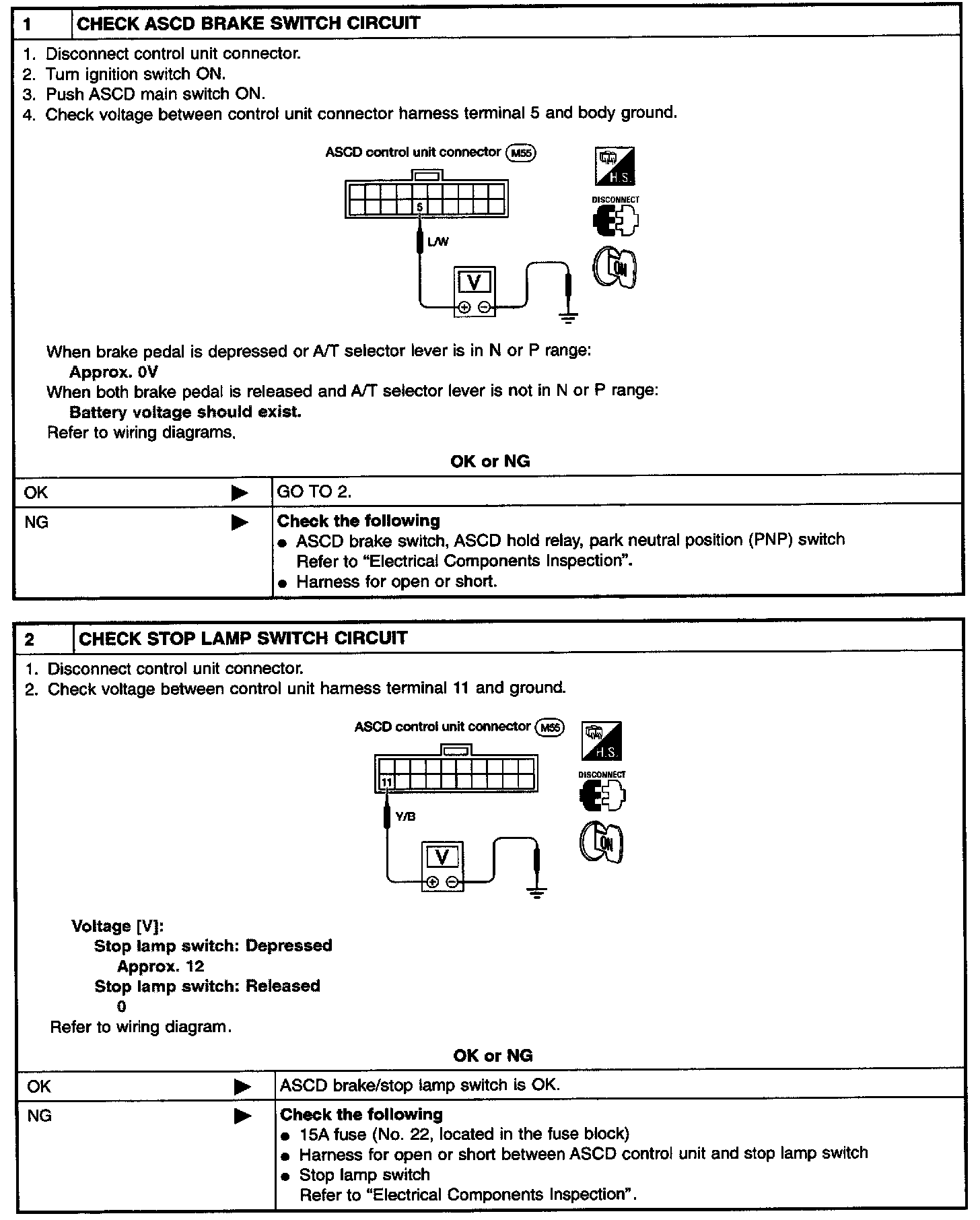

ASCD BRAKE/STOP LAMP SWITCH CHECK

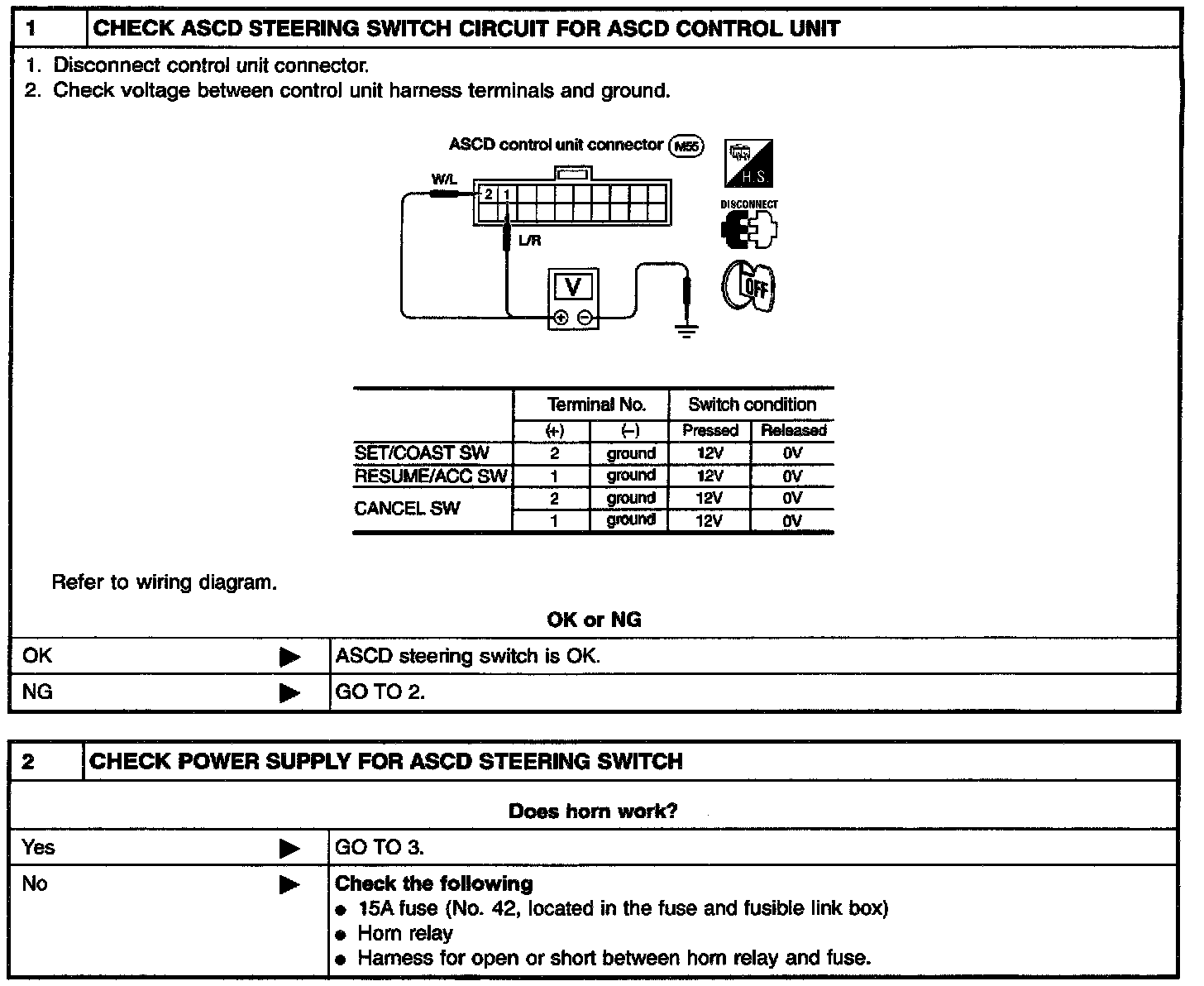

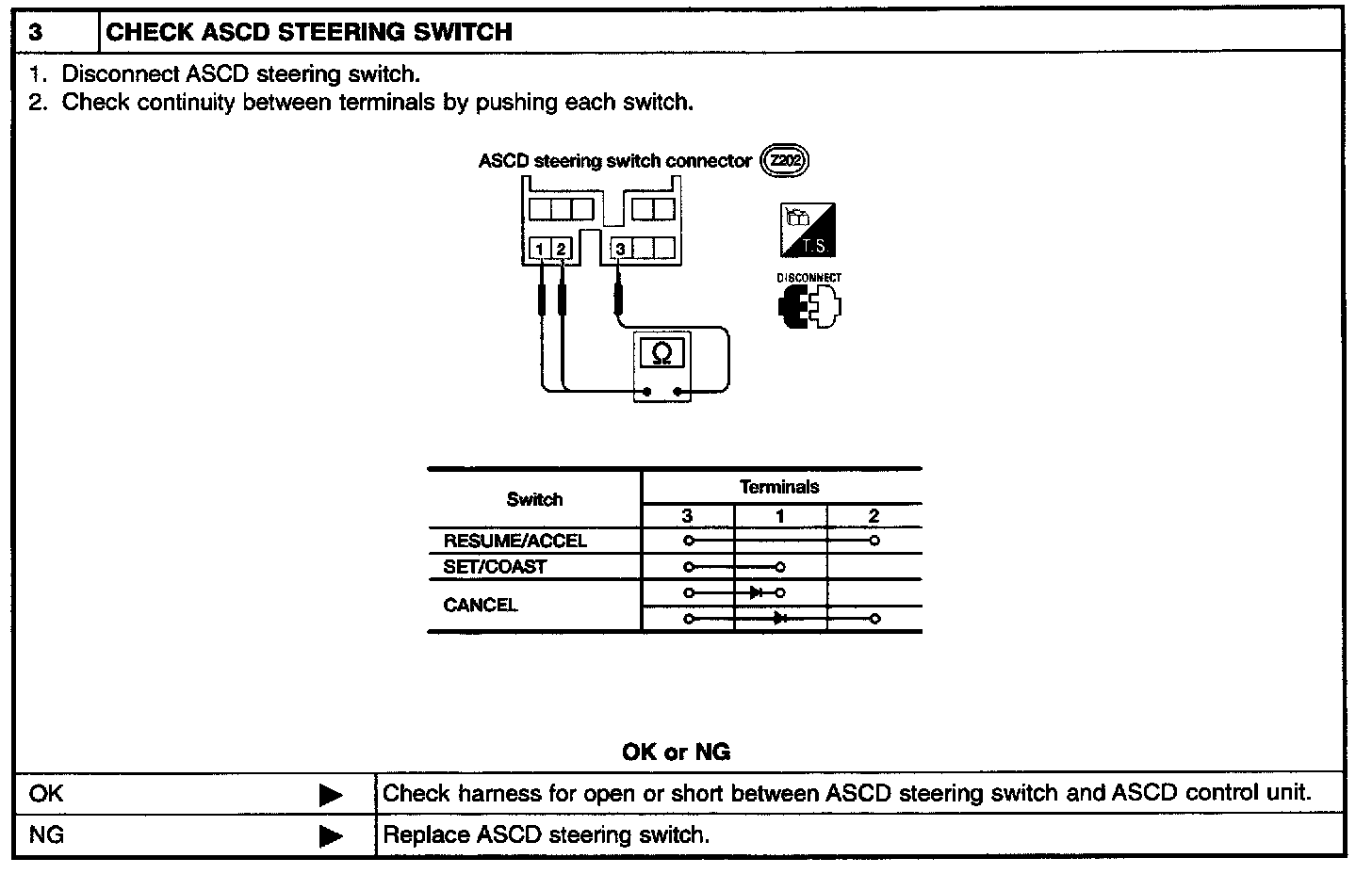

ASCD STEERING SWITCH CHECK

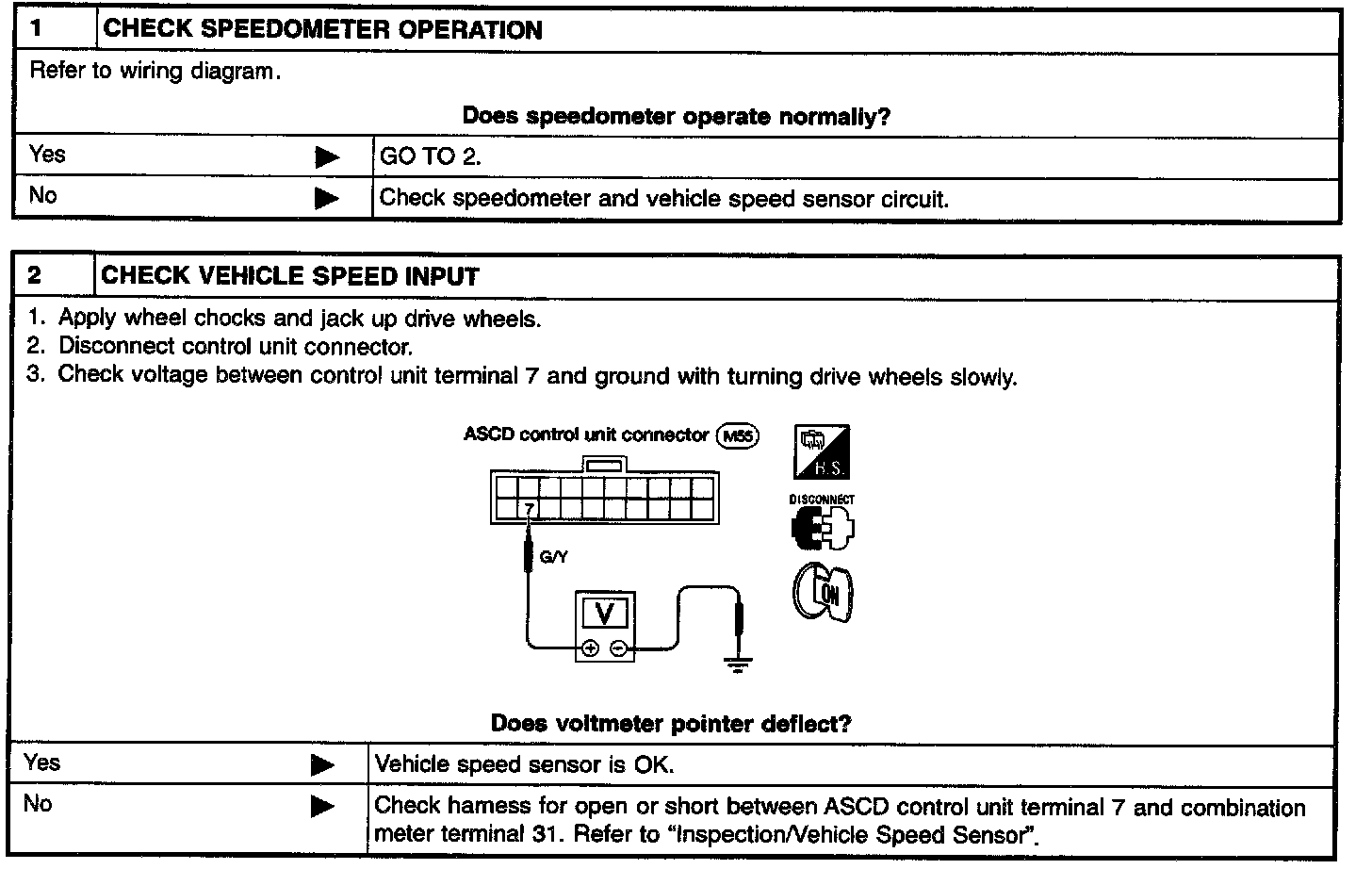

VEHICLE SPEED SENSOR CHECK

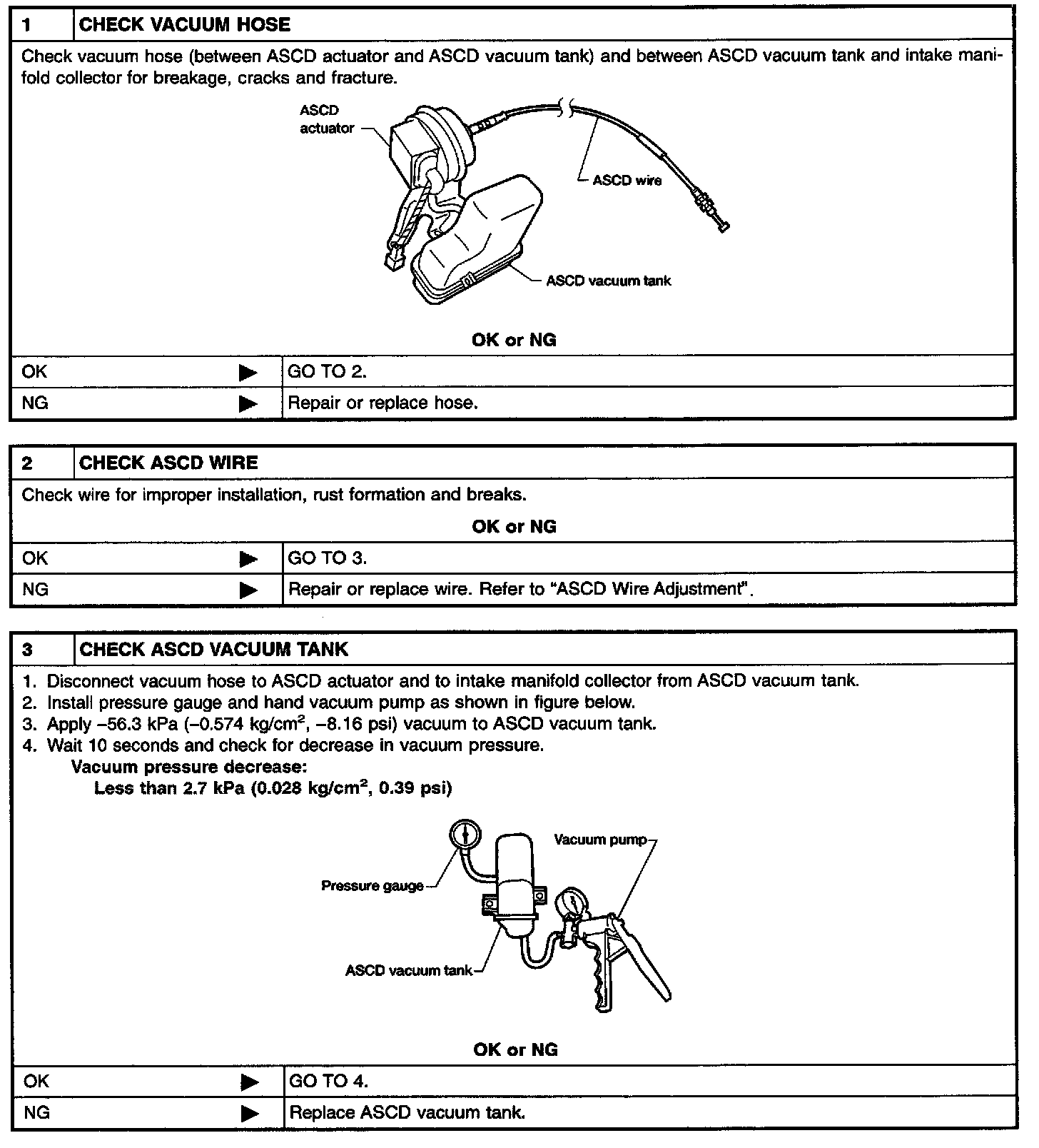

ASCD ACTUATOR CIRCUIT CHECK

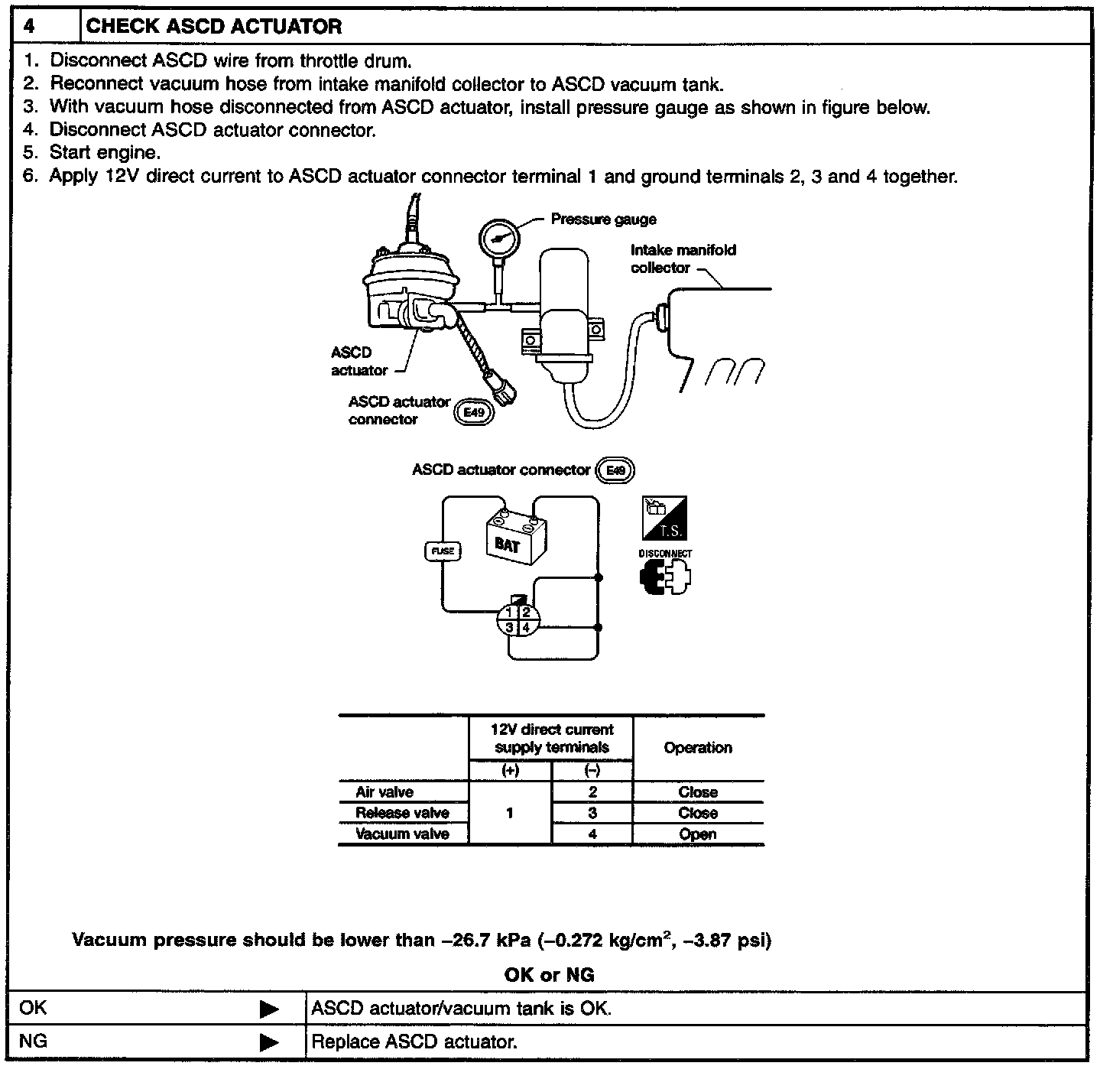

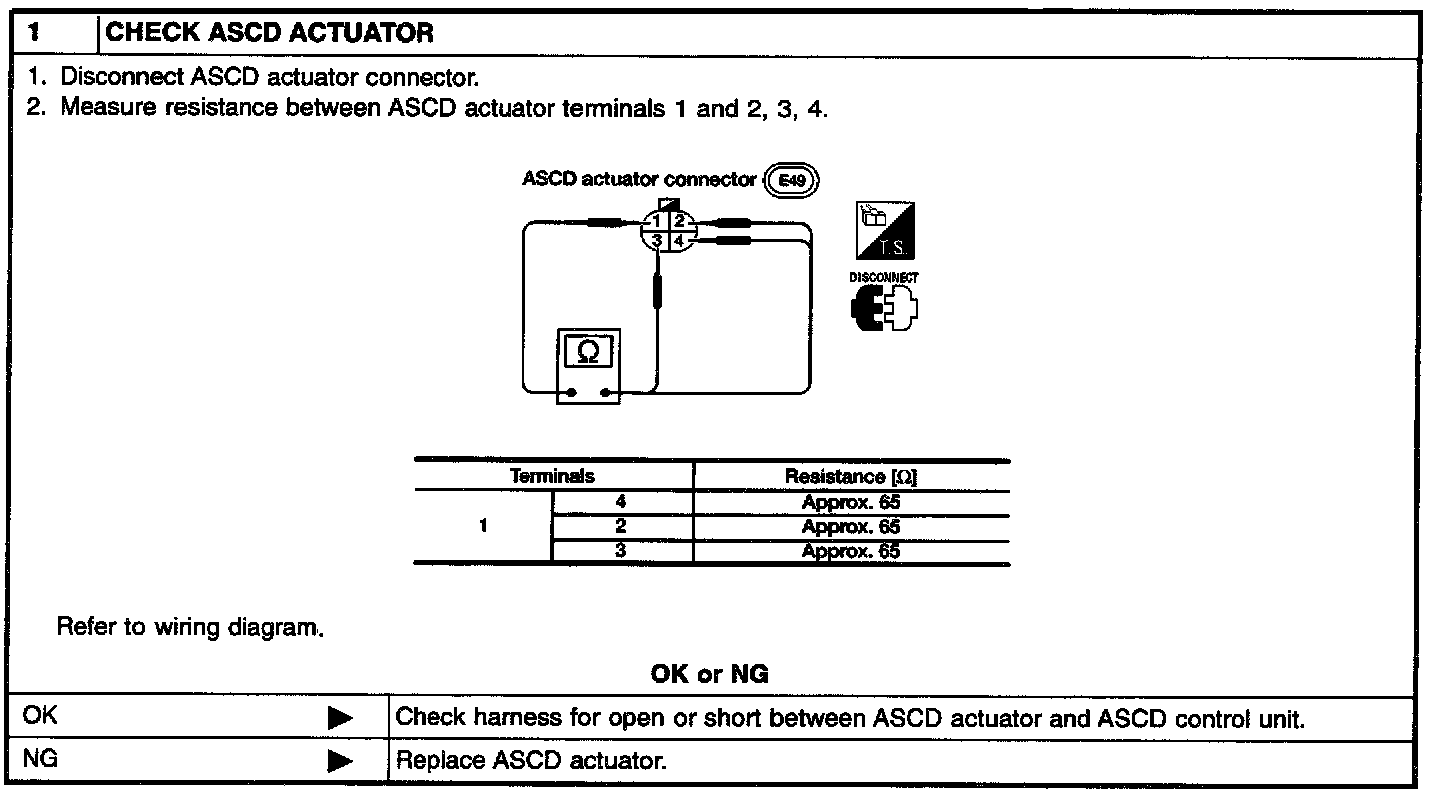

ASCD ACTUATOR CHECK
