Power Supply Testing
Main Power Supply and Ground CircuitEC-MAIN-01:
WIRING DIAGRAMSUPER MULTIPLE JUNCTION:

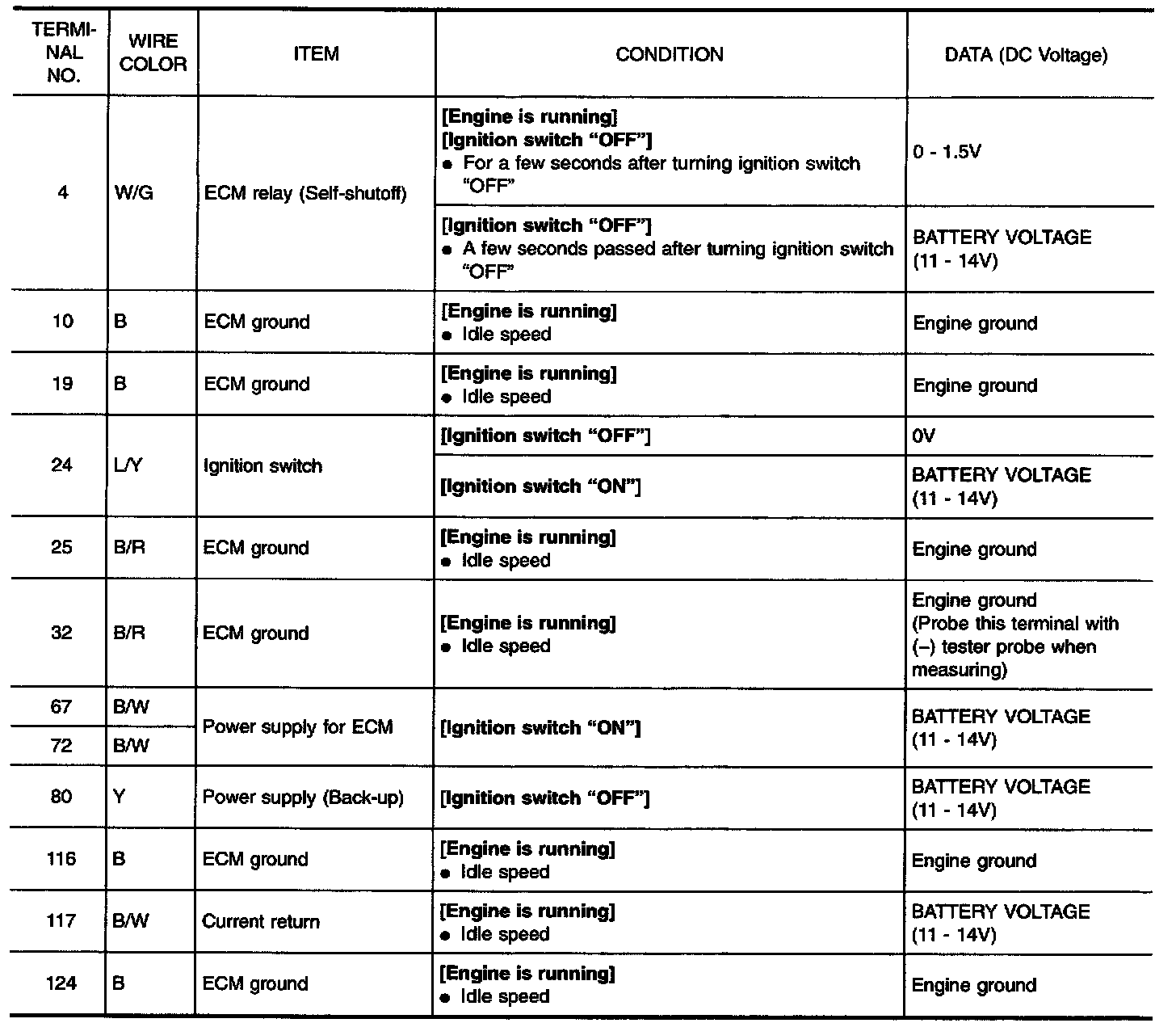

ECM TERMINALS AND REFERENCE VALUE (Terminal No 4 - 124):
Specification data are reference values and are measured between each terminal and 32 (ECM ground).
Step 1:
Steps 2 - 5:

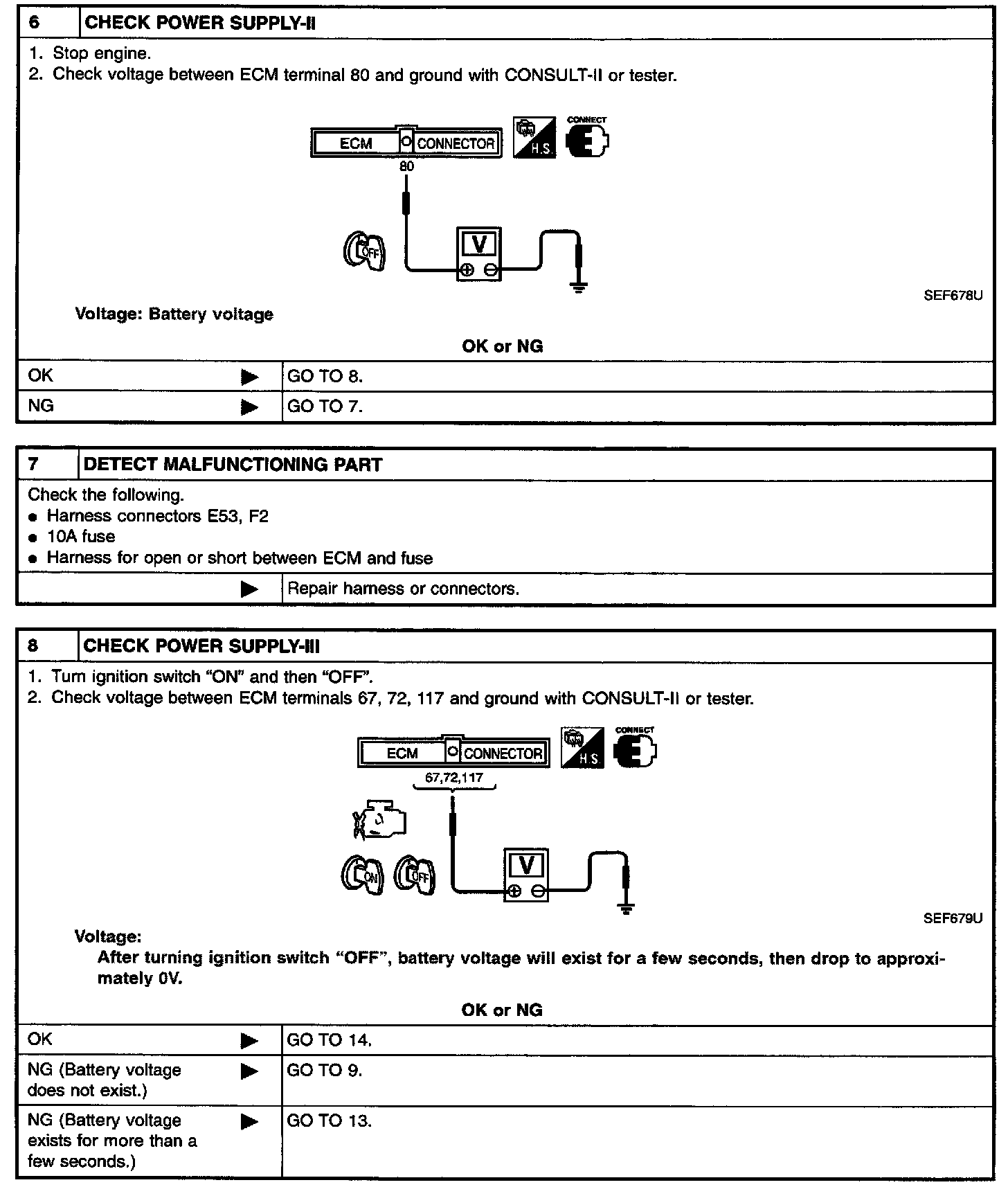

Steps 6 - 8:

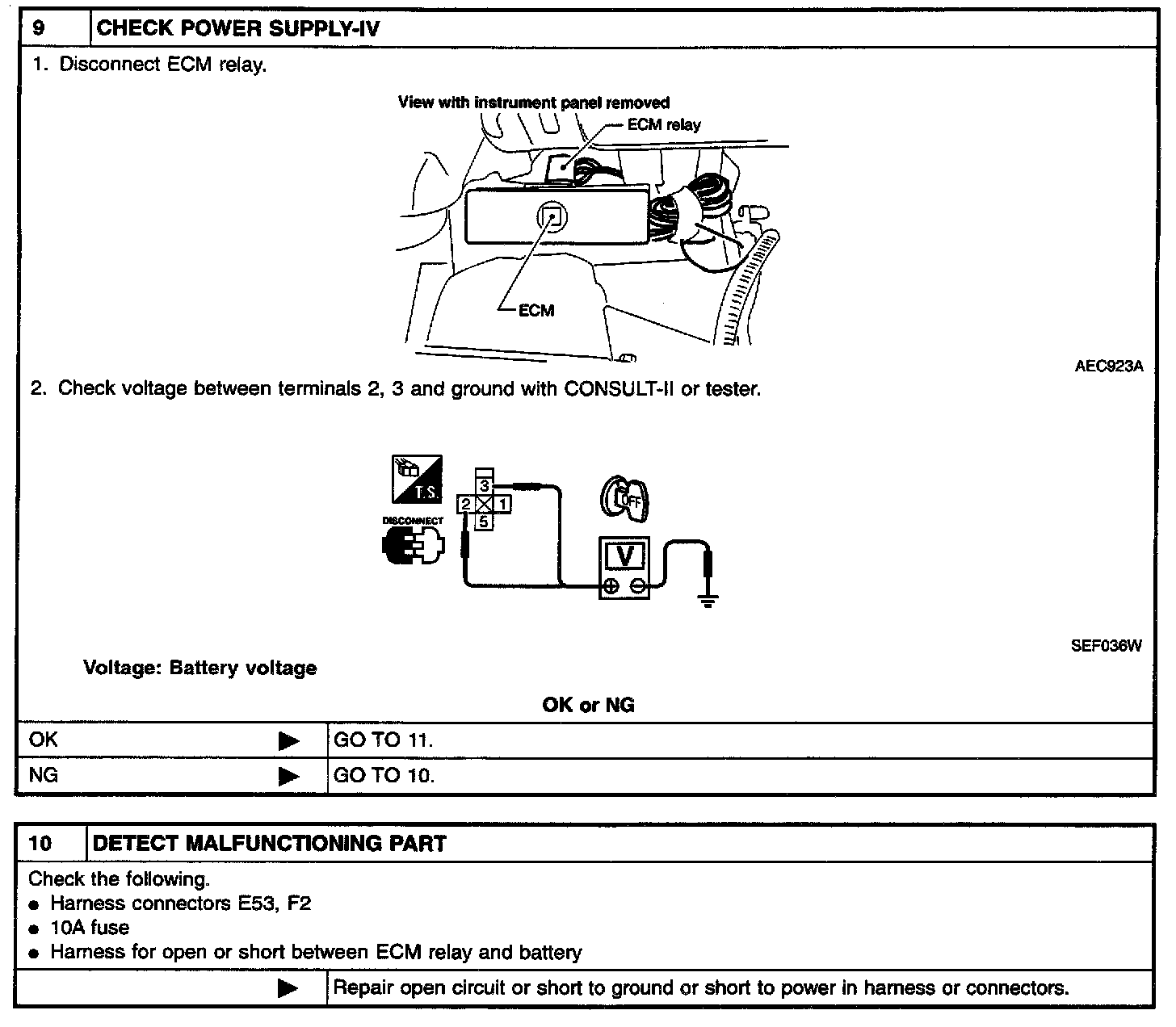

Steps 9 - 10:

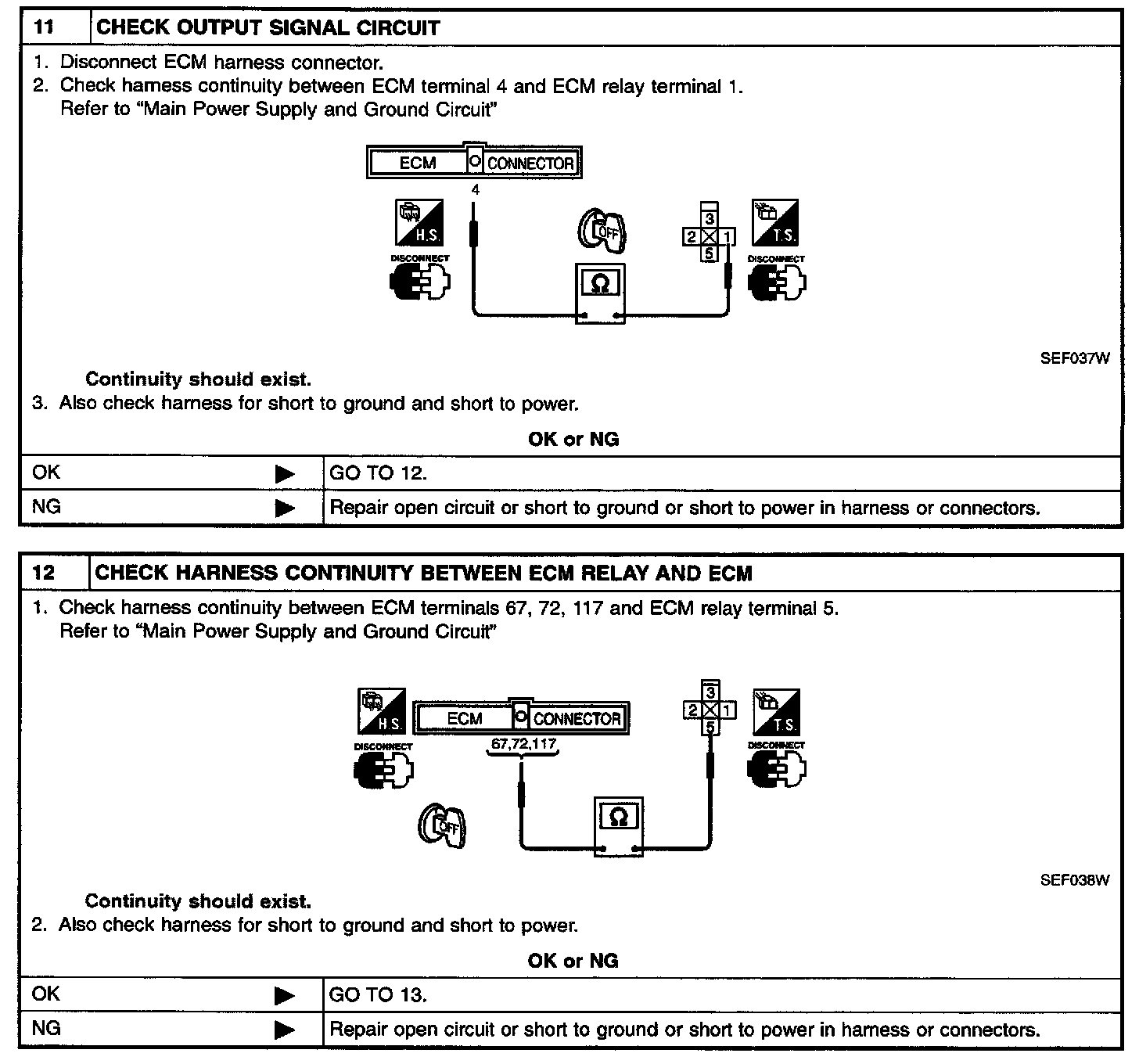

Steps 11 - 12:

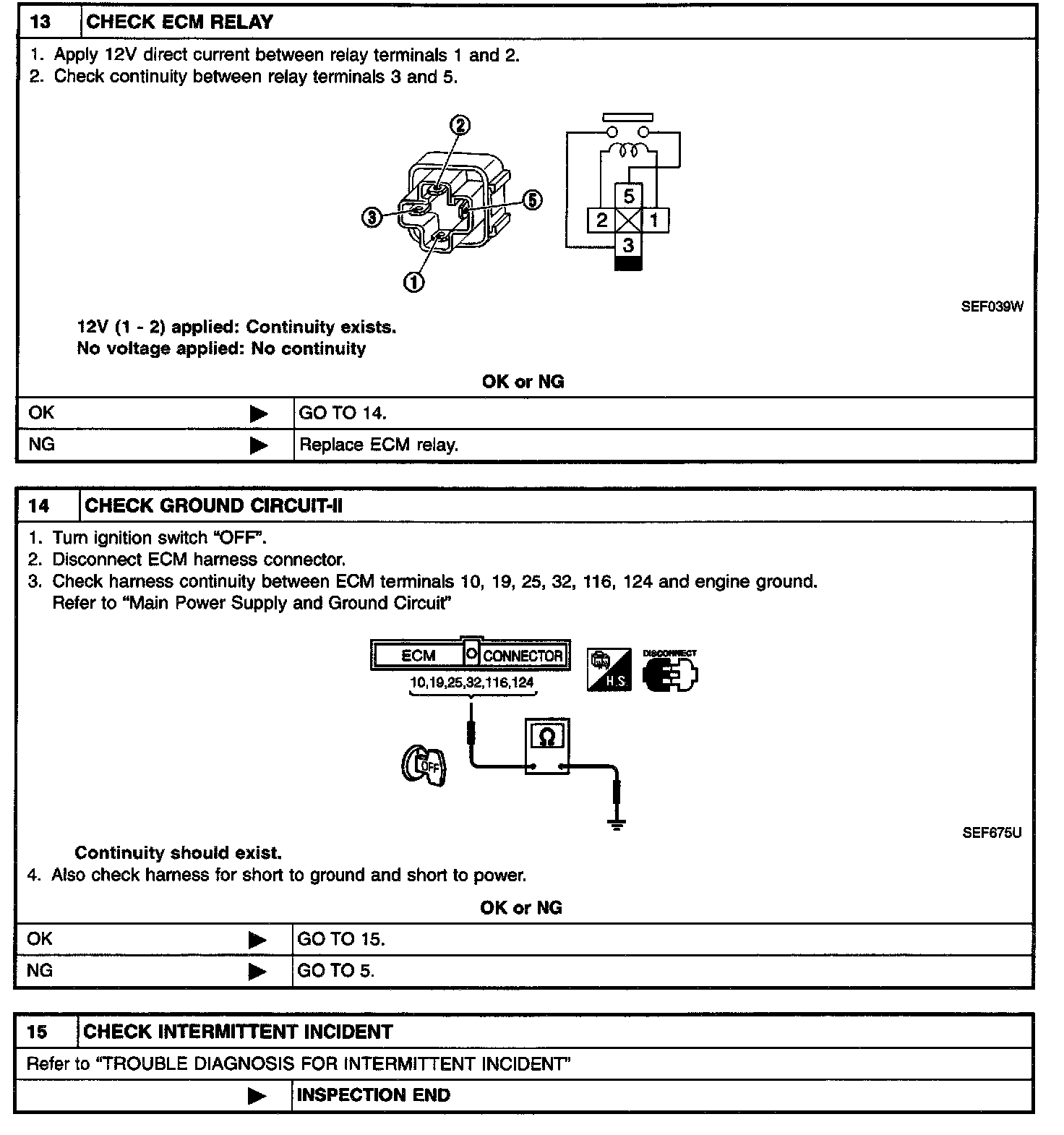

Steps 13 - 15:

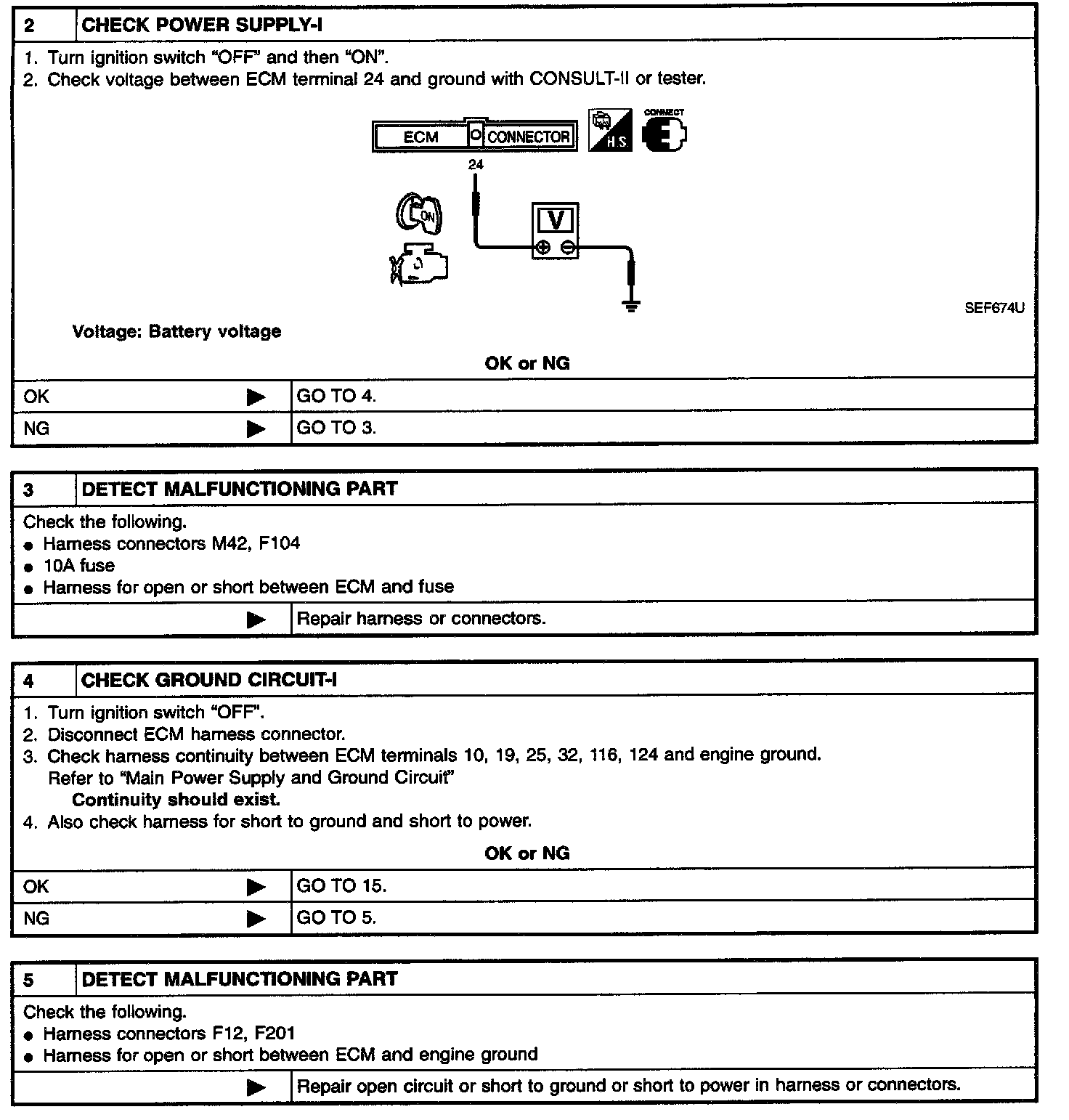

Diagnostic Procedure
