Initial Inspection (Basic Inspection)

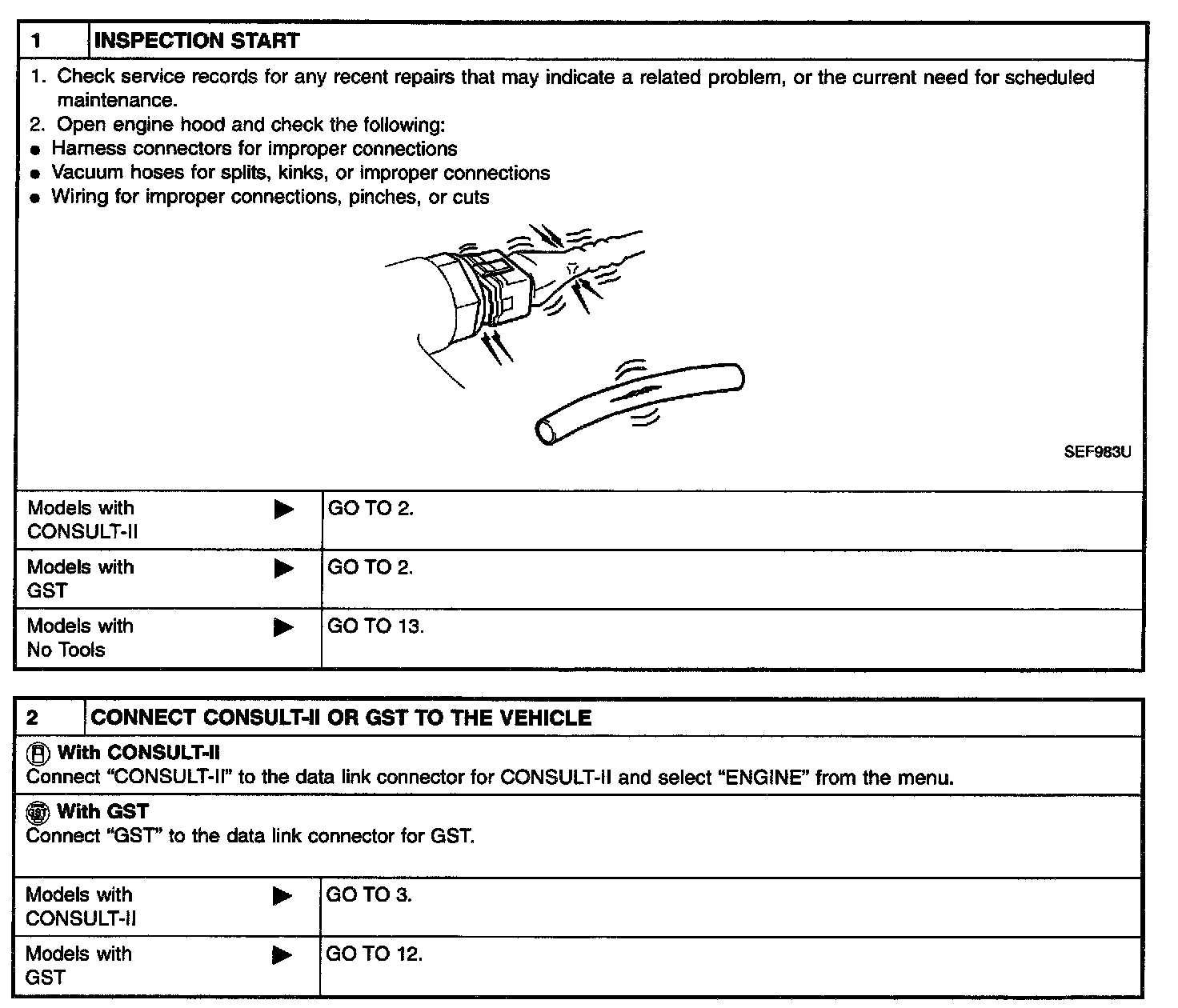

Steps 1 - 2:

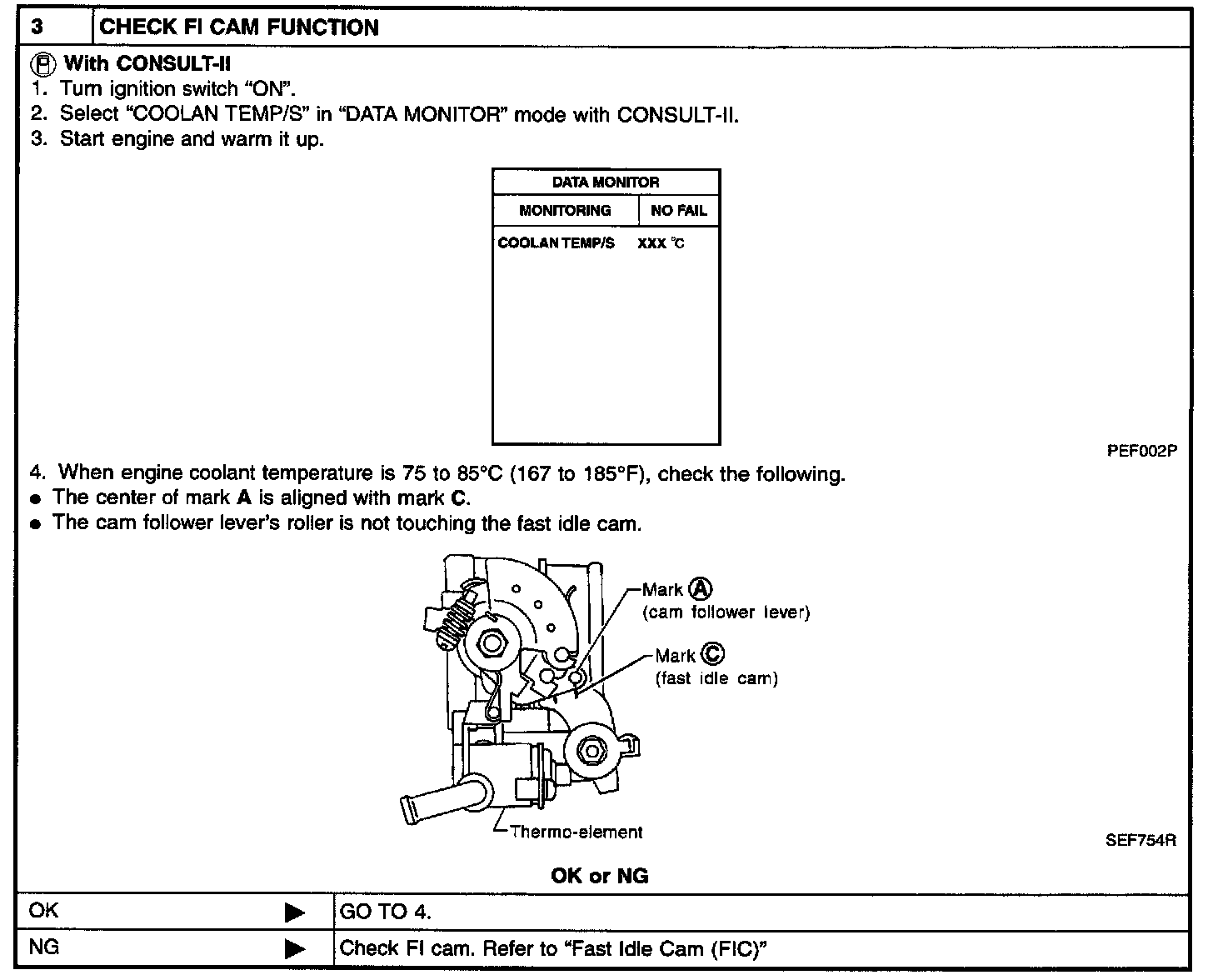

Step 3:

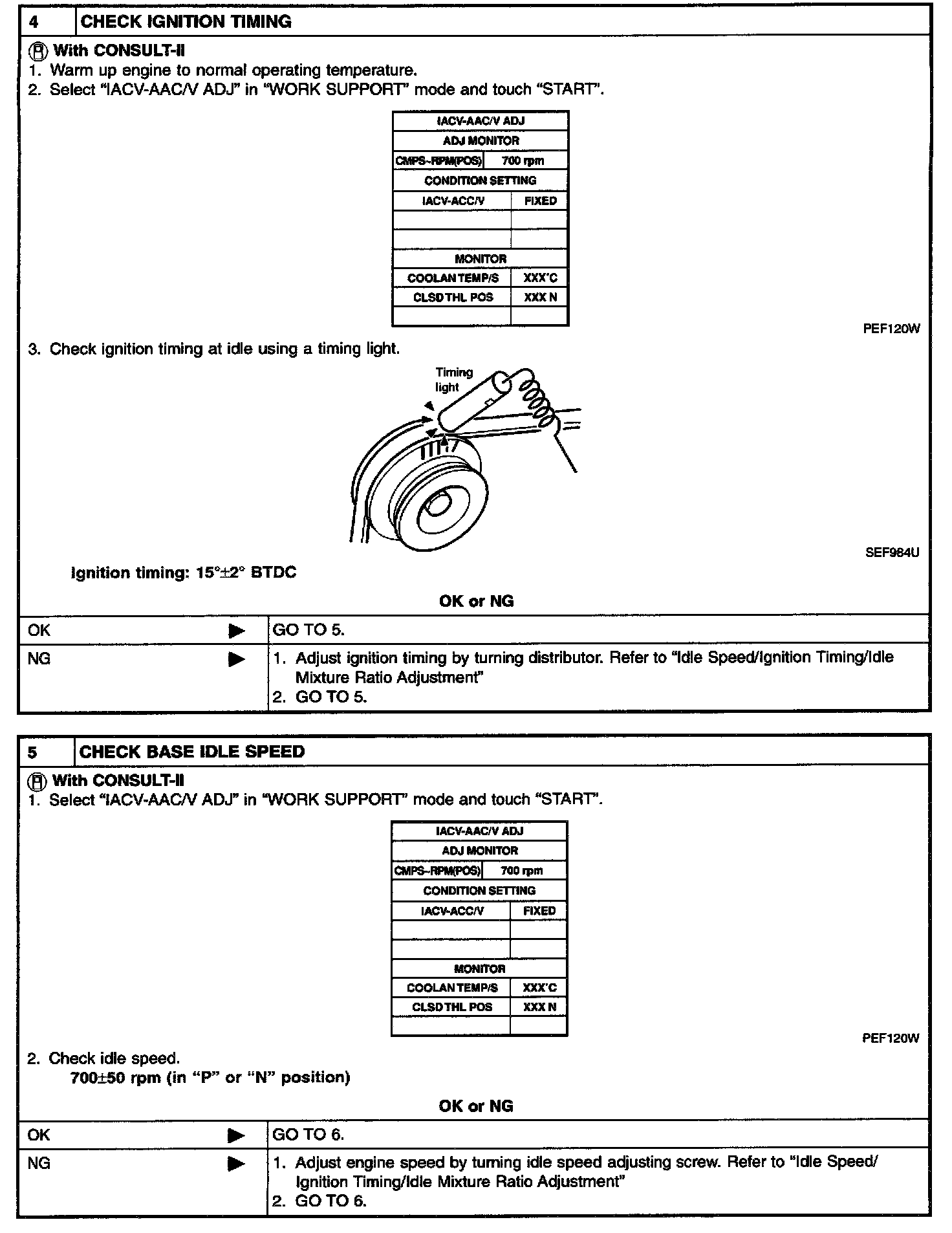

Steps 4 - 5:

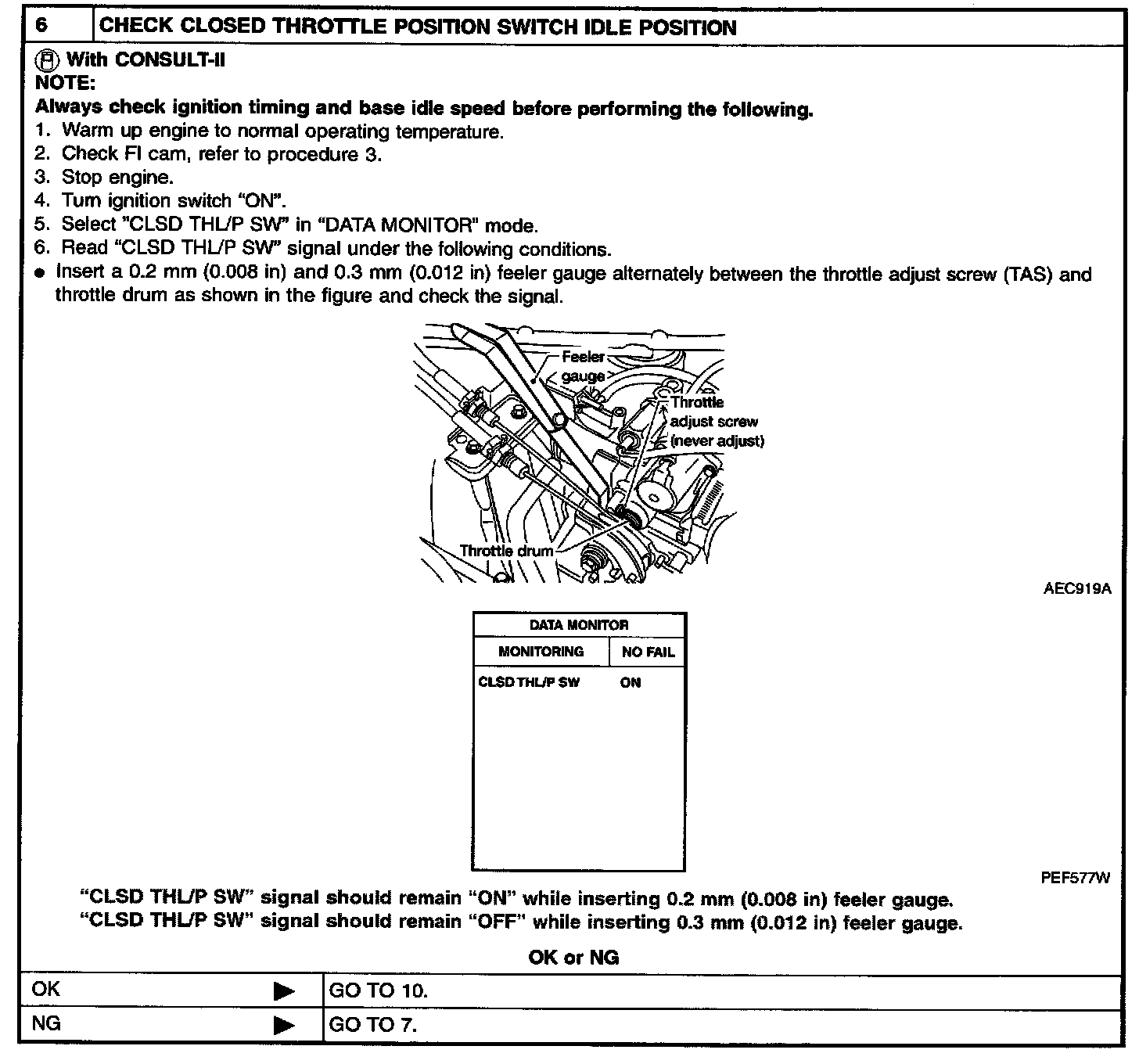

Step 6:

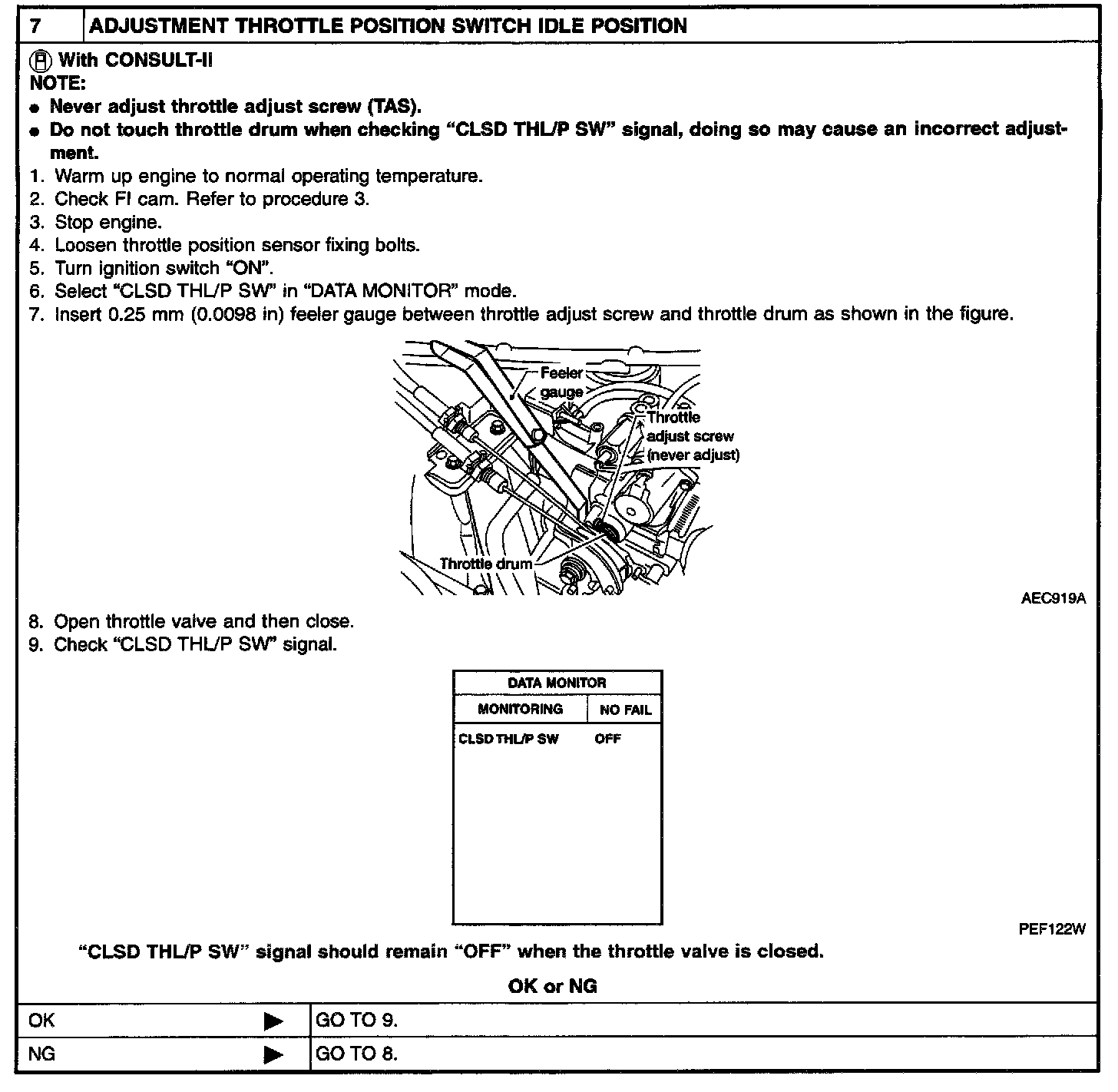

Step 7:

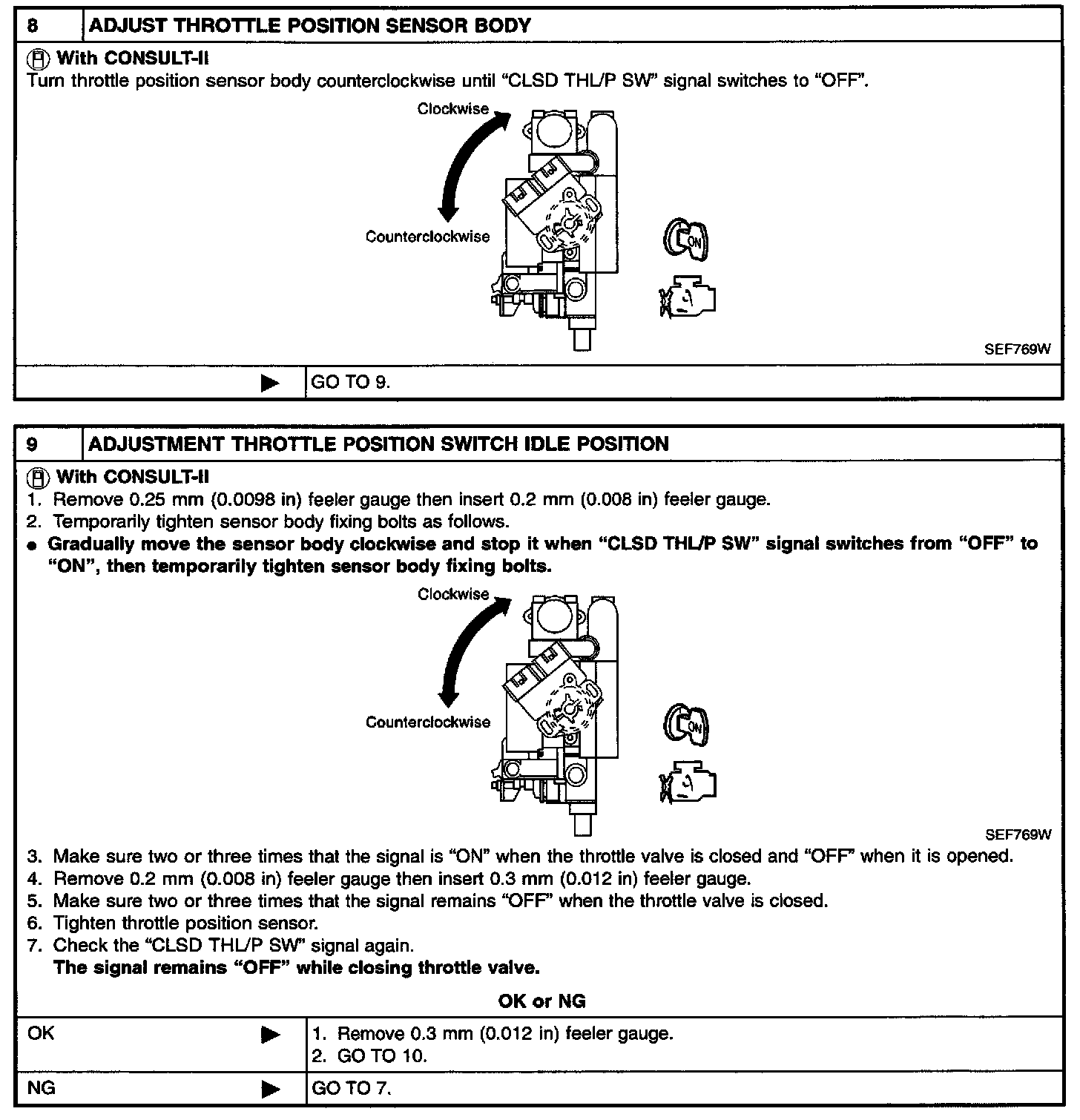

Steps 8 - 9:

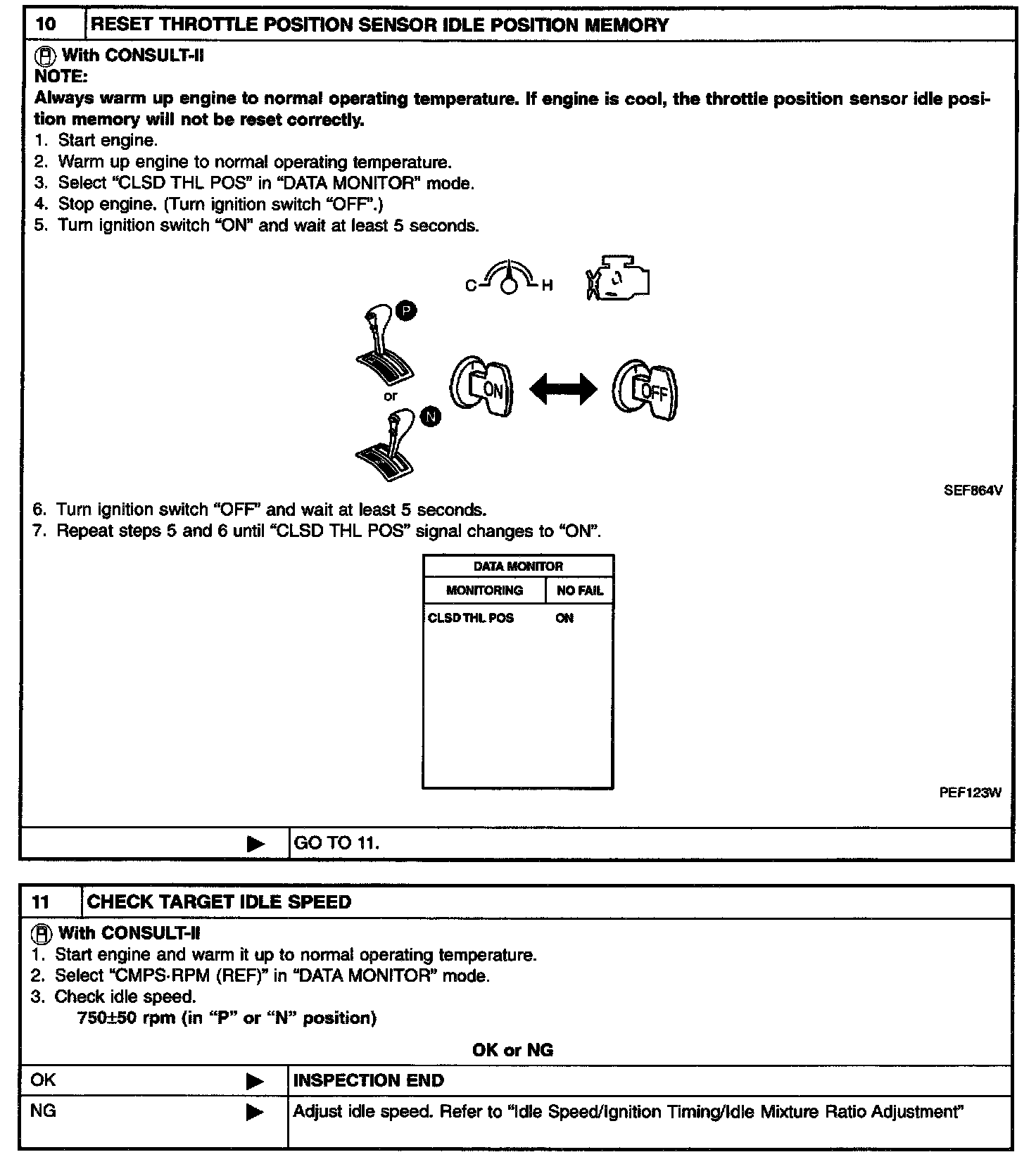

Steps 10 - 11:

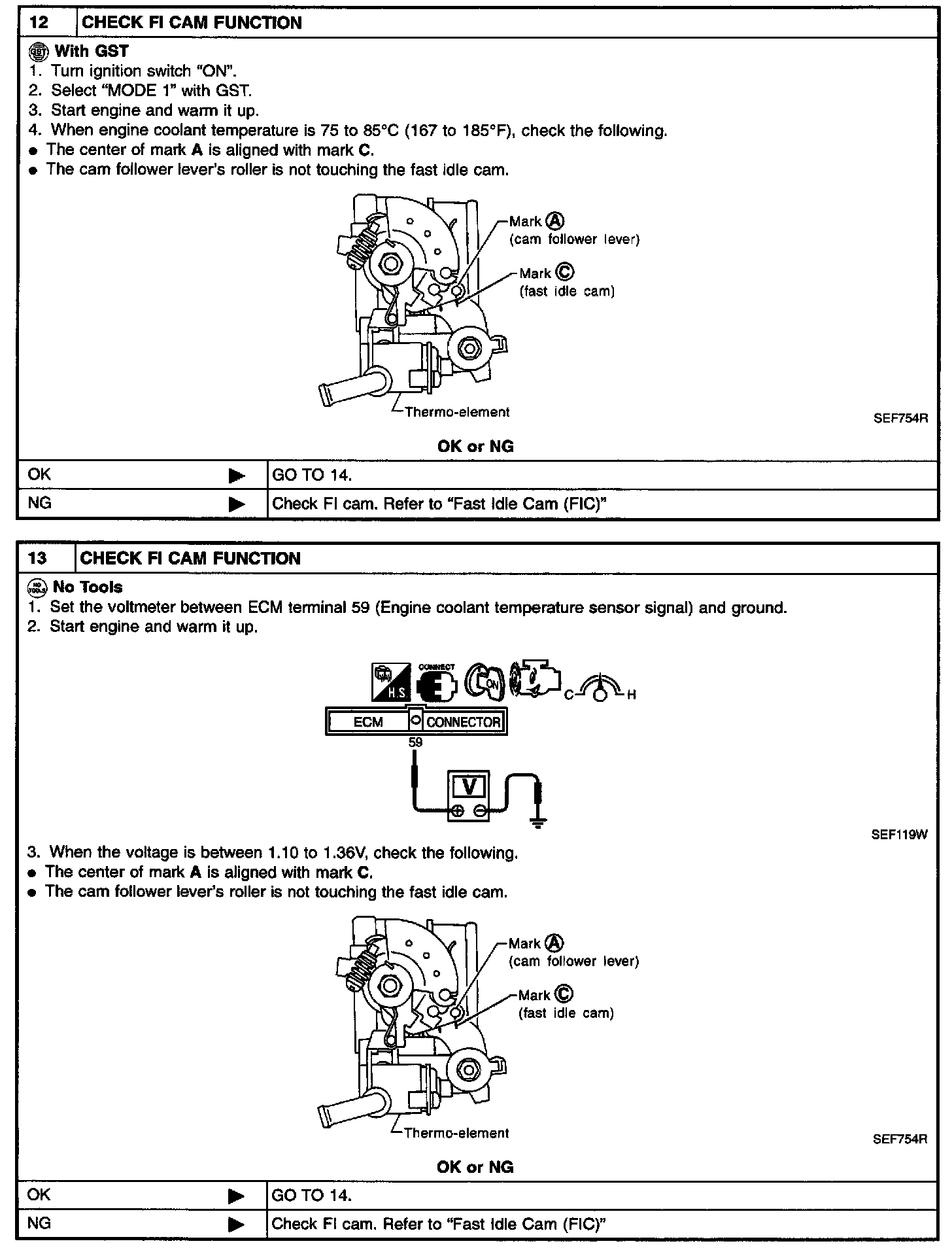

Steps 12 - 13:

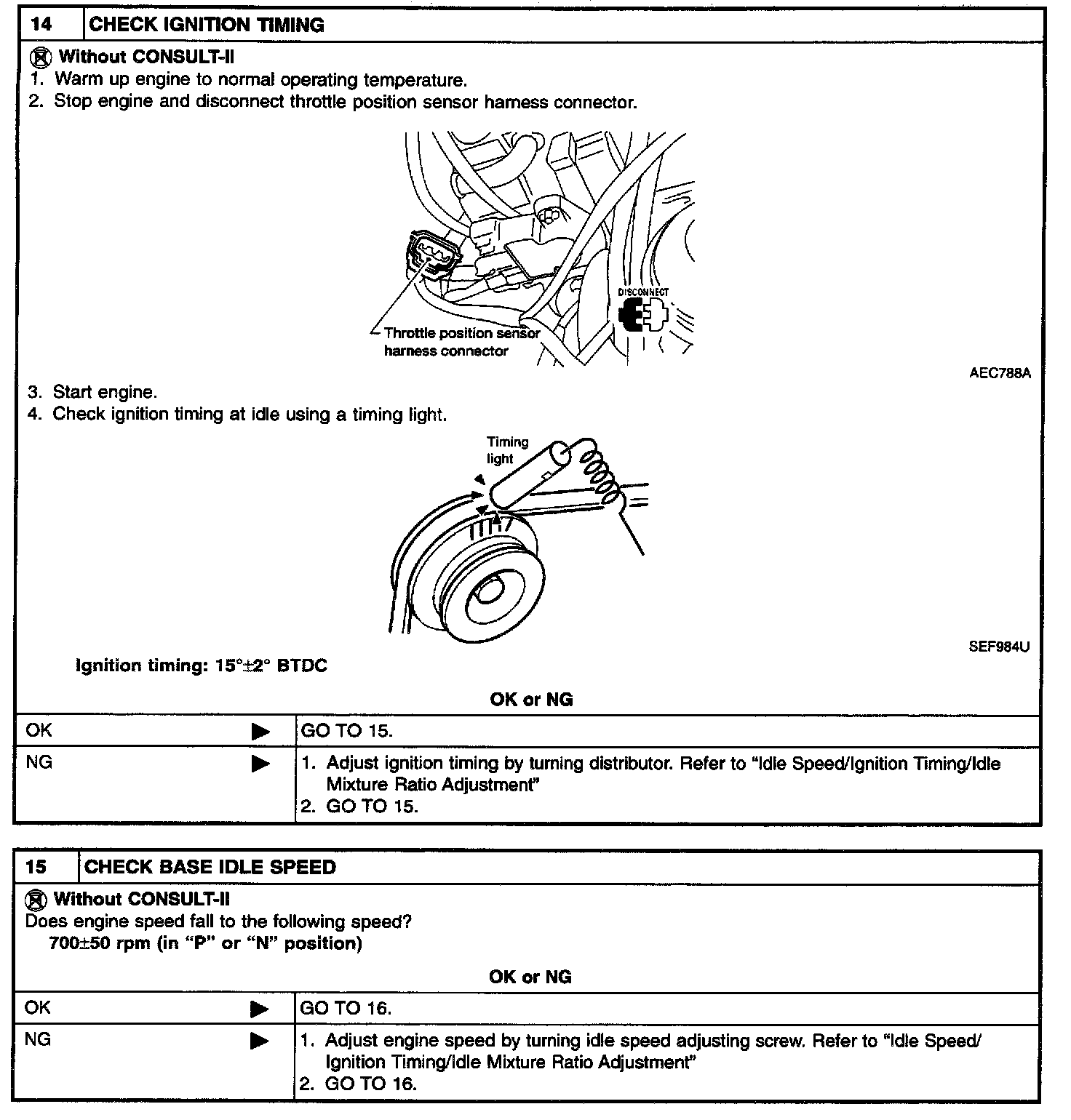

Steps 14 - 15:

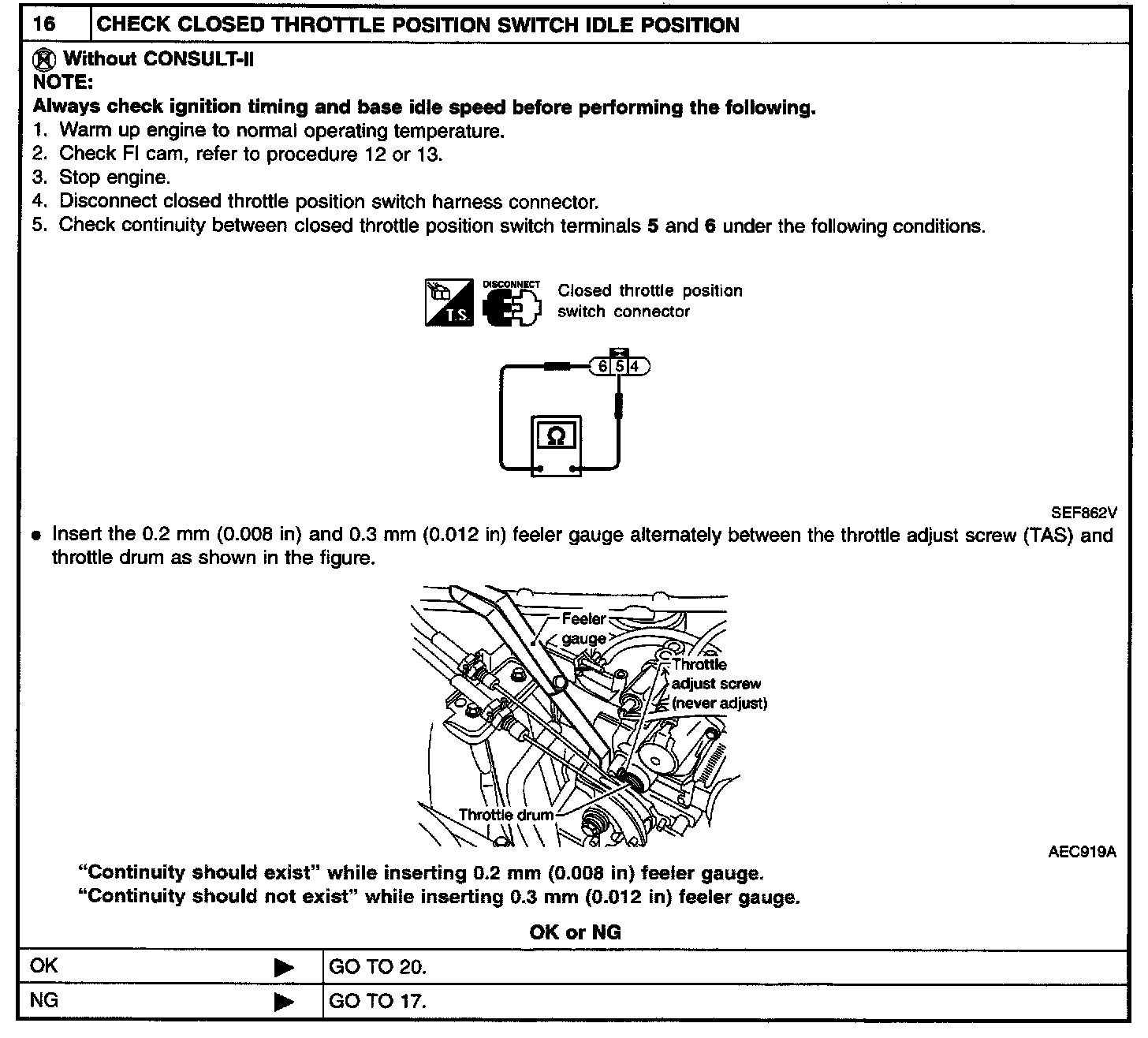

Step 16:

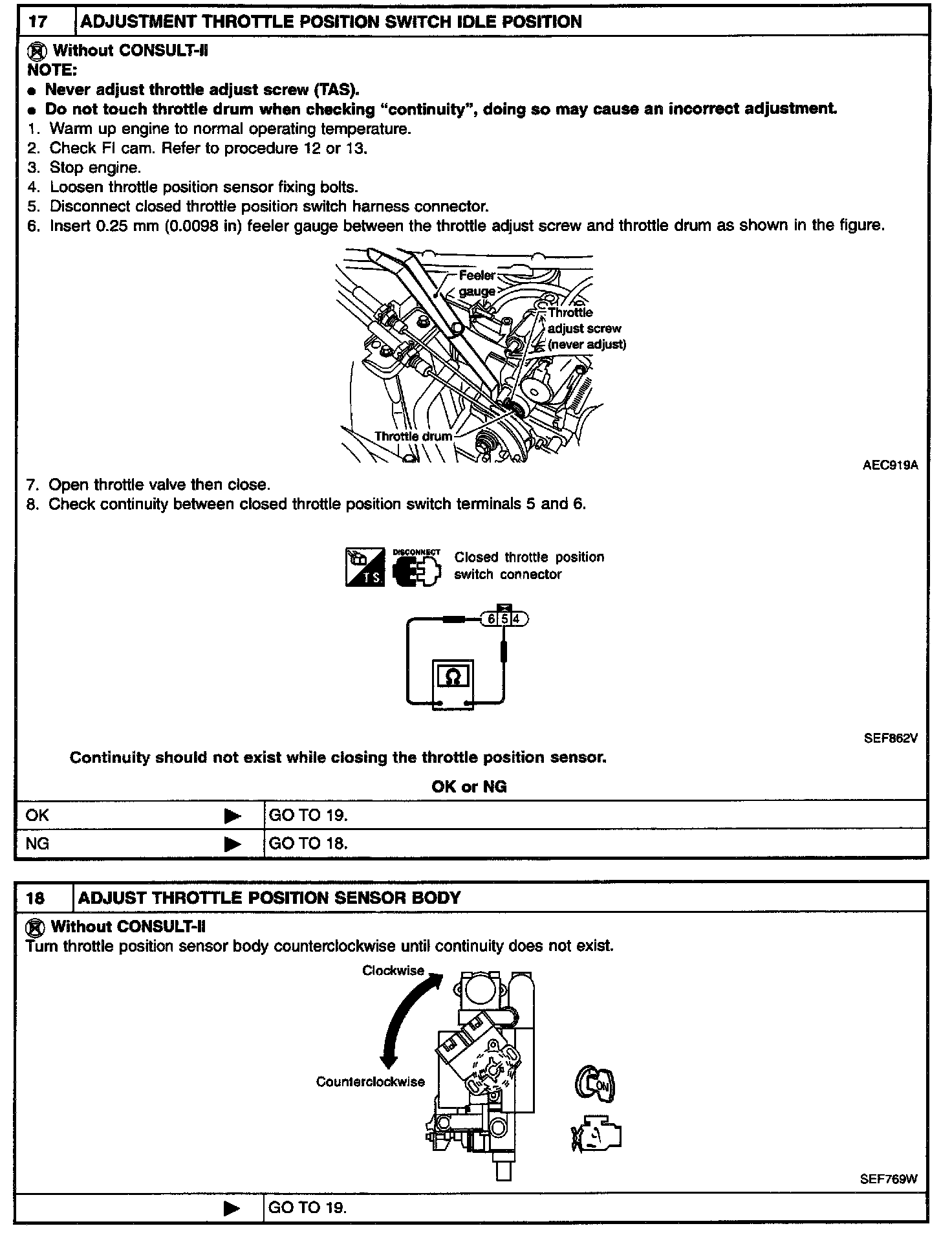

Steps 17 - 18:

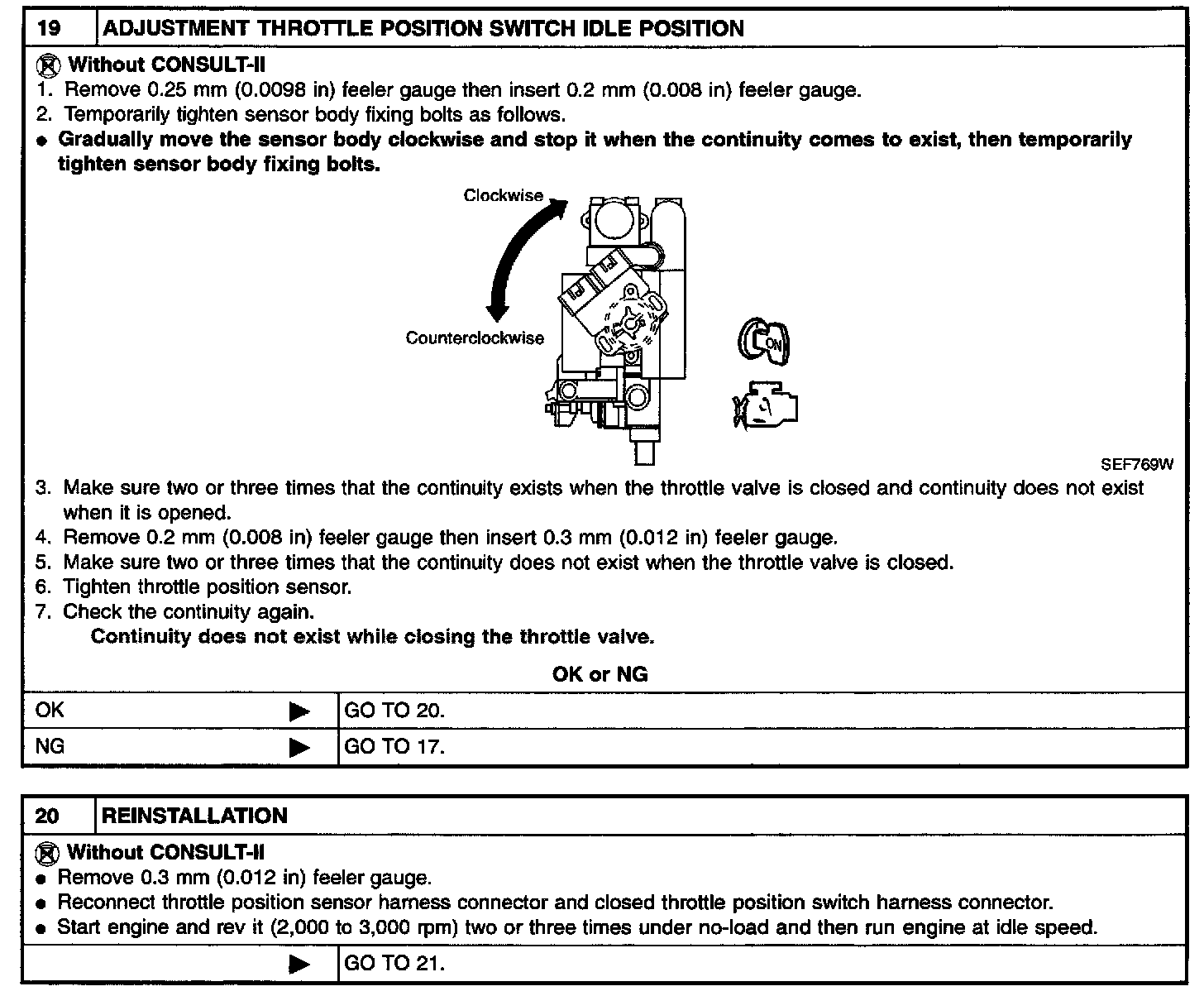

Steps 19 - 20:

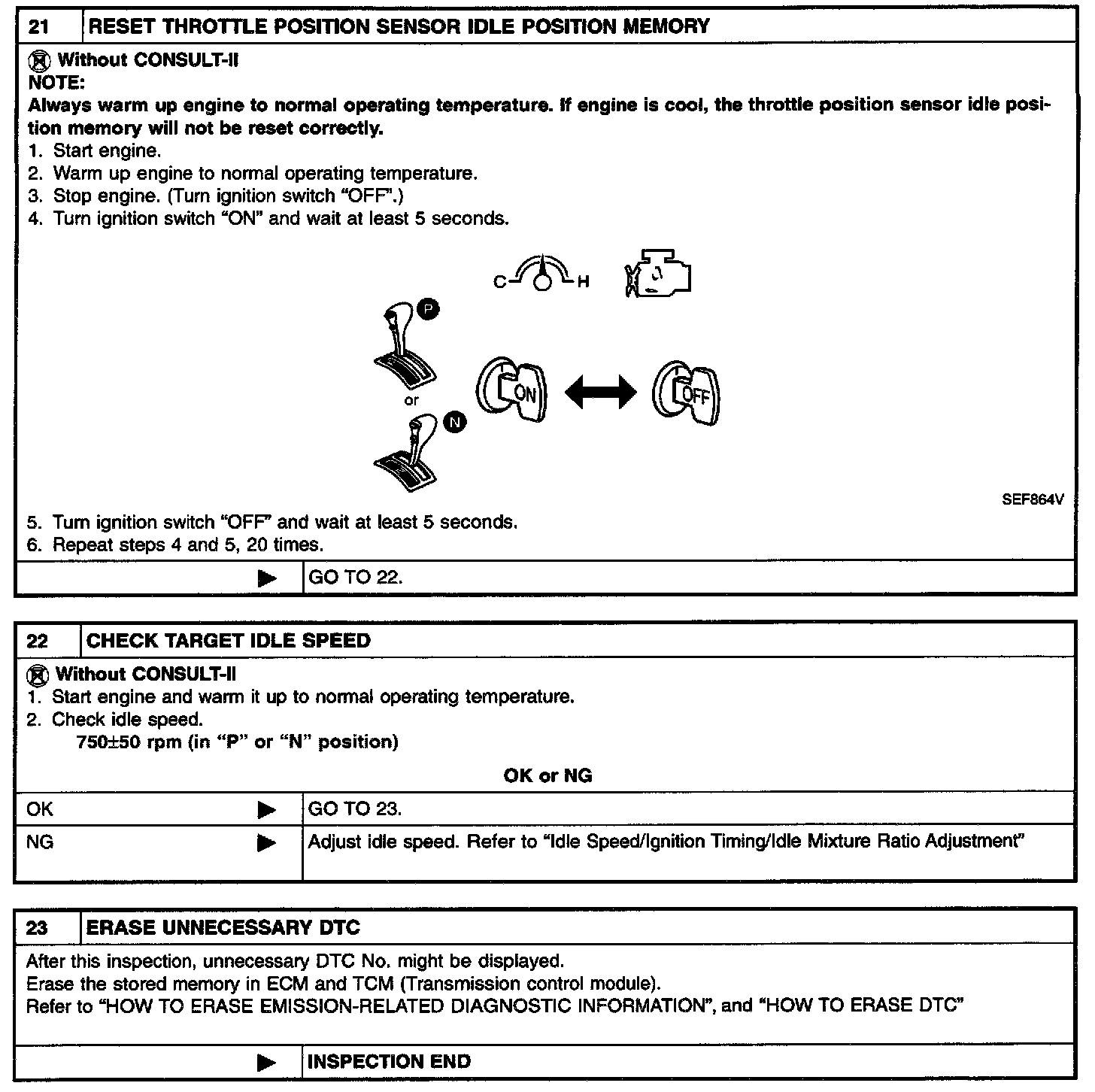

Steps 21 - 23:

Basic Inspection

Precaution:
Perform Basic Inspection without electrical or mechanical loads applied;
- Headlamp switch is OFF,
- Air conditioner switch is OFF,
- Rear window defogger switch is OFF,
- Steering wheel is in the straight-ahead position, etc.,
