Alternator: Service and Repair
1.
Disconnect negative
battery cable.
2.
Loosen idler pulley adjusting bolt.
3.
Remove A/C compressor belt.
4.
Remove engine undercover
5.
Remove generator harness and bracket.
6.

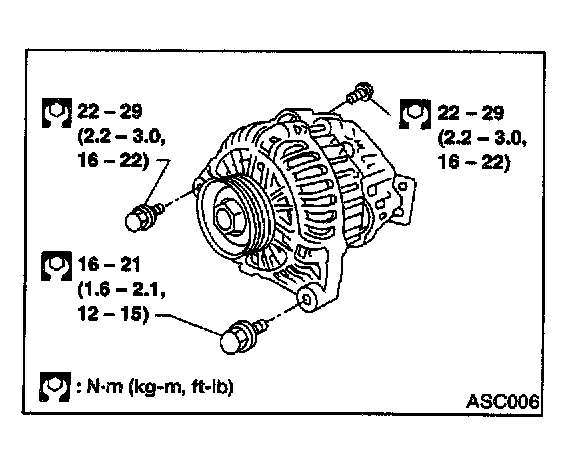

Loosen generator mounting bolts.
7.
Remove drive belt.
8.
Remove generator.
-
Install in the reverse order of removal.
