CONSULT-II Reference Value in Data Monitor Mode:
Specification data are reference values.
ECM Terminals and Reference Value:
Specification data are reference values and are measured between each terminal and 32 (ECM ground).
EC-S/SIG-01:

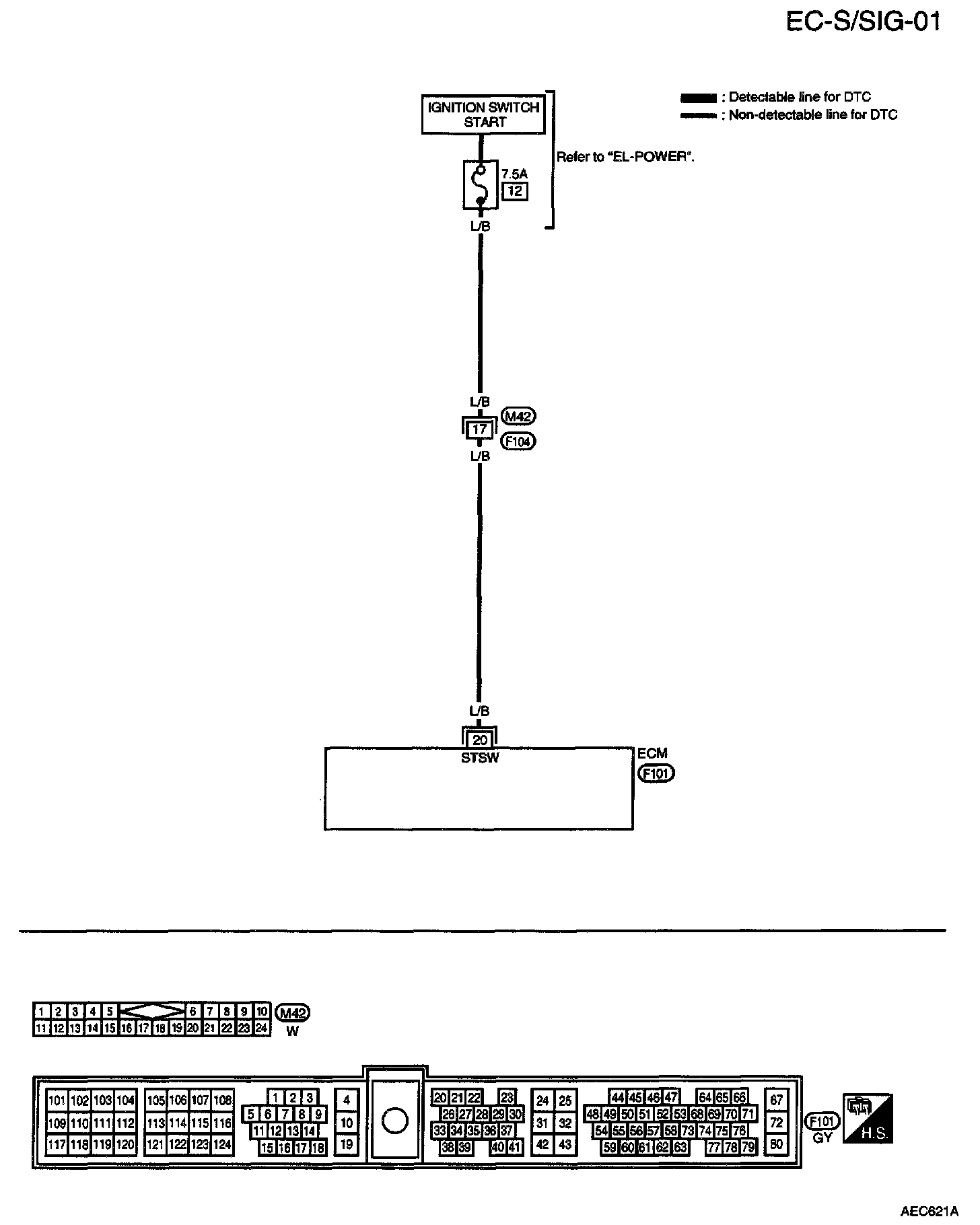

Wiring DiagramSteps 1 - 3:

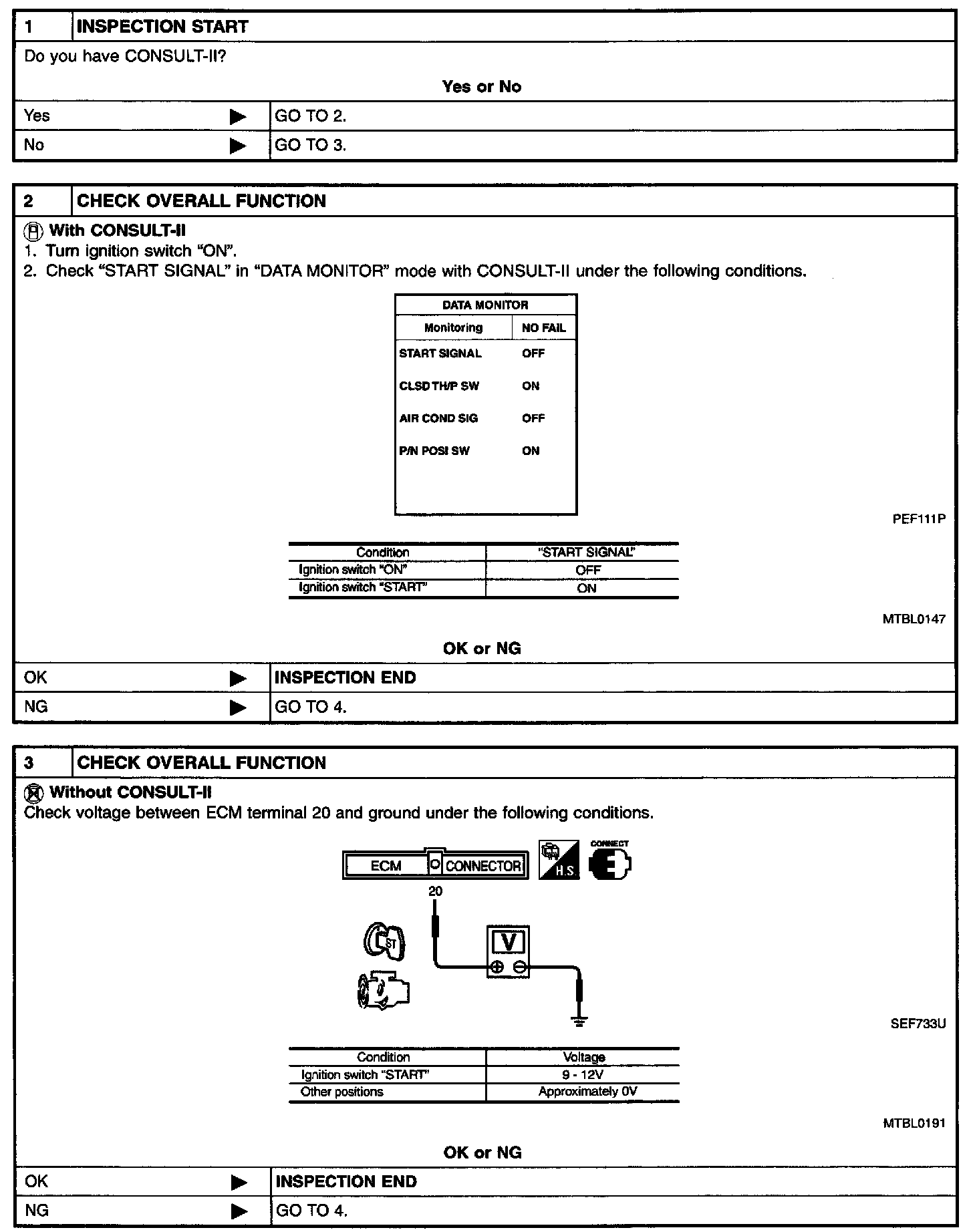

Steps 4 - 8:

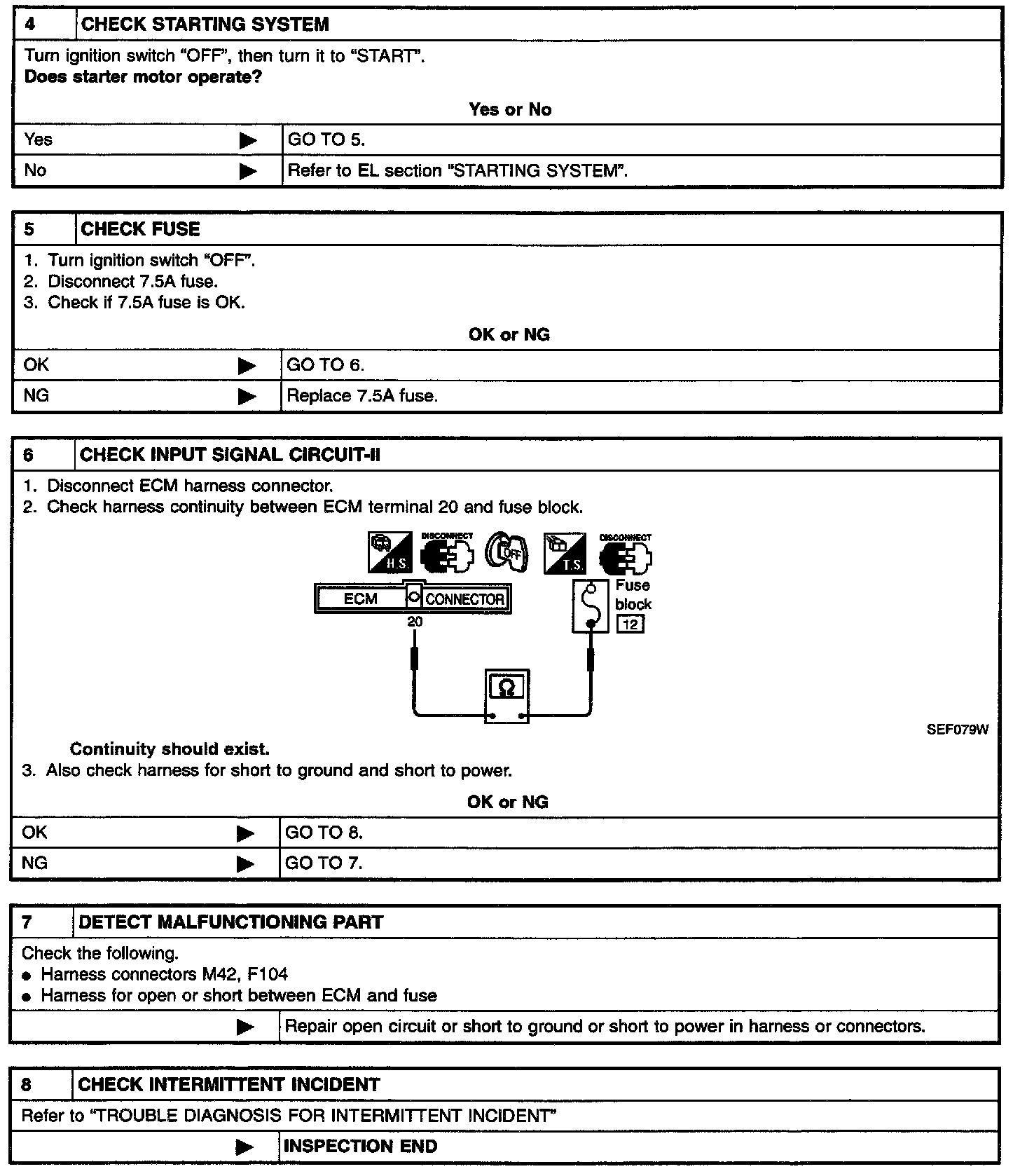

Diagnostic Procedure
