Trouble Diagnosis

Part 1 Of 2:

Part 2 Of 2:

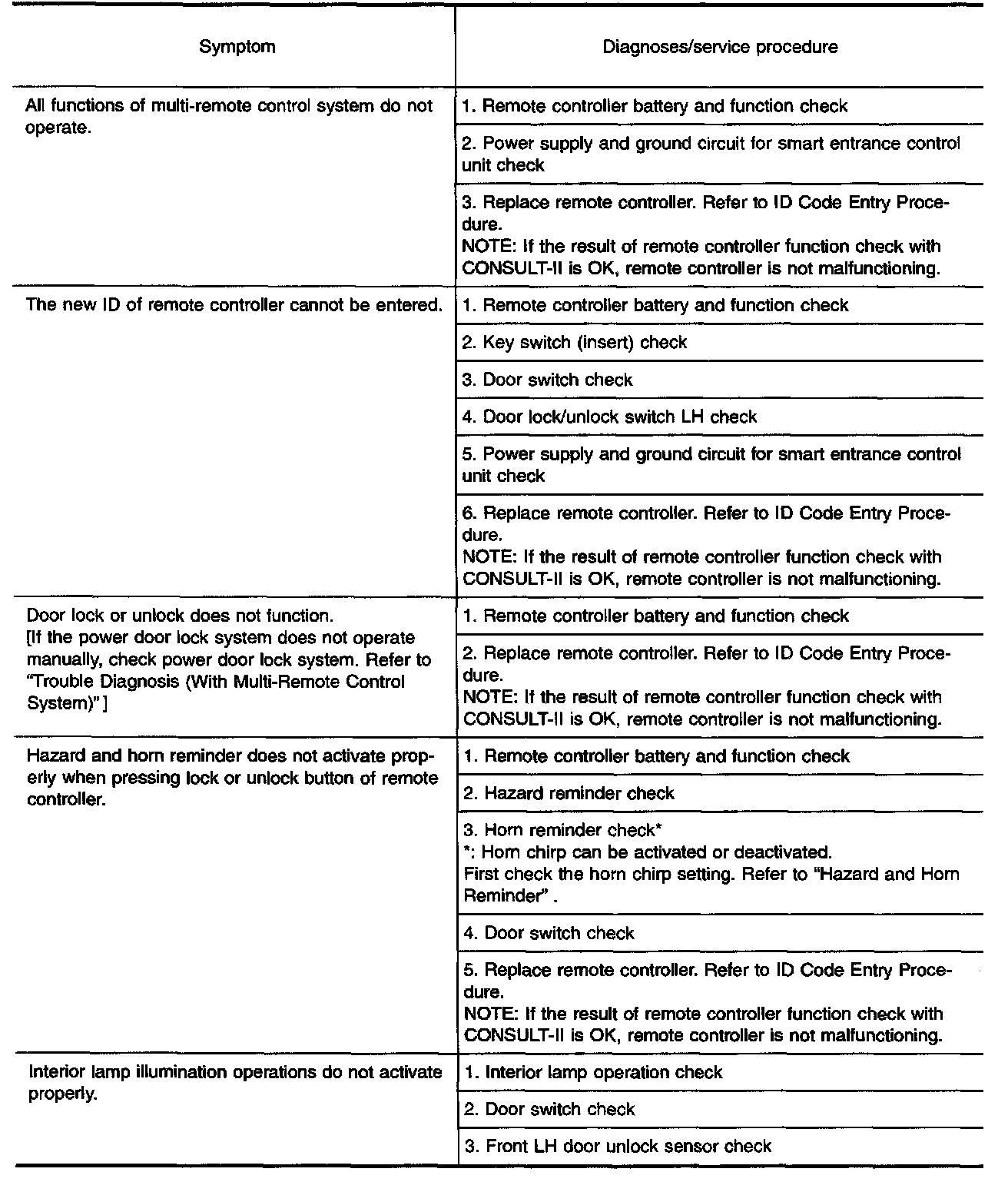

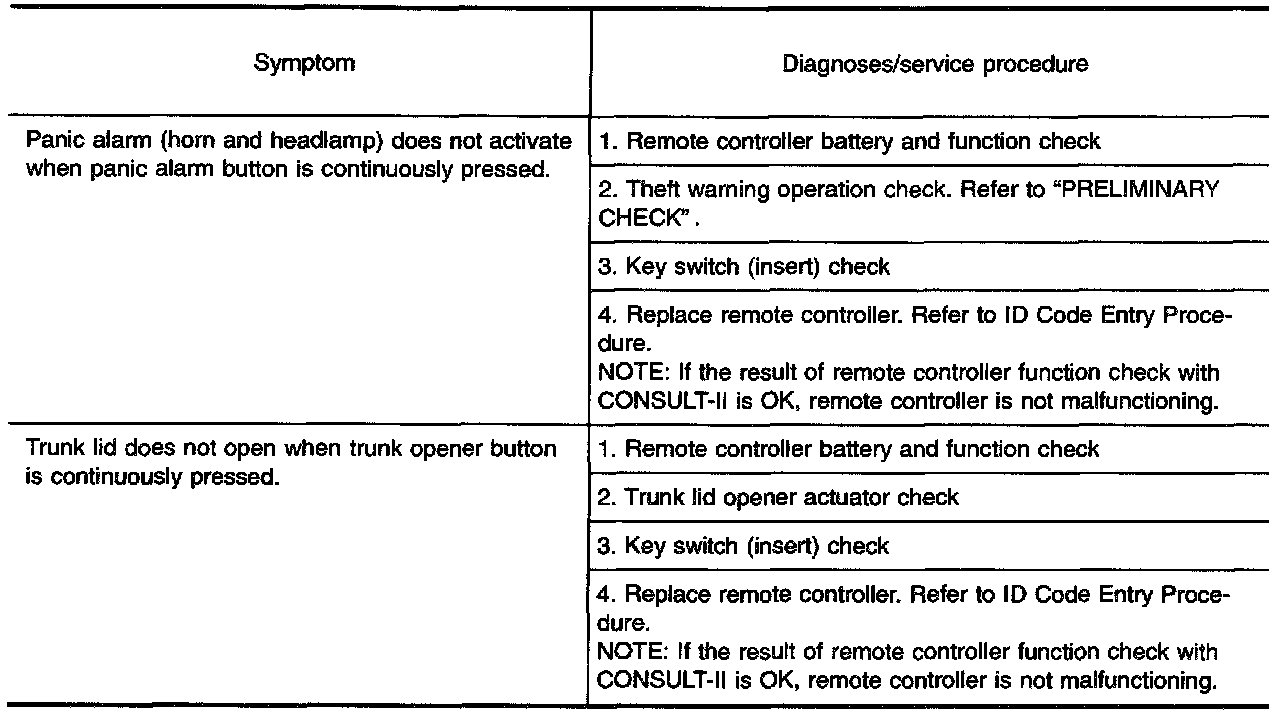

SYMPTOM CHART

NOTE:
- Always check remote controller battery before replacing remote controller.
- The panic alarm operation and trunk lid opener operation of multi-remote control system do not activate with the ignition key inserted in the ignition key cylinder.

Steps 1 - 2:

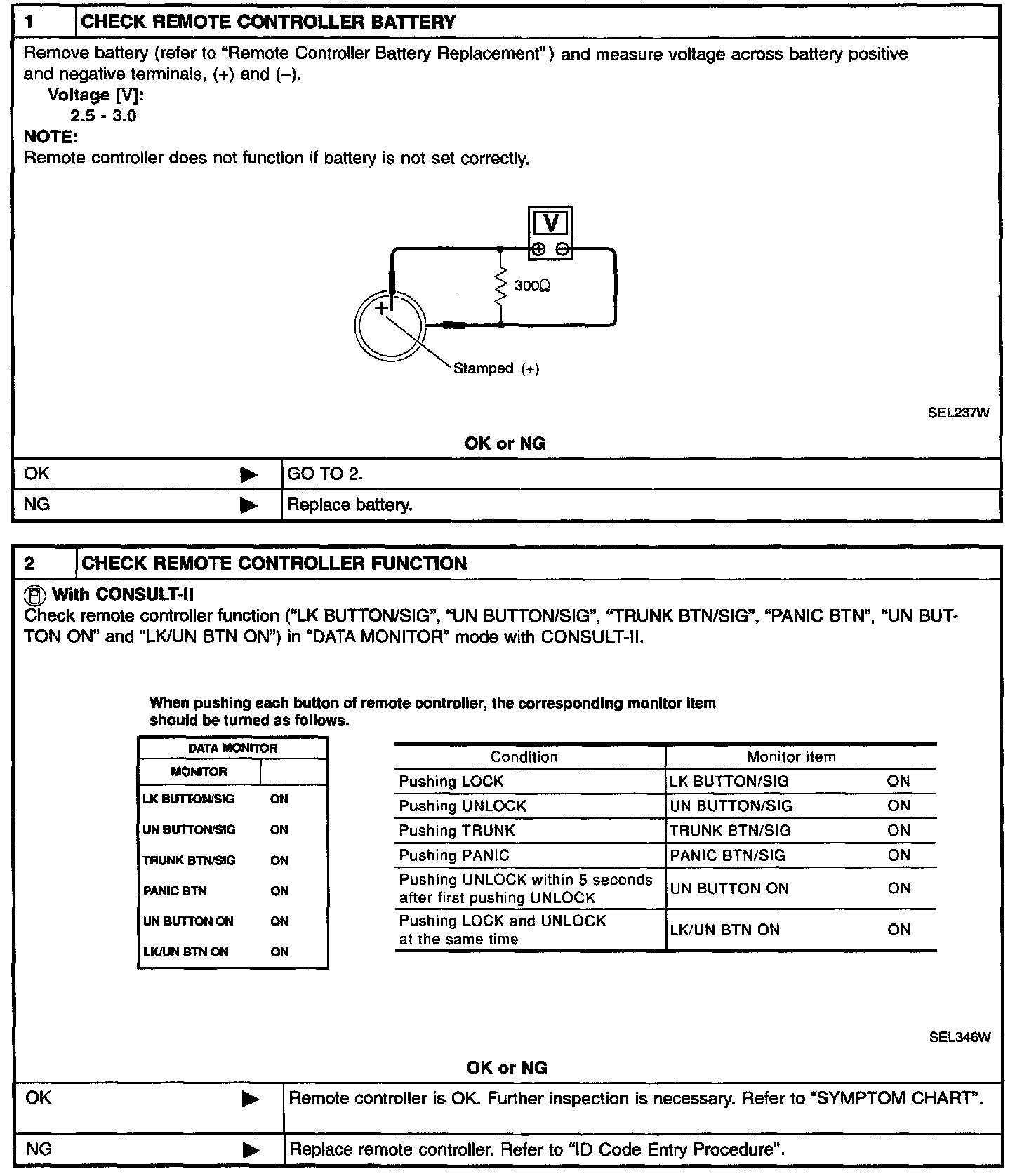

REMOTE CONTROLLER BATTERY AND FUNCTION CHECK

Steps 1 - 2:

Step 3:

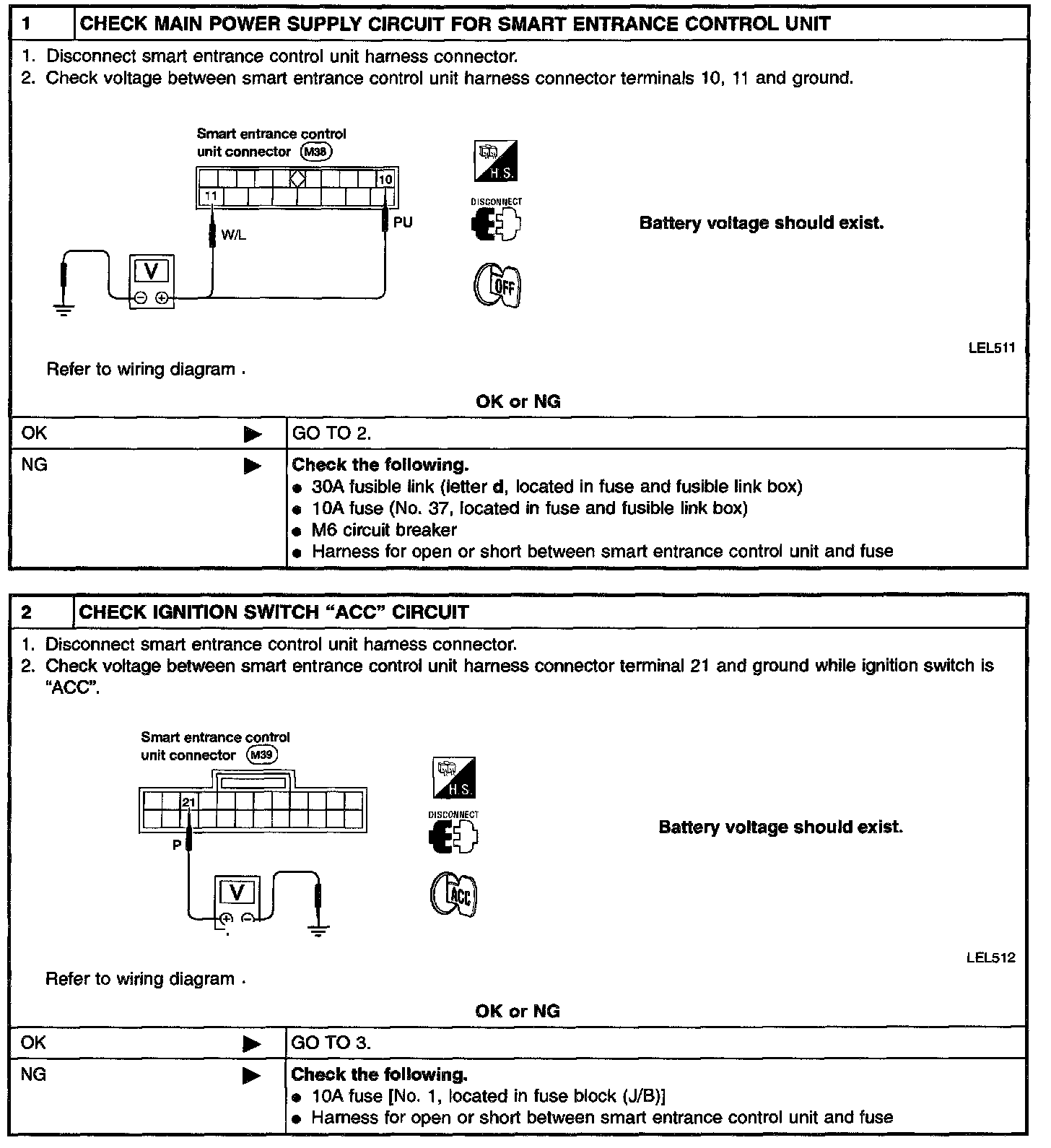

POWER SUPPLY AND GROUND CIRCUIT CHECK

Steps 1 - 2:

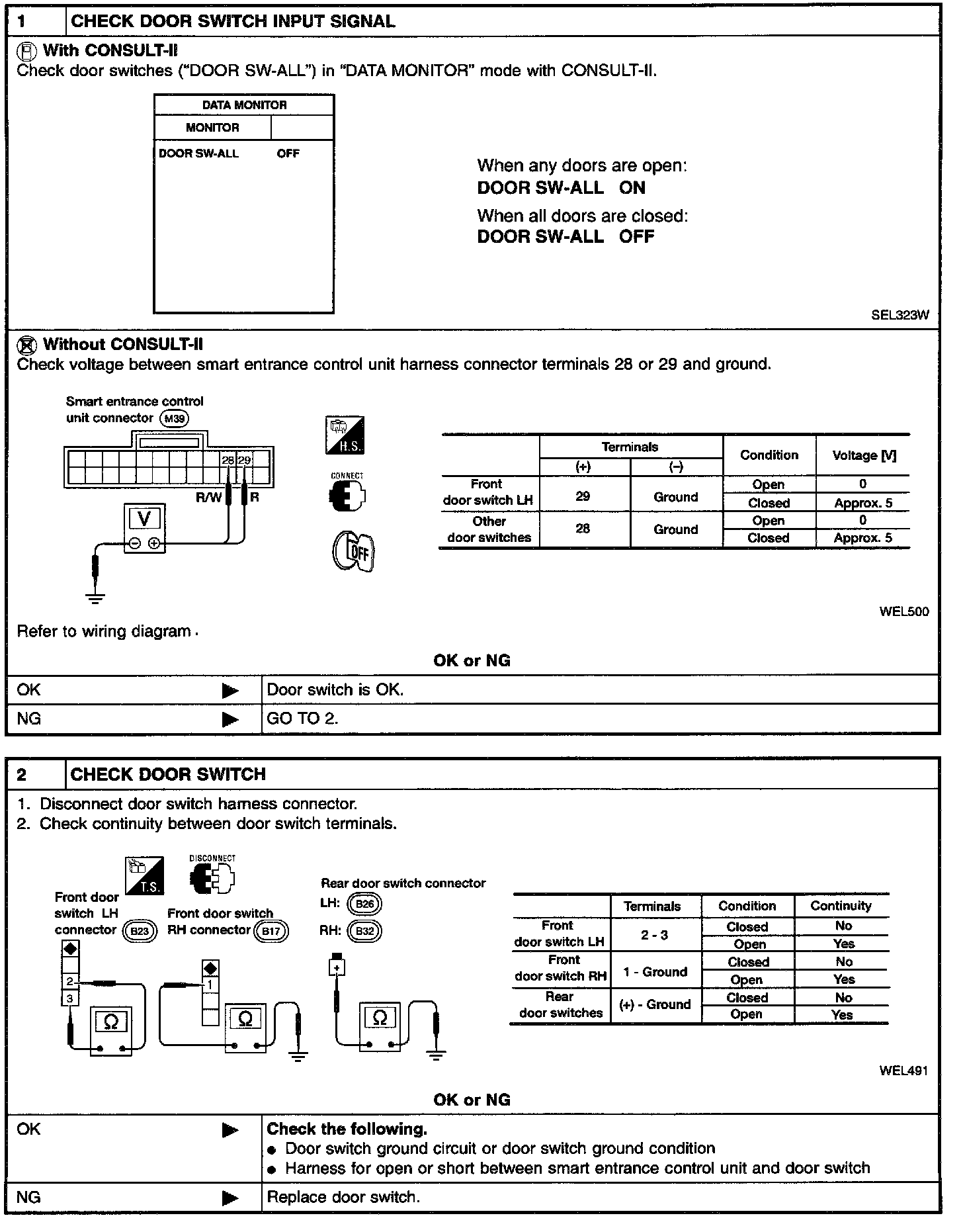

DOOR SWITCH CHECK

Steps 1 - 2:

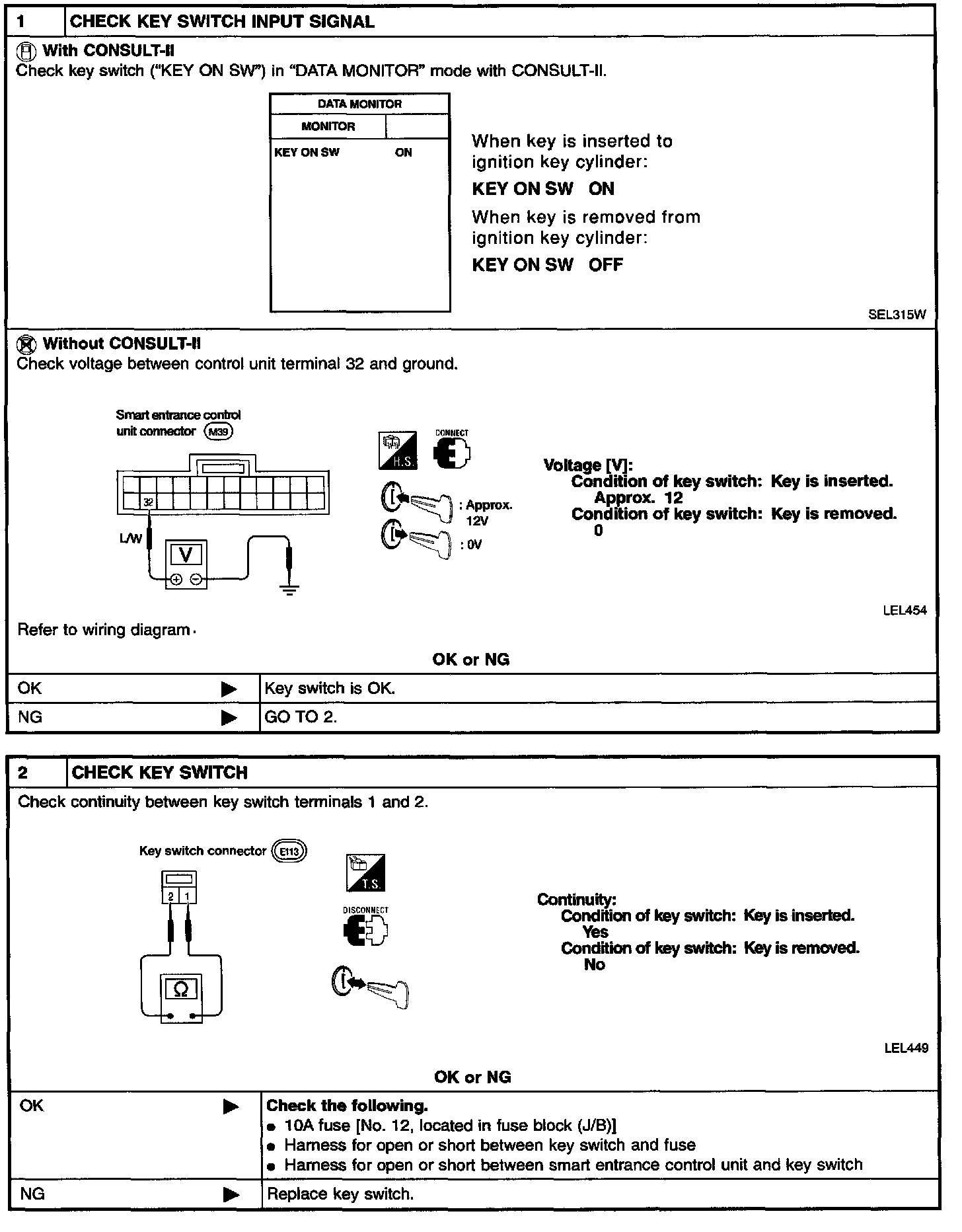

KEY SWITCH (INSERT) CHECK

Step 1:

Step 2:

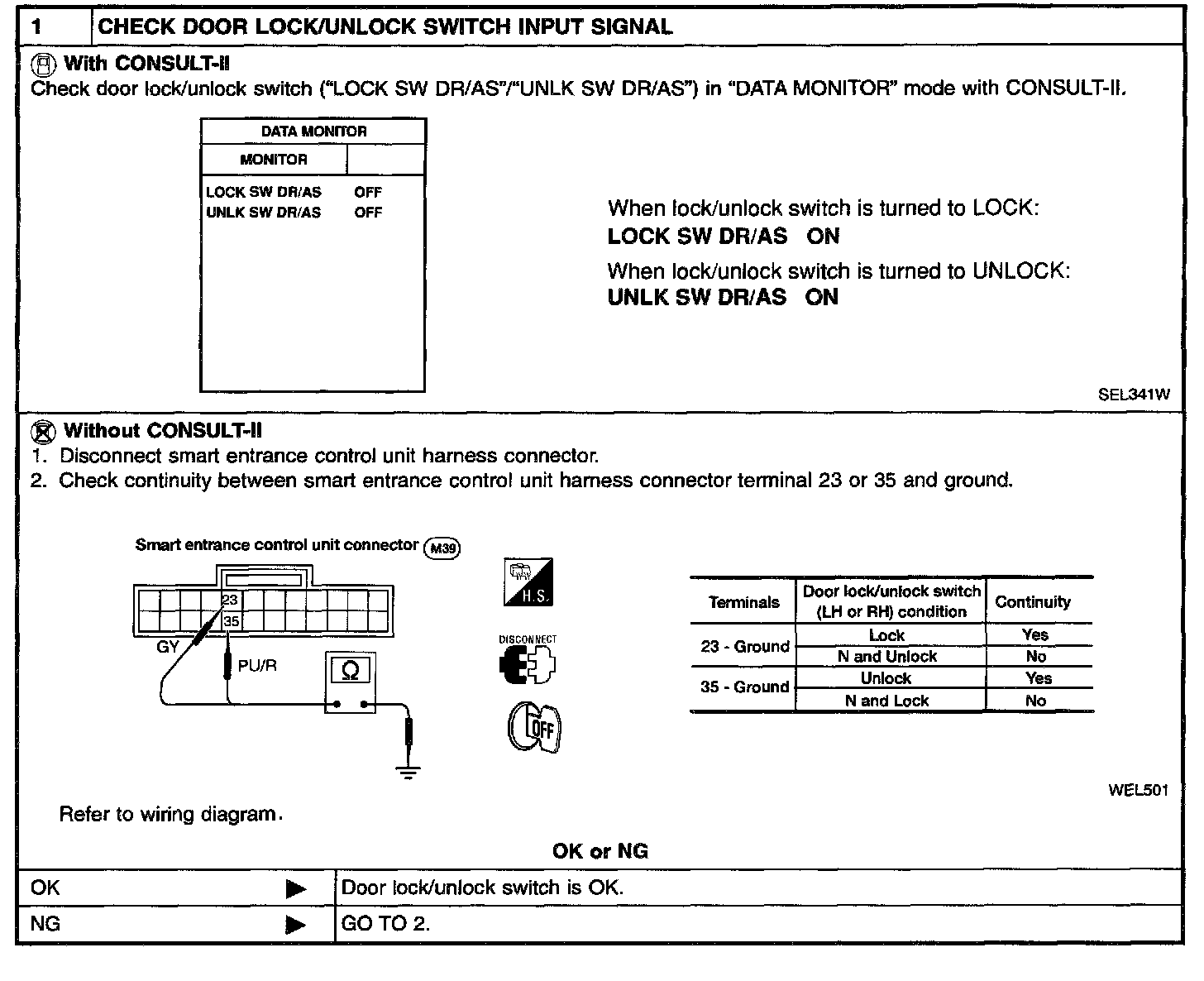

DOOR LOCK/UNLOCK SWITCH LH CHECK

Steps 1 - 2:

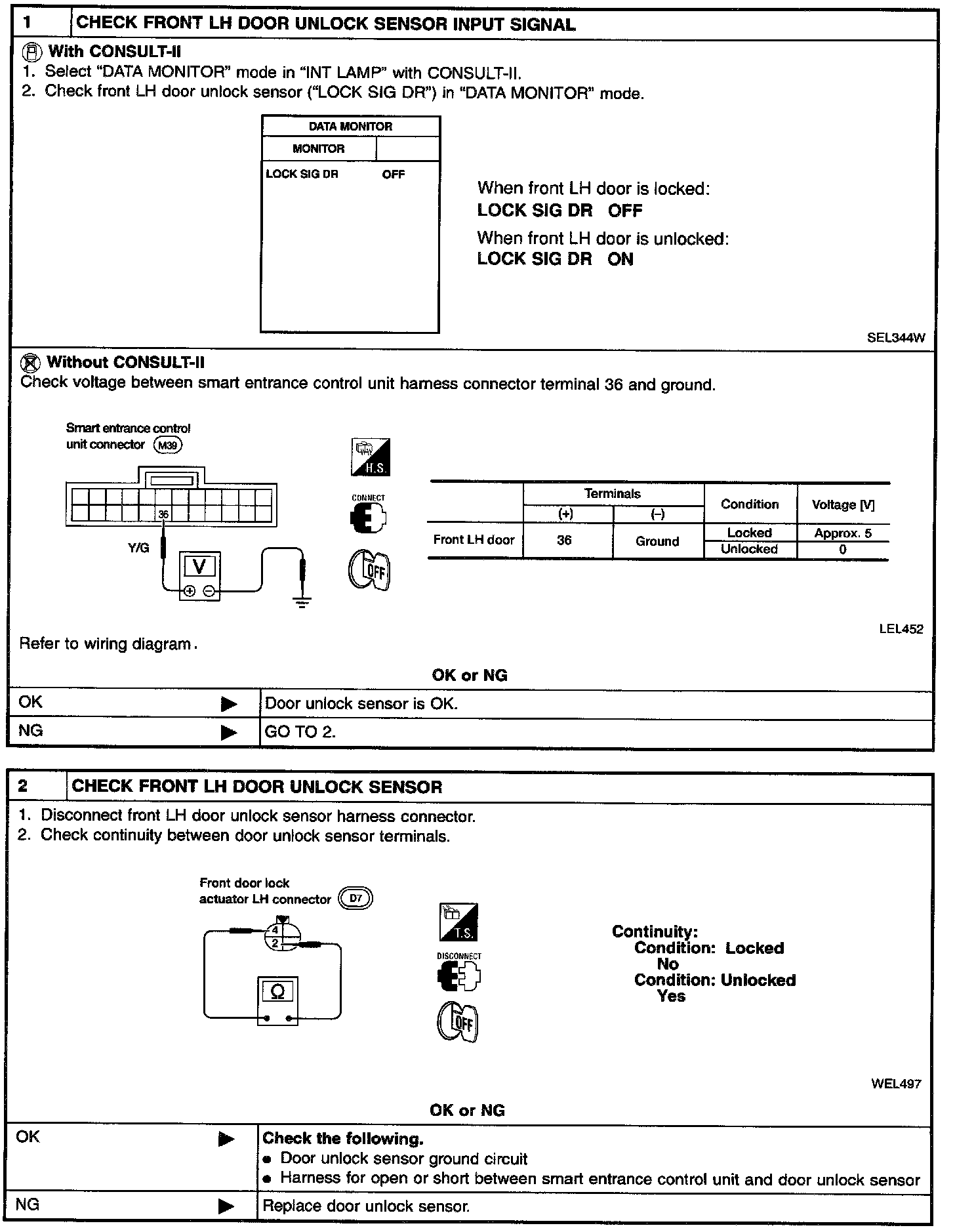

FRONT LH DOOR UNLOCK SENSOR CHECK

Steps 1 - 3:

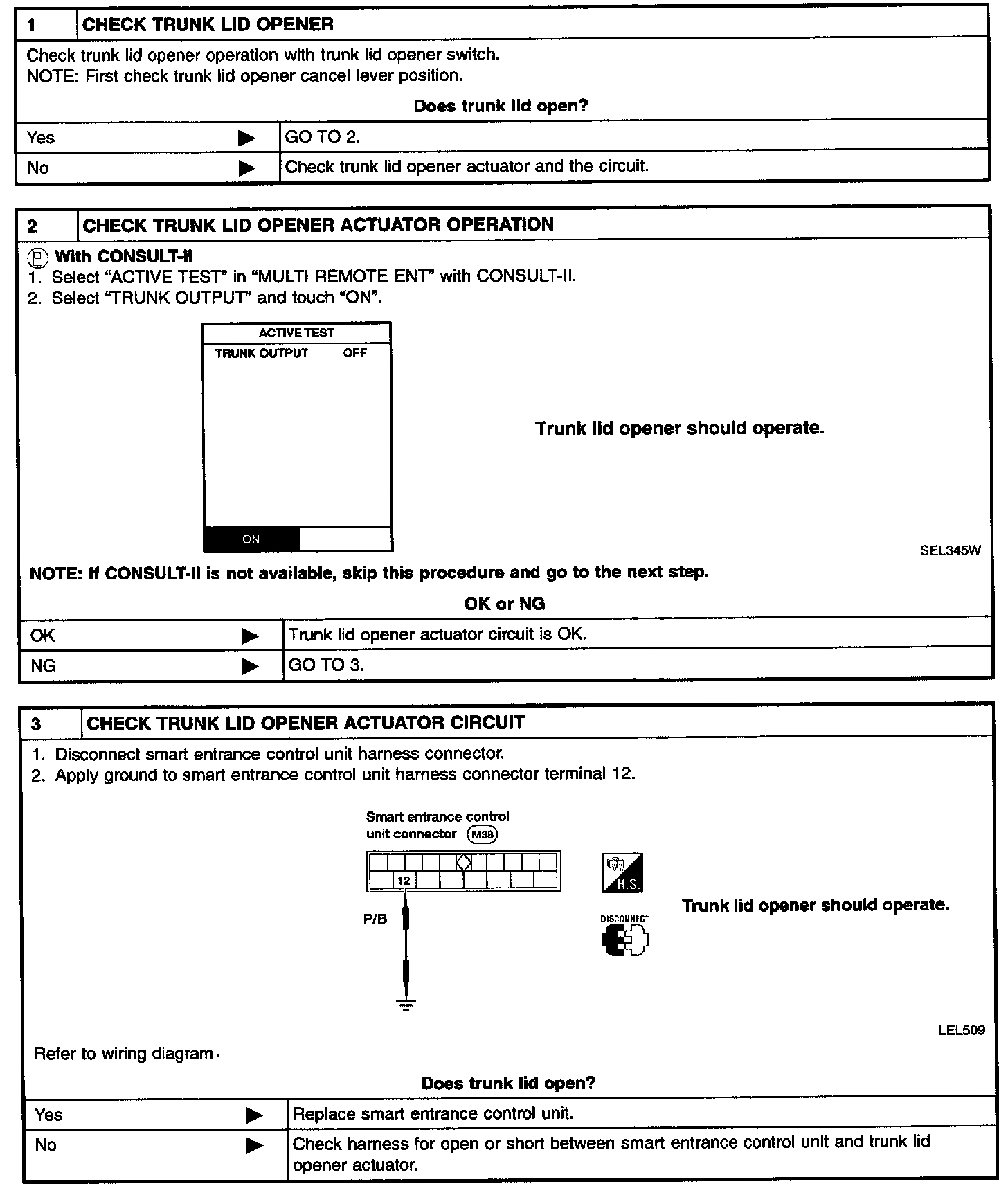

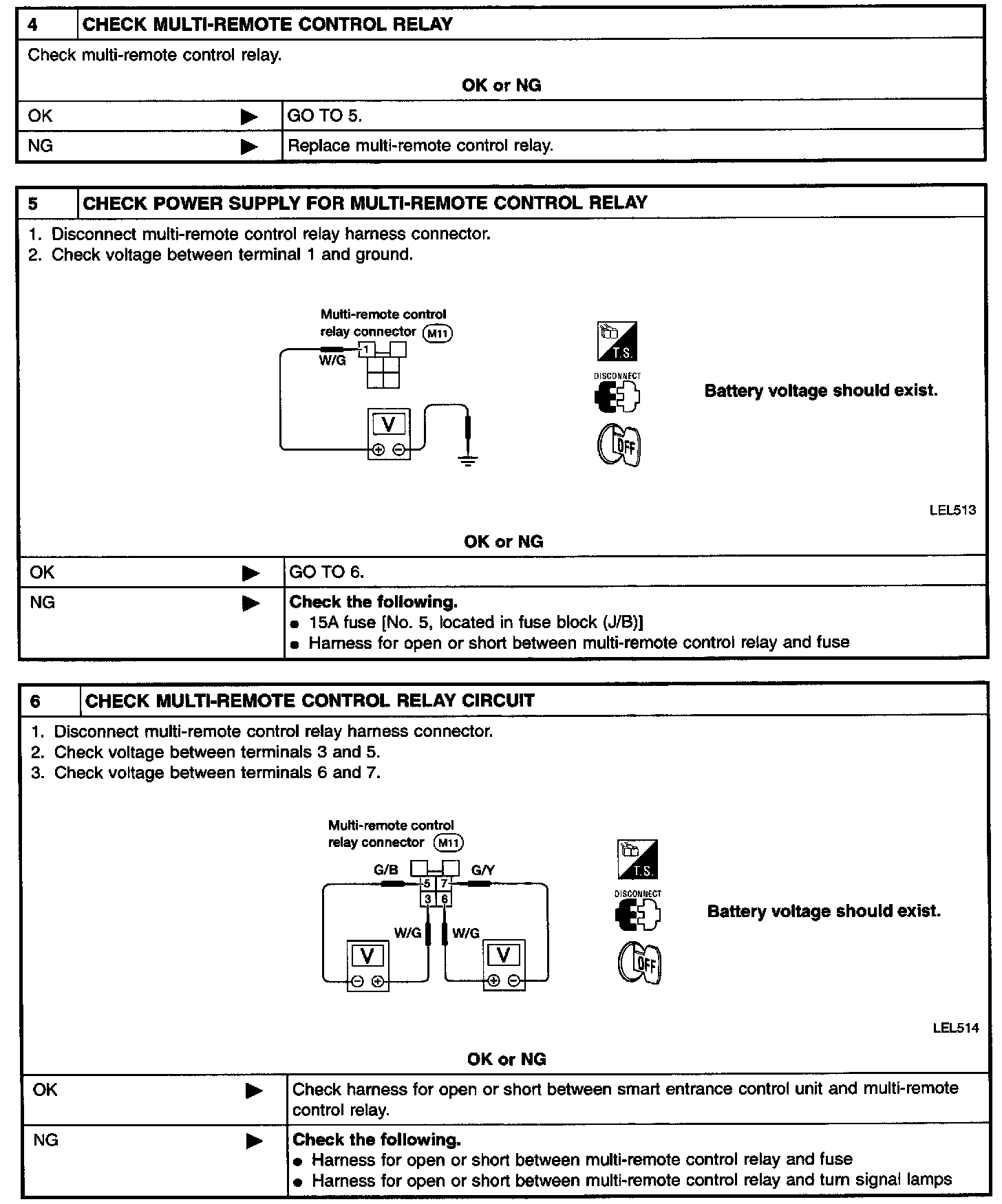

TRUNK LID OPENER ACTUATOR CHECK

Steps 1 - 3:

Steps 4 - 6:

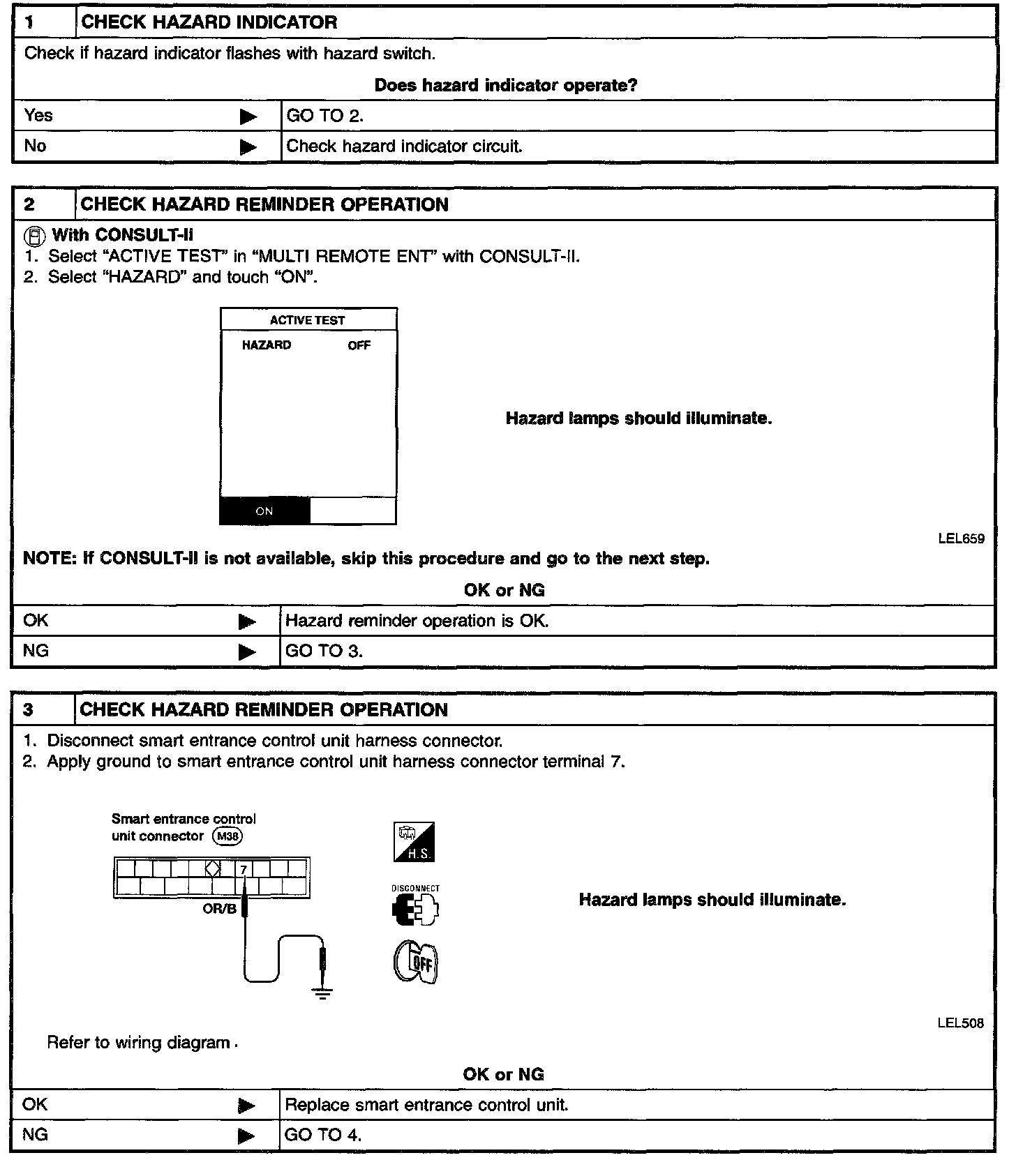

HAZARD REMINDER CHECK

Steps 1 - 3:

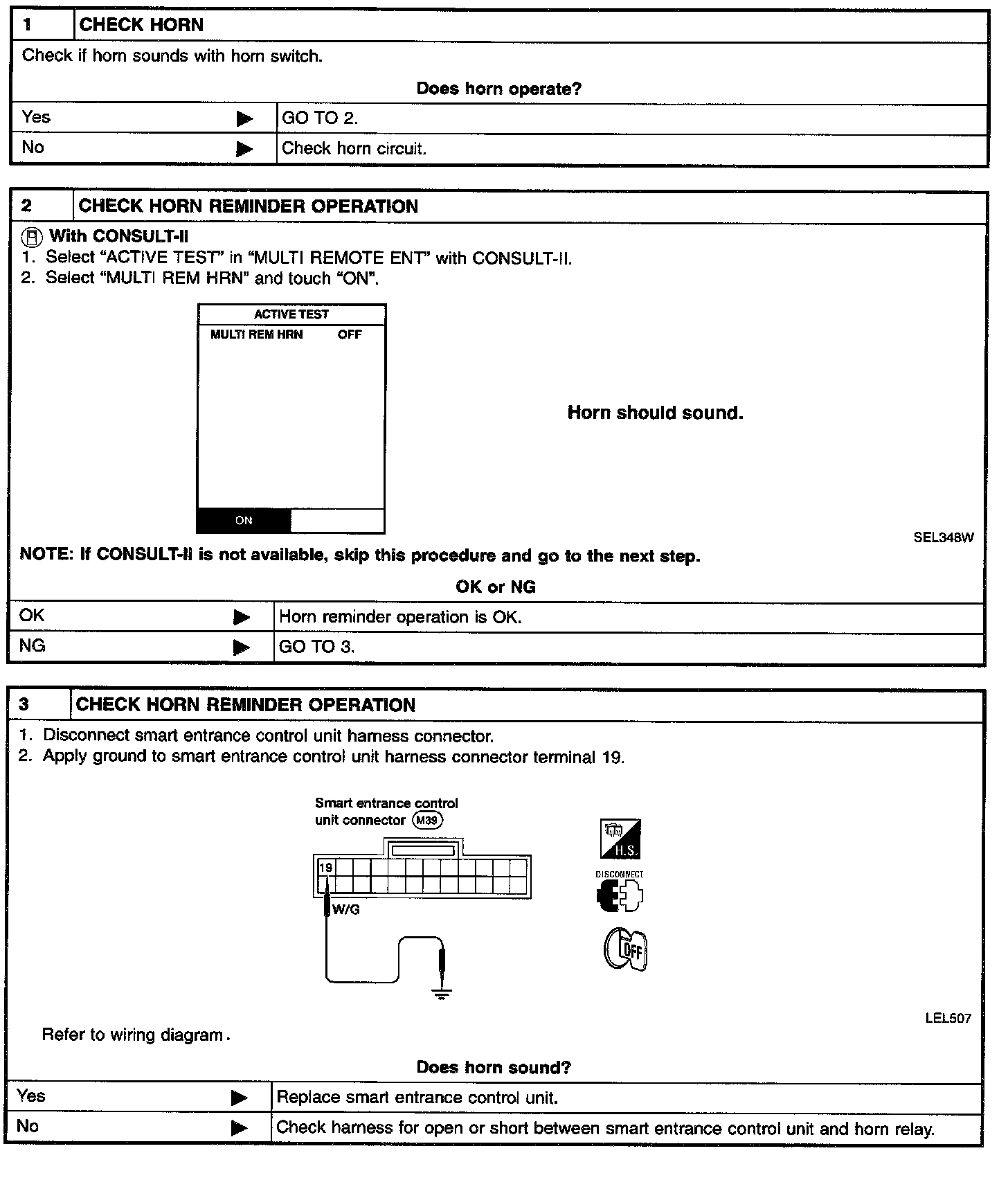

HORN REMINDER CHECK

Steps 1 - 2:

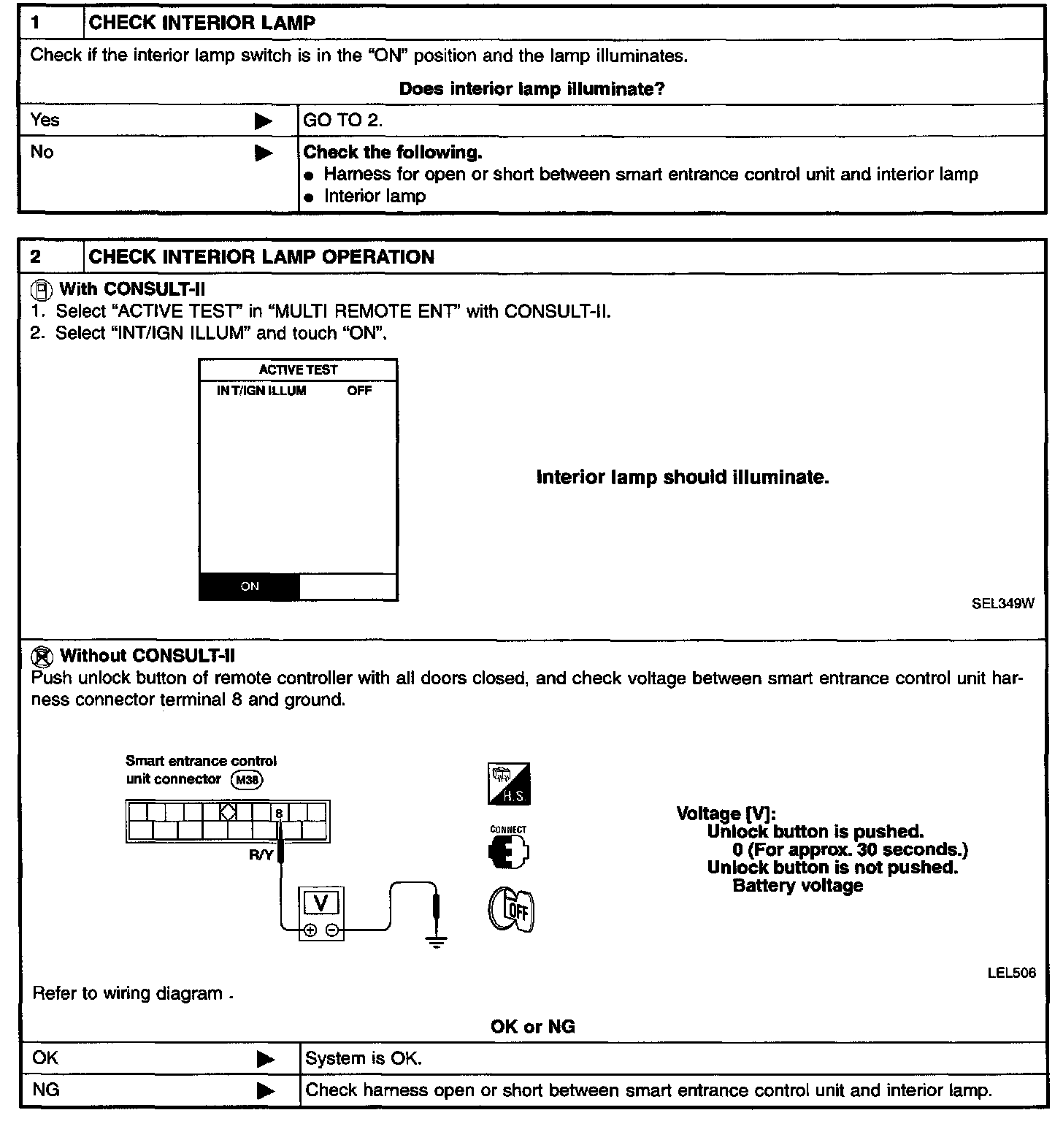

INTERIOR LAMP OPERATION CHECK
