Wiring Diagram Codes

Part 1 Of 2:




Part 2 Of 2:

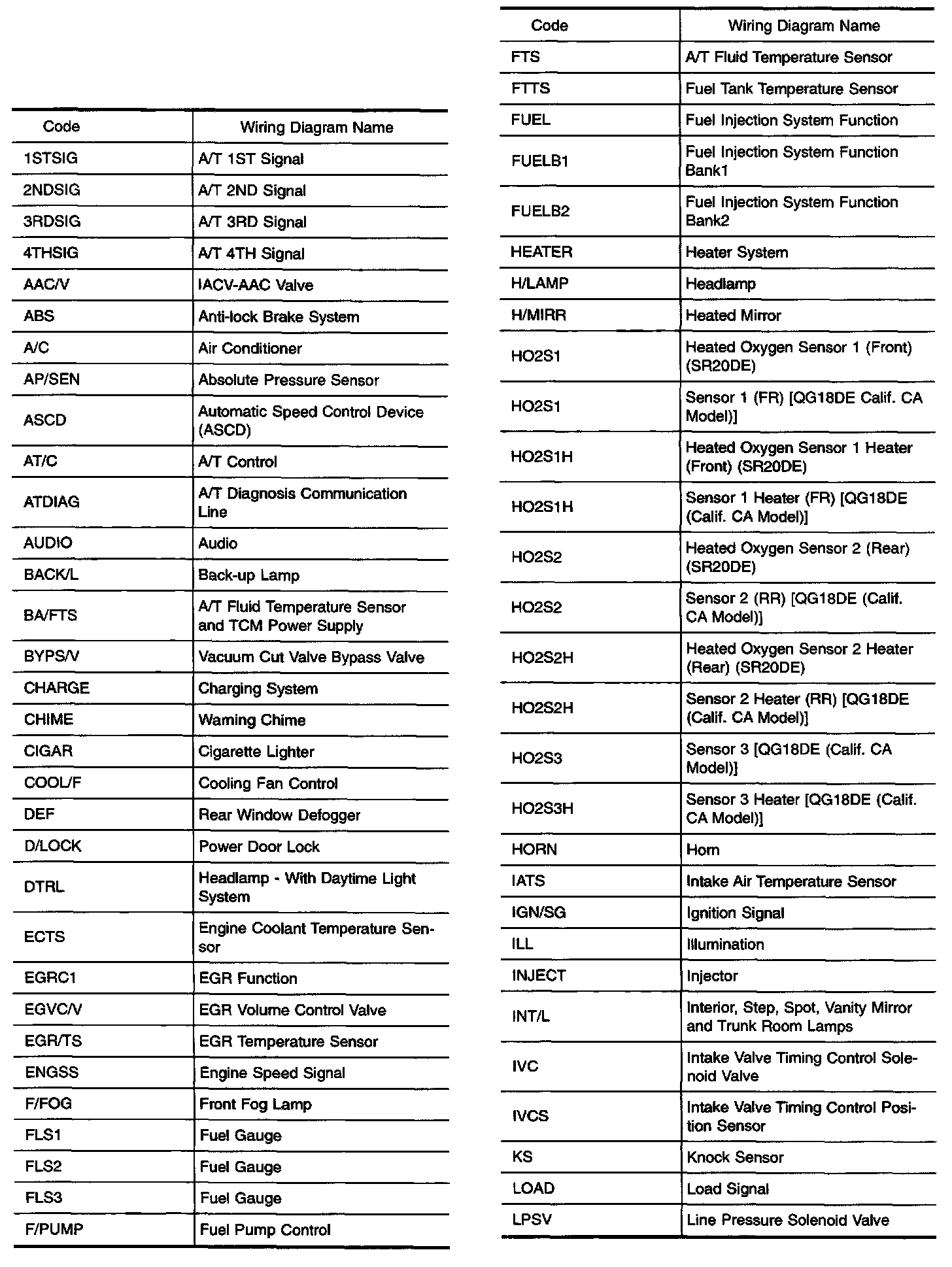

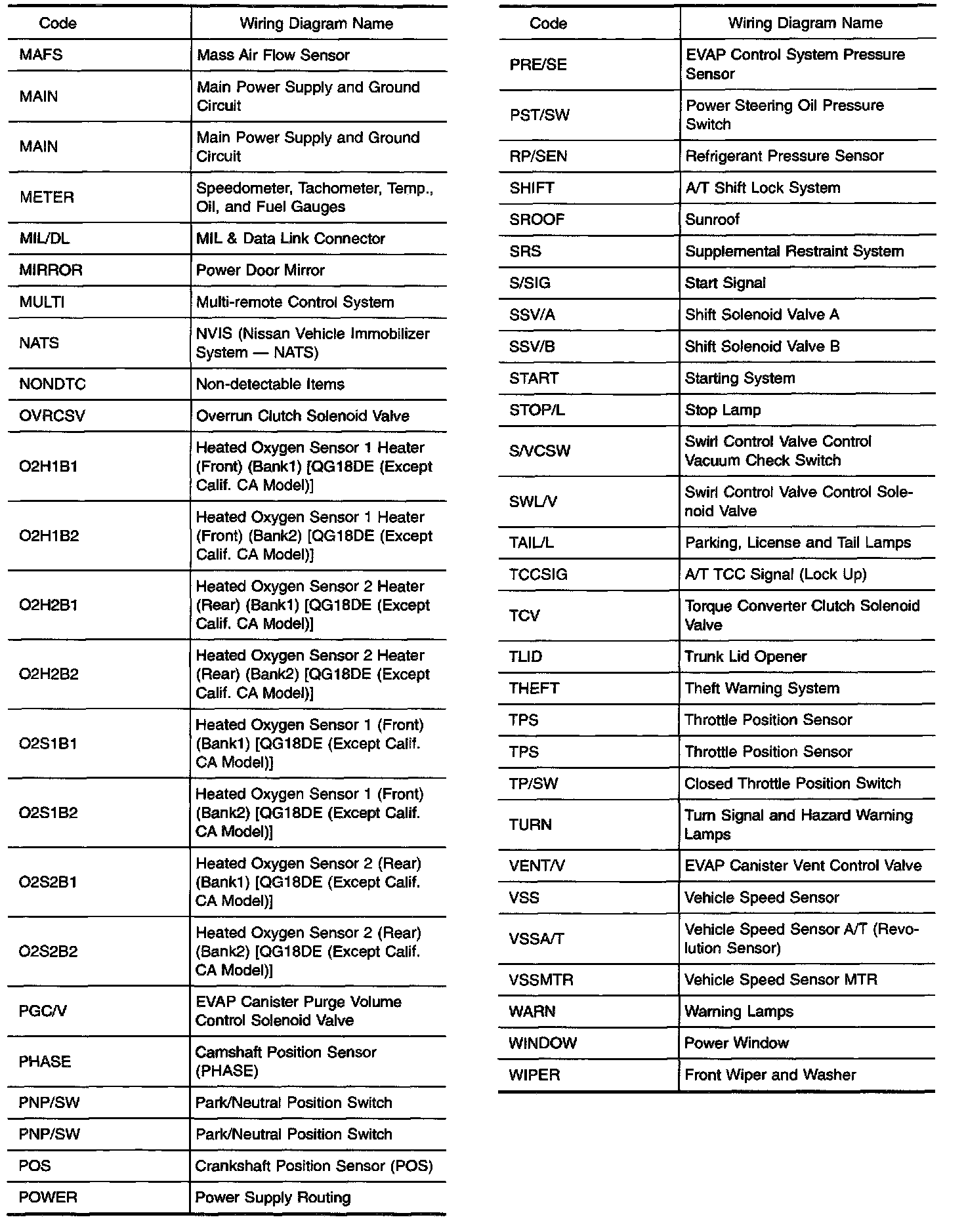

Use the chart to find out what each wiring diagram code stands for.
Refer to the wiring diagram code in the alphabetical index to find the location (page number) of each Wiring Diagram.
