Charging System: Service and Repair

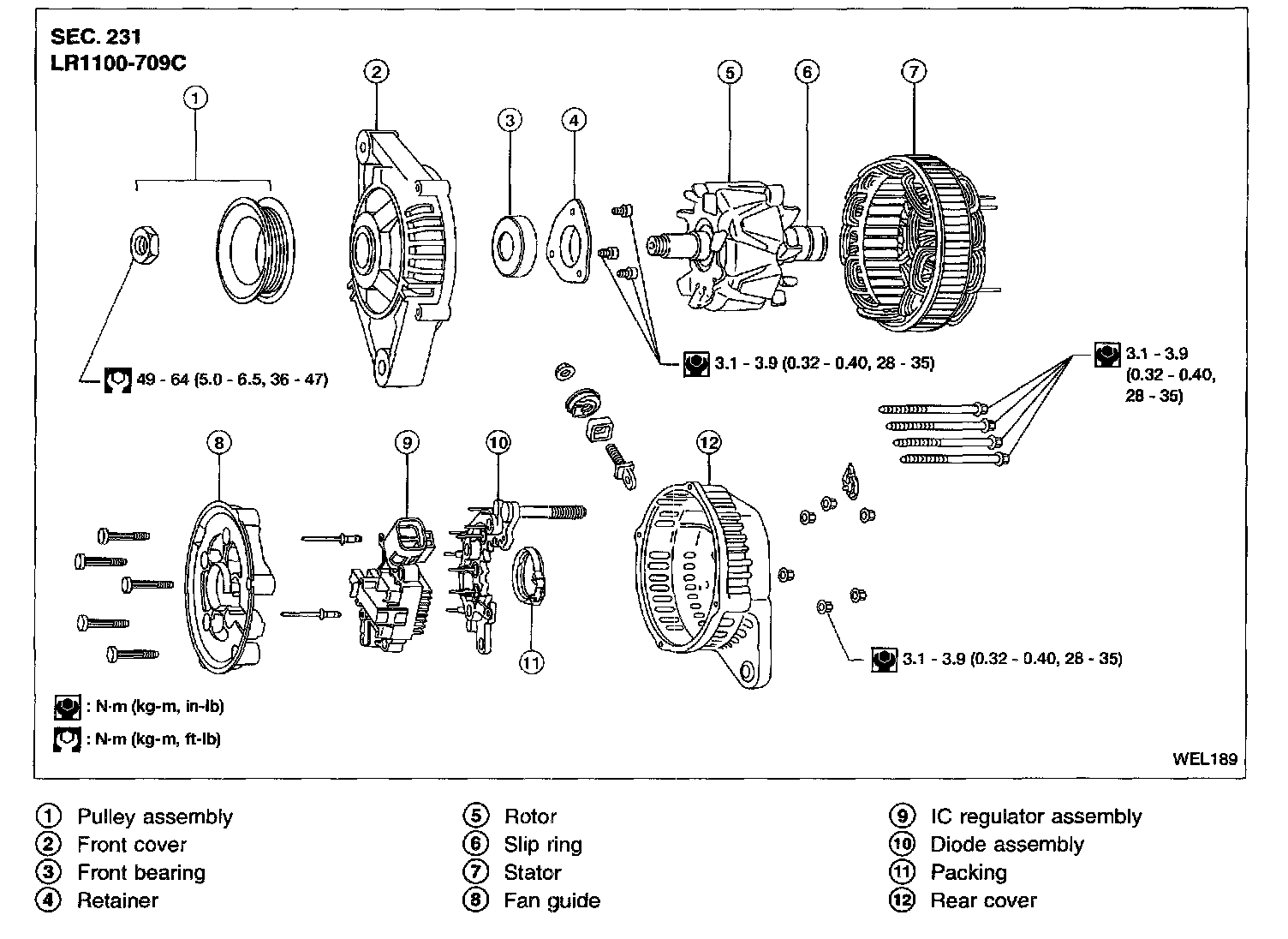

Construction:

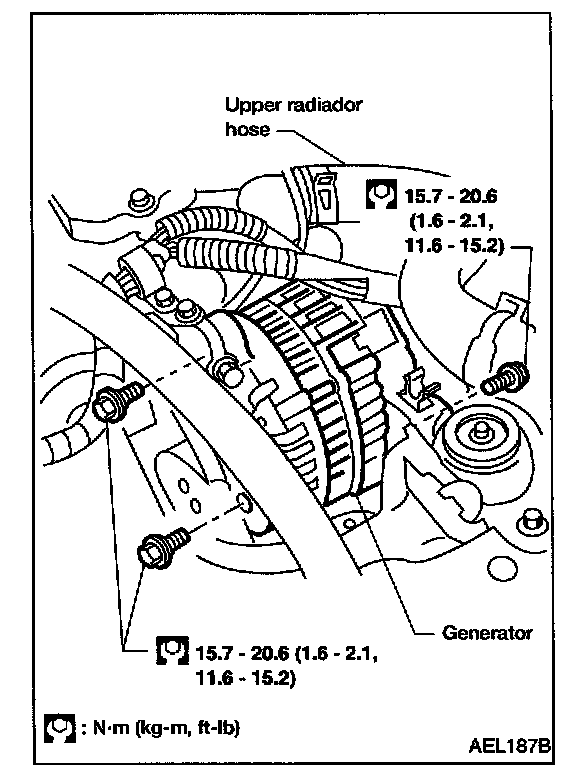

ConstructionREMOVAL 1.
Drain the cooling system.
2.
Remove upper radiator hose.
3.
Disconnect harness connectors, harness stay and harness to A/C compressor.
4.
Release accelerator wire.
5.
Back off adjustment bolt, remove belt.
6.
Remove three generator bolts and generator.
INSTALLATIONTo install, reverse the removal procedure.
