Starting System: Service and Repair

Construction:

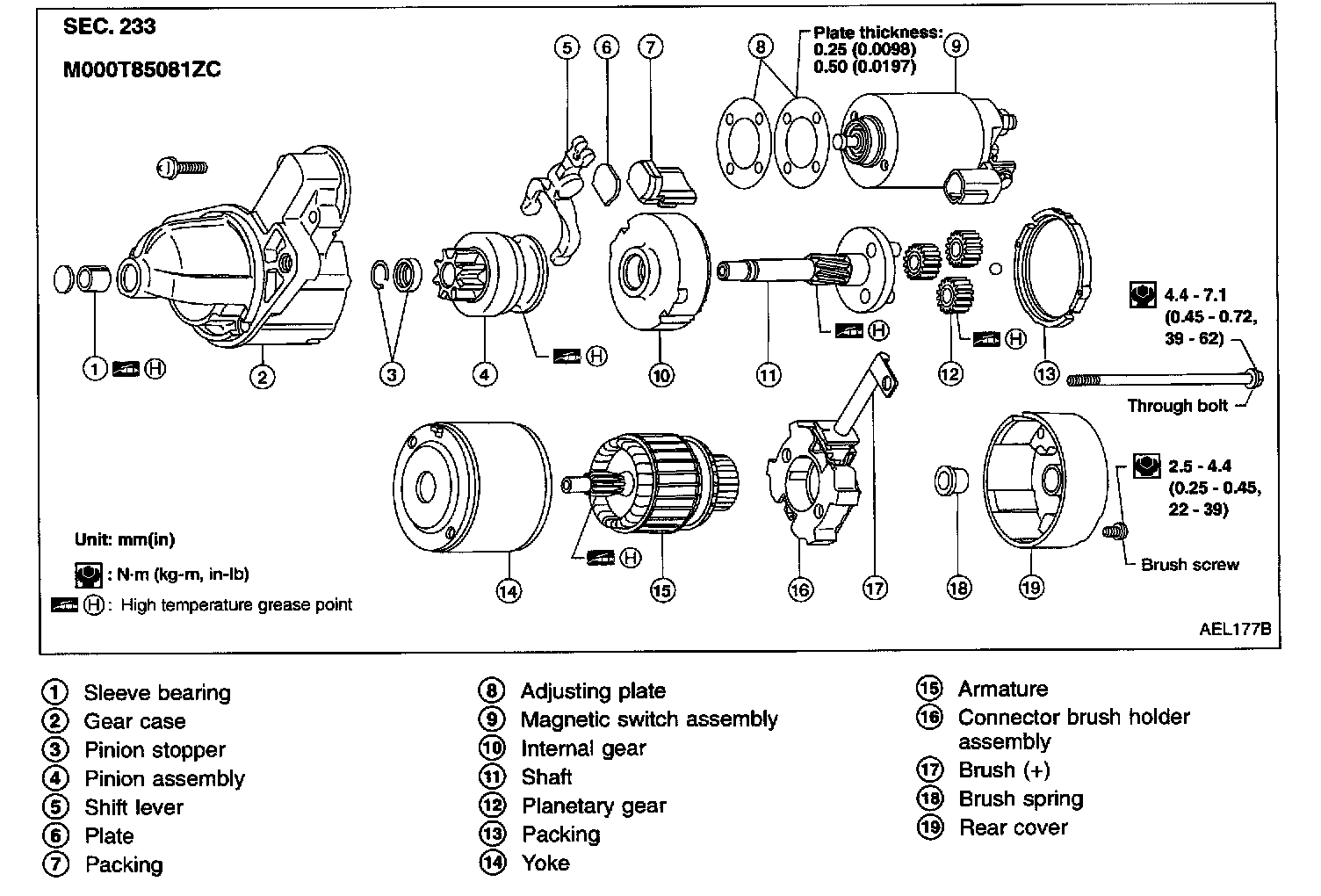

Construction

REMOVAL
1. Remove air inlet tube.
2. Remove harness bracket.
3. Disconnect starter.

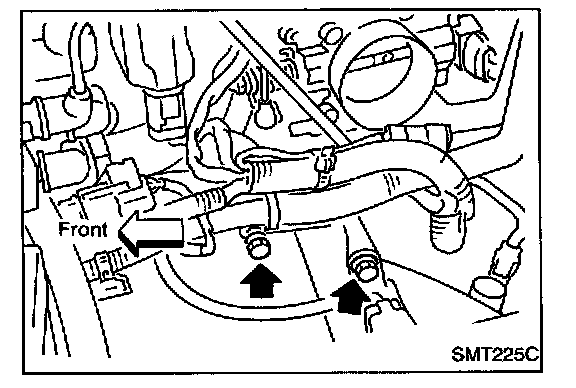

4. Remove two bolts and starter.

INSTALLATION
To install, reverse the removal procedure.
